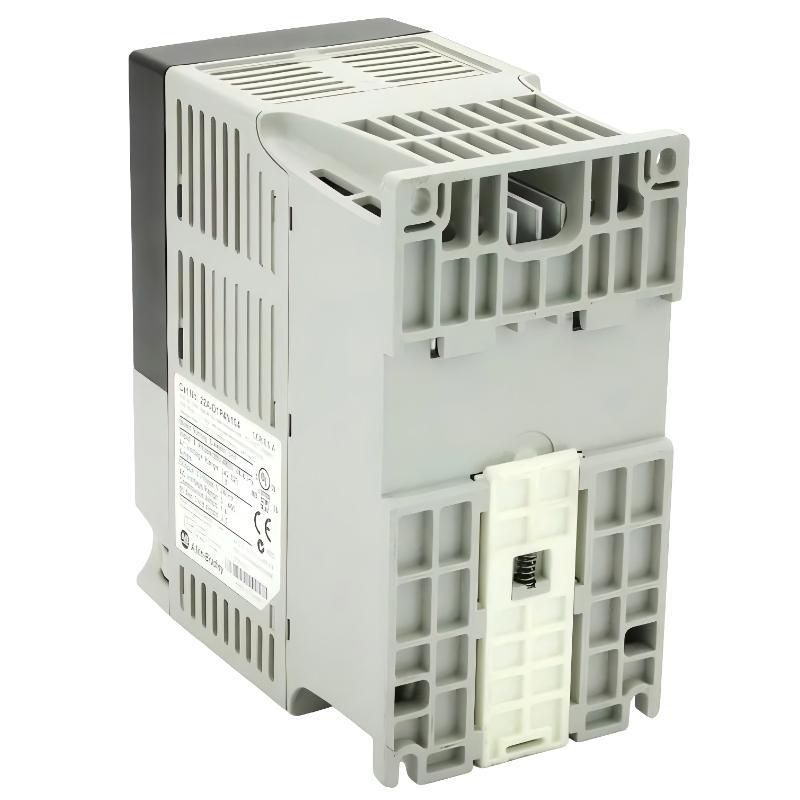

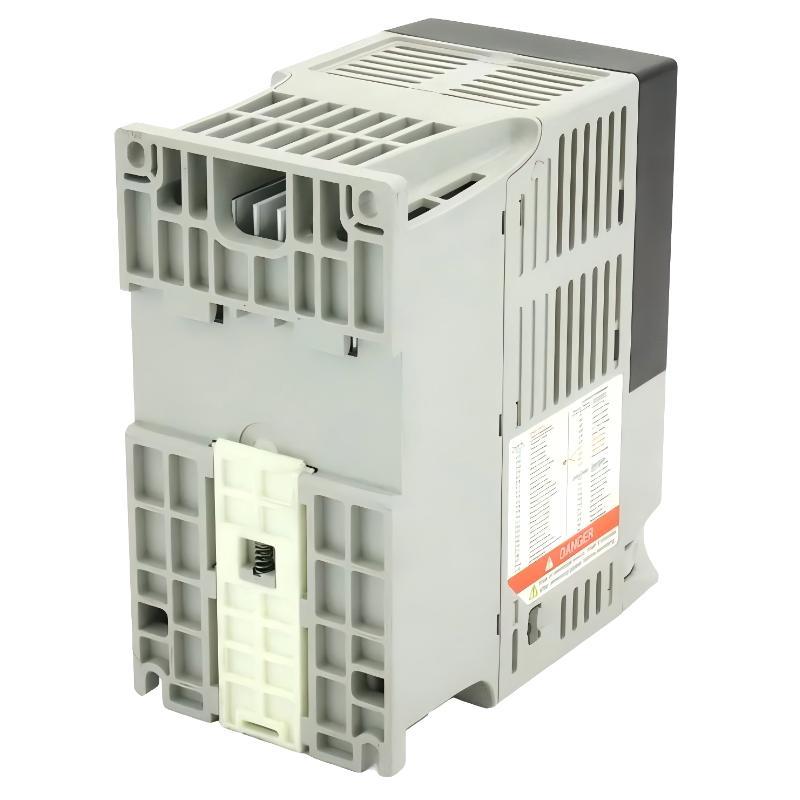

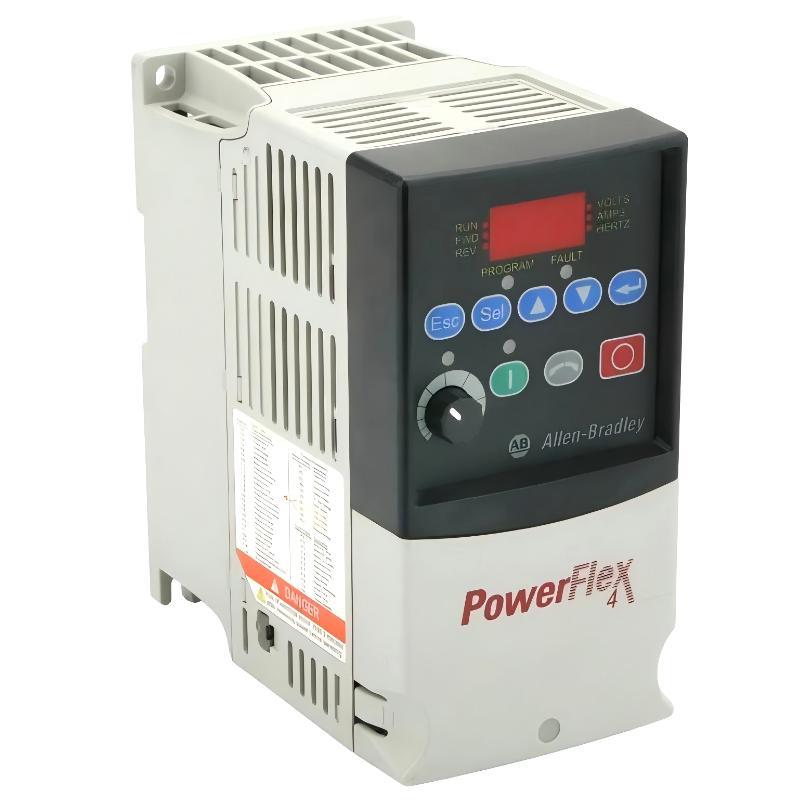

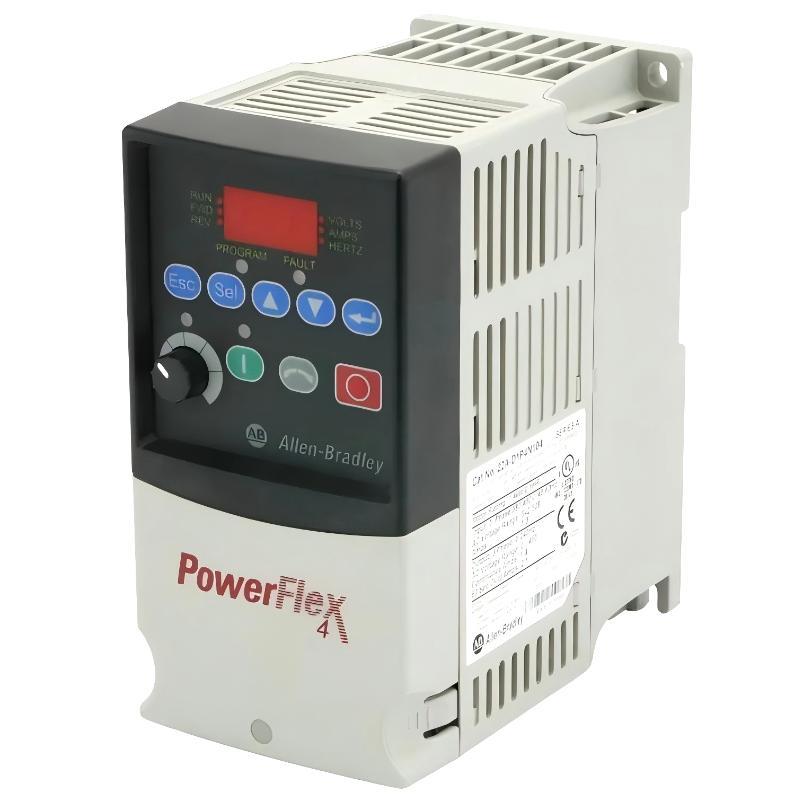

Allen Bradley 22A-D1P4N104 PowerFlex 4 AC Drive

Overview

The Allen Bradley 22A-D1P4N104 is a PowerFlex 4 AC drive designed for compact and efficient motor speed control applications. It provides reliable frequency regulation, simple setup, and flexible operation for industrial machines and automation equipment.

General Information

Brand: Allen Bradley

Country of Origin: USA

Part Number: 22A-D1P4N104

Series: PowerFlex 4

Type: AC Drive / Variable Frequency Drive

Application: Motor speed control and industrial automation systems

Input Phase: Three-phase

Frame Size: Frame A

Dimensions: 152 × 80 × 136 mm

Weight: 1.4 kg

Power Specifications

Input Voltage: 380 to 480V AC

Output Power: 0.75 HP class drive

Rated Current: Designed for compact motor control applications

Motor Control Method: Adjustable frequency control with programmable acceleration and deceleration functions

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Cooling Method: Natural air cooling design

Communication & Interface

Control Interface: Digital and analog terminal control

Communication Type: RS-485 communication interface support

Programming Interface: Local keypad for parameter setup and monitoring

Input Signals: Start/stop commands, speed reference, and digital control inputs

Output Signals: Drive status indication and operating feedback

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet and machine applications

Protection Rating: IP20 enclosure for cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 152 × 80 × 136 mm

Weight: 1.4 kg
