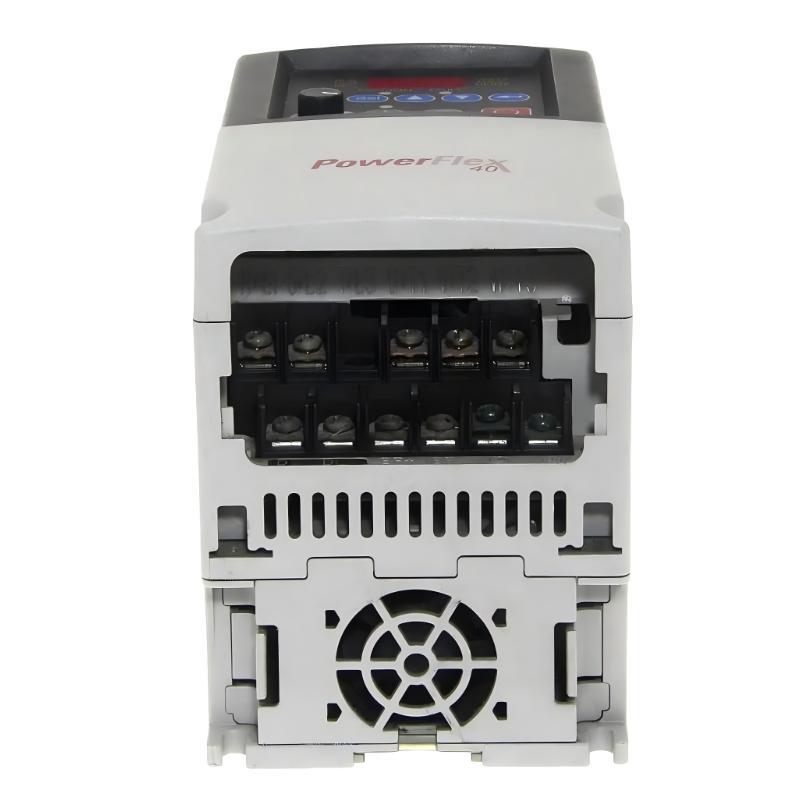

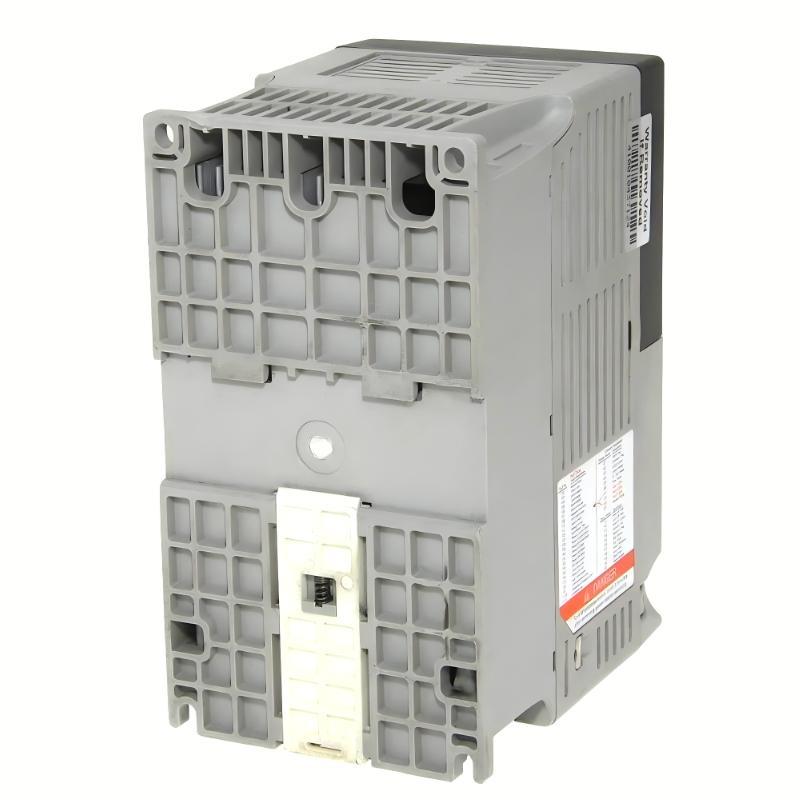

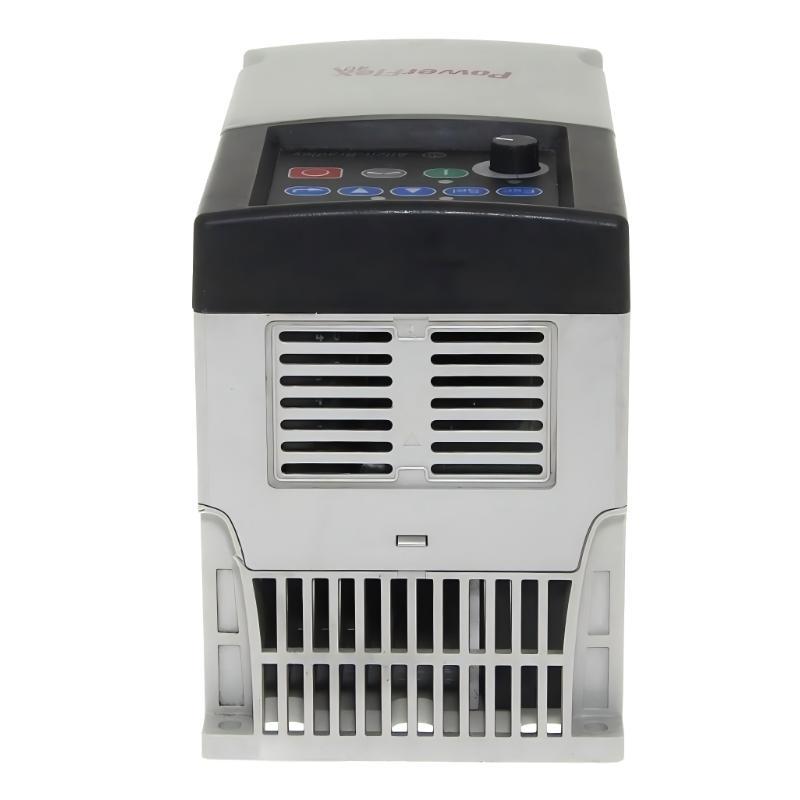

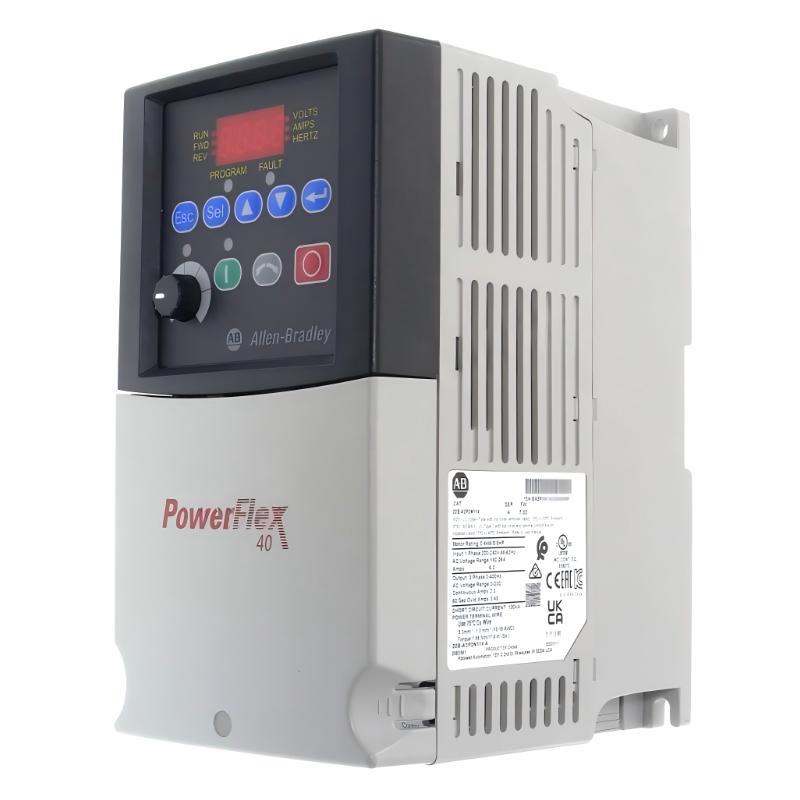

Allen Bradley 22B-A2P3N114 PowerFlex 40 AC Drive

Overview

The Allen Bradley 22B-A2P3N114 is a PowerFlex 40 AC drive designed for reliable motor speed control and flexible automation applications. It provides efficient variable frequency operation, easy configuration, and stable performance for industrial machines and process equipment.

General Information

Brand: Allen Bradley

Country of Origin: USA

Part Number: 22B-A2P3N114

Series: PowerFlex 40

Type: AC Drive / Variable Frequency Drive

Application: Motor speed control and industrial automation systems

Input Phase: Single-phase

Frame Size: Frame B

Dimensions: 180 × 100 × 136 mm

Weight: 2.2 kg

Power Specifications

Input Voltage: 200 to 240V AC

Output Power: 1 HP class drive

Rated Current: Designed for compact motor control applications

Motor Control Method: Adjustable frequency control with programmable speed regulation

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Cooling Method: Air cooling design for reliable operation

Communication & Interface

Control Interface: Digital and analog control terminals

Communication Type: RS-485 communication interface support

Programming Interface: Local keypad for parameter configuration and monitoring

Input Signals: Start/stop commands, speed reference, and programmable digital inputs

Output Signals: Drive status monitoring and operating feedback

Network Support: Supports industrial communication integration for automation systems

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet and machine applications

Protection Rating: IP20 enclosure for cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 180 × 100 × 136 mm

Weight: 2.2 kg
