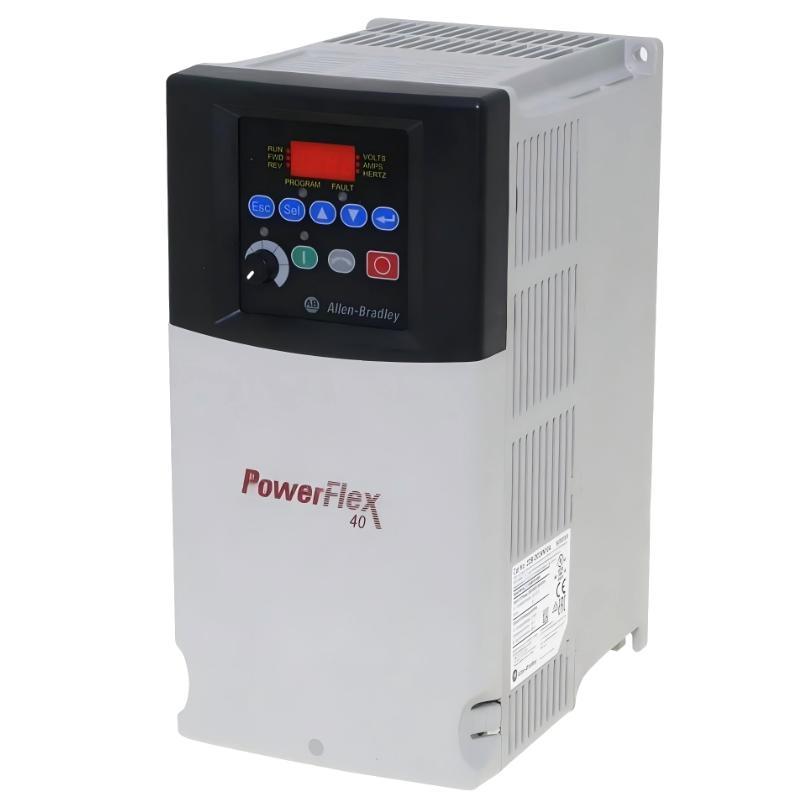

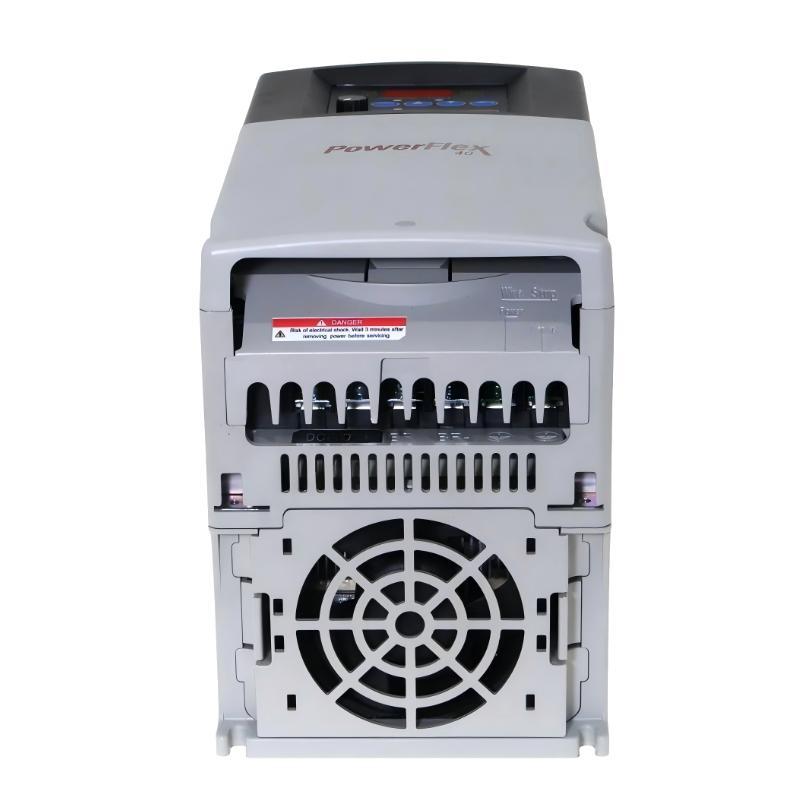

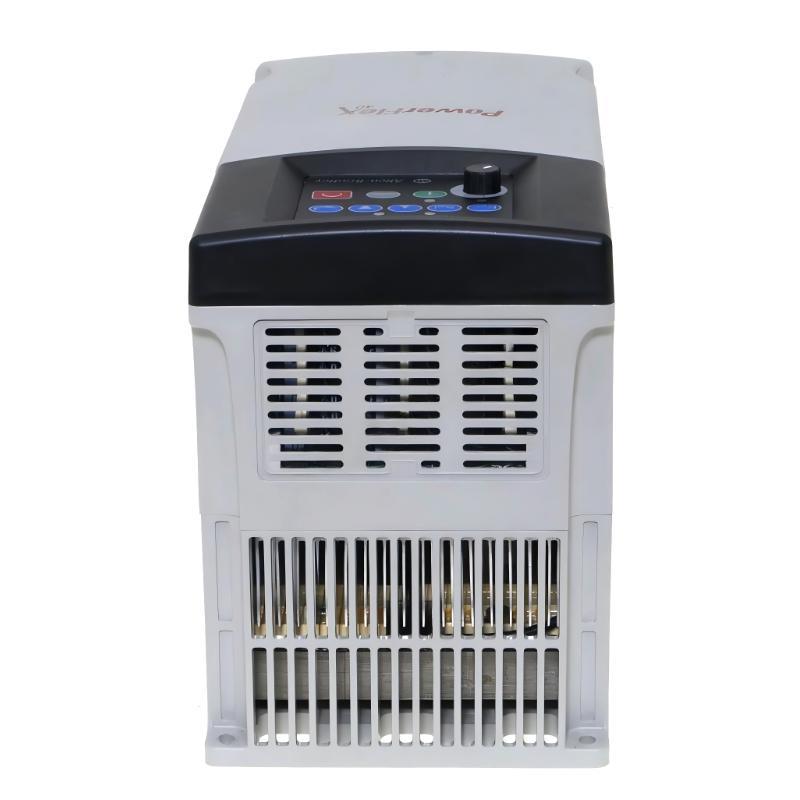

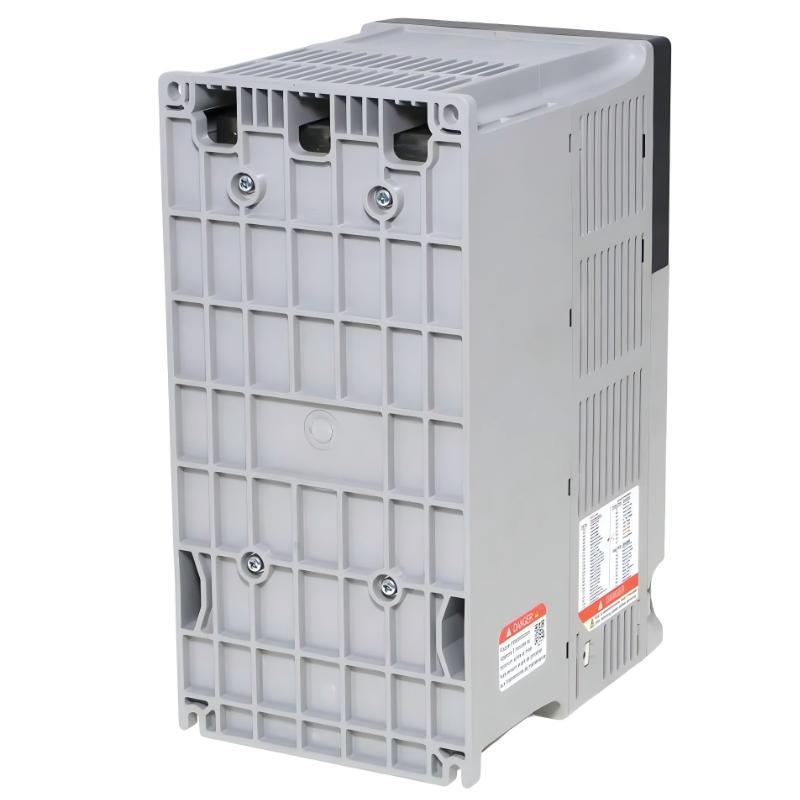

Allen Bradley 22B-D024N104 PowerFlex 40 AC Drive

Overview

The Allen Bradley 22B-D024N104 is a PowerFlex 40 AC drive designed for reliable motor speed control in industrial automation systems. It provides efficient variable frequency operation, flexible programming, and stable performance for demanding machine applications, conveyors, pumps, and process equipment.

General Information

Brand: Allen Bradley

Country of Origin: USA

Part Number: 22B-D024N104

Series: PowerFlex 40

Type: AC Drive / Variable Frequency Drive

Application: Motor speed control and industrial automation systems

Input Phase: Three-phase

Frame Size: Frame C

Dimensions: 260 × 130 × 180 mm

Weight: 4.3 kg

Power Specifications

Input Voltage: 380 to 480V AC

Output Power: 15 HP class drive

Rated Current: Designed for medium-duty industrial motor applications

Motor Control Method: Adjustable frequency control with programmable acceleration and deceleration functions

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Cooling Method: Forced air cooling design for stable continuous operation

Communication & Interface

Control Interface: Digital and analog control terminals

Communication Type: RS-485 communication interface support

Programming Interface: Local keypad for parameter configuration and monitoring

Input Signals: Start/stop commands, speed reference, and programmable digital inputs

Output Signals: Drive status monitoring and operating feedback

Network Support: Supports industrial communication options for system integration

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet and machine applications

Protection Rating: IP20 enclosure for cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 260 × 130 × 180 mm

Weight: 4.3 kg
