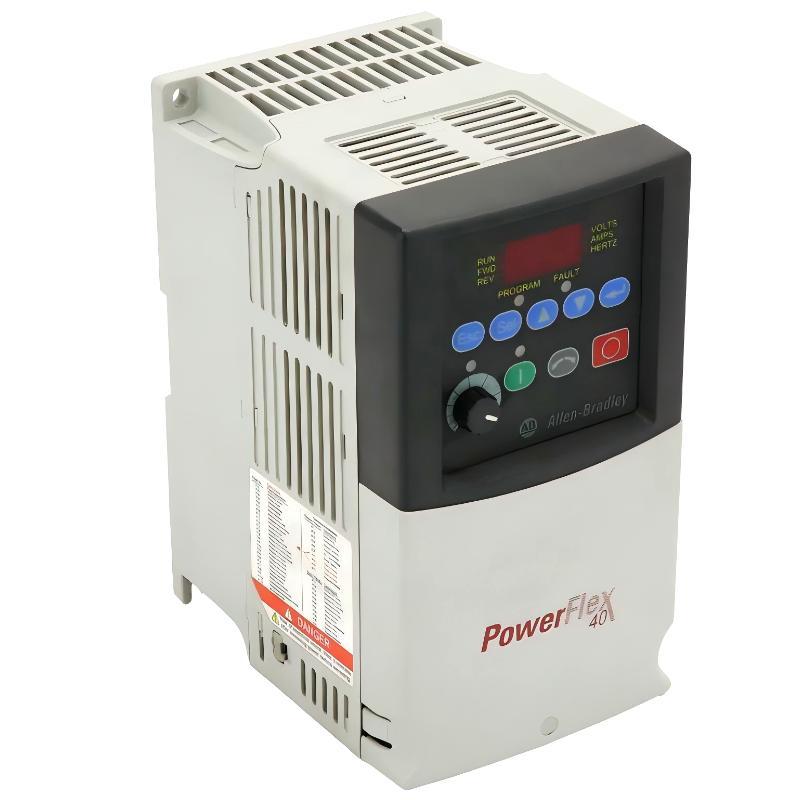

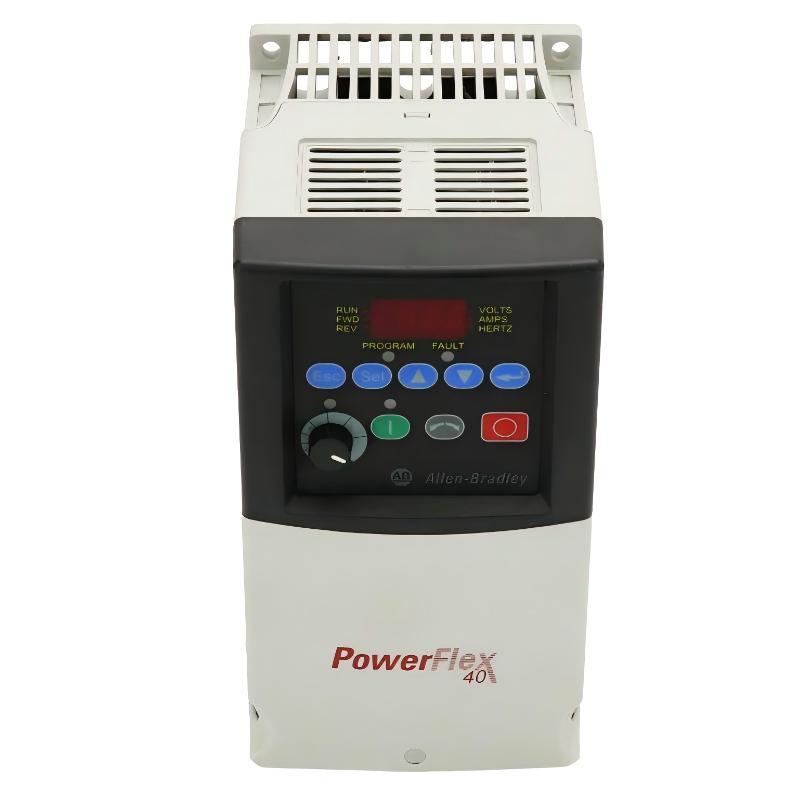

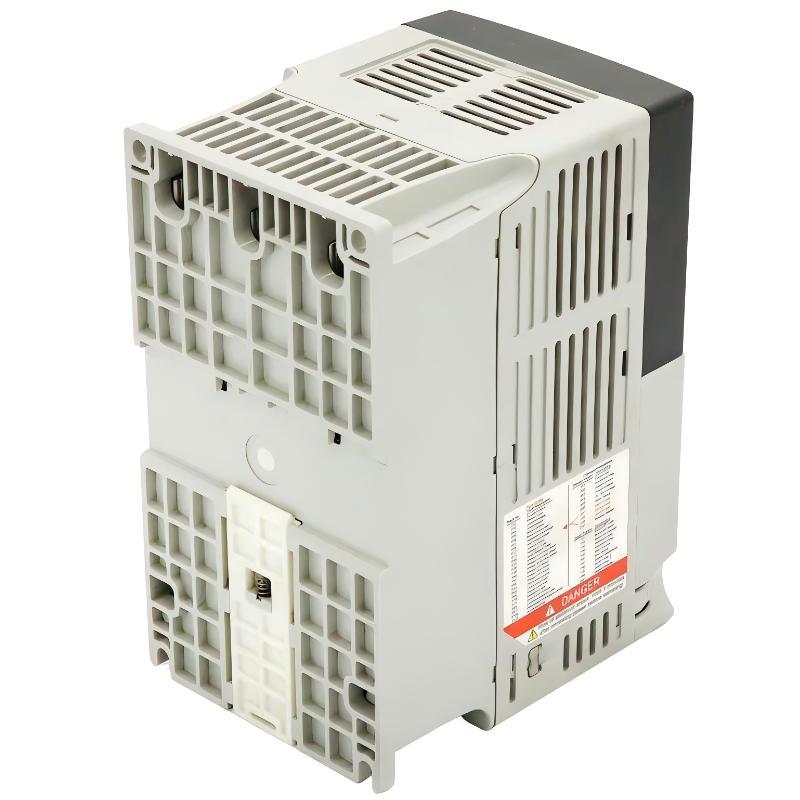

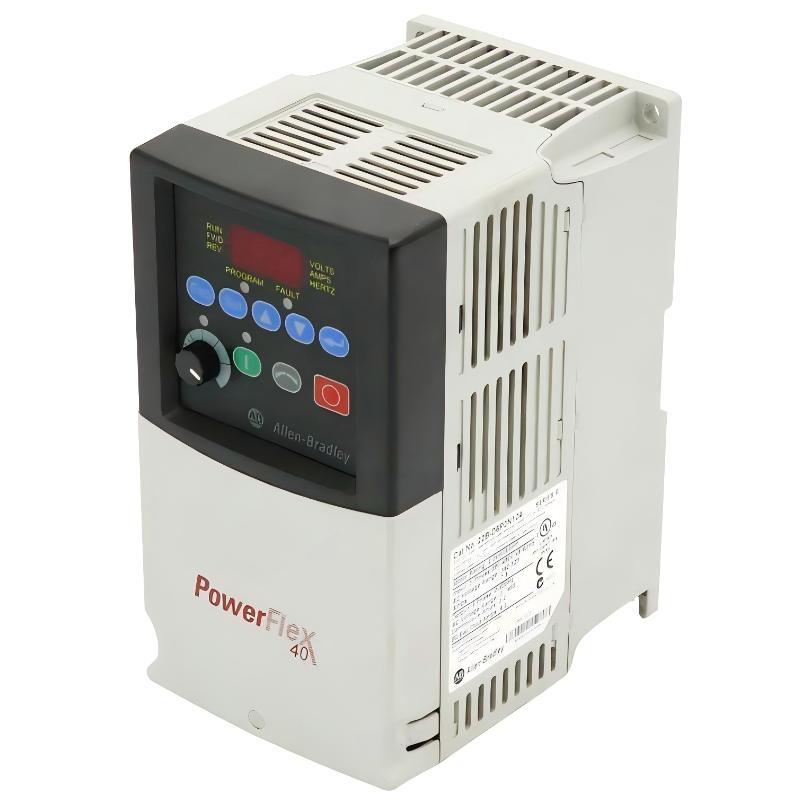

Allen Bradley 22B-D6P0N104 PowerFlex 40 AC Drive

Overview

The Allen Bradley 22B-D6P0N104 PowerFlex 40 AC Drive is a compact variable frequency drive designed for dependable motor speed control in industrial automation systems. It provides flexible configuration, efficient operation, and integrated protection functions for applications such as conveyors, pumps, fans, and machine equipment.

The drive supports easy parameter setup, reliable performance, and built-in diagnostics to improve system efficiency and operational stability.

General Information

Part Number: 22B-D6P0N104

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex 40

Type: AC Variable Frequency Drive

Application: General-purpose motor control

Mounting: Panel mounting

Control Method: Sensorless vector control and V/Hz control

Motor Compatibility: Three-phase AC induction motors

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Power Specifications

Input Voltage: 480 V AC

Input Phase: Three-phase

Output Power: 5.5 kW

Output Current: Approx. 12.0 A

Output Frequency: 0 to 400 Hz

Control Voltage: 24 V DC digital inputs

Motor Protection: Electronic overload protection

Drive Technology: PWM inverter control for smooth and efficient motor operation

Communication & Interface

Communication Interface: RS-485 serial communication port

Communication Protocol: Modbus RTU

Programming Interface: Integrated keypad and parameter configuration

Digital Inputs: Programmable inputs for start, stop, and control functions

Analog Inputs: Configurable speed reference input

Outputs: Programmable relay and analog output signals

Diagnostics: Fault monitoring, alarm indication, and operating status feedback

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 0 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet applications

Altitude: Up to 1000 m without derating

Cooling Method: Air cooling

Dimensions & Weight

Dimensions (L × W × H): 180 × 100 × 136 mm

Weight: 2.2 kg
