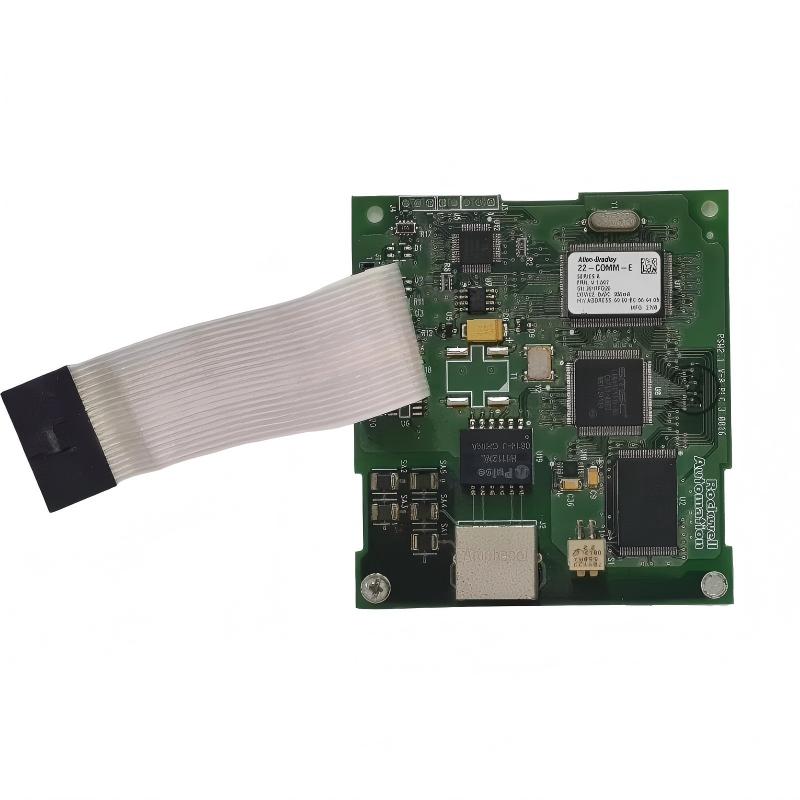

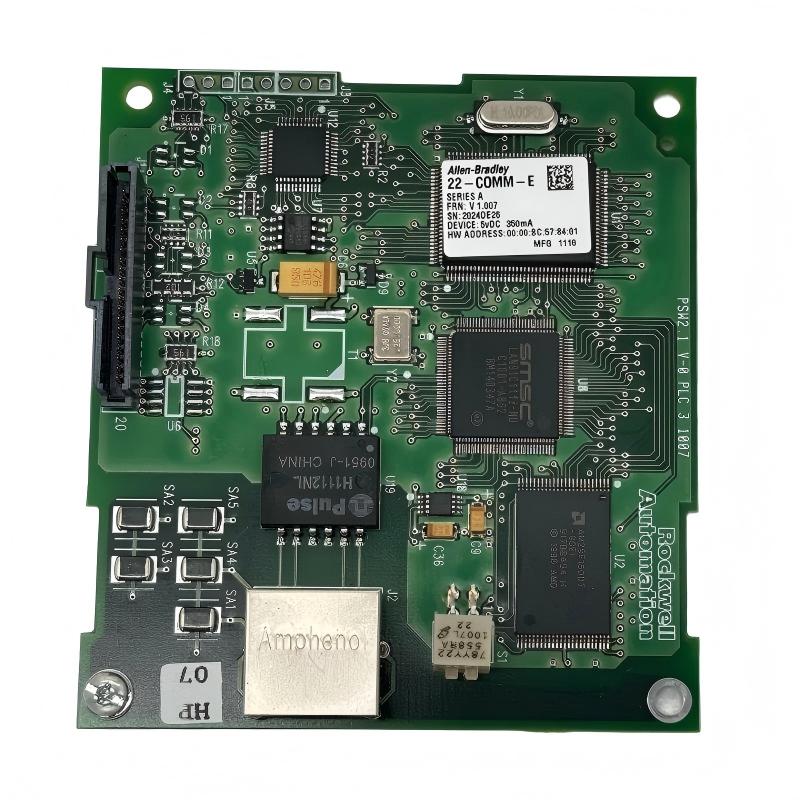

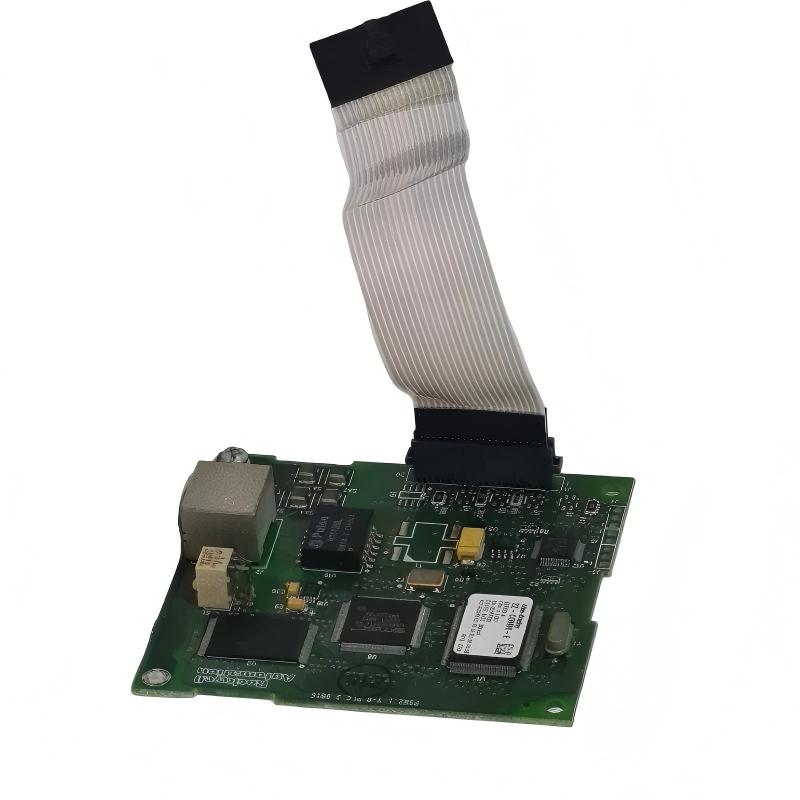

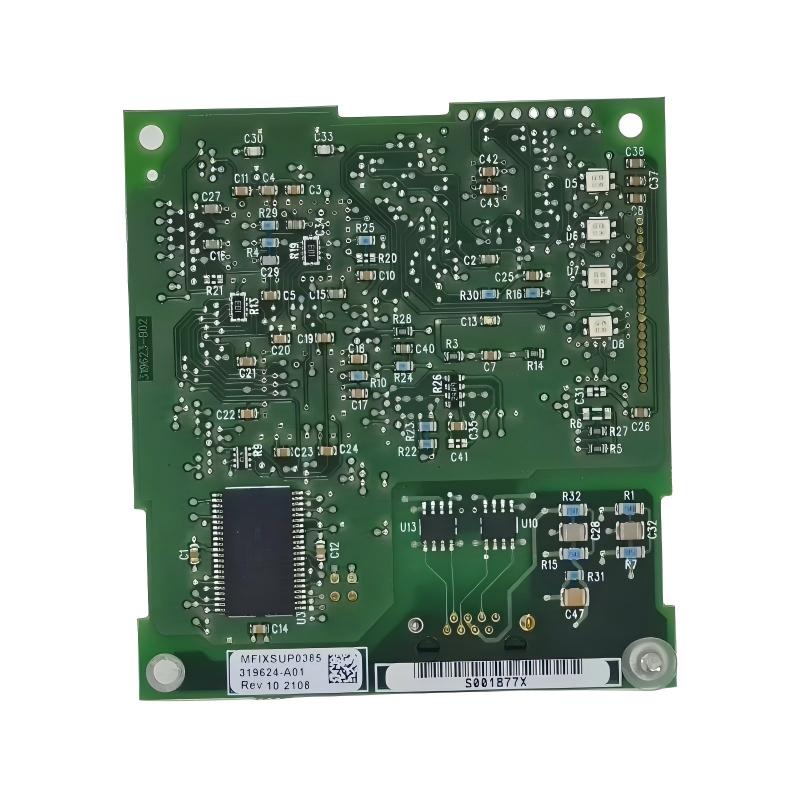

Allen Bradley 22-COMM-E EtherNet/IP Adapter Module

Overview

The Allen Bradley 22-COMM-E EtherNet/IP Adapter Module is a communication interface module designed to provide EtherNet/IP network connectivity for PowerFlex AC drives. It enables drive integration into industrial Ethernet systems, allowing users to monitor, configure, and control drive parameters through network communication.

The module supports efficient data exchange, remote diagnostics, and seamless connection with automation controllers for improved system management.

General Information

Part Number: 22-COMM-E

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex Communication Adapter

Type: EtherNet/IP Adapter Module

Application: Network communication interface for AC drives

Mounting: Drive-mounted installation

Compatible Devices: PowerFlex AC drives

Communication Technology: Industrial Ethernet communication

Functions: Remote monitoring, drive configuration, and control data exchange

Power Specifications

Power Supply: Supplied from connected drive

Input Voltage: Drive backplane power

Power Consumption: Low power consumption design

Protection Features: Communication fault monitoring and diagnostic protection

Status Indicators: LED indicators for network, module, and drive status

Communication & Interface

Communication Interface: EtherNet/IP port

Network Protocol: EtherNet/IP

Data Transfer: Cyclic I/O messaging and explicit messaging

Configuration: Software-based parameter setup

Network Functions: Drive control, parameter access, and diagnostic monitoring

Connection Method: RJ45 Ethernet connection

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 0 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet environment

Protection Rating: IP20

Cooling Method: Natural air cooling

Dimensions & Weight

Dimensions (L × W × H): 86 × 19 × 78.5 mm

Weight: 0.05 kg

Available Now – Efficient Connectivity for Industrial Automation Systems!
