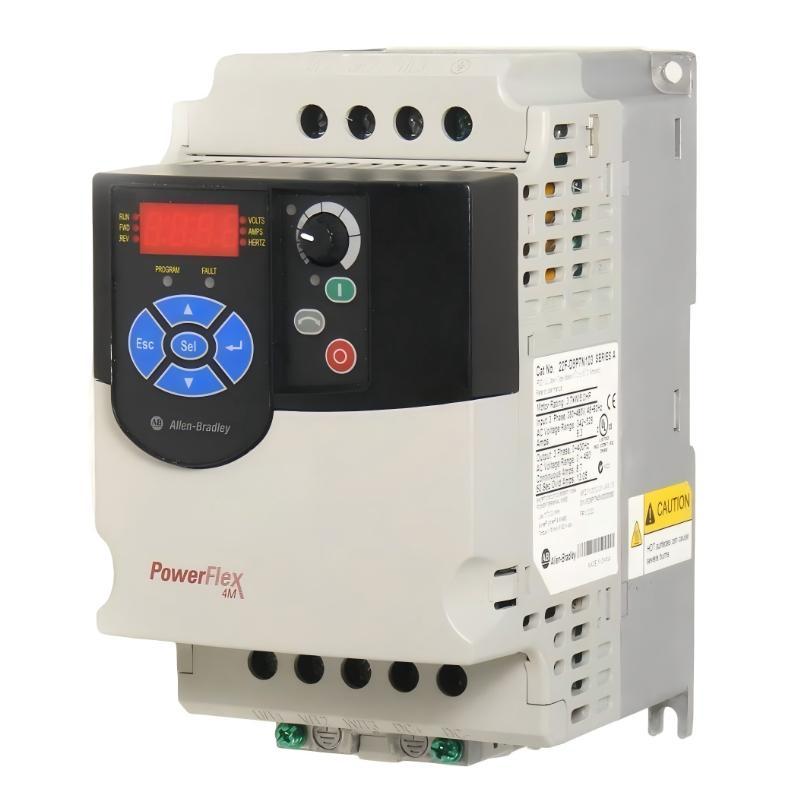

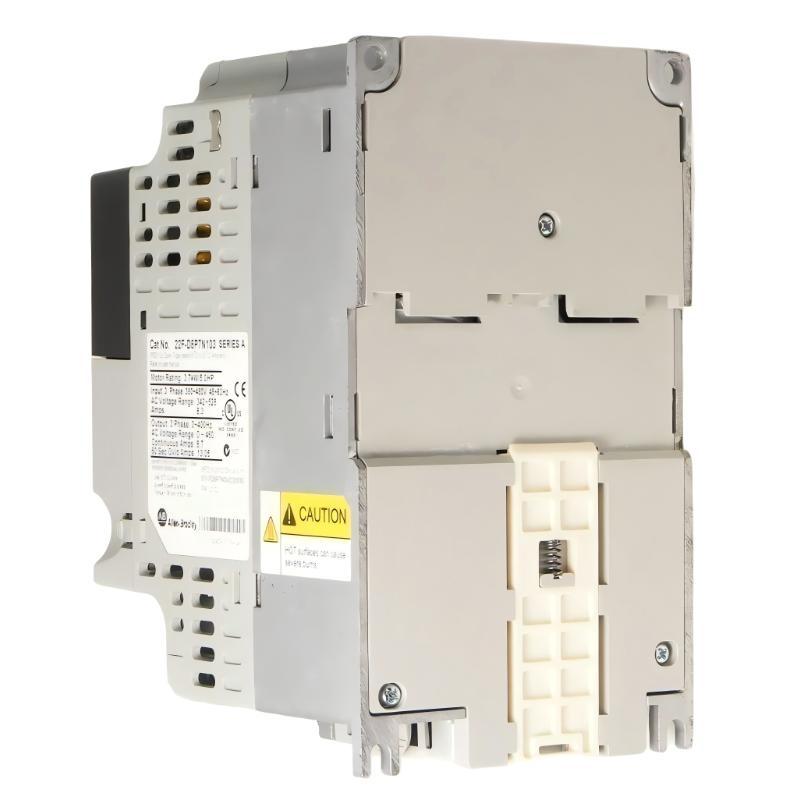

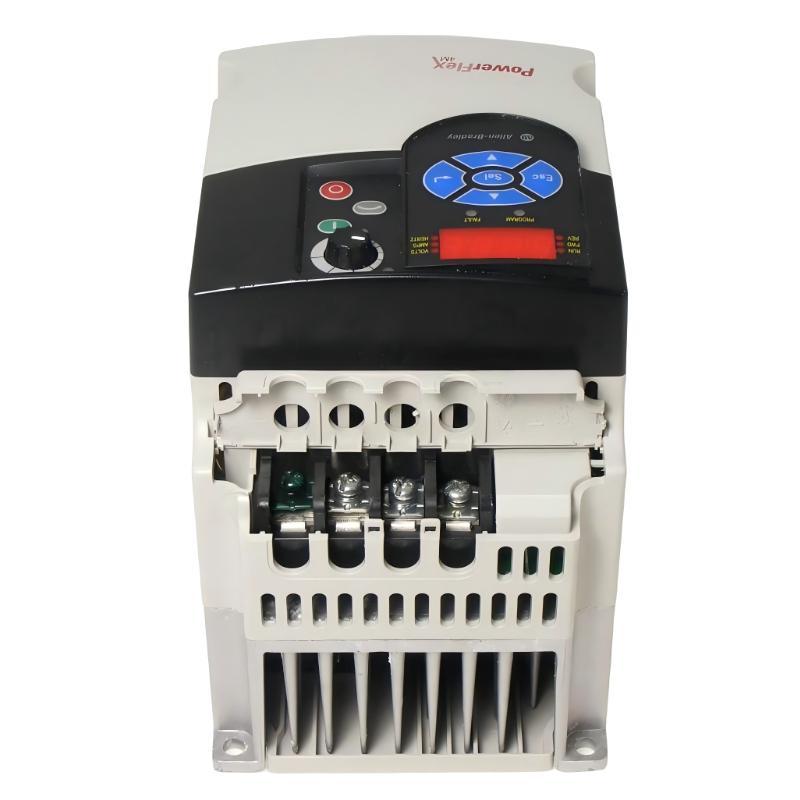

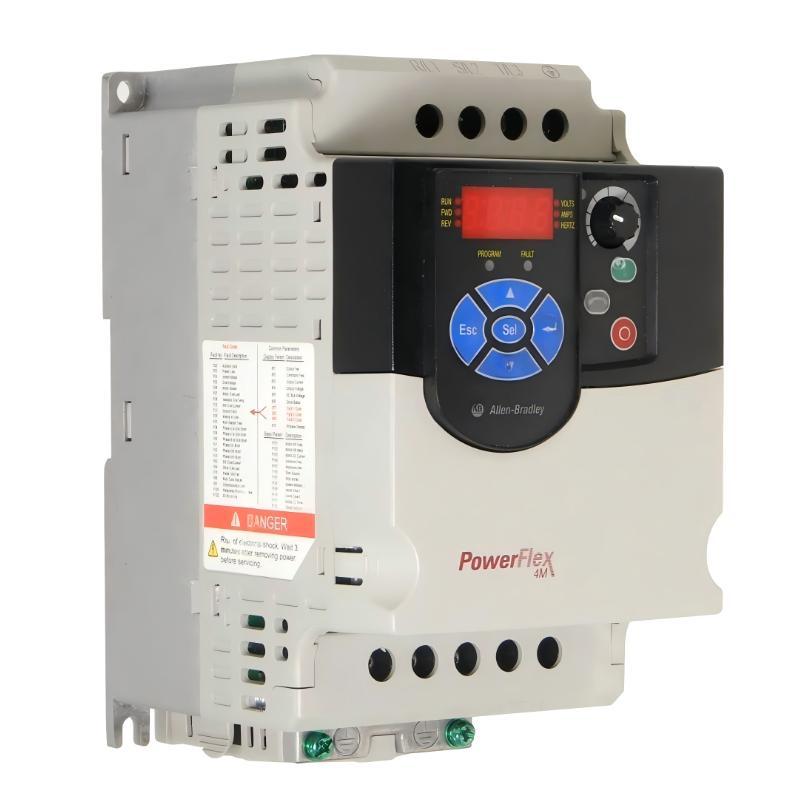

Allen Bradley 22F-D8P7N103 PowerFlex 4M AC Drive

Overview

The Allen Bradley 22F-D8P7N103 PowerFlex 4M AC Drive is a compact variable frequency drive designed for reliable motor speed control in industrial automation applications. It provides efficient operation, flexible parameter adjustment, and integrated protection functions for conveyors, pumps, fans, and general machine equipment.

The drive supports easy commissioning, stable performance, and diagnostic monitoring to improve system reliability and simplify maintenance.

General Information

Part Number: 22F-D8P7N103

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex 4M

Type: AC Variable Frequency Drive

Application: General-purpose motor control

Mounting: Panel mounting

Control Method: Sensorless vector control and V/Hz control

Motor Compatibility: Three-phase AC induction motors

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Power Specifications

Input Voltage: 480 V AC

Input Phase: Three-phase

Output Power: 3.7 kW

Output Current: Approx. 8.7 A

Output Frequency: 0 to 400 Hz

Control Voltage: 24 V DC digital inputs

Motor Protection: Electronic overload protection

Drive Technology: PWM inverter technology for efficient motor operation and stable speed control

Communication & Interface

Communication Interface: RS-485 serial communication port

Communication Protocol: Modbus RTU

Programming Interface: Integrated keypad and parameter configuration

Digital Inputs: Programmable inputs for start, stop, and control functions

Analog Inputs: Configurable analog reference input

Outputs: Programmable relay output signals

Diagnostics: Fault monitoring, alarm indication, and operating status feedback

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 0 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet applications

Altitude: Up to 1000 m without derating

Cooling Method: Air cooling

Dimensions & Weight

Dimensions (L × W × H): 174 × 100 × 136 mm

Weight: 2.1 kg

In Stock Now – Reliable Automation Solutions Ready for Delivery!
