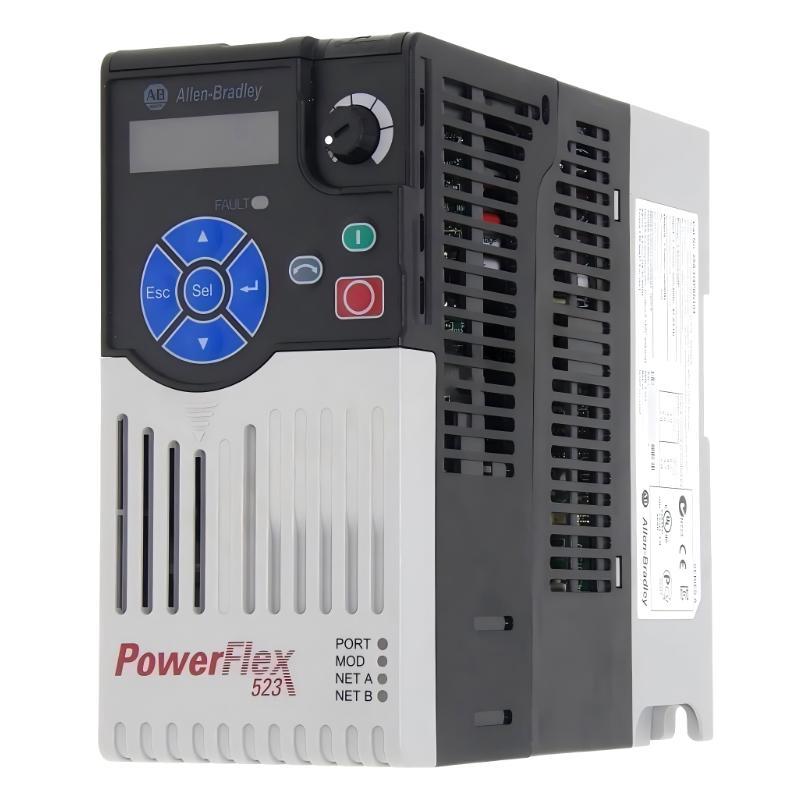

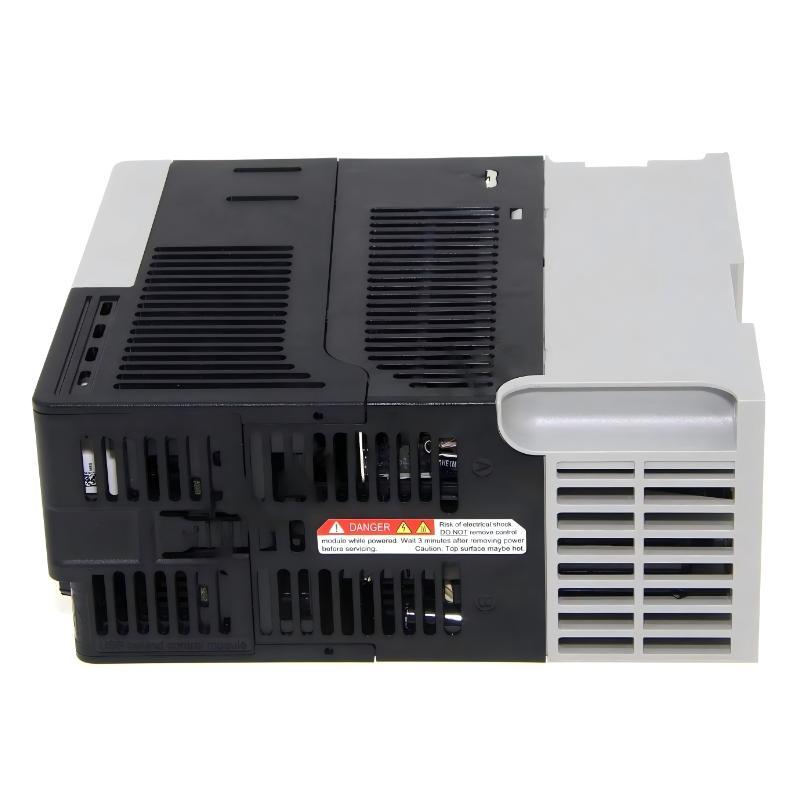

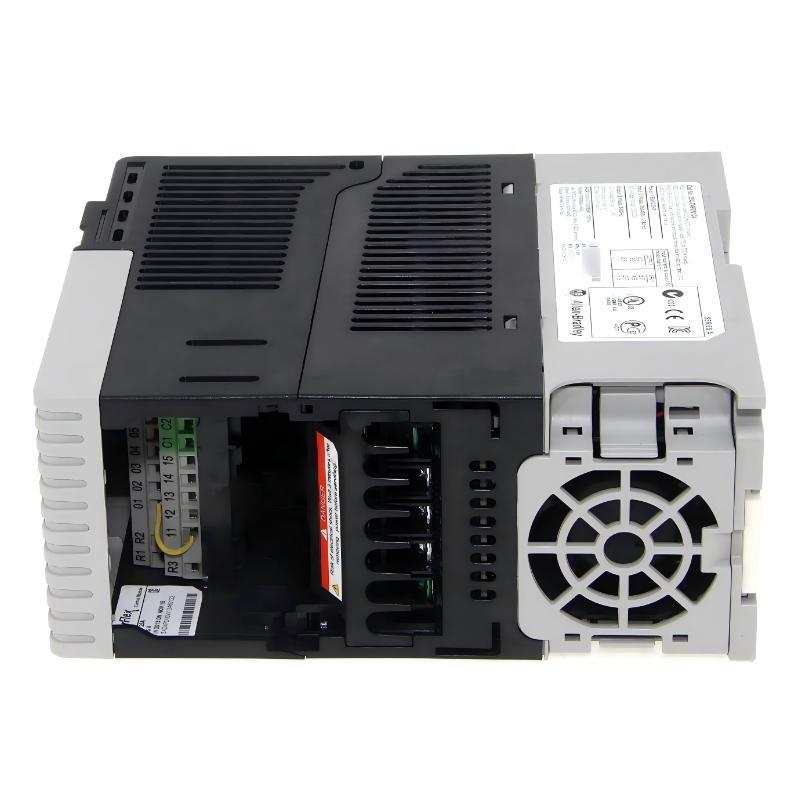

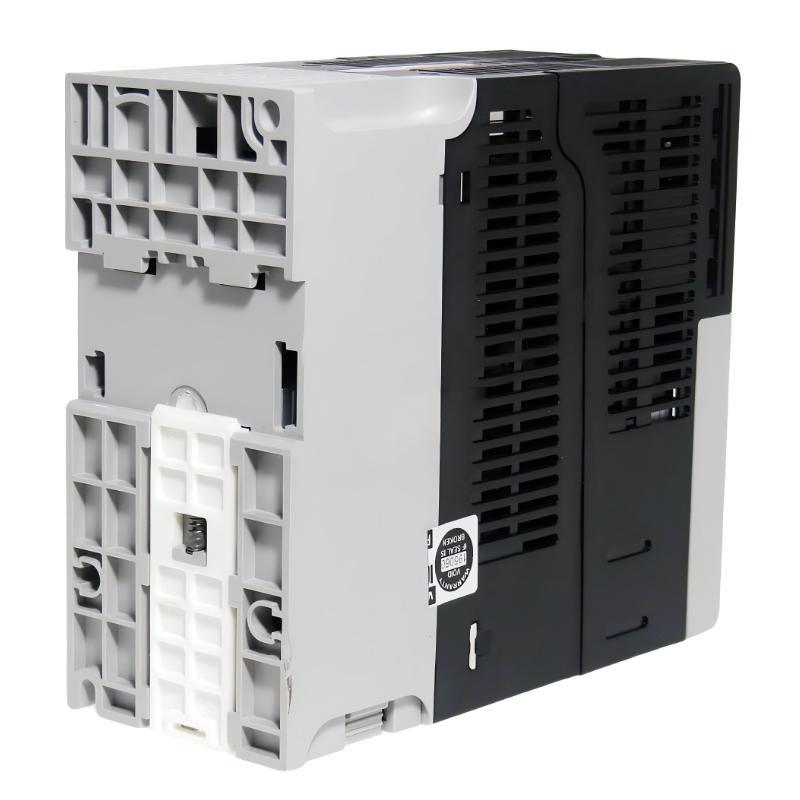

Allen Bradley 25A-D4P0N104 PowerFlex 523 AC Drive

Overview

The Allen Bradley 25A-D4P0N104 PowerFlex 523 AC Drive is a compact variable frequency drive designed for efficient and reliable motor control in industrial automation applications. It provides flexible configuration, embedded communication features, and stable performance for conveyors, pumps, fans, and general machine systems.

The drive supports quick commissioning, adjustable control parameters, and integrated protection functions to improve operational efficiency and system reliability.

General Information

Part Number: 25A-D4P0N104

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex 523

Type: AC Variable Frequency Drive

Application: General-purpose motor control

Mounting: Panel mounting

Control Method: Sensorless vector control and V/Hz control

Motor Compatibility: Three-phase AC induction motors

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Power Specifications

Input Voltage: 480 V AC

Input Phase: Three-phase

Output Power: 2.2 kW

Output Current: Approx. 4.0 A

Output Frequency: 0 to 500 Hz

Control Voltage: 24 V DC digital inputs

Motor Protection: Electronic overload protection

Drive Technology: PWM inverter technology for efficient motor operation and smooth speed regulation

Communication & Interface

Communication Interface: EtherNet/IP communication support

Communication Protocol: EtherNet/IP

Programming Interface: Integrated keypad and software configuration

Digital Inputs: Programmable inputs for start, stop, and control functions

Analog Inputs: Configurable analog reference inputs

Outputs: Programmable relay and analog outputs

Diagnostics: Fault monitoring, alarm indication, and operating status feedback

Environmental

Operating Temperature: −20 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 0 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet applications

Altitude: Up to 1000 m without derating

Cooling Method: Air cooling

Dimensions & Weight

Dimensions (L × W × H): 172 × 72 × 152 mm

Weight: 1.1 kg
