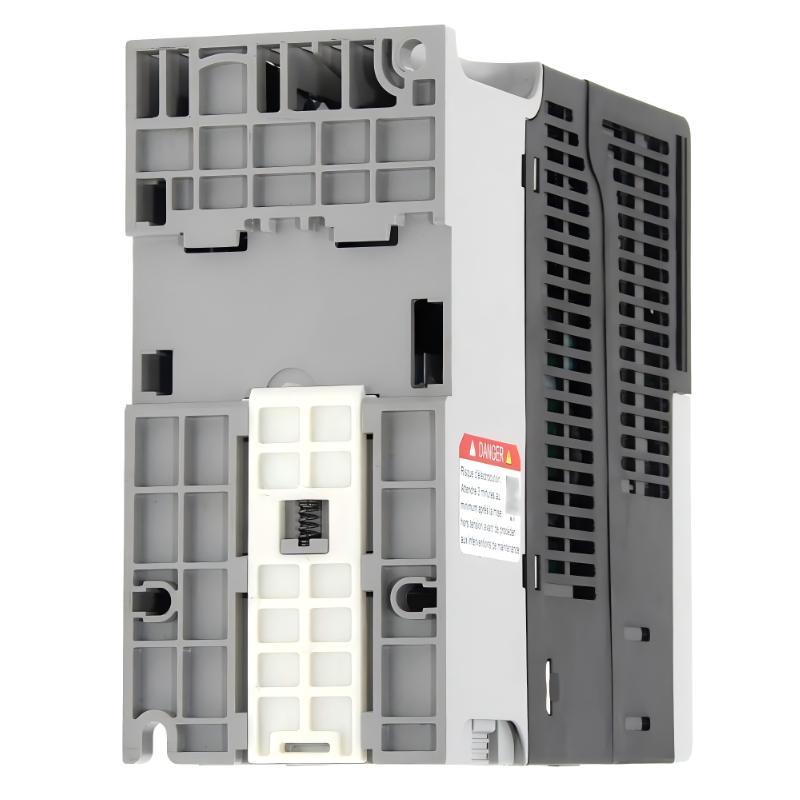

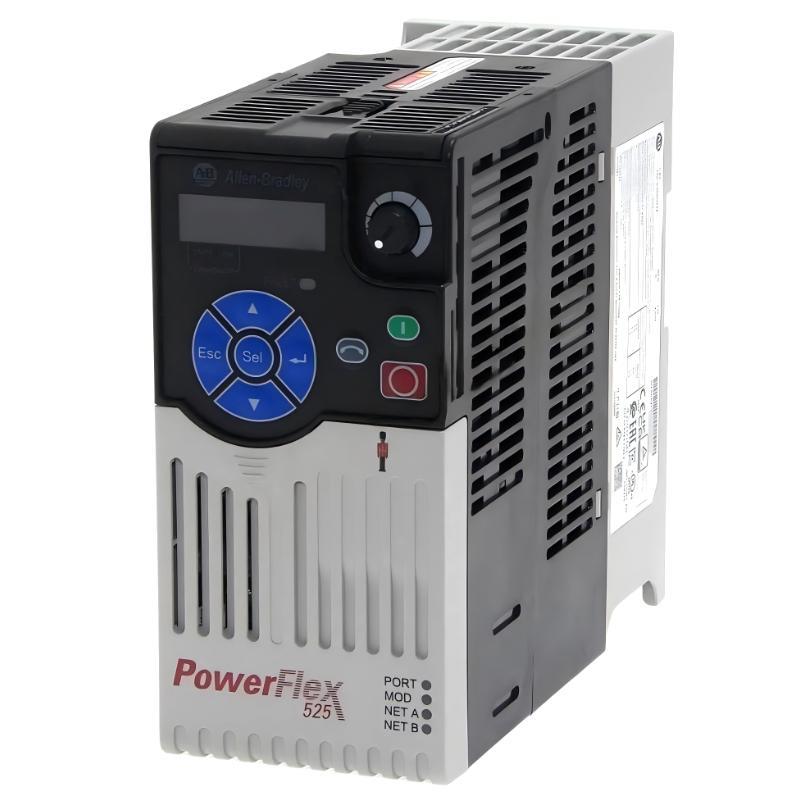

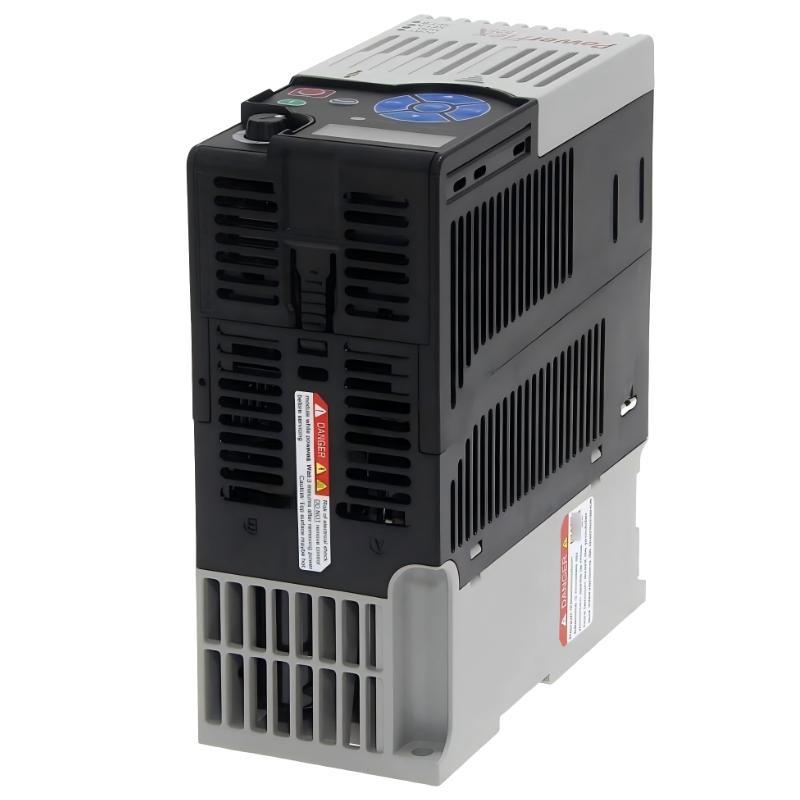

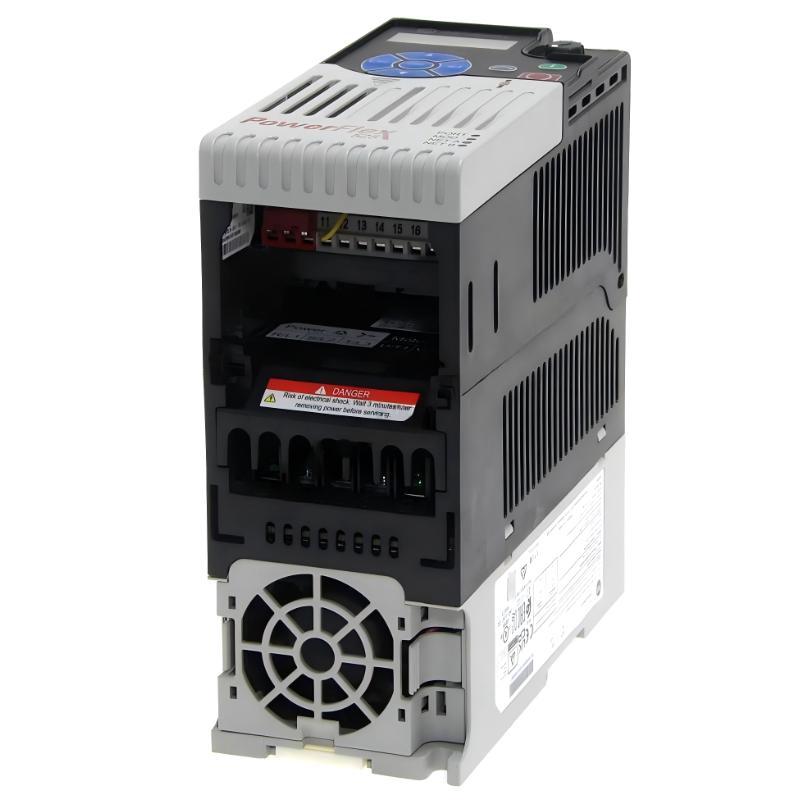

Allen Bradley 25B-A4P8N114 PowerFlex 525 AC Drive

Overview

The Allen Bradley 25B-A4P8N114 PowerFlex 525 AC Drive is a compact variable frequency drive designed for flexible and reliable motor control in industrial automation systems. It provides embedded EtherNet/IP communication, advanced control functions, and efficient performance for applications including conveyors, pumps, fans, and machine equipment.

The drive supports simplified programming, quick commissioning, and integrated protection features to improve system efficiency and operational reliability.

General Information

Part Number: 25B-A4P8N114

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex 525

Type: AC Variable Frequency Drive

Application: General-purpose motor control

Mounting: Panel mounting

Control Method: Sensorless vector control, V/Hz control, and closed-loop feedback control

Motor Compatibility: Three-phase AC induction motors

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Power Specifications

Input Voltage: 480 V AC

Input Phase: Three-phase

Output Power: 2.2 kW

Output Current: Approx. 4.8 A

Output Frequency: 0 to 500 Hz

Control Voltage: 24 V DC digital inputs

Motor Protection: Electronic overload protection

Drive Technology: PWM inverter technology for efficient motor operation and accurate speed control

Communication & Interface

Communication Interface: EtherNet/IP embedded port

Communication Protocol: EtherNet/IP

Programming Interface: Integrated keypad and Connected Components Workbench software

Digital Inputs: Programmable inputs for start, stop, and control functions

Analog Inputs: Configurable analog reference inputs

Outputs: Programmable relay and analog outputs

Diagnostics: Fault monitoring, alarm indication, parameter access, and status feedback

Environmental

Operating Temperature: −20 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 0 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet applications

Altitude: Up to 1000 m without derating

Cooling Method: Air cooling

Dimensions & Weight

Dimensions (L × W × H): 172 × 72 × 152 mm

Weight: 1.1 kg
