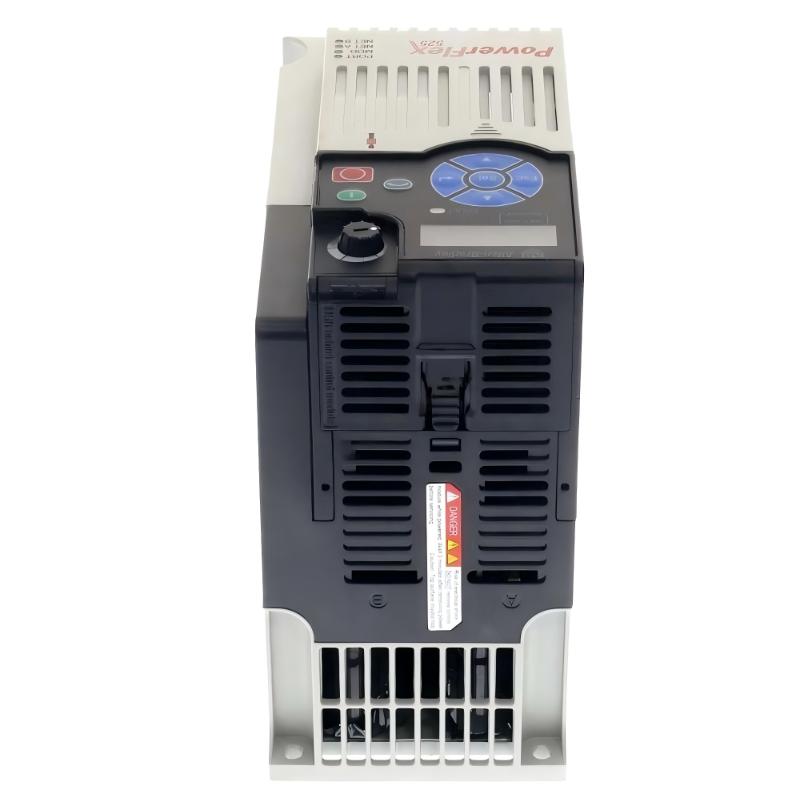

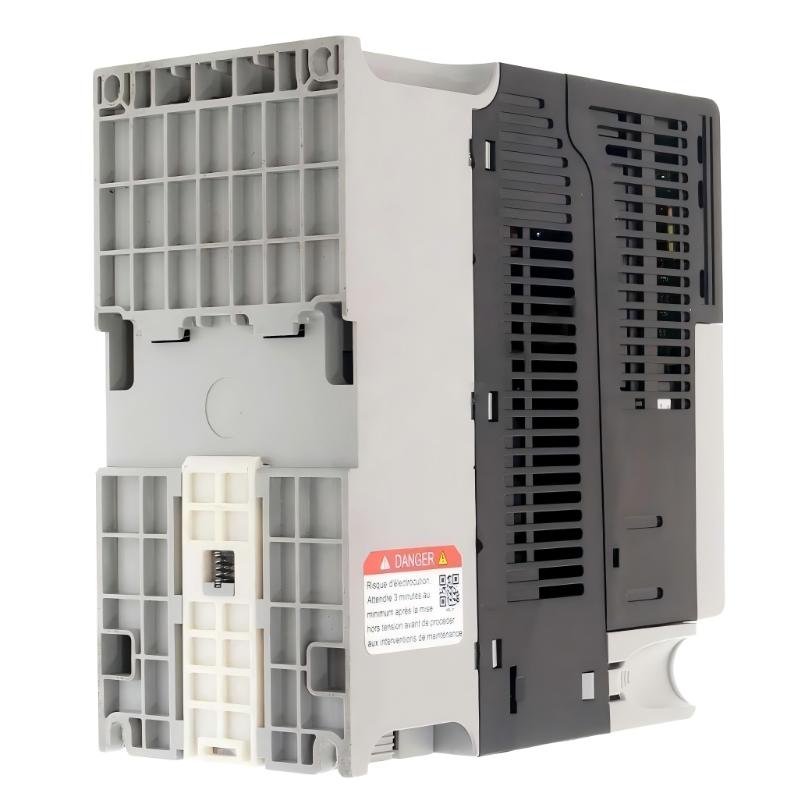

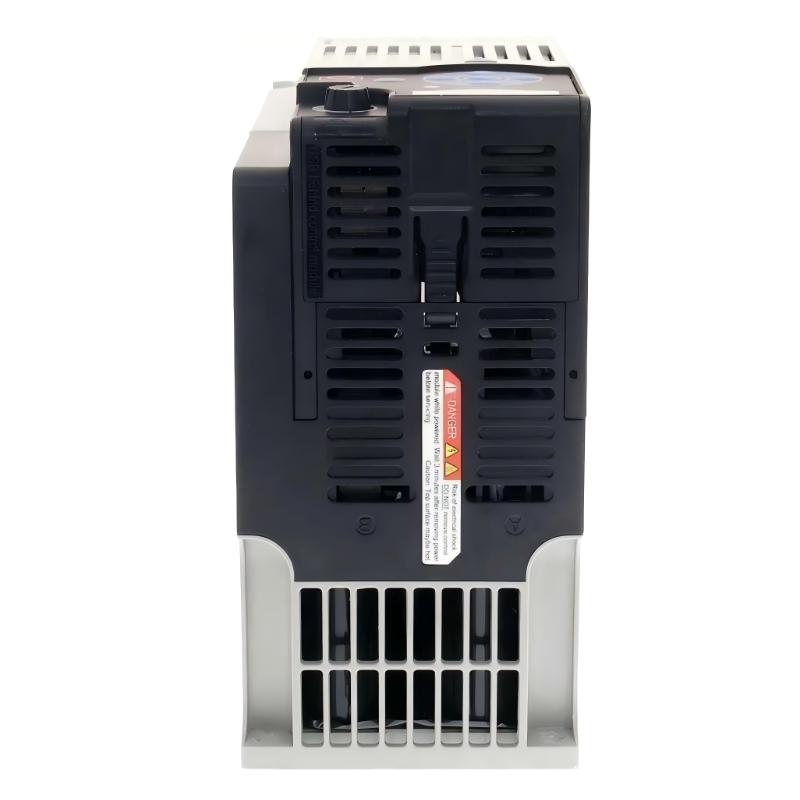

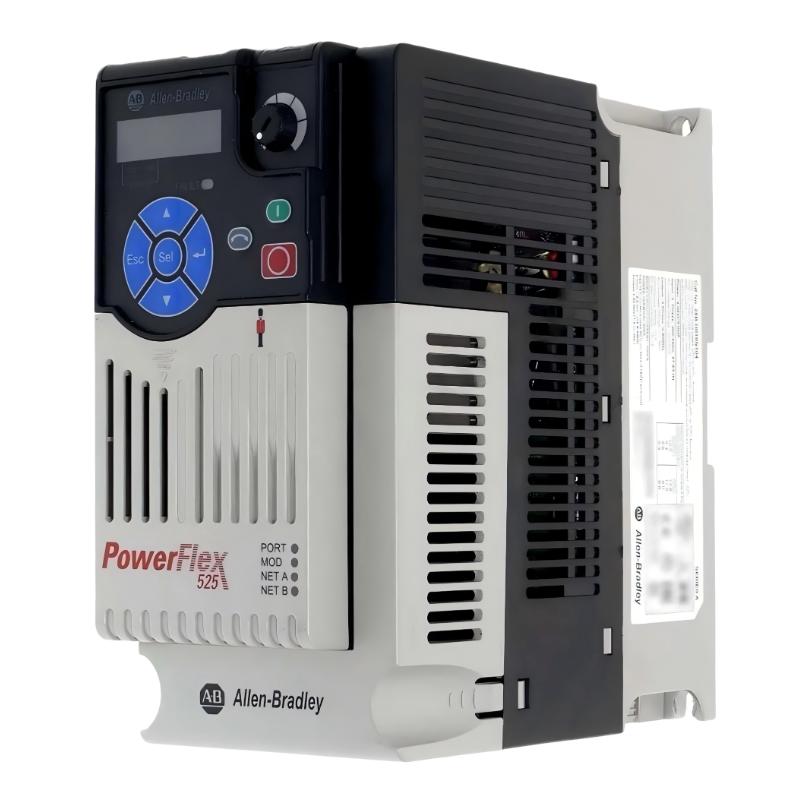

Allen Bradley 25B-D010N104 PowerFlex 525 AC Drive

Overview

The Allen Bradley 25B-D010N104 PowerFlex 525 AC Drive is a compact variable frequency drive designed to provide precise motor control and reliable operation in industrial automation applications. It offers flexible configuration, efficient performance, and easy integration for machine systems, conveyors, pumps, and other motor-driven equipment.

General Information

Part Number: 25B-D010N104

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex 525

Type: AC Variable Frequency Drive (VFD)

Application: Industrial motor control, machine automation, and process equipment

Control Technology: Sensorless vector control and V/Hz control

Installation: Panel mounting design for industrial control cabinets

Power Specifications

Input Voltage: 480 V AC, Three-Phase

Output Power: 4 kW (5 HP)

Output Current: 10.5 A

Frequency Range: 0 to 500 Hz

Motor Control Modes: V/Hz control and sensorless vector control

Overload Capacity: 150% overload for 1 minute

Protection Functions: Overcurrent, overvoltage, undervoltage, overload, and motor protection

Communication & Interface

Communication Interface: Embedded EtherNet/IP communication

Network Support: Supports integration with industrial Ethernet automation systems

Programming Interface: USB programming and configuration support

Operator Interface: Integrated LCD keypad for parameter setup and monitoring

Control Connections: Digital inputs, relay outputs, and analog I/O terminals

Diagnostics: Fault detection, alarm reporting, and real-time drive monitoring

Environmental

Operating Temperature: -20 to +50 °C without derating

Storage Temperature: -40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Altitude: Up to 1000 m without derating

Protection Rating: IP20 / open type enclosure

Application Environment: Industrial control panels and automation equipment

Dimensions & Weight

Dimensions (H × W × D): 180 × 87 × 172 mm

Weight: 1.6 kg
