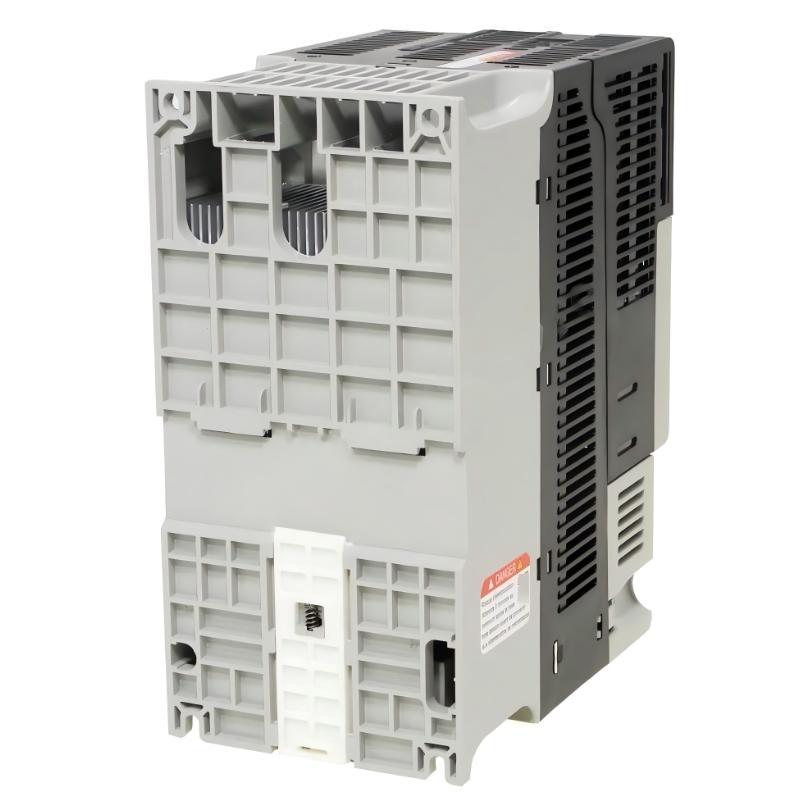

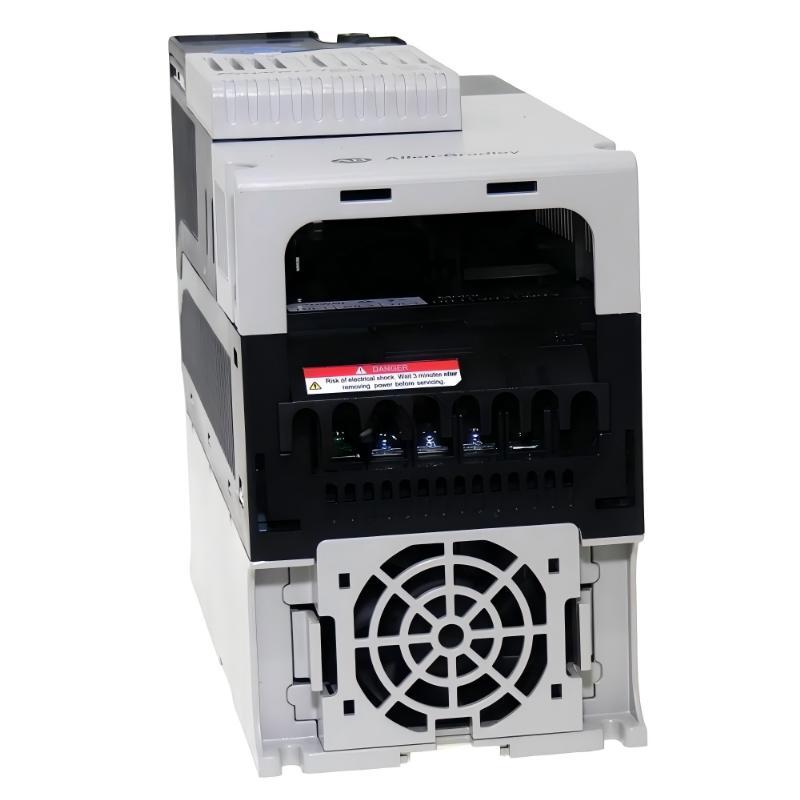

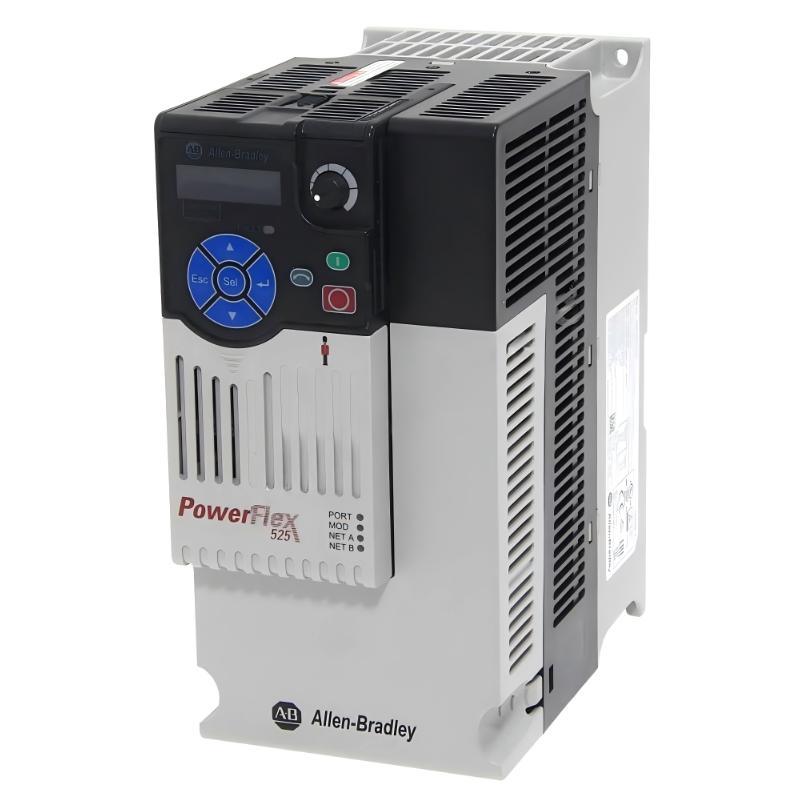

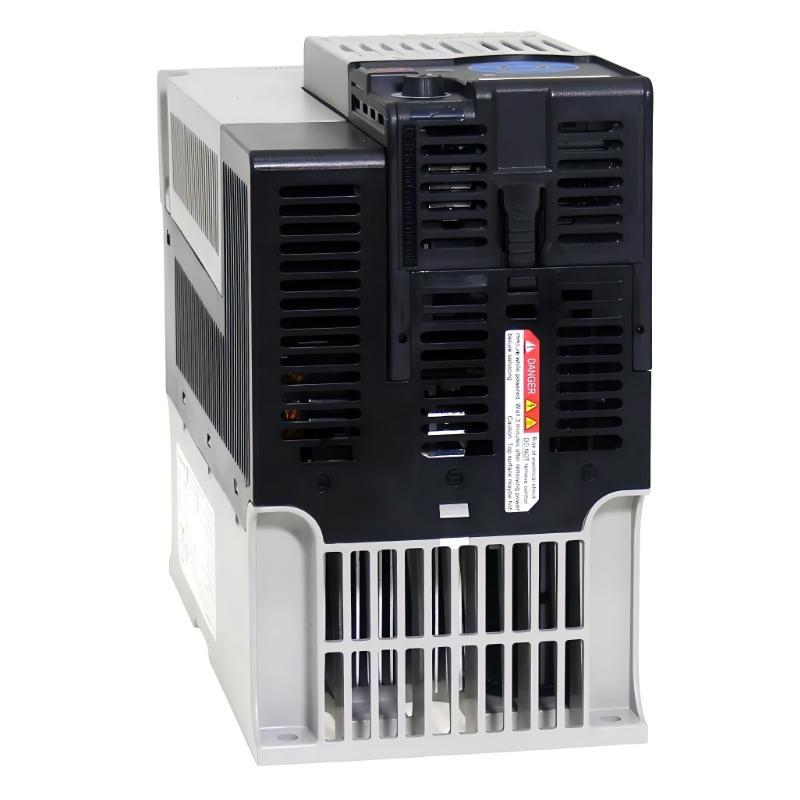

Allen Bradley 25B-D013N104 PowerFlex 525 AC Drive

Overview

The Allen Bradley 25B-D013N104 PowerFlex 525 AC Drive is a compact variable frequency drive designed for reliable motor speed control in industrial automation systems. It provides flexible configuration, efficient operation, and advanced control features for machinery, conveyors, pumps, and general-purpose motor applications.

General Information

Part Number: 25B-D013N104

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex 525

Type: AC Variable Frequency Drive (VFD)

Application: Industrial motor control, machine automation, and process equipment

Control Technology: Sensorless vector control and V/Hz control

Installation: Panel mounting design for industrial control cabinets

Power Specifications

Input Voltage: 480 V AC, Three-Phase

Output Power: 5.5 kW (7.5 HP)

Output Current: 13 A

Frequency Range: 0 to 500 Hz

Motor Control Modes: V/Hz control and sensorless vector control

Overload Capacity: 150% overload for 1 minute

Protection Functions: Overcurrent, overvoltage, undervoltage, overload, and motor protection

Communication & Interface

Communication Interface: Embedded EtherNet/IP communication

Network Support: Supports industrial Ethernet network integration

Programming Interface: USB programming and configuration support

Operator Interface: Built-in LCD keypad for parameter setup and monitoring

Control Connections: Digital inputs, relay outputs, and analog I/O terminals

Diagnostics: Fault monitoring, alarm reporting, and drive status feedback

Environmental

Operating Temperature: -20 to +50 °C without derating

Storage Temperature: -40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Altitude: Up to 1000 m without derating

Protection Rating: IP20 / open type enclosure

Application Environment: Industrial control panels and automation systems

Dimensions & Weight

Dimensions (H × W × D): 220 × 109 × 184 mm

Weight: 2.3 kg
