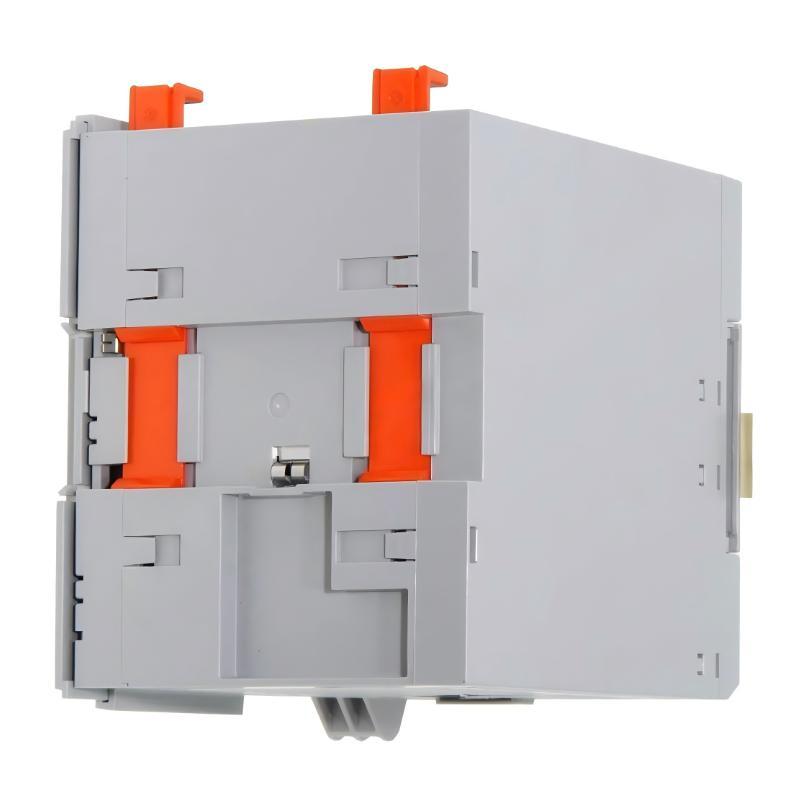

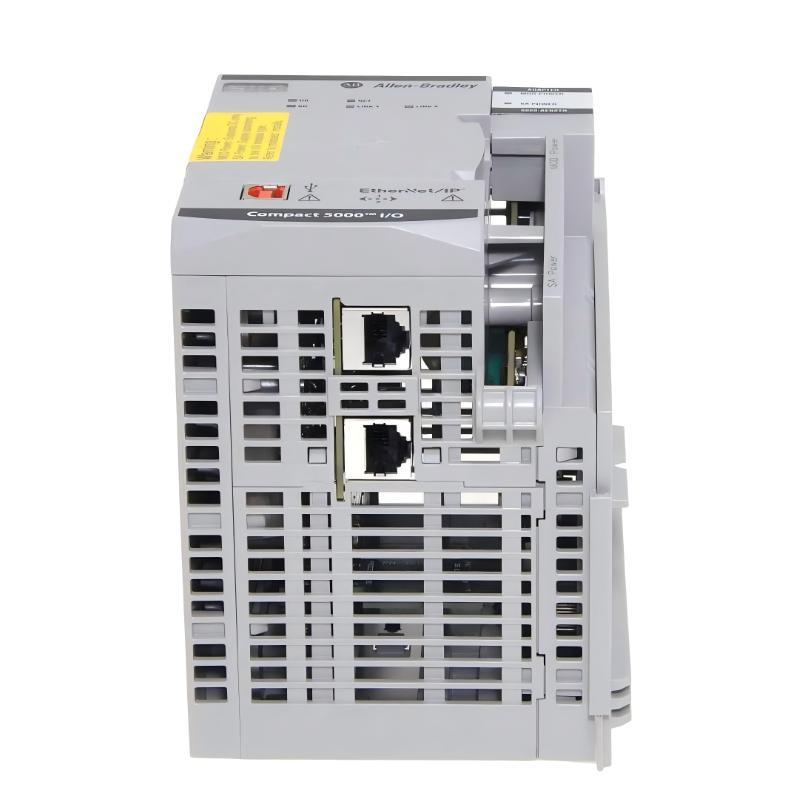

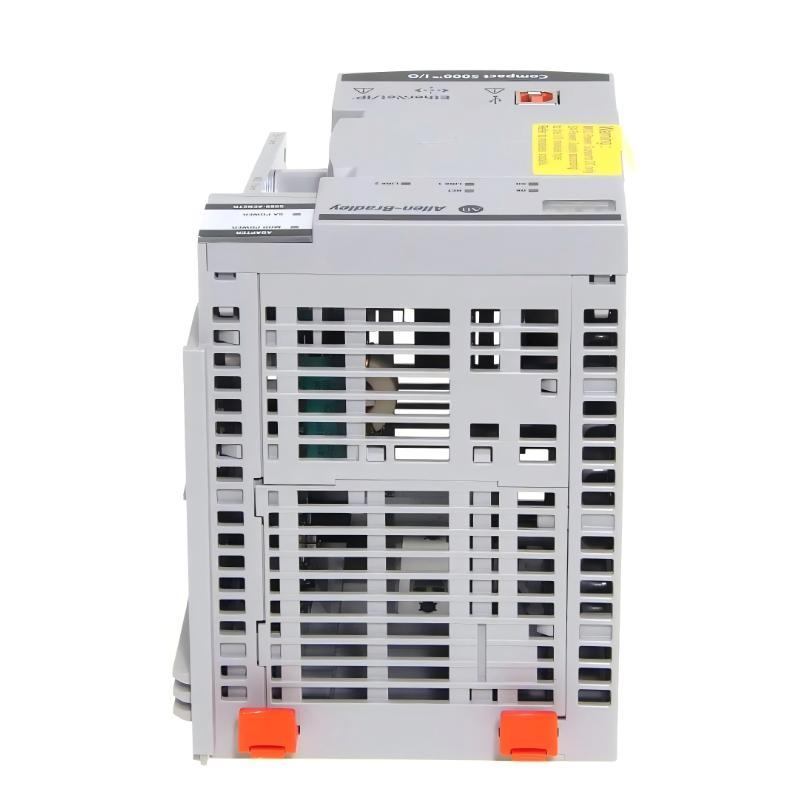

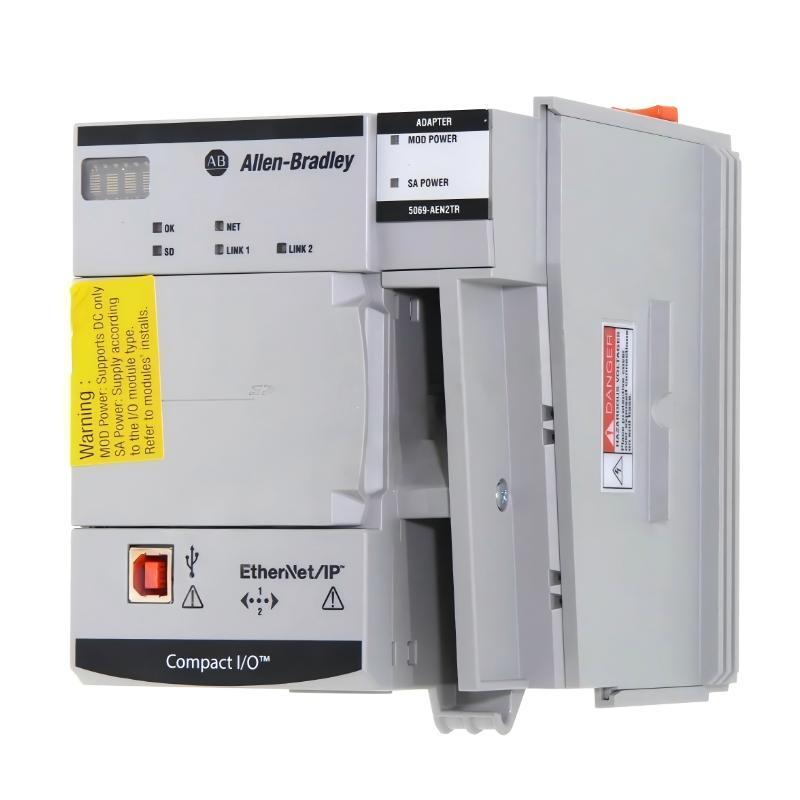

Allen Bradley 5069-AEN2TR Compact 5000 I/O EtherNet/IP Adapter

Overview

The Allen Bradley 5069-AEN2TR Compact 5000 I/O EtherNet/IP Adapter is a high-performance communication module designed to connect Compact 5000 I/O systems with EtherNet/IP networks. It provides fast and reliable data exchange between controllers and distributed I/O devices, making it suitable for modern industrial automation, machine control, and distributed control applications.

General Information

Part Number: 5069-AEN2TR

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: Compact 5000 I/O

Product Type: EtherNet/IP Adapter Module

Mounting: DIN Rail Mount

Application: Distributed I/O Communication, Industrial Networking, and Control System Integration

Function: Provides network connectivity between Compact 5000 I/O modules and EtherNet/IP controllers

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low Power Communication Design

Input Power: DC Power Supply

Protection: Overvoltage, Overcurrent, and Reverse Polarity Protection

Status Indicators: Power, Network, Module, and I/O Status LEDs

Power Supply Type: Field Power and Module Power Support

Communication & Interface

Communication Protocol: EtherNet/IP

Ethernet Ports: Dual Gigabit Ethernet Ports with DLR Support

Network Topology: Linear, Star, and Device Level Ring (DLR)

I/O Capacity: Supports Compact 5000 I/O Module Expansion

Configuration Software: Studio 5000 Logix Designer

Diagnostics: Advanced Network Monitoring and Module Fault Diagnostics

Environmental

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 136.8 × 98.1 × 123 mm

Weight: 0.68 kg
