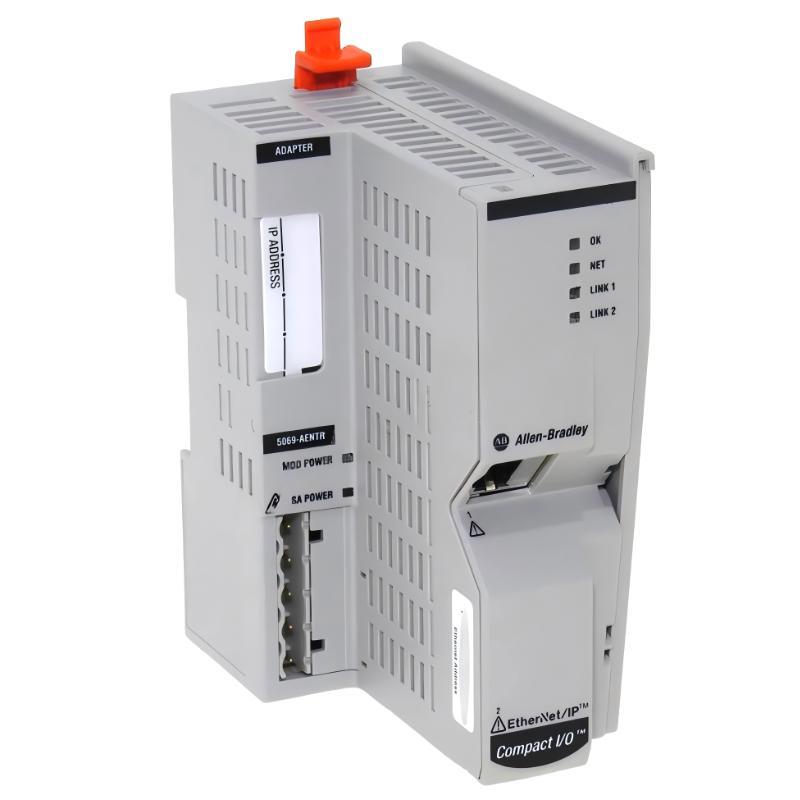

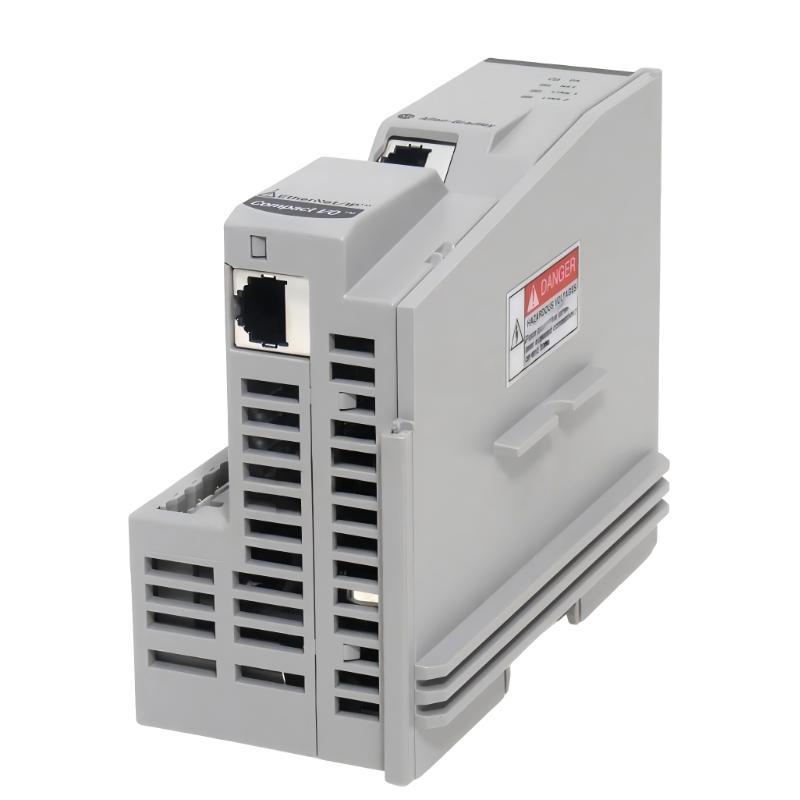

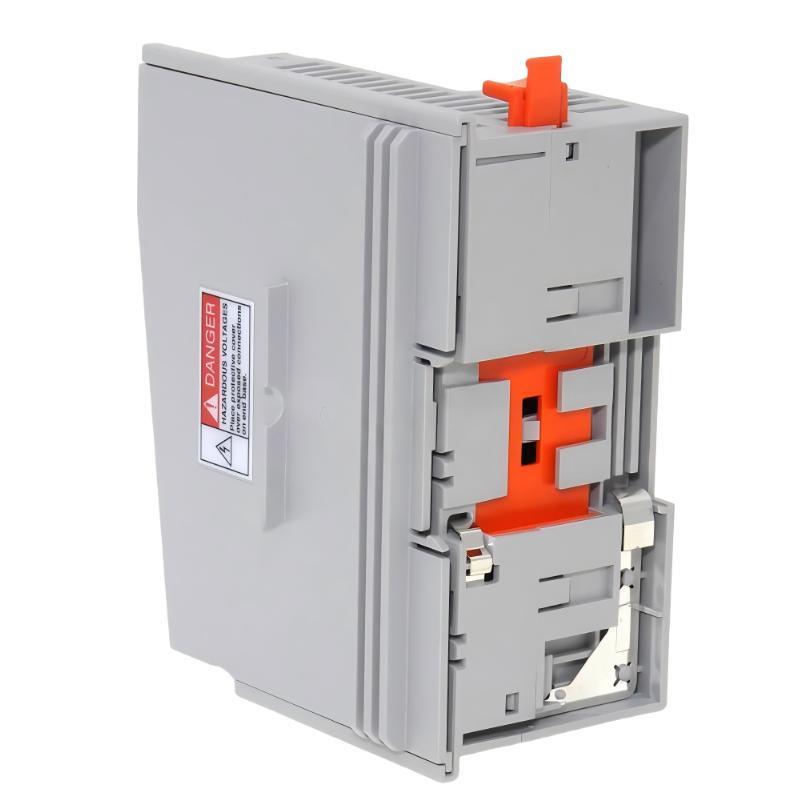

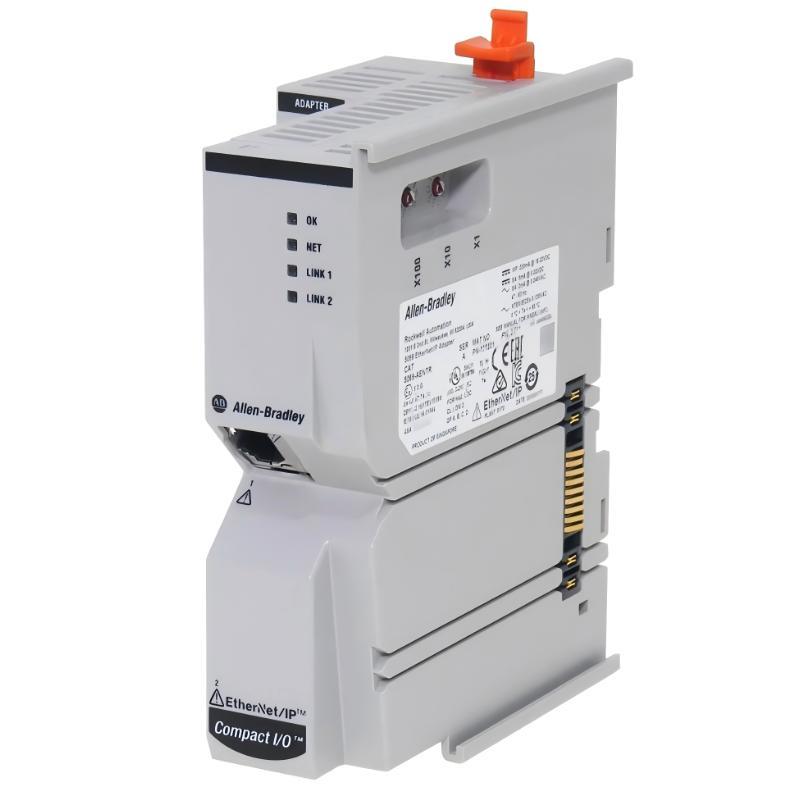

Allen Bradley 5069-AENTR Compact 5000 I/O EtherNet/IP Adapter

Overview

The Allen Bradley 5069-AENTR Compact 5000 I/O EtherNet/IP Adapter is a compact communication module designed to connect Compact 5000 I/O systems with EtherNet/IP industrial networks. It provides reliable data communication between controllers and distributed I/O devices, supporting efficient machine control, remote I/O expansion, and modern automation architectures.

General Information

Part Number: 5069-AENTR

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: Compact 5000 I/O

Product Type: EtherNet/IP Adapter Module

Mounting: DIN Rail Mount

Application: Distributed I/O Communication, Industrial Networking, and Control System Integration

Function: Provides network connectivity for Compact 5000 I/O modules in EtherNet/IP systems

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low Power Communication Design

Input Power: DC Power Supply

Protection: Overvoltage, Overcurrent, and Reverse Polarity Protection

Status Indicators: Power, Network, Module, and I/O Status LEDs

Power Supply Type: Module Power and Field Power Support

Communication & Interface

Communication Protocol: EtherNet/IP

Ethernet Ports: Dual Ethernet Ports with Device Level Ring (DLR) Support

Network Topology: Linear, Star, and Ring Network Configuration

I/O Capacity: Supports Compact 5000 I/O Expansion Modules

Configuration Software: Studio 5000 Logix Designer

Diagnostics: Network Status Monitoring and Module Fault Diagnostics

Environmental

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 123 × 63 × 105.4 mm

Weight: 0.485 kg

Ready Stock Available – Fast Delivery and Professional Automation Support.
