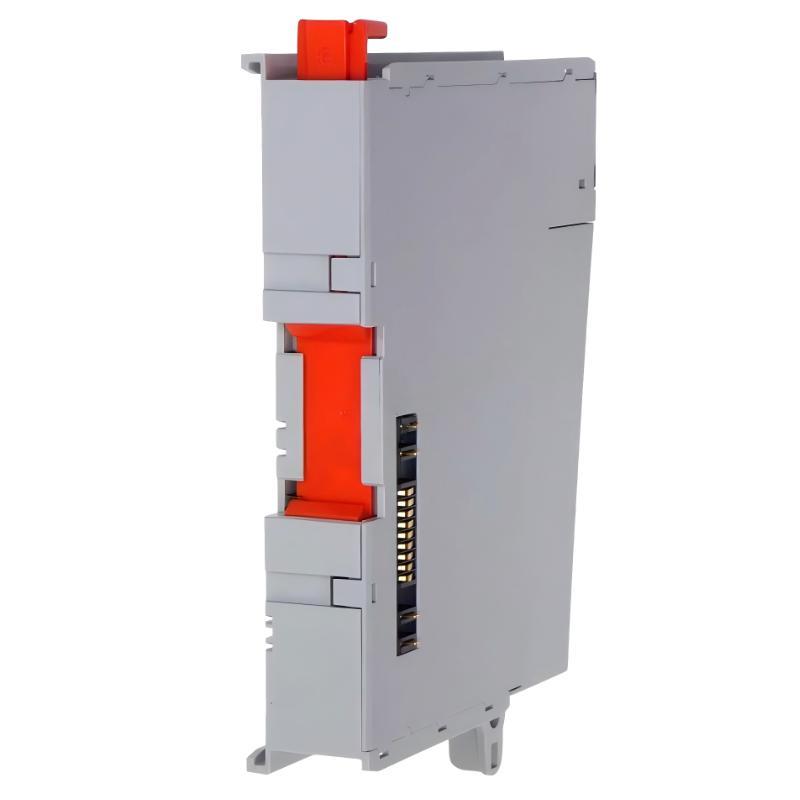

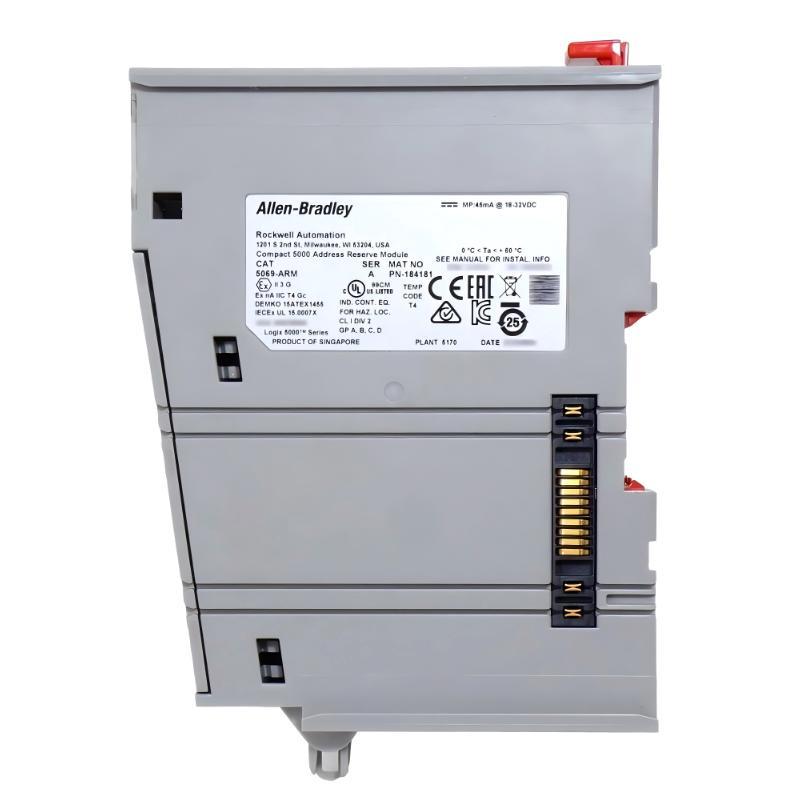

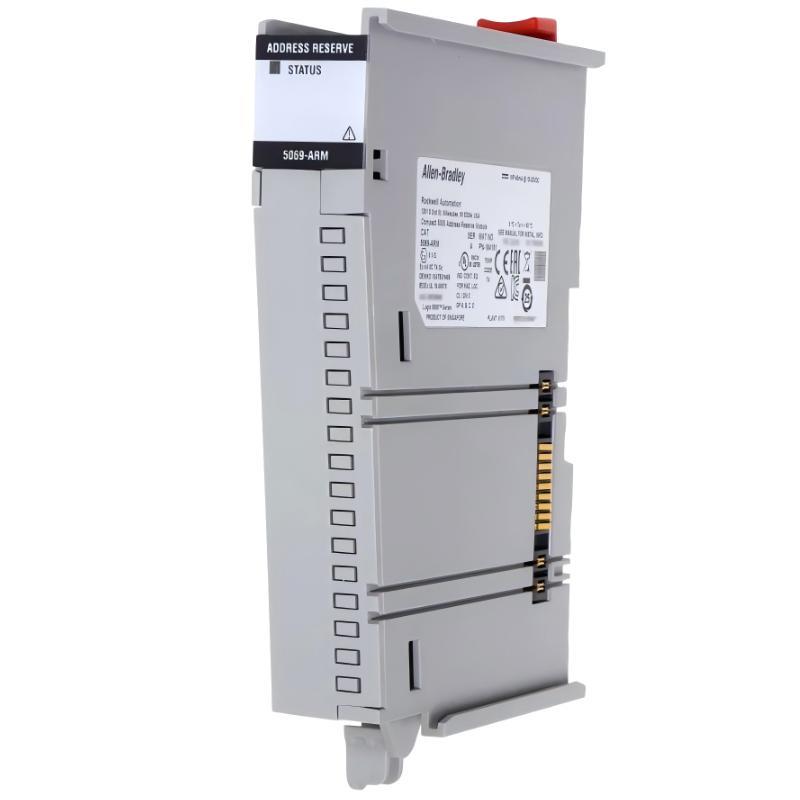

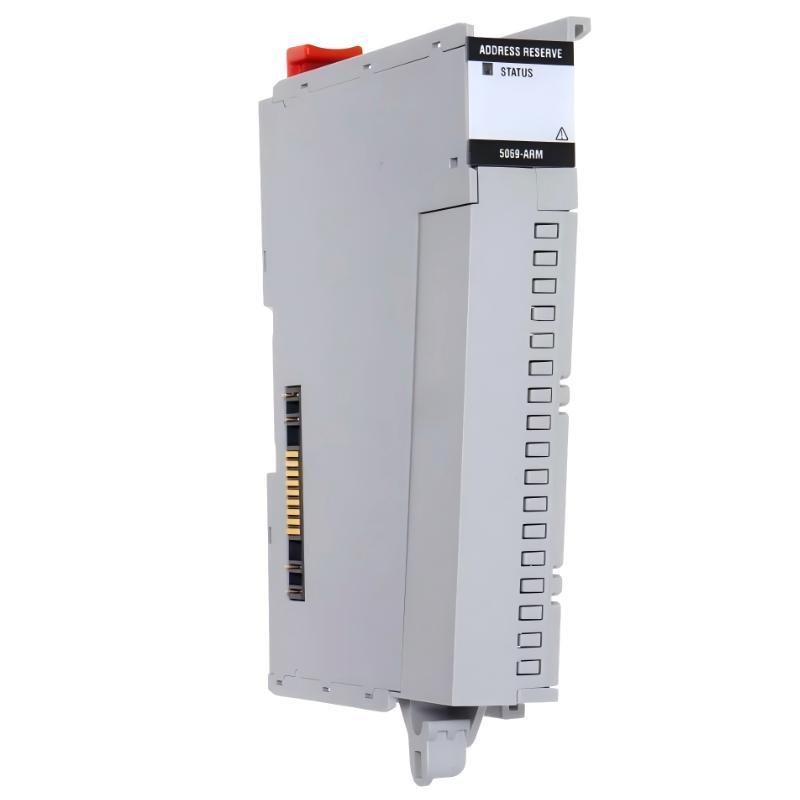

Allen Bradley 5069-ARM Compact 5000 Address Reservation Module

Overview

The Allen Bradley 5069-ARM Compact 5000 Address Reservation Module is designed to reserve module positions within Compact 5000 I/O systems, allowing easier replacement and maintenance of I/O modules without changing the existing system configuration. It helps maintain system consistency and improves flexibility in industrial automation applications.

General Information

Part Number: 5069-ARM

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: Compact 5000 I/O

Product Type: Address Reservation Module

Mounting: DIN Rail Mount

Application: I/O System Maintenance, Module Replacement, and Control System Configuration

Function: Reserves I/O module positions to simplify system upgrades and replacements

Power Specifications

Supply Voltage: Powered Through Compact 5000 I/O System

Power Consumption: Low Power Passive Module Design

Input Power: Backplane Power Supply

Protection: Industrial Electrical Protection

Status Indicators: Module Status Identification

Operation: Maintains Reserved Slot Configuration Without Active I/O Processing

Communication & Interface

Communication Type: Compact 5000 I/O Backplane Interface

Network Support: Compatible with EtherNet/IP Based I/O Systems

Module Function: Maintains Controller Configuration During Module Replacement

Configuration Software: Studio 5000 Logix Designer

System Integration: Supports Compact 5000 I/O Architecture

Diagnostics: Module Identification and System Configuration Support

Environmental

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 144.57 × 25.56 × 109.09 mm

Weight: 0.175 kg
