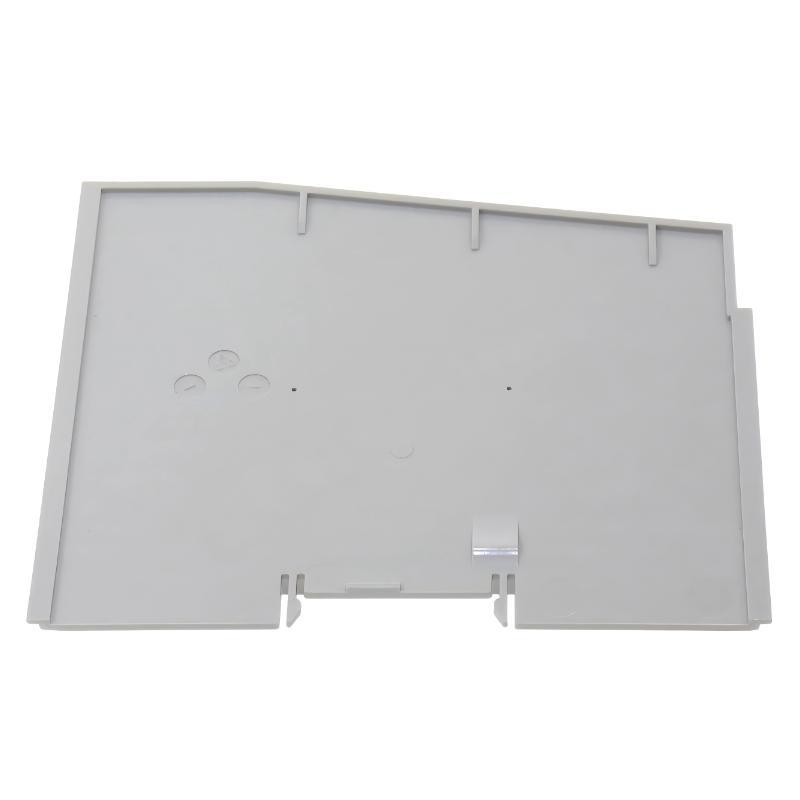

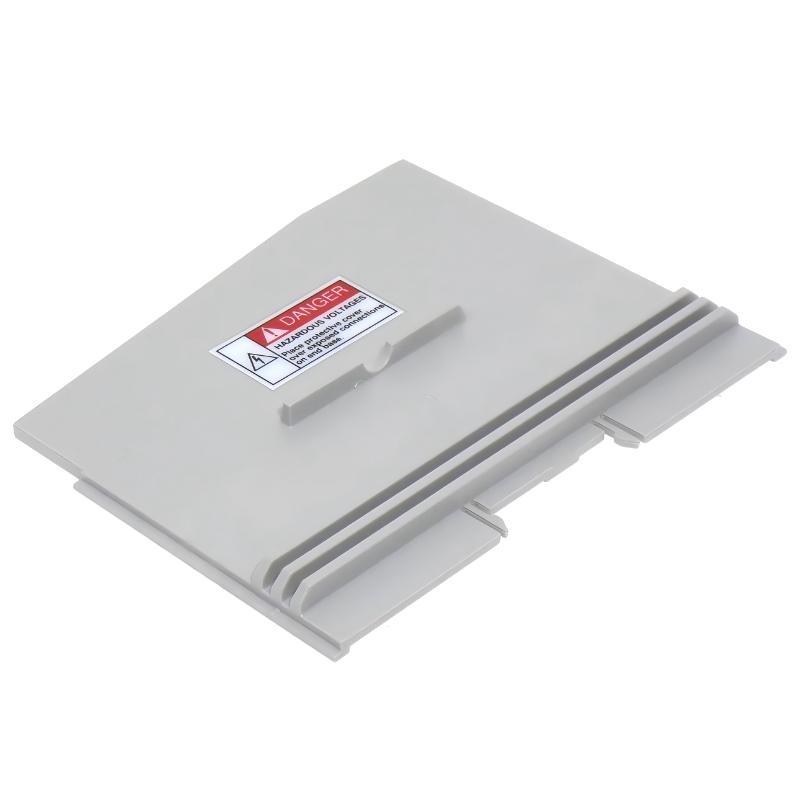

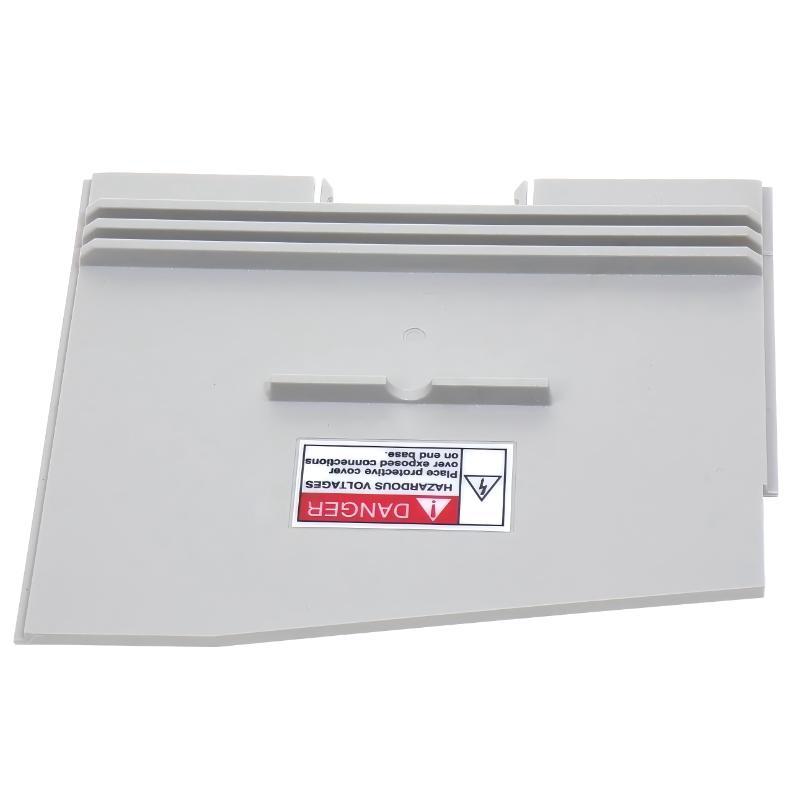

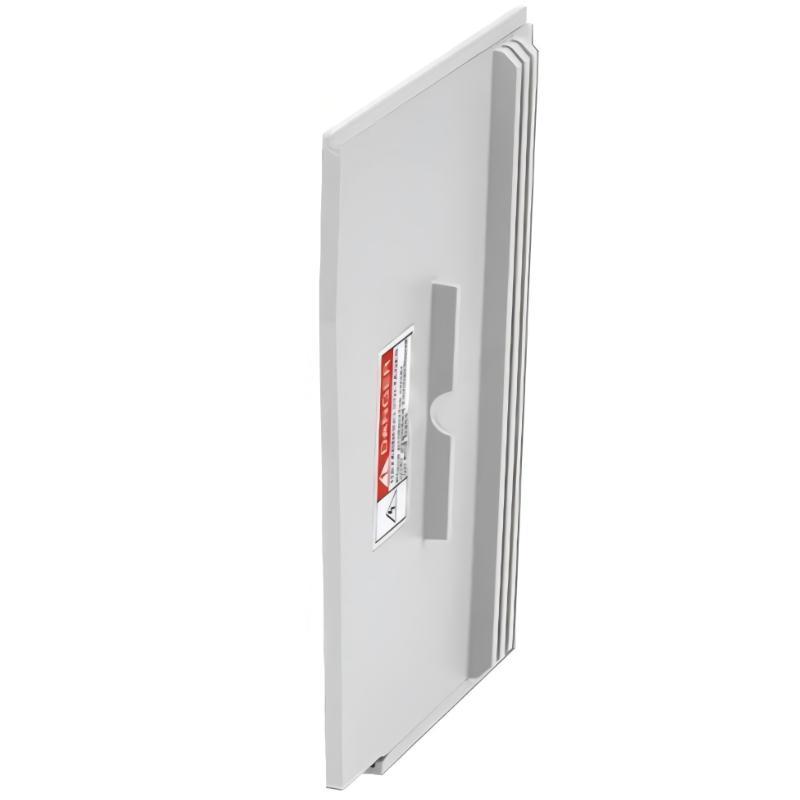

Allen Bradley 5069-ECR CompactLogix 5380 Right End Cap

Overview

The Allen Bradley 5069-ECR CompactLogix 5380 Right End Cap is a compact system accessory designed for Compact 5000 I/O and CompactLogix 5380 controller platforms. It provides a protective termination point for the right side of the I/O assembly, helping maintain system integrity, improve installation safety, and ensure reliable operation in industrial automation environments.

General Information

Part Number: 5069-ECR

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: CompactLogix 5380 / Compact 5000 I/O

Product Type: Right End Cap Module

Mounting: DIN Rail Mount

Application: I/O System Termination, Controller Assembly Protection, and Industrial Automation Systems

Function: Provides physical protection and proper termination for the end of the I/O system

Power Specifications

Supply Voltage: No External Power Required

Power Consumption: Passive Component Design

Input Power: Not Applicable

Protection: Provides Mechanical and Electrical System Protection

Status Indicators: None

Operation: Terminates the I/O Backplane Connection

Communication & Interface

Interface Type: Compact 5000 I/O Backplane Connection

Network Support: Used Within EtherNet/IP Automation Architectures

System Compatibility: CompactLogix 5380 Controllers and Compact 5000 I/O Systems

Installation Function: Maintains Proper System Configuration and Assembly Structure

Diagnostics: No Active Communication Function

Environmental

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 136.81 × 20 × 123 mm

Weight: 0.1 kg
