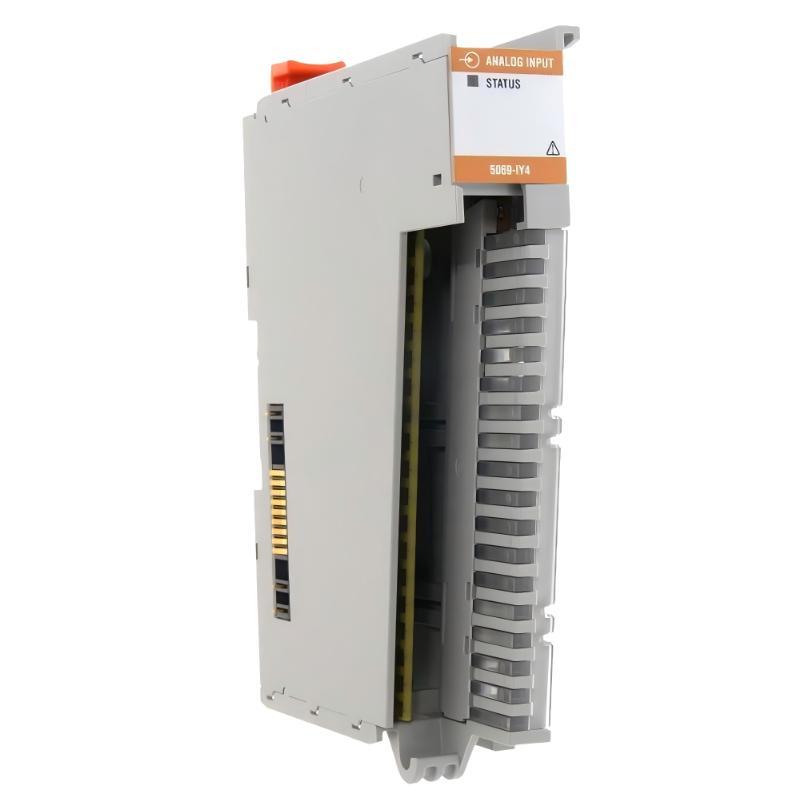

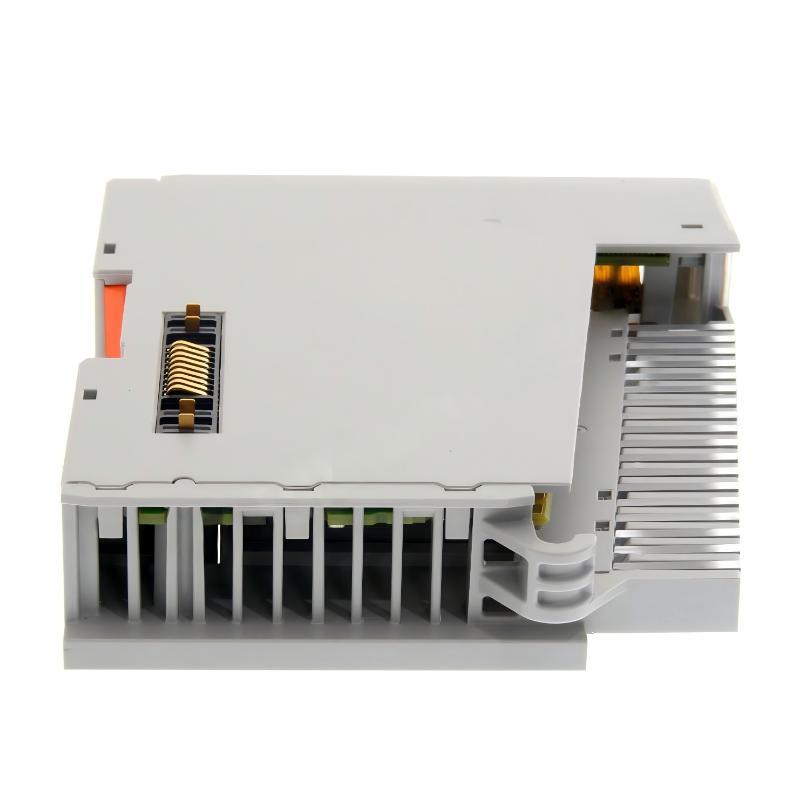

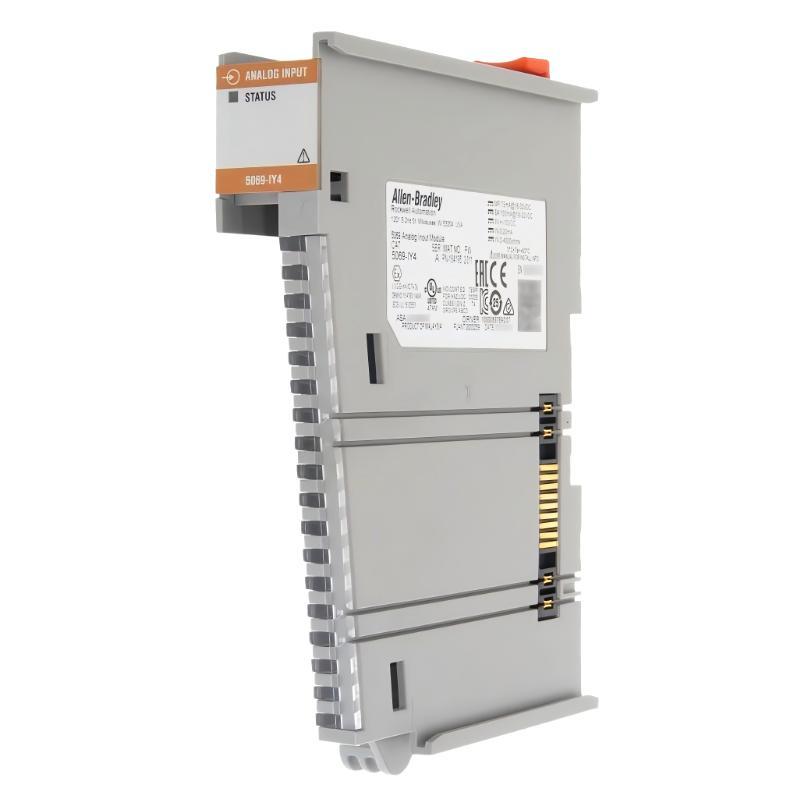

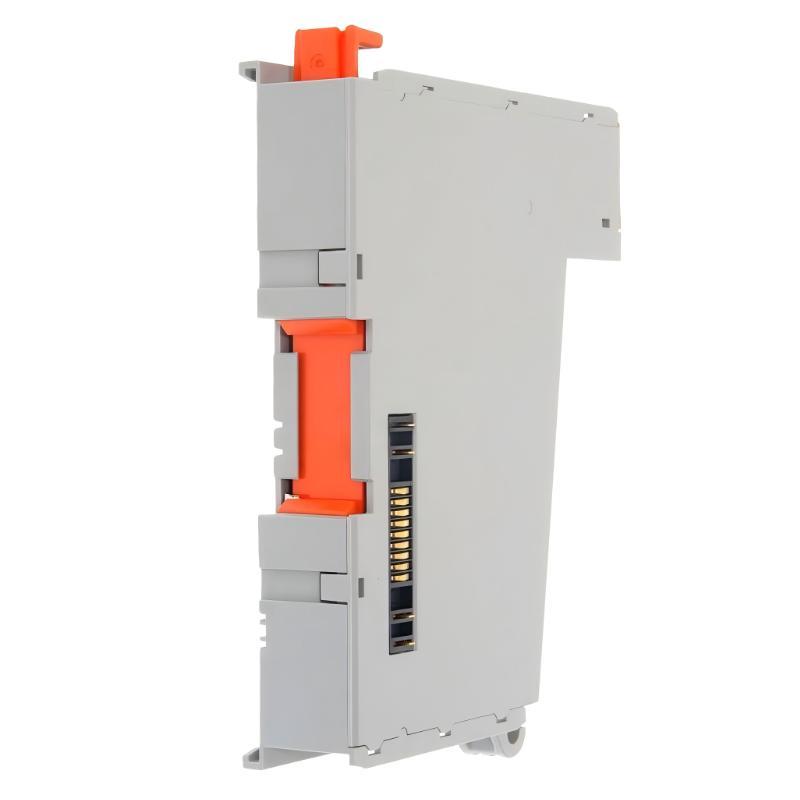

Allen Bradley 5069-IY4 Compact 5000 Universal Analog Input Module

Overview

The Allen Bradley 5069-IY4 Compact 5000 Universal Analog Input Module is a flexible analog input module designed for industrial measurement and process monitoring applications. It supports multiple signal types from field devices, providing accurate data acquisition and reliable integration with CompactLogix control systems for advanced automation solutions.

General Information

Part Number: 5069-IY4

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: Compact 5000 I/O

Product Type: Universal Analog Input Module

Mounting: DIN Rail Mount

Application: Process Monitoring, Sensor Data Acquisition, and Industrial Control Systems

Function: Collects and converts various analog field signals into digital values for controller processing

Power Specifications

Supply Voltage: 24 V DC

Input Type: Universal Analog Input

Input Channels: 4 Analog Input Channels

Signal Support: Current, Voltage, Resistance, RTD, and Thermocouple Signals

Power Consumption: Low Power I/O Module Design

Protection: Overvoltage, Short Circuit, and Channel Diagnostic Protection

Status Indicators: Module Status and Channel Status LEDs

Communication & Interface

Backplane Interface: Compact 5000 I/O System Connection

Communication Protocol: EtherNet/IP Through Adapter Module

Input Signal Type: Universal Analog Field Signals

Configuration Software: Studio 5000 Logix Designer

Data Processing: High-Resolution Analog Signal Conversion

Diagnostics: Channel-Level Monitoring, Fault Detection, and Status Reporting

Environmental

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 144.6 × 22 × 105.4 mm

Weight: 0.175 kg

Fast Delivery Available – Quality Automation Parts Ready for Your Projects.
