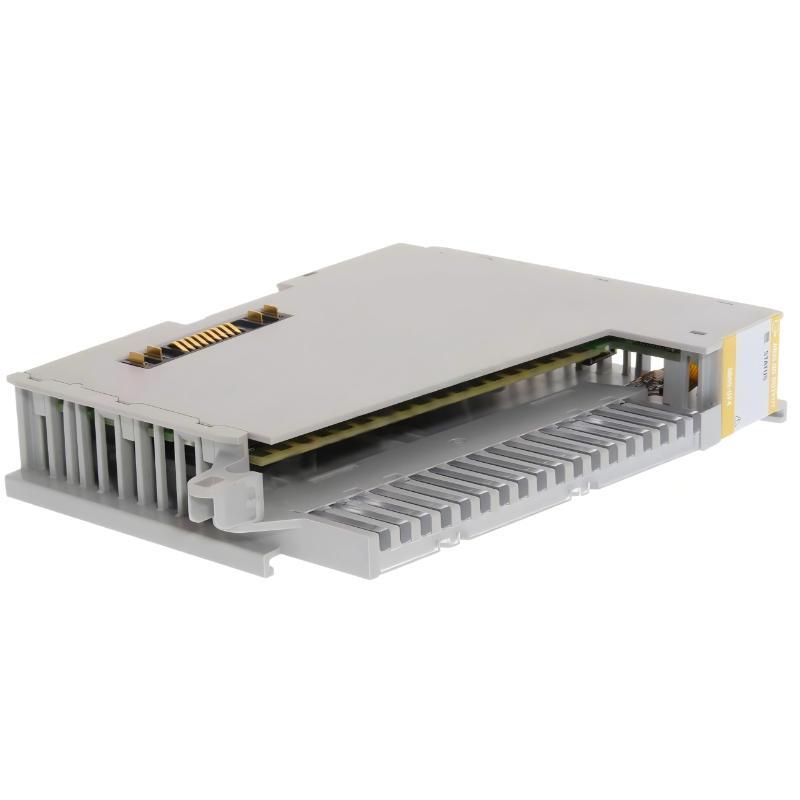

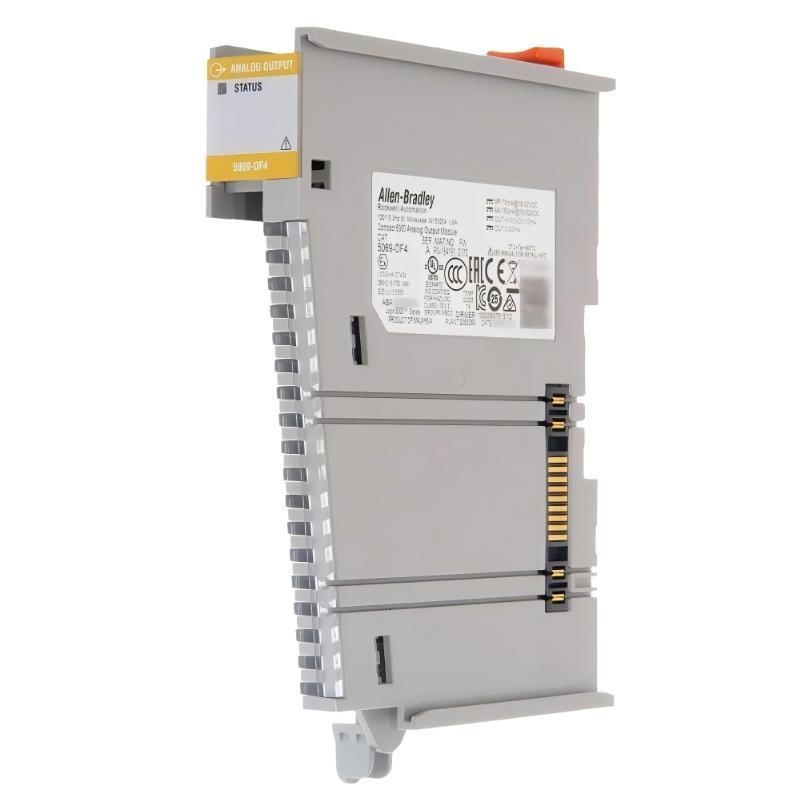

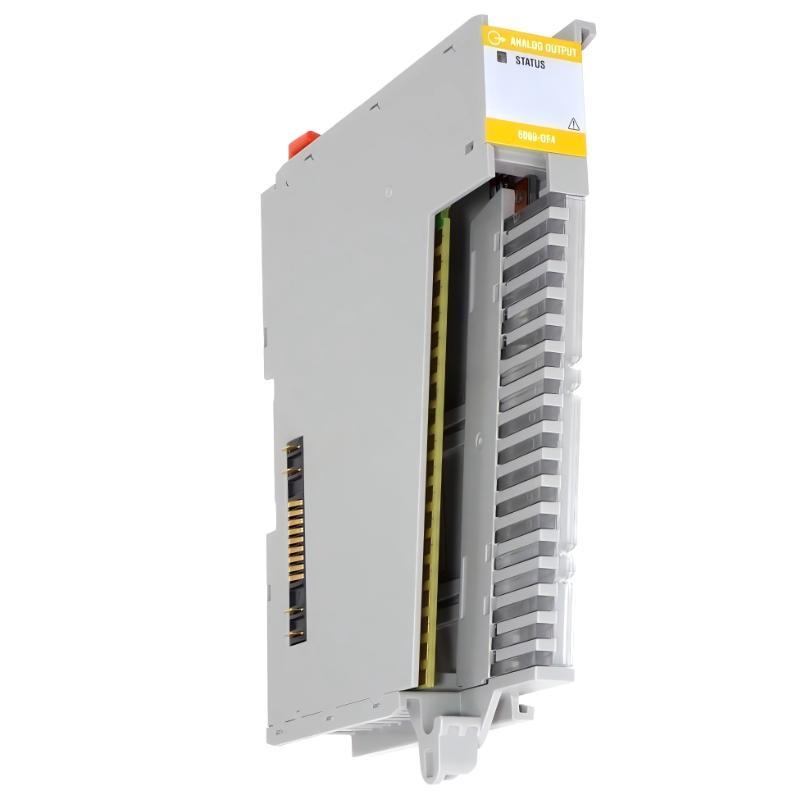

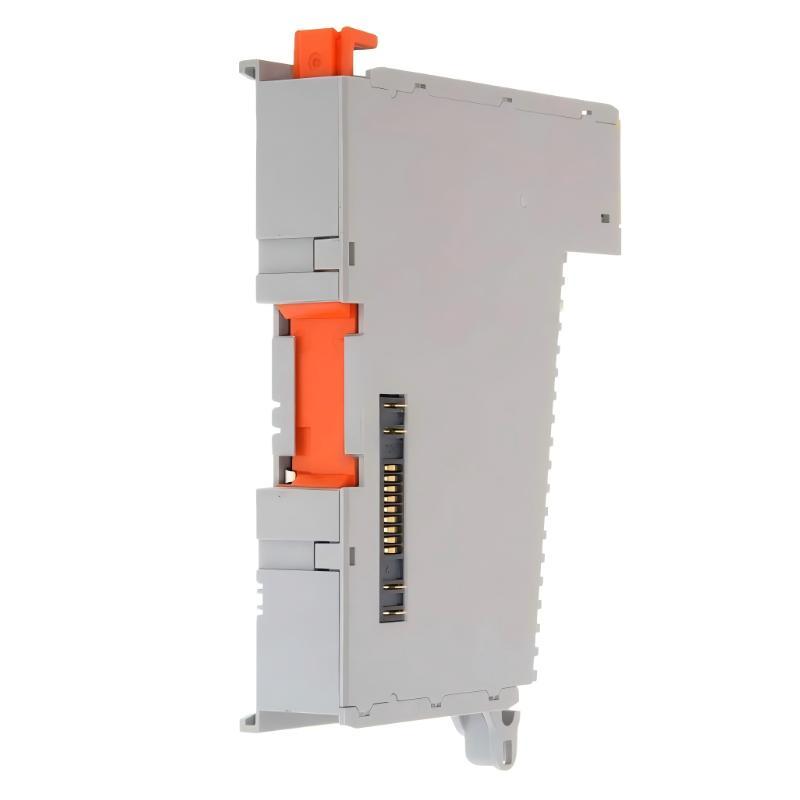

Allen Bradley 5069-OF4 Compact 5000 Analog Current/Voltage Output Module

Overview

The Allen Bradley 5069-OF4 Compact 5000 Analog Current/Voltage Output Module is a high-performance analog output module designed for precise signal control in industrial automation systems. It provides reliable analog current and voltage outputs for applications such as process control, motion systems, machine automation, and distributed I/O architectures.

General Information

Part Number: 5069-OF4

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: Compact 5000 I/O

Product Type: Analog Current/Voltage Output Module

Module Type: Analog Output Module

Mounting Method: DIN Rail Mount

Application: Industrial Automation, Process Control, Machine Control Systems

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low Power Industrial Operation

Output Type: Analog Current and Voltage Output

Output Channels: 4 Analog Output Channels

Signal Range: Configurable Current and Voltage Signals

Protection Features: Overvoltage Protection, Short-Circuit Protection, Channel Diagnostics

Status Indicators: LED Indicators for Module Status, Network Status, and Fault Monitoring

Communication & Interface

Communication Interface: Compact 5000 I/O Backplane

Output Channels: 4 Isolated Analog Output Channels

Signal Configuration: Software Configurable Analog Outputs

Programming Software: Studio 5000 Logix Designer

Diagnostic Functions: Channel Status Monitoring, Fault Detection, Module Diagnostics

System Integration: Compatible with CompactLogix 5380 Controllers and EtherNet/IP Automation Systems

Environmental

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 144.6 × 22 × 105.4 mm

Weight: 0.175 kg

Reliable Analog Control Modules with Fast Delivery Support.
