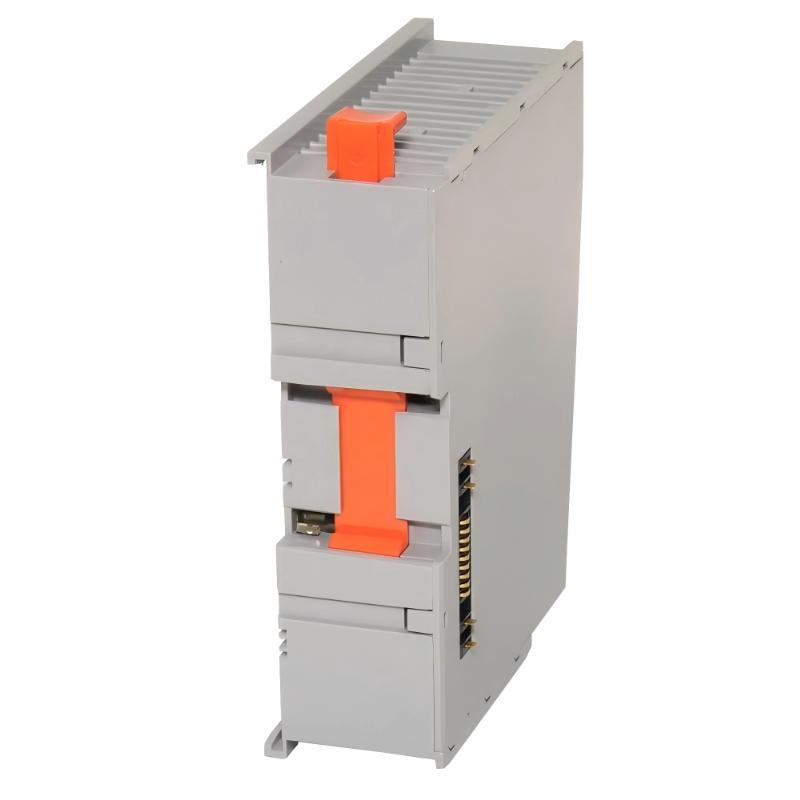

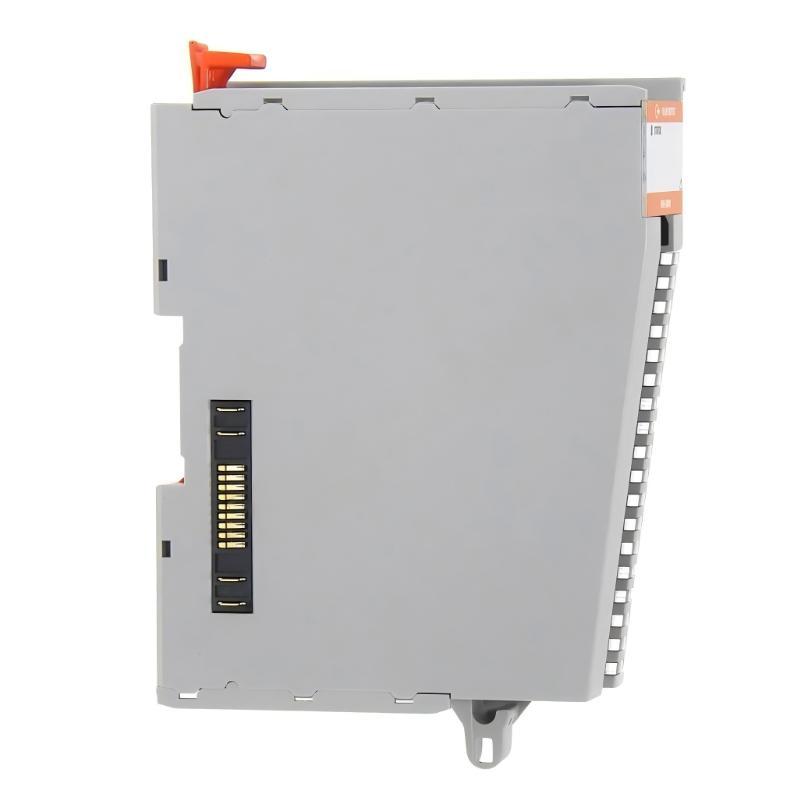

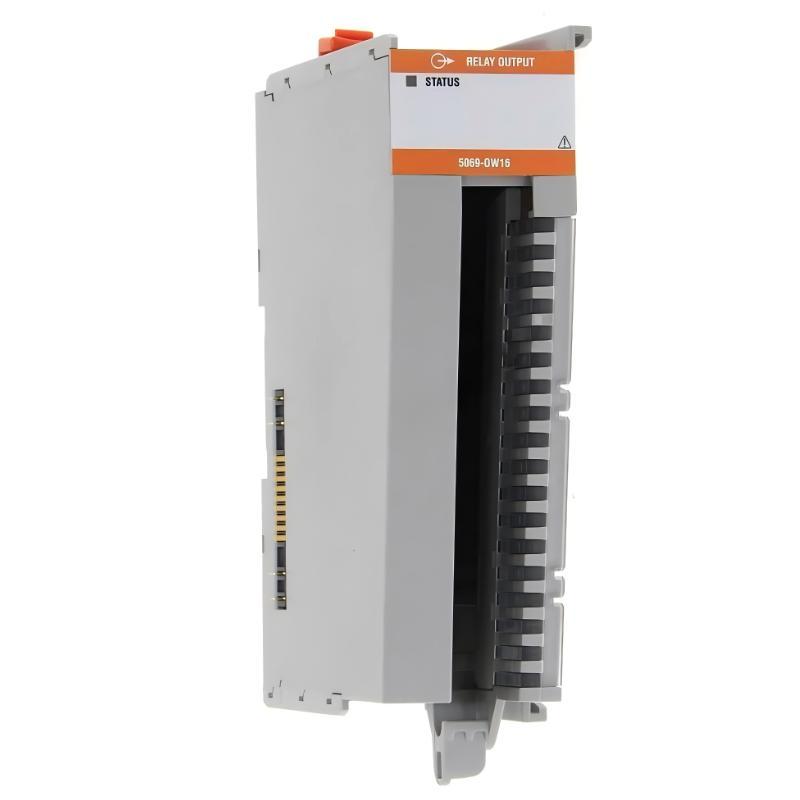

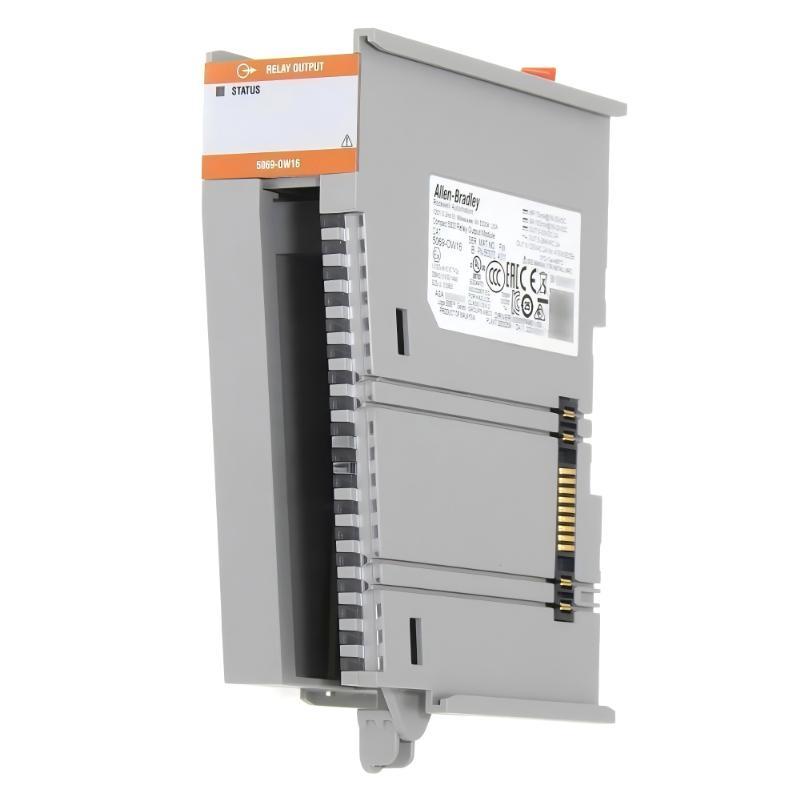

Allen Bradley 5069-OW16 Compact 5000 Relay Output Module

Overview

The Allen Bradley 5069-OW16 Compact 5000 Relay Output Module is a reliable digital output module designed to provide flexible relay switching for industrial automation applications. It delivers dependable control of motors, solenoids, contactors, indicator lights, and other field devices, making it an ideal choice for machine control and process automation systems.

General Information

Part Number: 5069-OW16

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: Compact 5000 I/O

Product Type: Relay Output Module

Module Type: Digital Relay Output Module

Mounting Method: DIN Rail Mount

Application: Industrial Automation, Machine Control, Process Control Systems

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low Power Industrial Operation

Output Channels: 16 Relay Output Channels

Output Type: Electromechanical Relay Outputs

Contact Rating: Suitable for AC and DC Load Switching

Protection Features: Overload Protection, Short-Circuit Protection, Channel Diagnostics

Status Indicators: LED Indicators for Power, Module Status, Output Status, and Fault Conditions

Communication & Interface

Communication Interface: Compact 5000 I/O Backplane

Output Configuration: 16 Independently Controlled Relay Outputs

Programming Software: Studio 5000 Logix Designer

Diagnostic Functions: Output Status Monitoring, Module Diagnostics, Fault Detection

System Compatibility: Compatible with CompactLogix 5380 Controllers and Compact 5000 I/O Systems

Integration: Supports High-Speed Industrial Automation Networks

Environmental

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 144.6 × 36 × 105.4 mm

Weight: 0.24 kg
