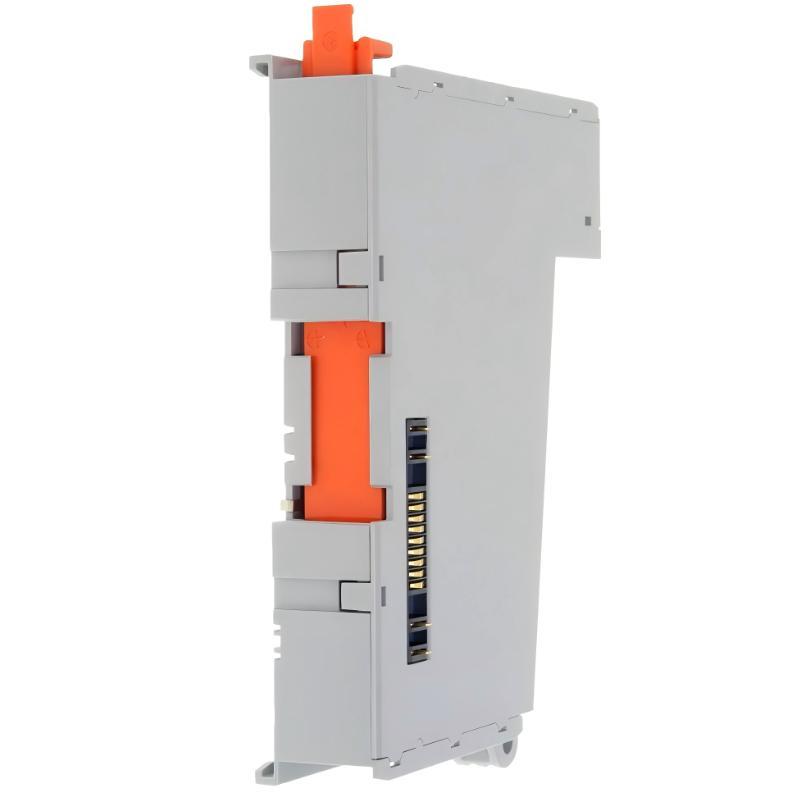

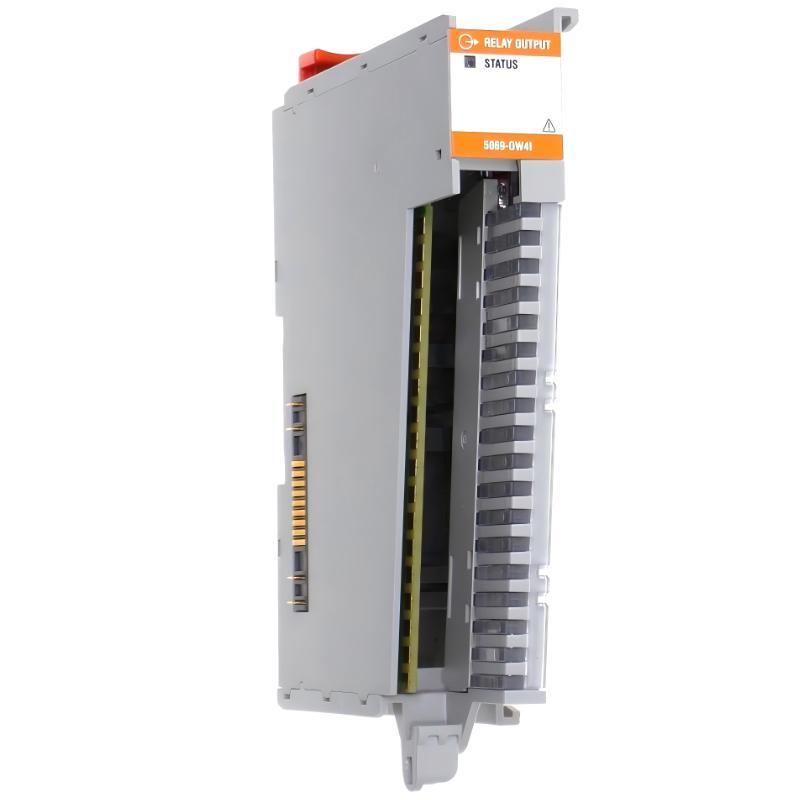

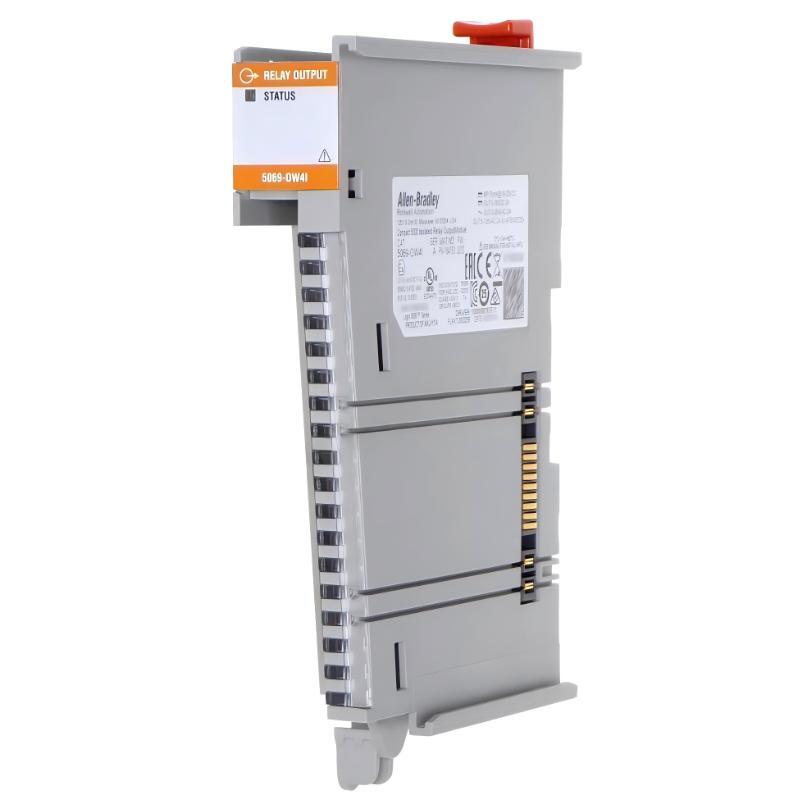

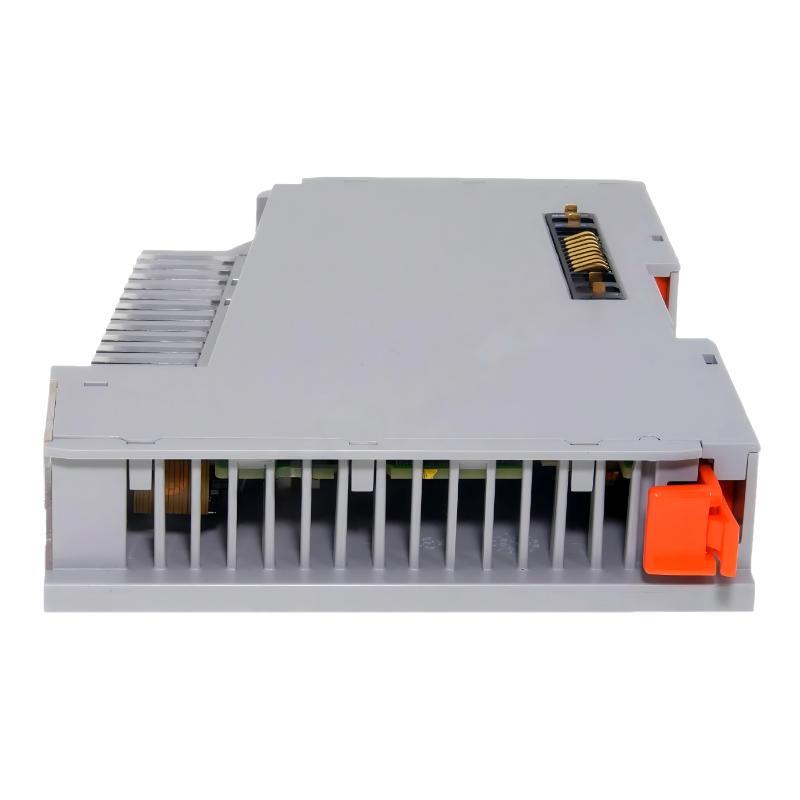

Allen Bradley 5069-OW4I Compact 5000 Isolated Relay Output Module

Overview

The Allen Bradley 5069-OW4I Compact 5000 Isolated Relay Output Module is a high-reliability digital output module designed for industrial automation systems requiring isolated relay switching. It provides dependable control of contactors, solenoids, alarms, indicator lights, and other field devices while ensuring electrical isolation for enhanced system protection and operational stability.

General Information

Part Number: 5069-OW4I

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: Compact 5000 I/O

Product Type: Isolated Relay Output Module

Module Type: Digital Relay Output Module

Mounting Method: DIN Rail Mount

Application: Industrial Automation, Machine Control, Process Control Systems

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low Power Industrial Operation

Output Channels: 4 Isolated Relay Output Channels

Output Type: Electromechanical Relay Outputs

Channel Isolation: Individually Isolated Output Channels

Protection Features: Overload Protection, Short-Circuit Protection, Electrical Isolation, Channel Diagnostics

Status Indicators: LED Indicators for Power, Module Status, Output Status, and Fault Conditions

Communication & Interface

Communication Interface: Compact 5000 I/O Backplane

Output Configuration: 4 Independently Controlled Isolated Relay Outputs

Programming Software: Studio 5000 Logix Designer

Diagnostic Functions: Output Status Monitoring, Module Diagnostics, Fault Detection

System Compatibility: Compatible with CompactLogix 5380 Controllers and Compact 5000 I/O Systems

Integration: Supports High-Speed Distributed Industrial Automation Networks

Environmental

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 144.57 × 25.56 × 109.09 mm

Weight: 0.175 kg
