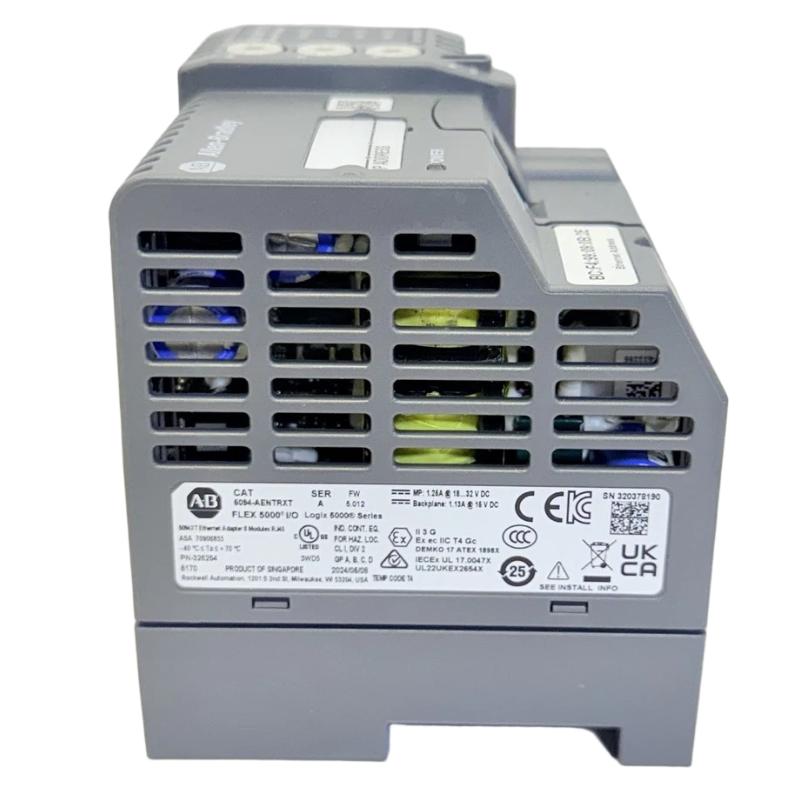

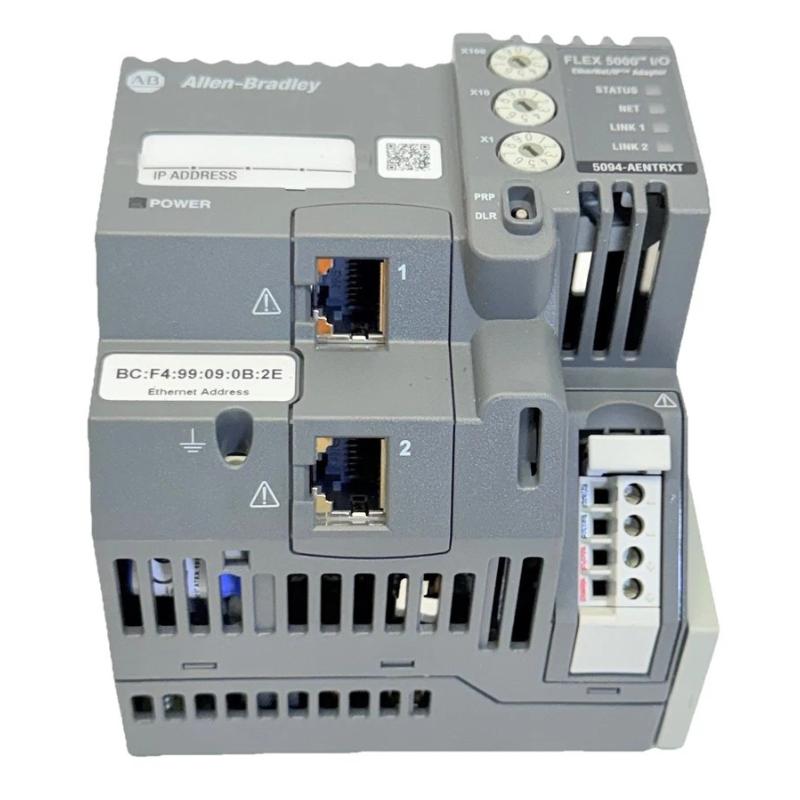

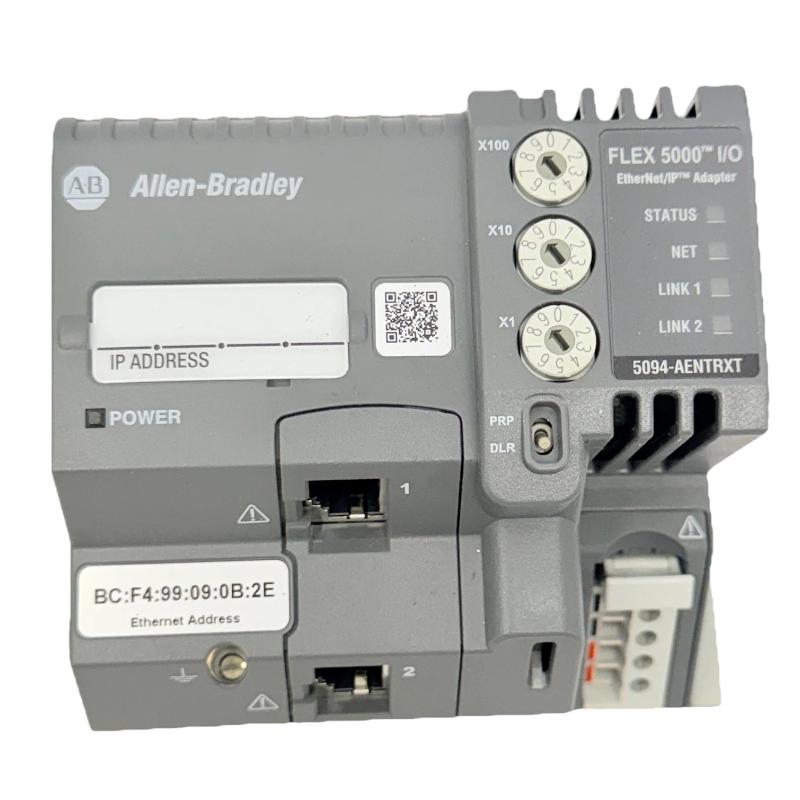

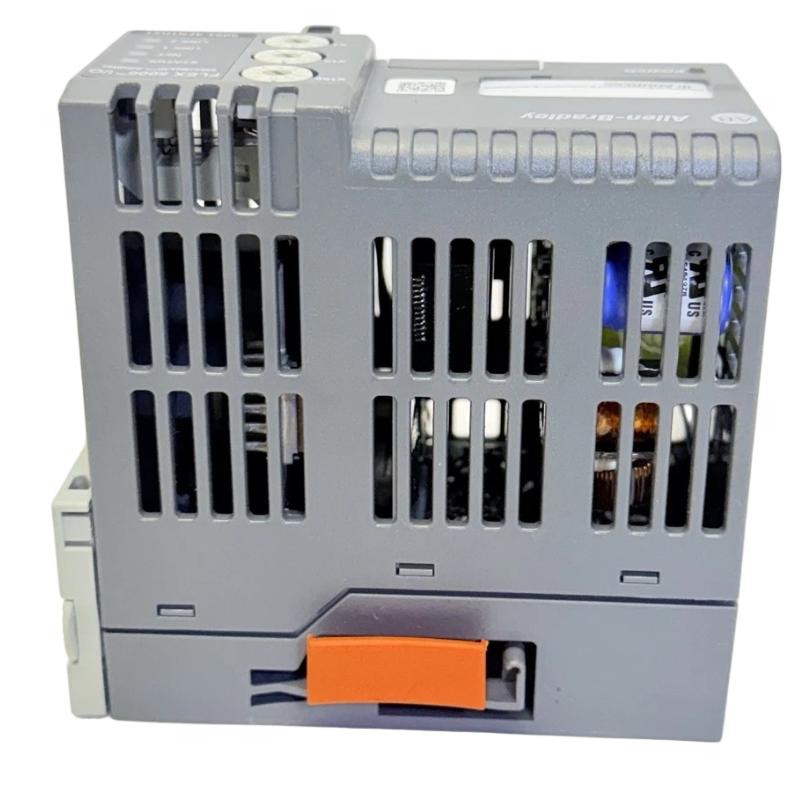

Allen Bradley 5094-AENTRXT Flex 5000 EtherNet/IP Adapter

Overview

The Allen Bradley 5094-AENTRXT Flex 5000 EtherNet/IP Adapter is a ruggedized network communication adapter designed for reliable connection between FLEX 5000 I/O modules and EtherNet/IP industrial control systems. It provides stable distributed I/O communication, enhanced environmental durability, and dependable network performance for demanding automation applications.

General Information

Part Number: 5094-AENTRXT

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: FLEX 5000 I/O

Product Type: EtherNet/IP Adapter

Module Type: Distributed I/O Network Adapter

Mounting Method: DIN Rail Mount

Application: Industrial Automation, Remote I/O Systems, Harsh Environment Control Applications

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low Power Industrial Operation

Power Connection: External 24 V DC Supply

Protection Features: Overvoltage Protection, Reverse Polarity Protection, Short-Circuit Protection

Environmental Protection: Extended Temperature Design for Industrial Applications

Status Indicators: LED Indicators for Power, Network Status, Module Status, and Fault Diagnostics

Communication & Interface

Network Protocol: EtherNet/IP

Ethernet Ports: Dual RJ45 Ethernet Ports

Network Topology: Supports Device Level Ring (DLR) and Linear Network Topologies

Communication Speed: 10/100 Mbps Auto-Negotiation

Compatibility: FLEX 5000 I/O Modules and Logix Automation Controllers

Diagnostic Functions: Network Monitoring, Module Diagnostics, Connection Status, Fault Detection

Environmental

Operating Temperature: -40°C to +70°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Industrial Control Cabinet and Harsh Industrial Locations

Dimensions & Weight

Dimensions (W × H × D): 96.5 × 92.7 × 94 mm

Weight: 0.4 kg
