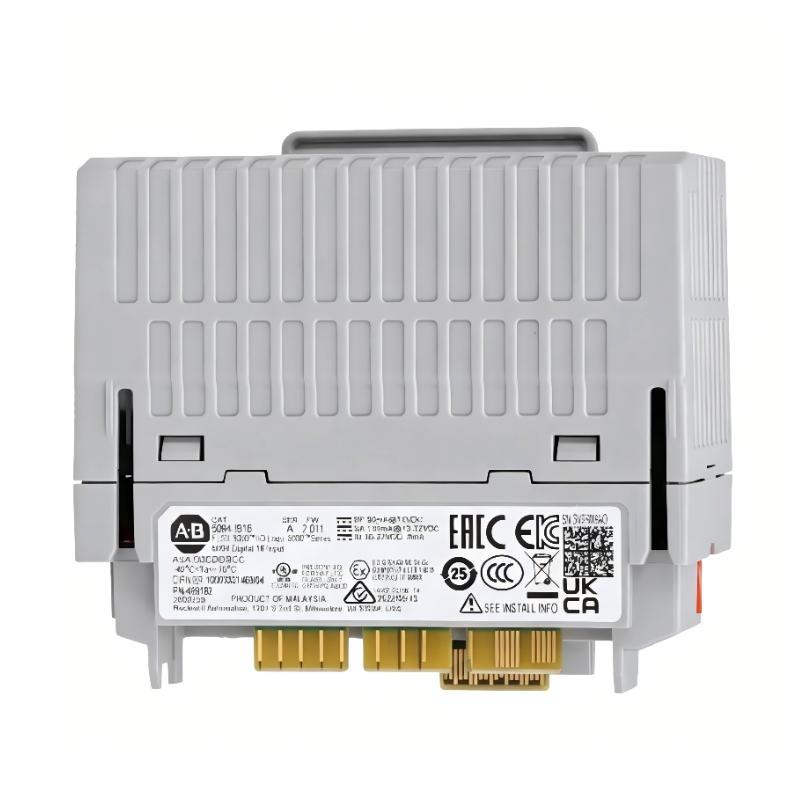

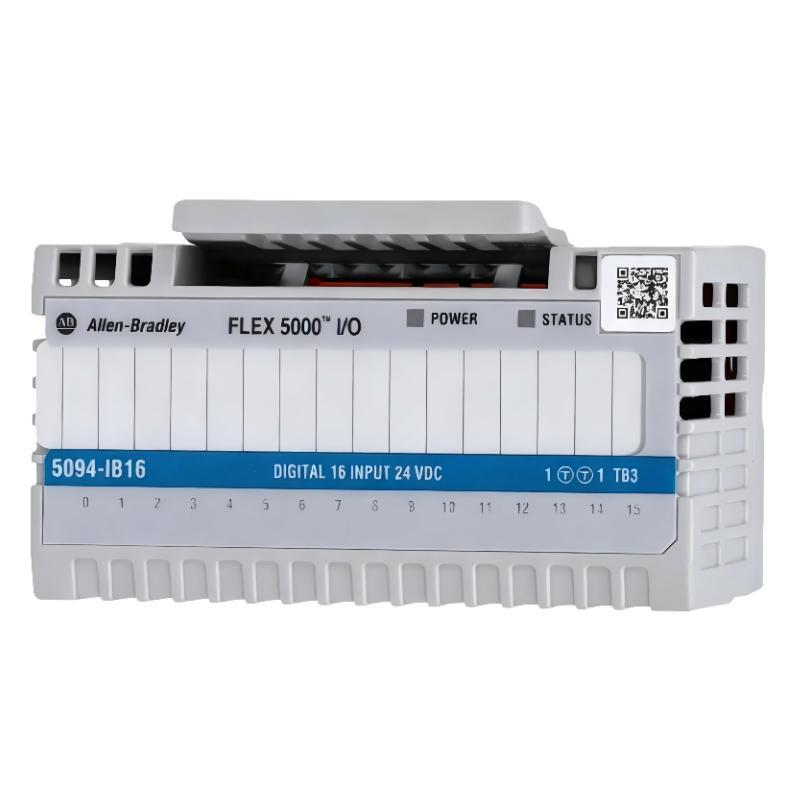

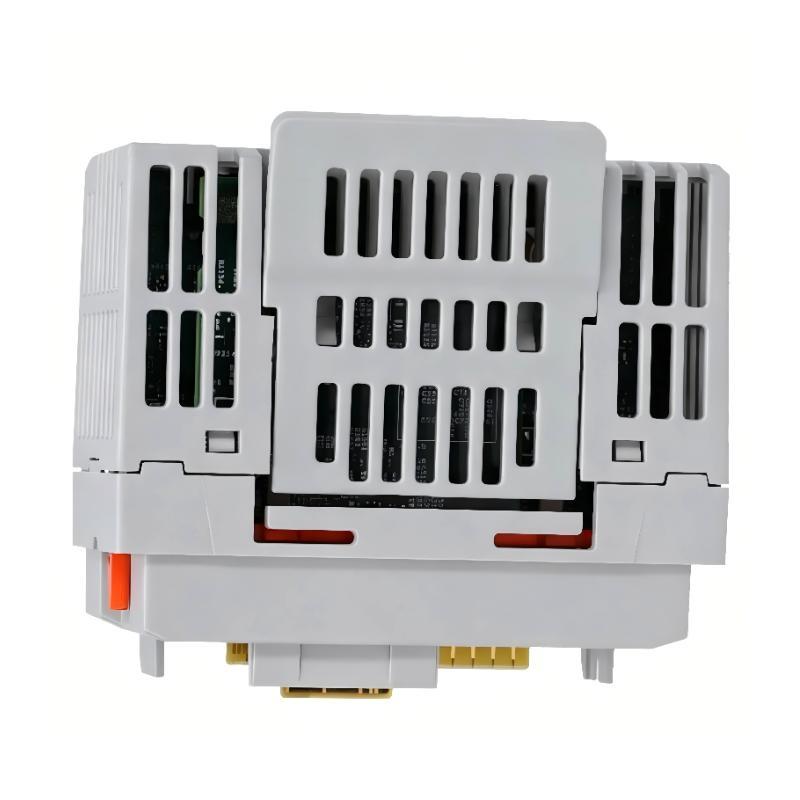

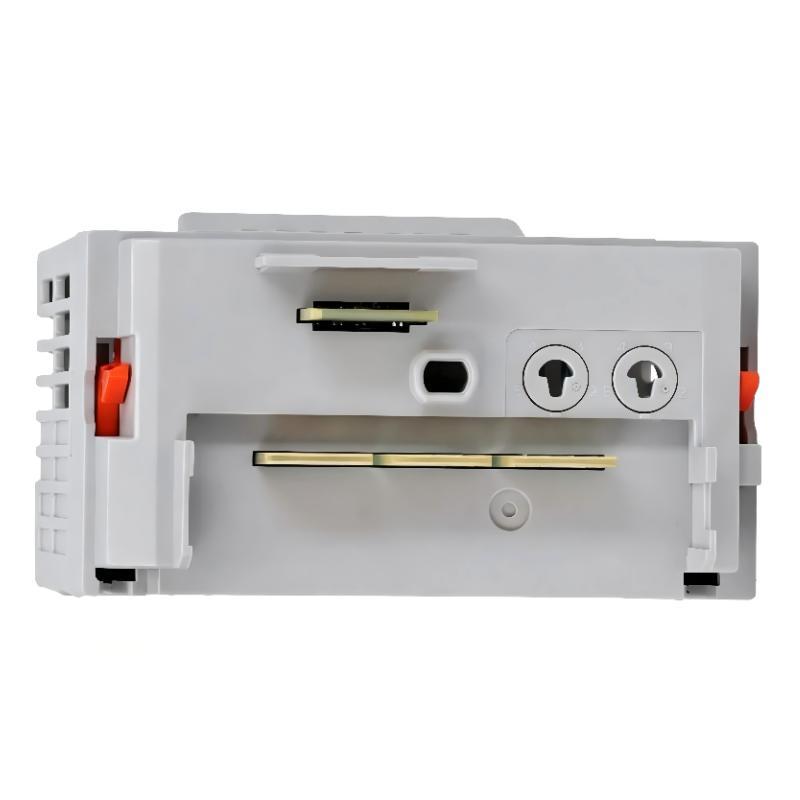

Allen Bradley 5094-IB16 Flex 5000 Digital Input Module

Overview

The Allen Bradley 5094-IB16 Flex 5000 Digital Input Module is a compact and reliable digital input module designed for distributed industrial automation systems. It provides high-speed signal acquisition from field devices such as sensors, switches, and push buttons, enabling accurate monitoring and control within modern EtherNet/IP-based architectures.

General Information

Part Number: 5094-IB16

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: FLEX 5000 I/O

Product Type: Digital Input Module

Module Type: 16-Channel Digital Input Module

Mounting Method: DIN Rail Mount

Application: Industrial Automation, Remote I/O Systems, Machine Control

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low Power Industrial Operation

Input Channels: 16 Digital Input Channels

Input Type: DC Digital Inputs

Signal Detection: Field Device ON/OFF Signal Monitoring

Protection Features: Overvoltage Protection, Short-Circuit Protection, Input Diagnostics

Status Indicators: LED Indicators for Power, Module Status, Input Status, and Fault Monitoring

Communication & Interface

Communication Interface: FLEX 5000 I/O Backplane

Network Compatibility: EtherNet/IP Systems via FLEX 5000 Adapter

Input Channels: 16 Independently Configurable Digital Inputs

Programming Software: Studio 5000 Logix Designer

Diagnostic Functions: Input Status Monitoring, Module Diagnostics, Fault Detection

System Integration: Compatible with Logix Controllers and FLEX 5000 Distributed I/O Systems

Environmental

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 94 × 54 × 87 mm

Weight: 0.101 kg
