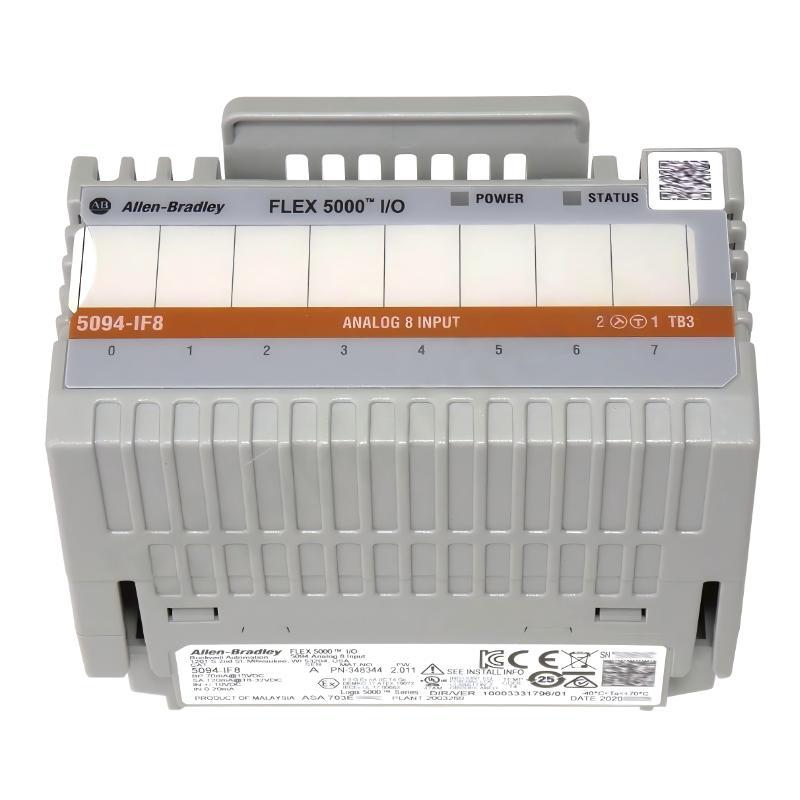

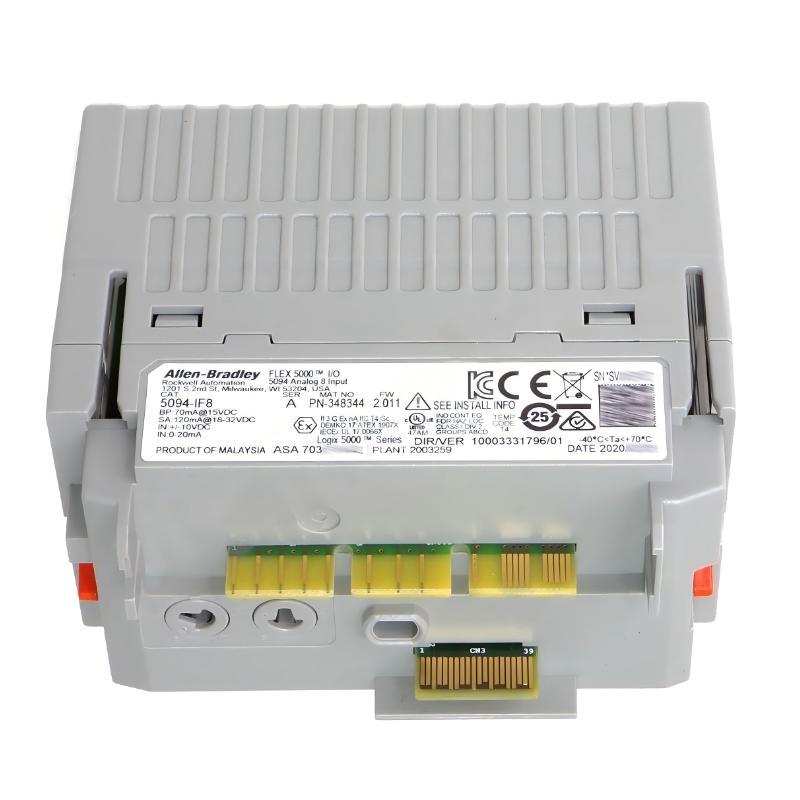

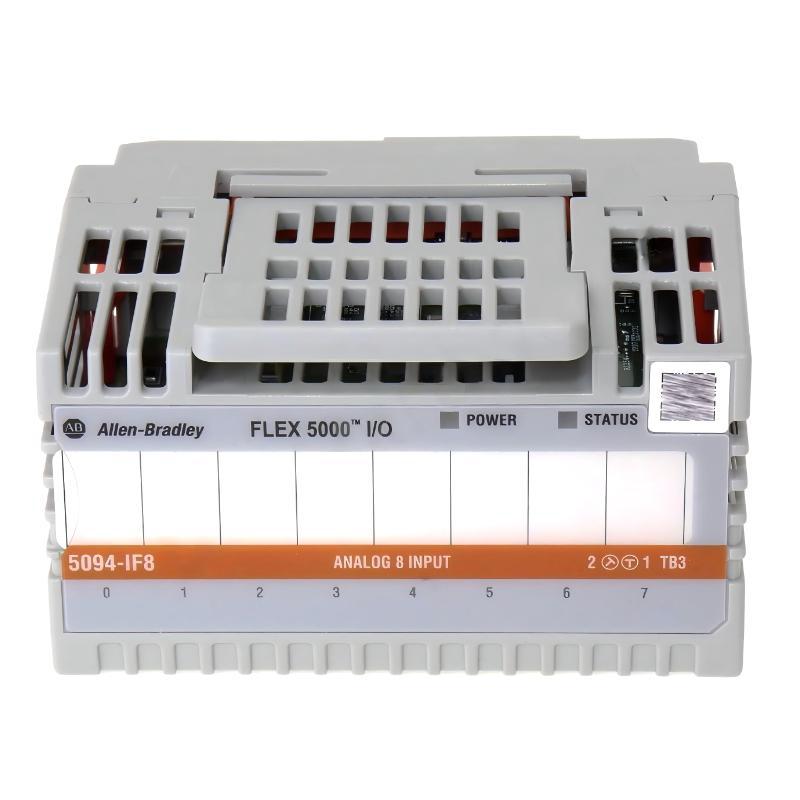

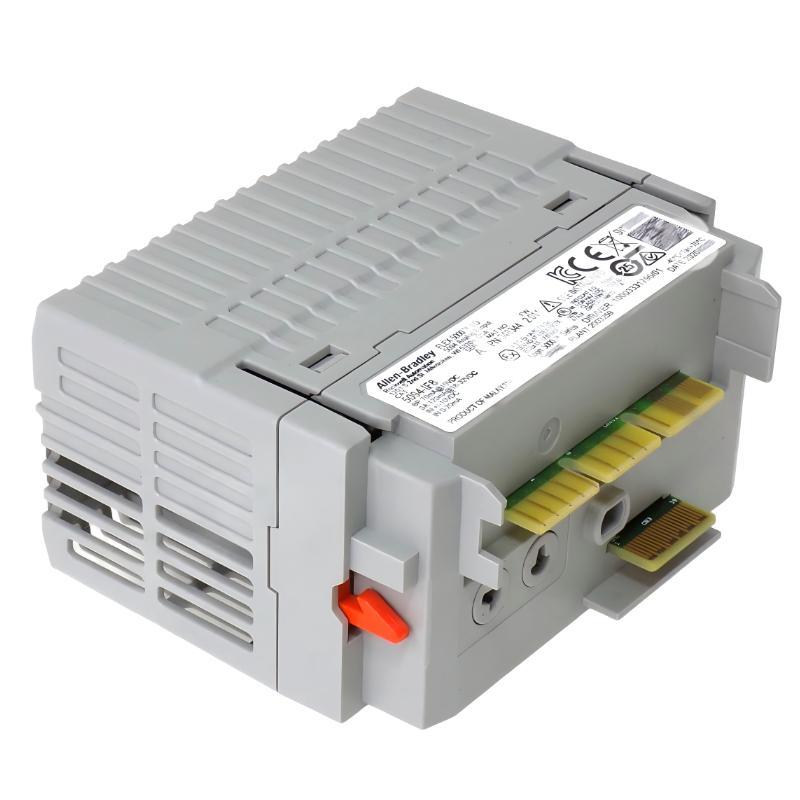

Allen Bradley 5094-IF8 Flex 5000 Analog Input Module

Overview

The Allen Bradley 5094-IF8 Flex 5000 Analog Input Module is a high-precision analog input module designed for distributed industrial automation systems. It provides accurate acquisition of analog signals from field devices such as sensors, transmitters, and process instruments, enabling reliable monitoring and control in EtherNet/IP-based automation networks.

General Information

Part Number: 5094-IF8

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: FLEX 5000 I/O

Product Type: Analog Input Module

Module Type: 8-Channel Analog Input Module

Mounting Method: DIN Rail Mount

Application: Industrial Automation, Process Control, Remote I/O Systems

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low Power Industrial Operation

Input Channels: 8 Analog Input Channels

Input Type: Analog Current and Voltage Inputs

Signal Range: Configurable Analog Input Signals

Protection Features: Overvoltage Protection, Short-Circuit Protection, Channel Diagnostics

Status Indicators: LED Indicators for Power, Module Status, Input Status, and Fault Monitoring

Communication & Interface

Communication Interface: FLEX 5000 I/O Backplane

Network Compatibility: EtherNet/IP Systems via FLEX 5000 Adapter

Input Channels: 8 Independently Configurable Analog Input Channels

Programming Software: Studio 5000 Logix Designer

Diagnostic Functions: Channel Monitoring, Signal Status Detection, Module Diagnostics

System Integration: Compatible with Logix Controllers and FLEX 5000 Distributed I/O Systems

Environmental

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 94 × 54 × 87 mm

Weight: 0.104 kg
