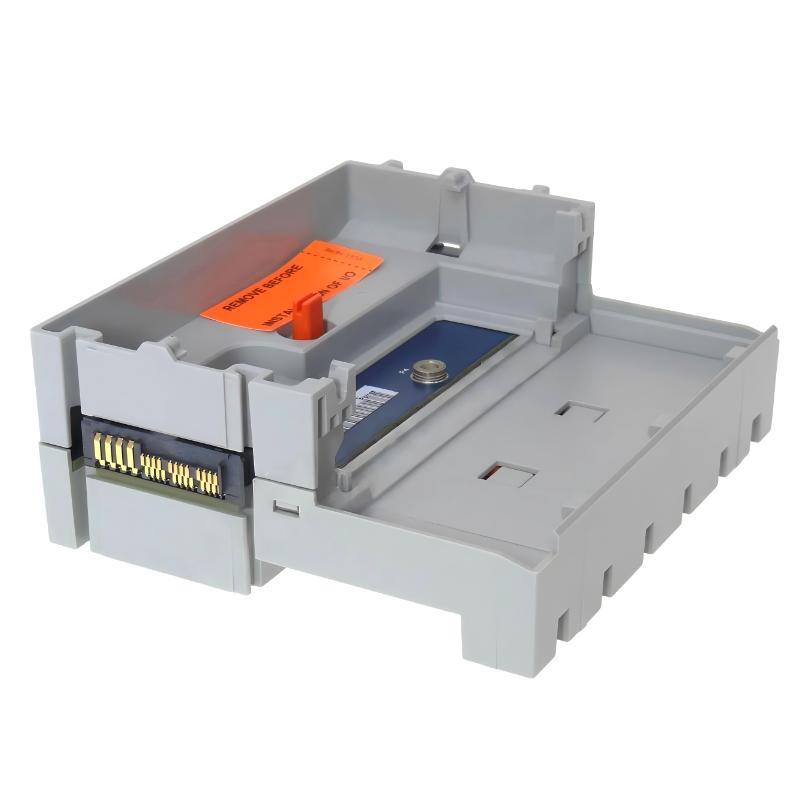

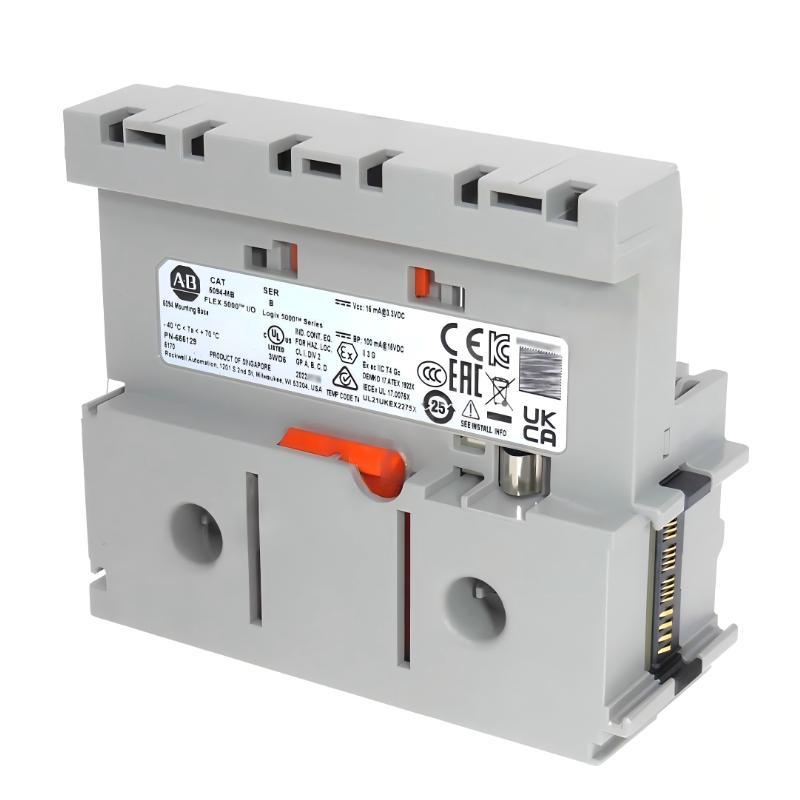

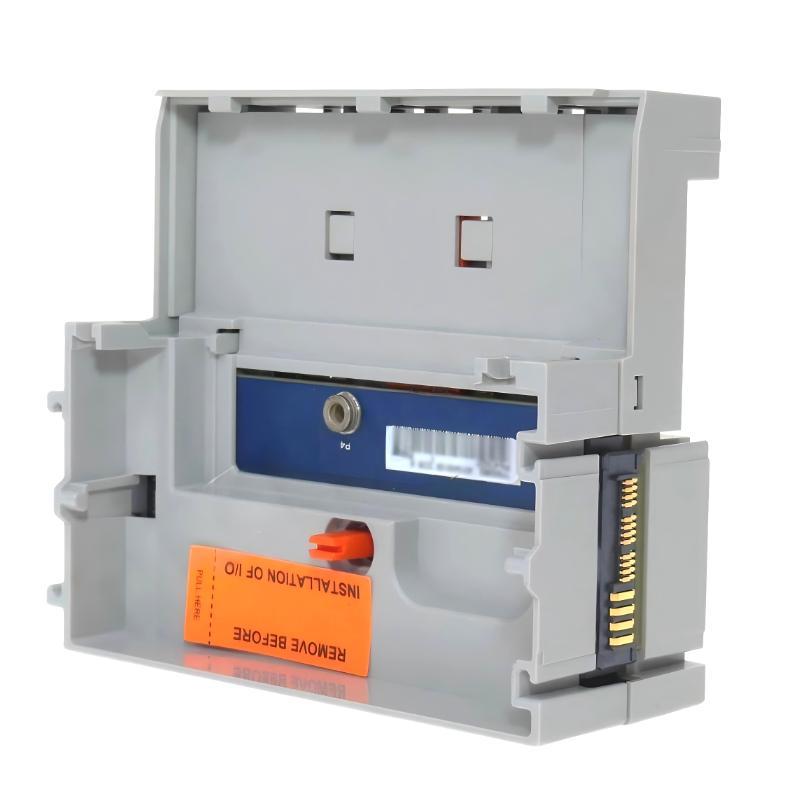

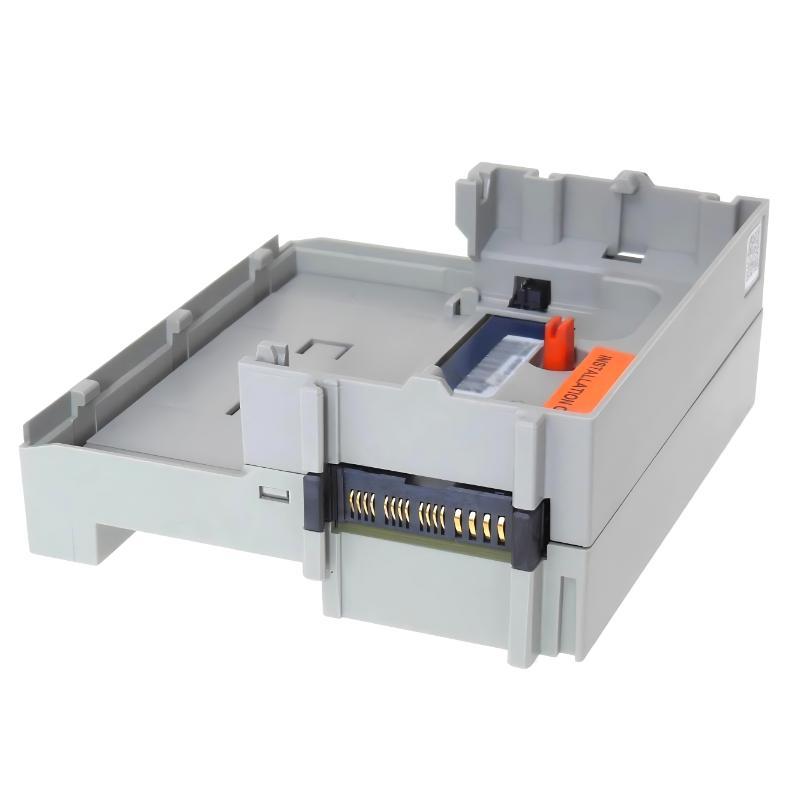

Allen Bradley 5094-MB Flex 5000 Mounting Base

Overview

The Allen Bradley 5094-MB Flex 5000 Mounting Base is a compact mounting component designed for FLEX 5000 I/O systems. It provides secure mechanical support and electrical connection between FLEX 5000 I/O modules and the system backplane, ensuring reliable module installation and efficient system expansion in industrial automation applications.

General Information

Part Number: 5094-MB

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: FLEX 5000 I/O

Product Type: Mounting Base

Component Type: I/O Module Mounting Base

Mounting Method: DIN Rail Mount

Application: Industrial Automation, Distributed I/O Systems, Control Panel Installation

Power Specifications

Power Connection: Supports FLEX 5000 I/O Module Power Distribution

Power Supply: 24 V DC System Power

Electrical Connection: Integrated Module Interface Connection

Protection Features: Secure Mechanical Locking and Reliable Electrical Contact

Installation Function: Provides Stable Mounting and Electrical Support for I/O Modules

Communication & Interface

Communication Interface: FLEX 5000 I/O Backplane Connection

Module Compatibility: FLEX 5000 I/O Modules

Connection Type: Direct Module Mounting Interface

System Integration: Supports EtherNet/IP Distributed I/O Architectures

Installation Feature: Simplifies Module Replacement and System Maintenance

Environmental

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 94 × 37.5 × 85 mm

Weight: 0.071 kg
