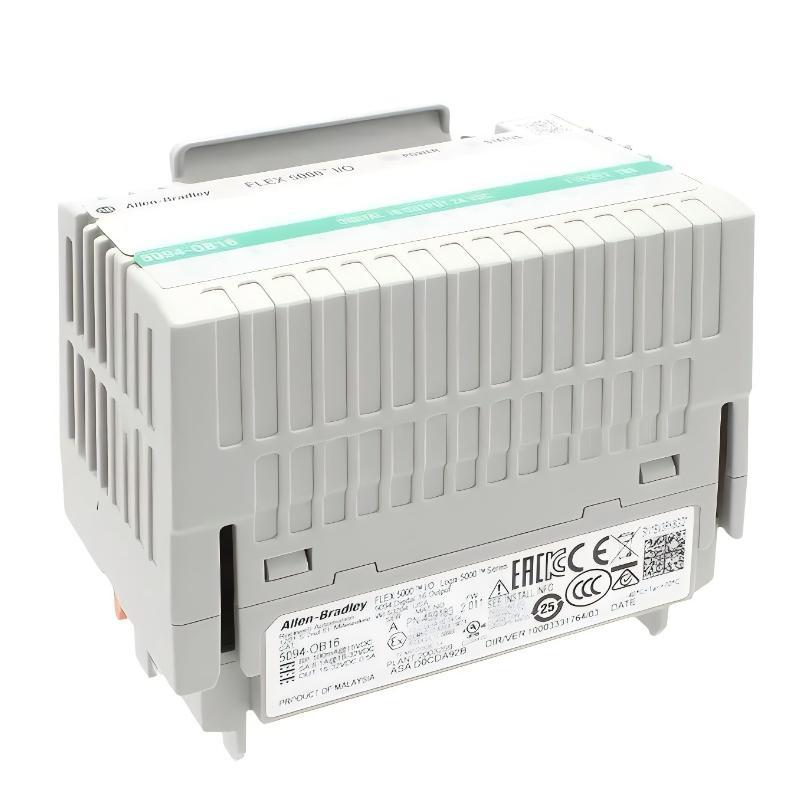

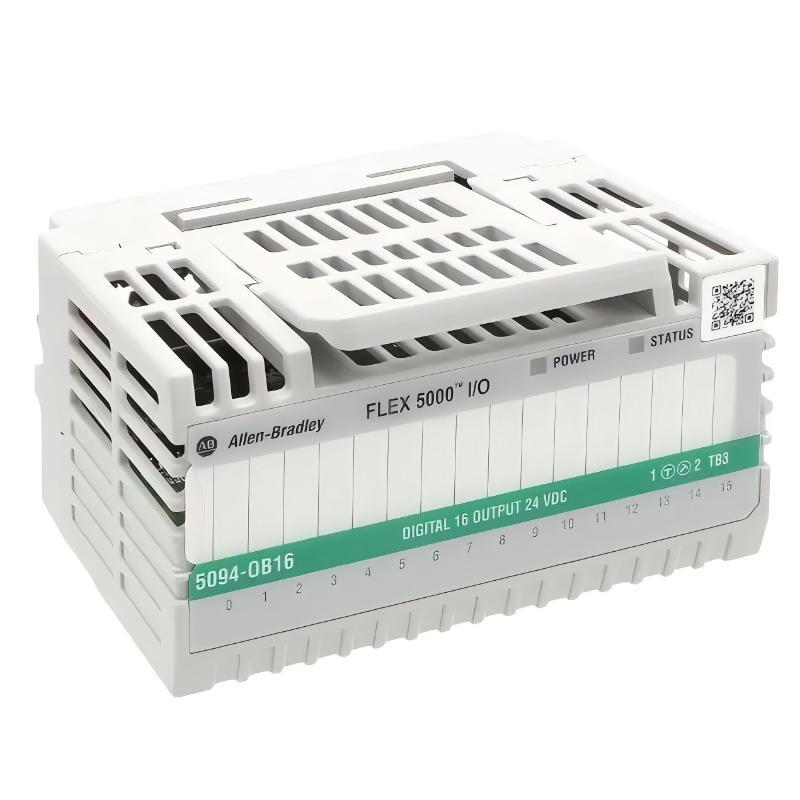

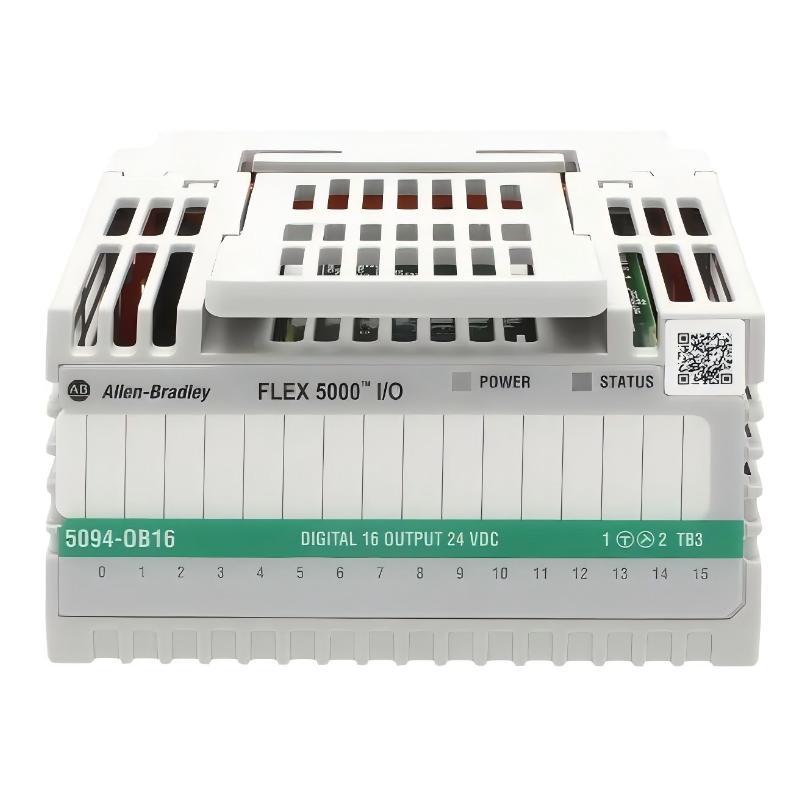

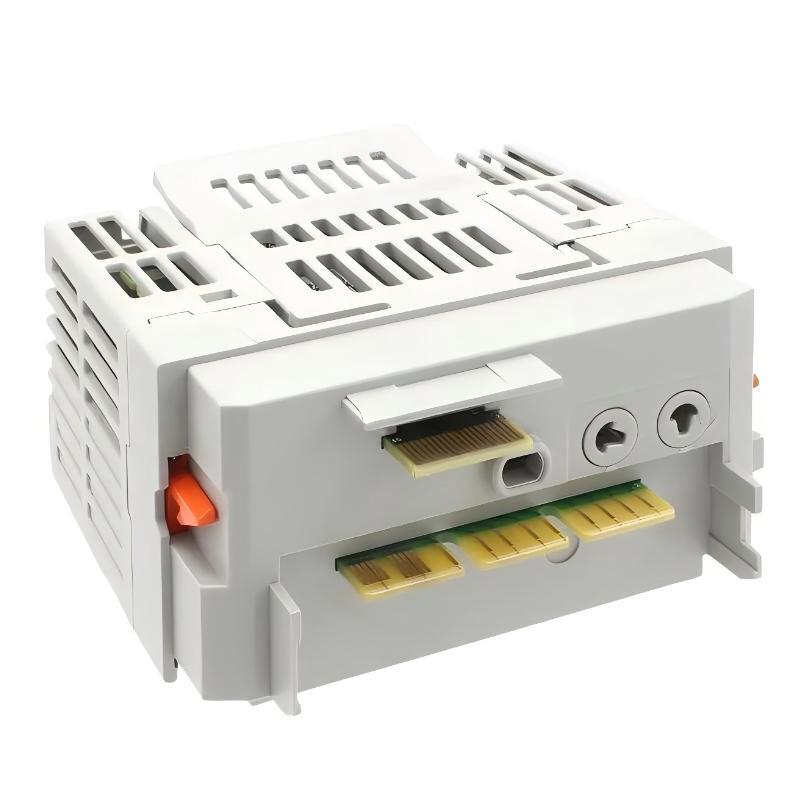

Allen Bradley 5094-OB16 Flex 5000 Digital Output Module

Overview

The Allen Bradley 5094-OB16 Flex 5000 Digital Output Module is a compact and reliable output module designed for distributed industrial automation systems. It provides efficient control of field devices such as actuators, solenoids, contactors, and indicator lamps, enabling stable digital signal switching in modern EtherNet/IP-based control architectures.

General Information

Part Number: 5094-OB16

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: FLEX 5000 I/O

Product Type: Digital Output Module

Module Type: 16-Channel Digital Output Module

Mounting Method: DIN Rail Mount

Application: Industrial Automation, Remote I/O Systems, Machine Control

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low Power Industrial Operation

Output Channels: 16 Digital Output Channels

Output Type: DC Digital Outputs

Signal Control: ON/OFF Switching Control for Field Devices

Protection Features: Overvoltage Protection, Short-Circuit Protection, Output Diagnostics

Status Indicators: LED Indicators for Power, Module Status, Output Status, and Fault Monitoring

Communication & Interface

Communication Interface: FLEX 5000 I/O Backplane

Network Compatibility: EtherNet/IP Systems via FLEX 5000 Adapter

Output Channels: 16 Independently Controlled Digital Outputs

Programming Software: Studio 5000 Logix Designer

Diagnostic Functions: Output Status Monitoring, Module Diagnostics, Fault Detection

System Integration: Compatible with Logix Controllers and FLEX 5000 Distributed I/O Systems

Environmental

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% RH, Non-Condensing

Protection Rating: IP20

Installation Environment: Industrial Control Cabinet

Dimensions & Weight

Dimensions (W × H × D): 94 × 54 × 87 mm

Weight: 0.105 kg
