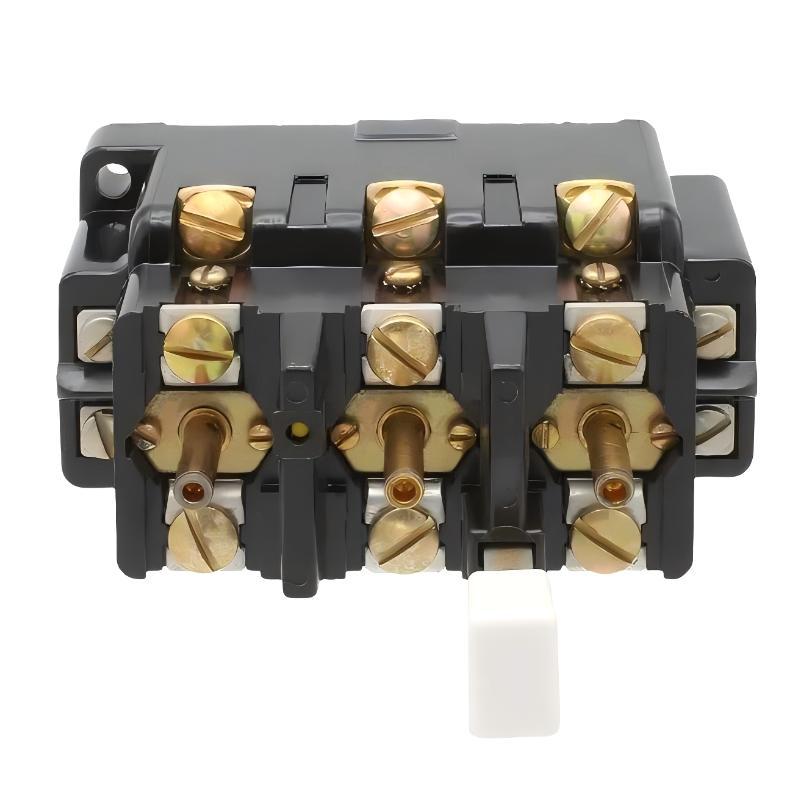

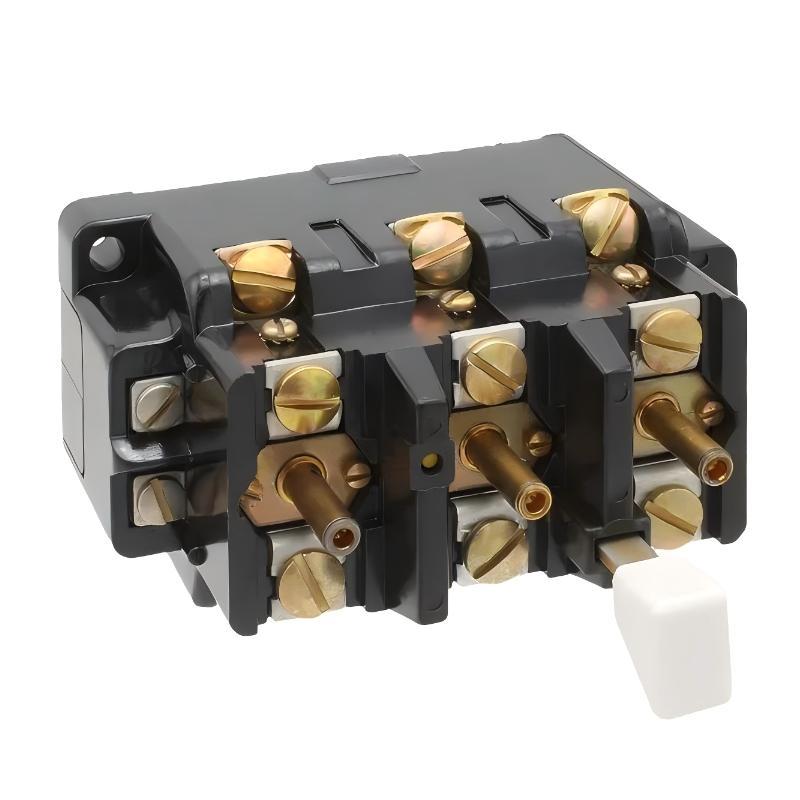

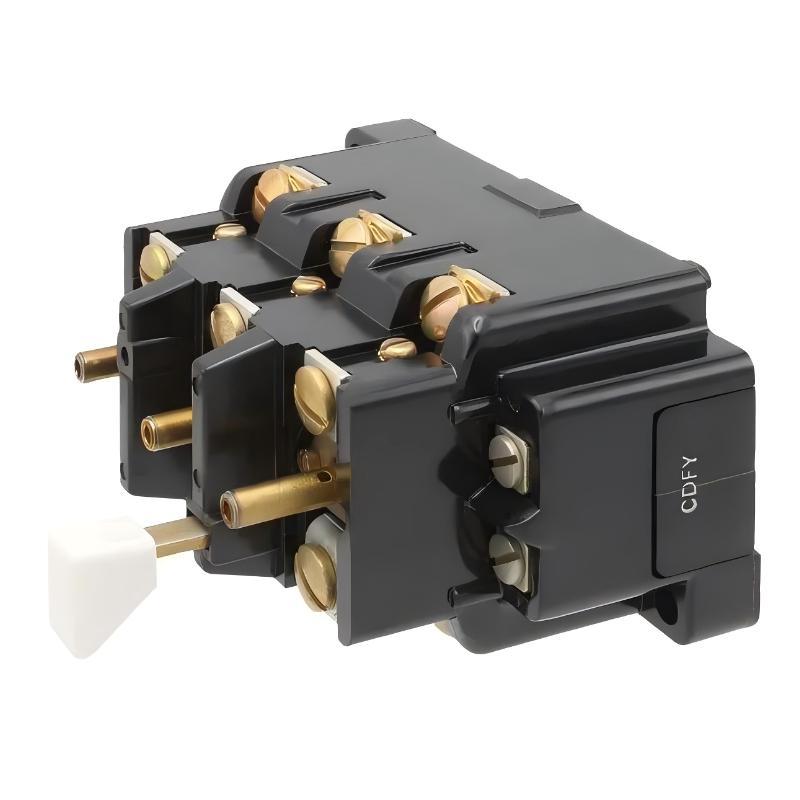

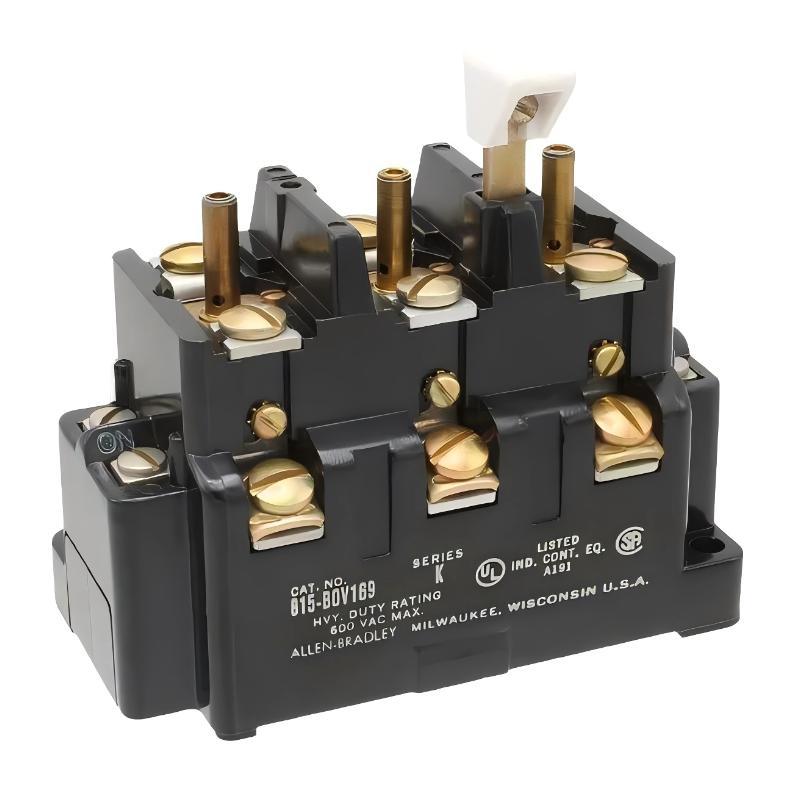

Allen Bradley 815-BOV169 Manual Reset Overload Relay
| Release time | Jul 29, 2026 |
|---|---|
| Brand | Allen Bradley PLC |
| Product Numbe | 815-BOV169 |
| Country Of Origin | USA |
| Dimensions | 100 x 57 x 95 mm |
| Weight | 0.34 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The Allen Bradley 815-BOV169 is a manual reset overload relay designed to provide motor protection in industrial control applications. It helps protect motors from overload conditions by monitoring current levels and disconnecting the control circuit when abnormal operating conditions occur.
General Information
Part Number: 815-BOV169
Manufacturer: Allen Bradley
Brand: Allen Bradley
Country of Origin: USA
Series: Bulletin 815 Overload Relay
Type: Manual Reset Overload Relay
Application: Motor protection, industrial control panels, machine automation, and motor starter systems
Reset Method: Manual reset operation
Mounting: Panel or starter assembly installation
Technology: Thermal overload protection with manual reset functionality
Function: Provides overload detection and motor protection control
Power Specifications
Rated Current: Designed for motor overload protection applications
Trip Class: Standard industrial overload protection
Reset Function: Manual reset after overload trip condition
Protection: Overload and motor protection against excessive current conditions
Control Circuit: Provides overload trip signal for connected control systems
Operating Principle: Thermal sensing mechanism for current monitoring
Communication & Interface
Interface Type: Electrical control circuit connection
Connection Method: Screw terminal connections
Control Function: Provides overload trip and reset status feedback
Reset Interface: Manual reset button for operator-controlled recovery
Signal Output: Overload contact output for motor starter circuits
Diagnostics: Visual trip indication and manual status checking
Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: −40 to +85 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial control cabinets and motor control centers
Protection Rating: Standard industrial enclosure environment
Mechanical Design: Compact structure for reliable long-term operation
Dimensions & Weight
Dimensions (L × W × H): 100 × 57 × 95 mm
Weight: 0.34 kg
