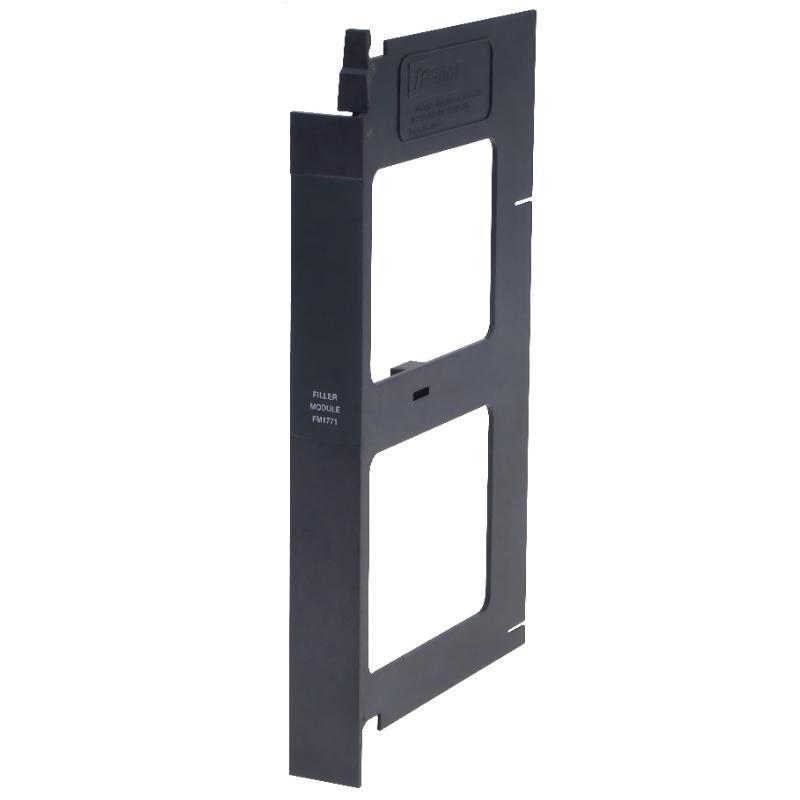

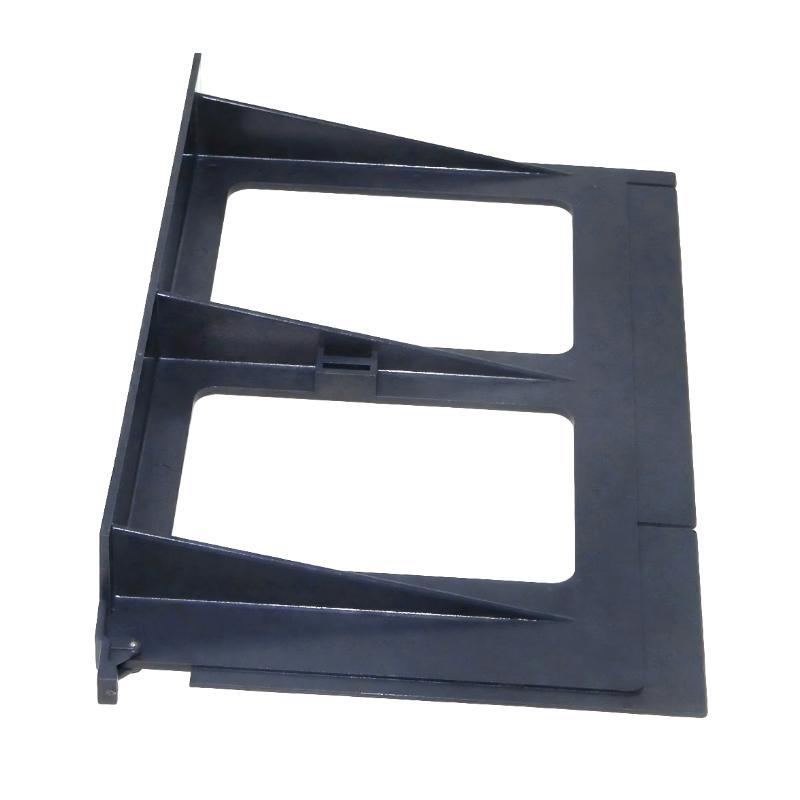

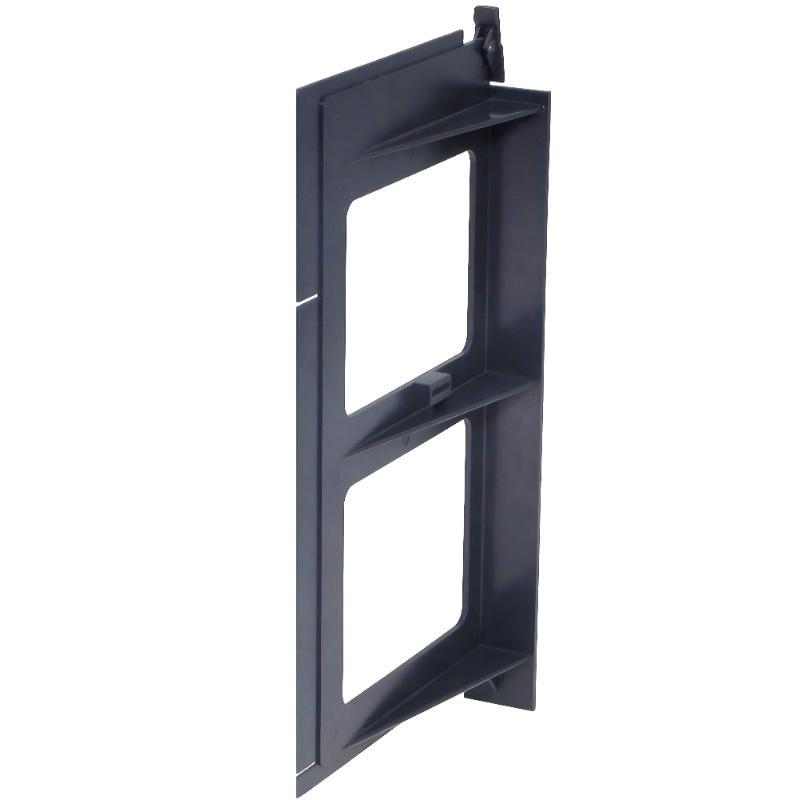

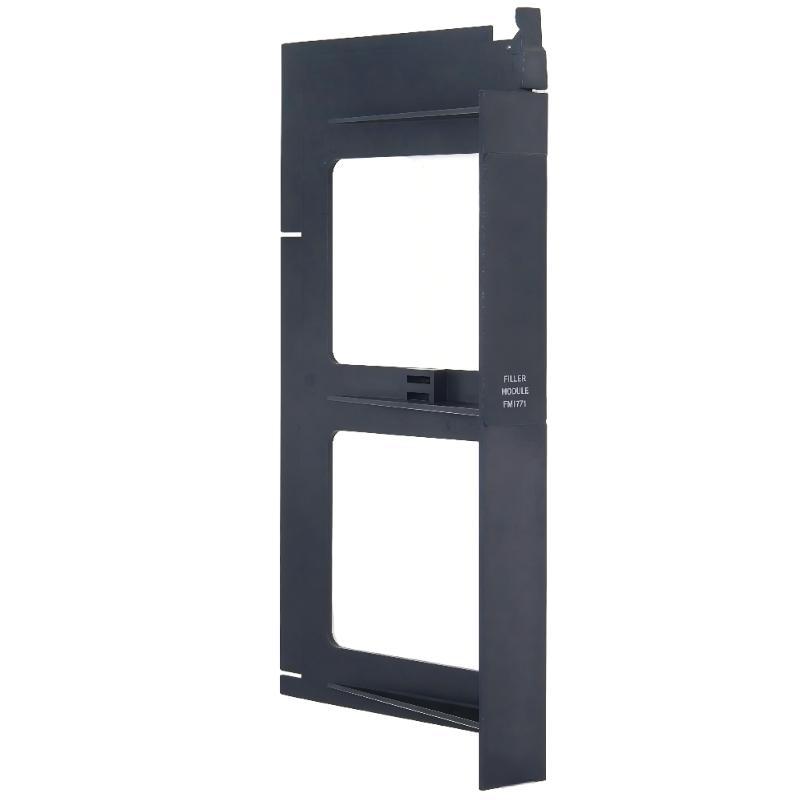

Allen Bradley FM1771 Empty Slot Filling Card

Overview

The Allen Bradley FM1771 is an empty slot filling card designed for 1771 I/O chassis systems. It is used to cover unused module positions, helping maintain proper rack organization, improve protection, and support reliable operation of industrial control systems.

General Information

Part Number: FM1771

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: USA

Series: 1771 I/O System

Type: Empty Slot Filling Card / Slot Filler Module

Application: PLC chassis protection, unused I/O slot coverage, and control cabinet organization

Mounting: Installation in unused 1771 I/O rack positions

Technology: Passive mechanical module designed for chassis slot protection

Function: Prevents open slots from exposure and maintains proper rack configuration

Power Specifications

Supply Voltage: No external power required

Power Consumption: None

Input Power: Not applicable, passive module design

Protection: Helps protect unused chassis connections from dust and physical damage

Electrical Function: No signal processing or control function

Status Indicators: None

Communication & Interface

Interface Type: 1771 I/O chassis slot interface

Communication Function: None

Connection Method: Direct chassis slot installation

Signal Processing: No signal transmission function

System Integration: Maintains proper module arrangement within compatible PLC racks

Diagnostics: No electronic diagnostic functions

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Installation Environment: Industrial control cabinets and PLC automation systems

Protection Rating: Standard industrial chassis environment

Mechanical Design: Durable passive structure for long-term slot protection

Dimensions & Weight

Dimensions (L × W × H): 185 × 30 × 120 mm

Weight: 0.1 kg
