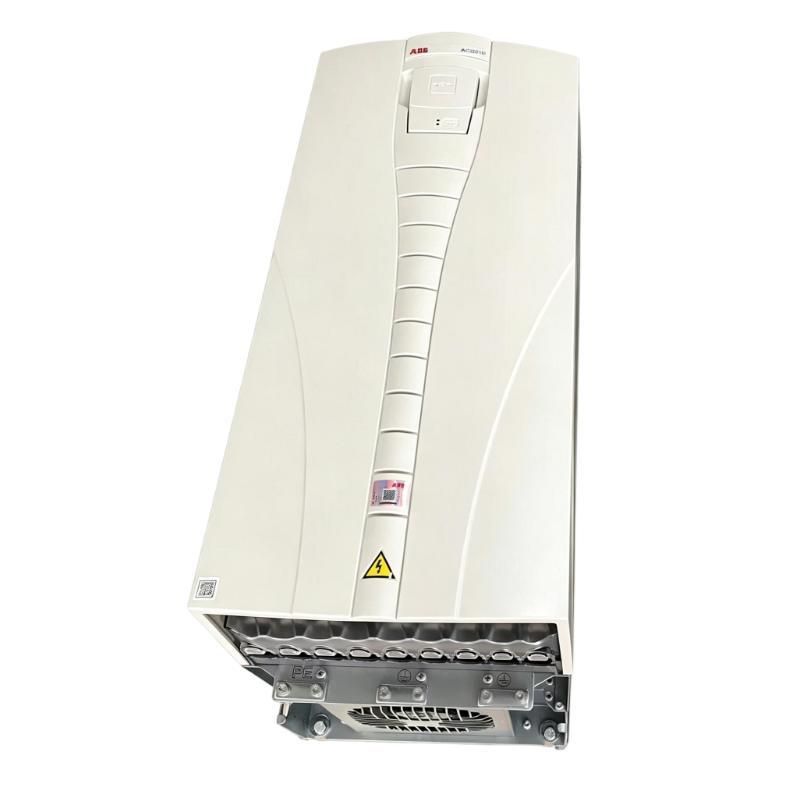

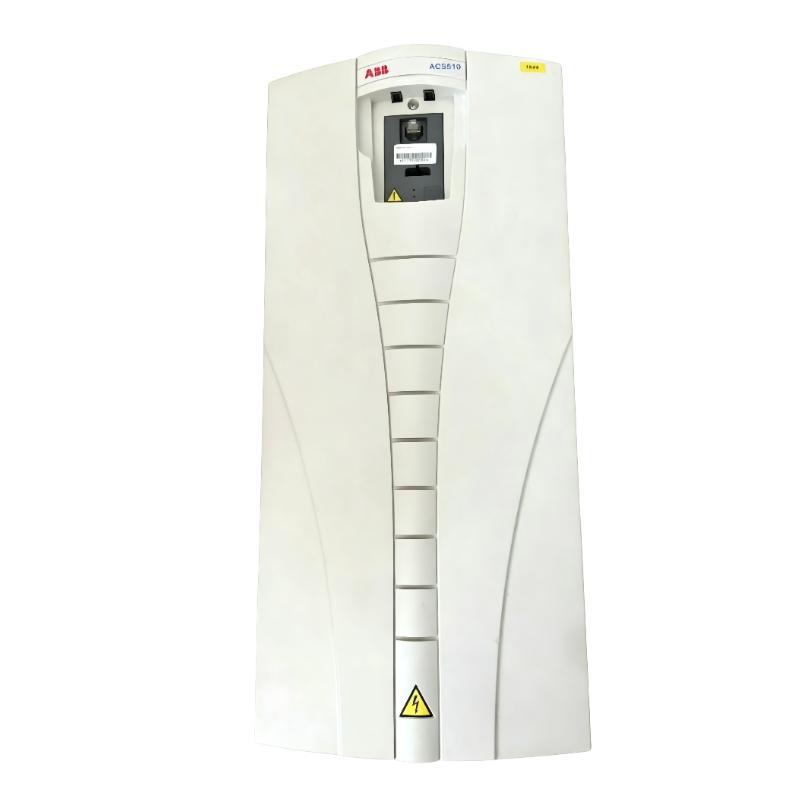

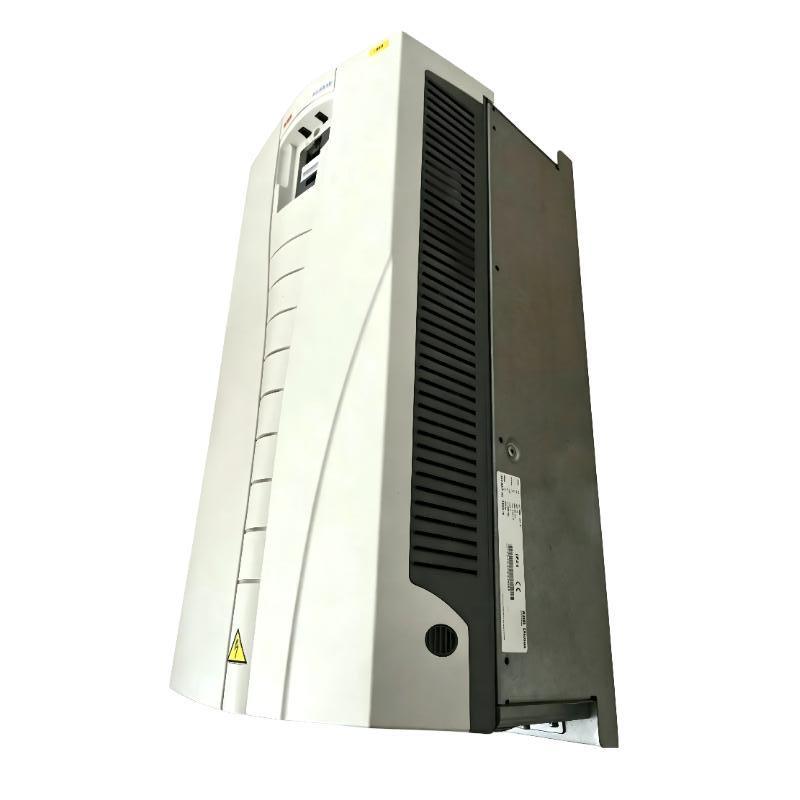

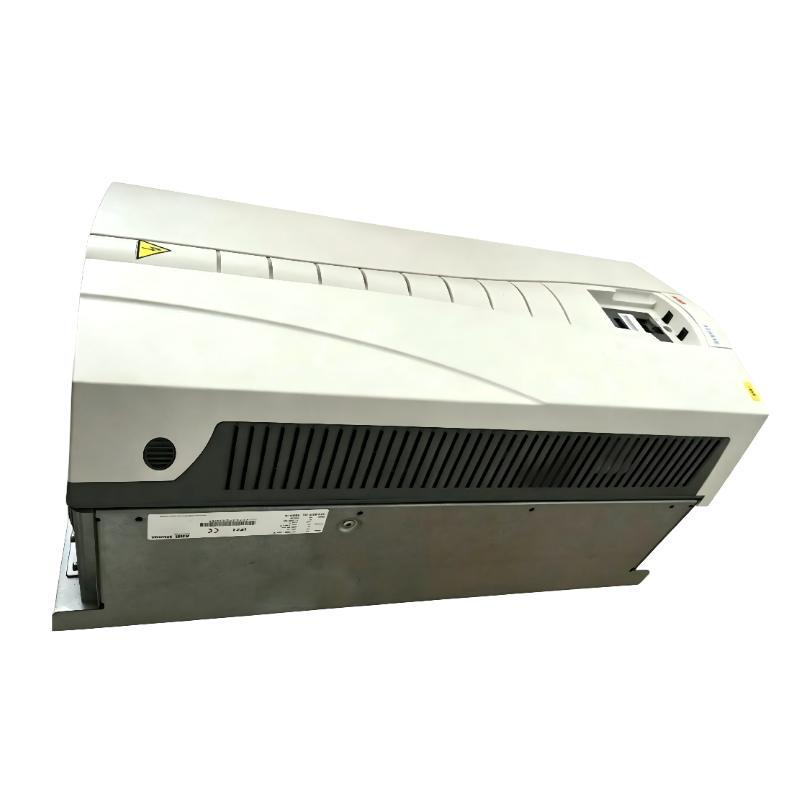

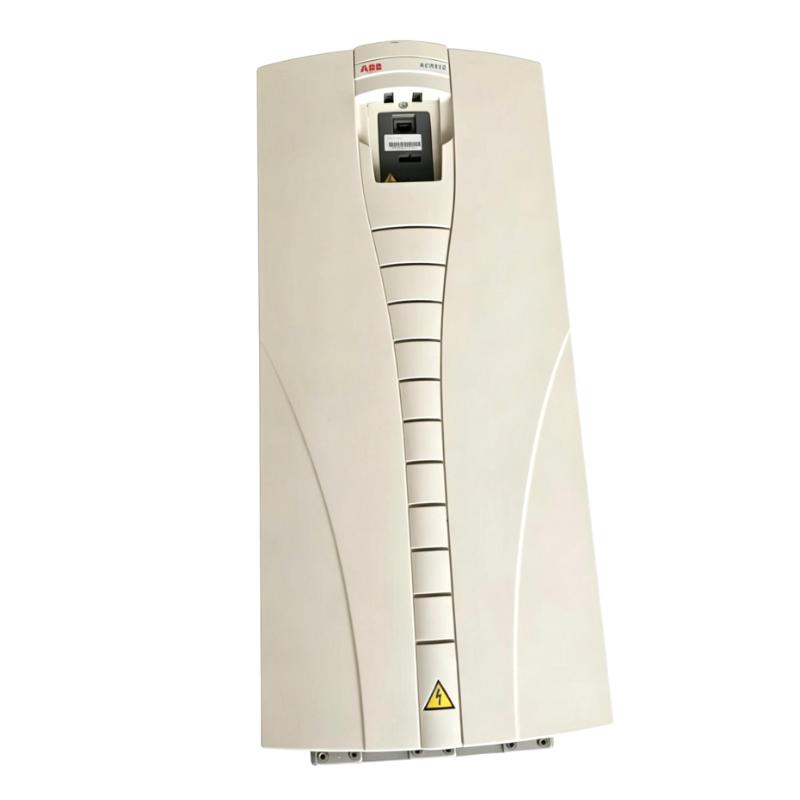

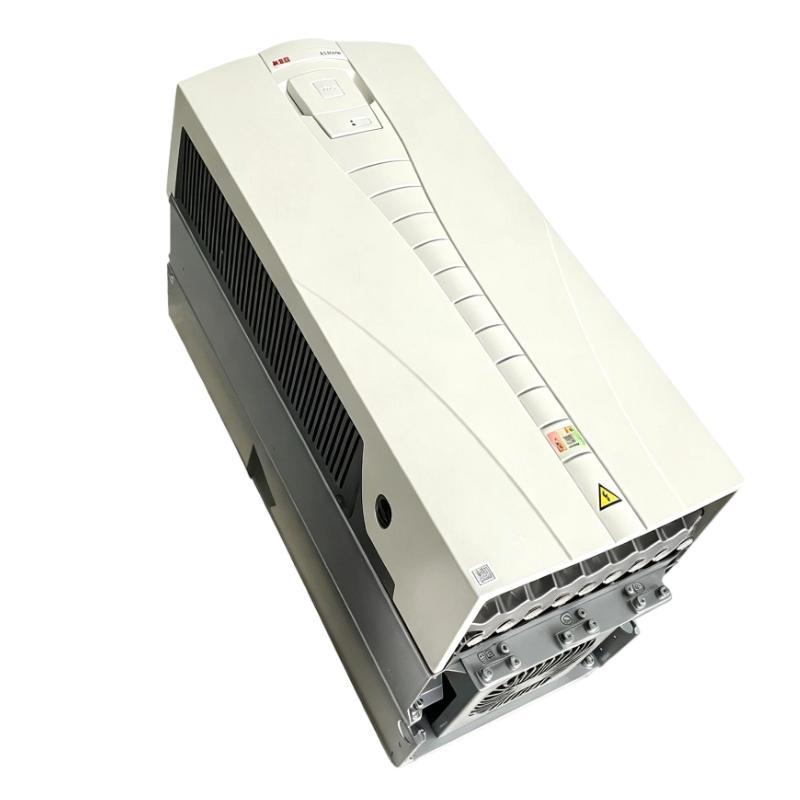

ABB ACS510-01-125A-4 3ABD00019055-D Frequency Converter

Overview

The ABB ACS510-01-125A-4 is a high-performance frequency converter designed for industrial motor control applications. It provides efficient variable speed control for pumps, fans, conveyors, and other heavy-duty motor-driven equipment, helping optimize energy consumption and improve system performance.

This drive is suitable for automation systems requiring stable operation, reliable motor regulation, and advanced control functions in demanding industrial environments.

General Information

Part Number: ACS510-01-125A-4

Order Code: 3ABD00019055-D

Brand: ABB

Country of Origin: Finland

Series: ACS510

Type: Frequency Converter / Variable Frequency Drive (VFD)

Function: Controls AC motor speed and torque through adjustable frequency and voltage output

Application: Pumps, fans, HVAC systems, conveyors, and industrial machinery

Mounting Method: Wall mounting installation

Design: Heavy-duty industrial drive with integrated control, protection, and monitoring functions

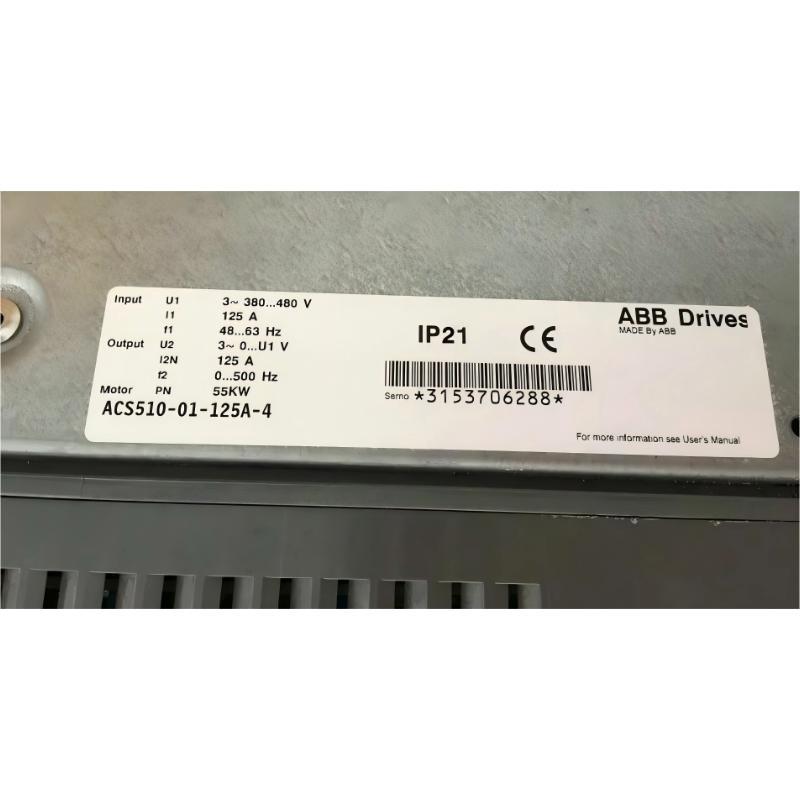

Power Specifications

Input Voltage: 380 to 480 V AC

Input Phase: Three-phase power supply

Output Current: 125 A

Motor Control: Supports precise speed and torque regulation for AC motors

Protection Features: Includes overload protection, overcurrent monitoring, short circuit protection, and fault diagnostics

Cooling Method: Air-cooled design for reliable thermal management

Communication & Interface

Control Interface: Digital and analog control terminals

Communication Options: Supports optional fieldbus communication modules for industrial network integration

Control Function: Provides motor operation control, parameter configuration, and performance monitoring

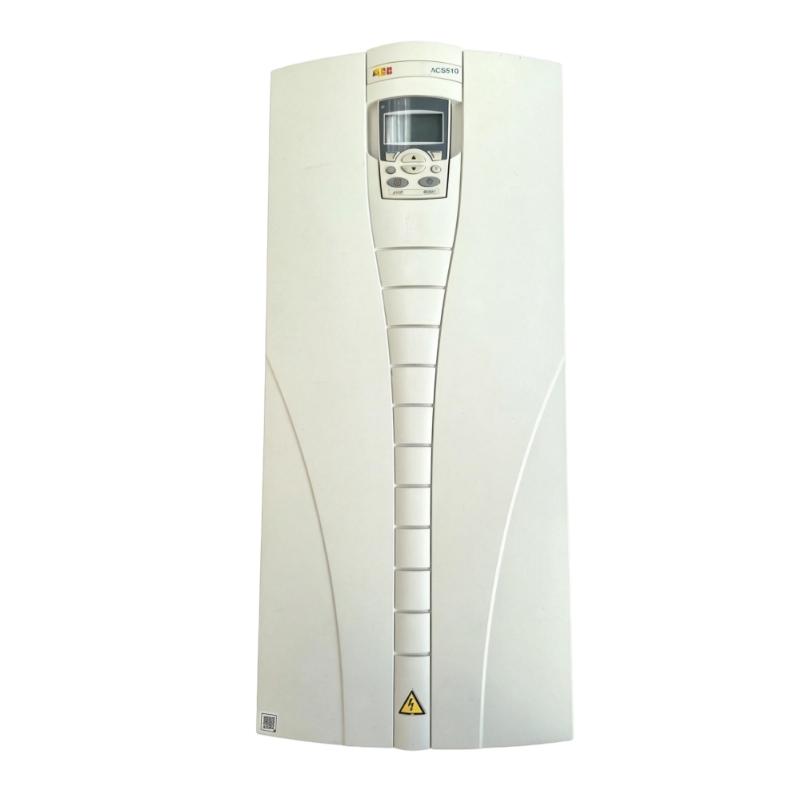

User Interface: Integrated keypad interface for setup and diagnostics

Diagnostics: Provides fault indication, operating status monitoring, and troubleshooting functions

Environmental

Operating Temperature: -15 to +50 °C

Storage Temperature: -40 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP21

Installation Environment: Suitable for industrial control cabinets and automation systems

Application Conditions: Designed for industrial environments with proper cooling and ventilation

Dimensions & Weight

Dimensions (L × W × H): 814 × 306 × 315 mm

Weight: 45 kg
