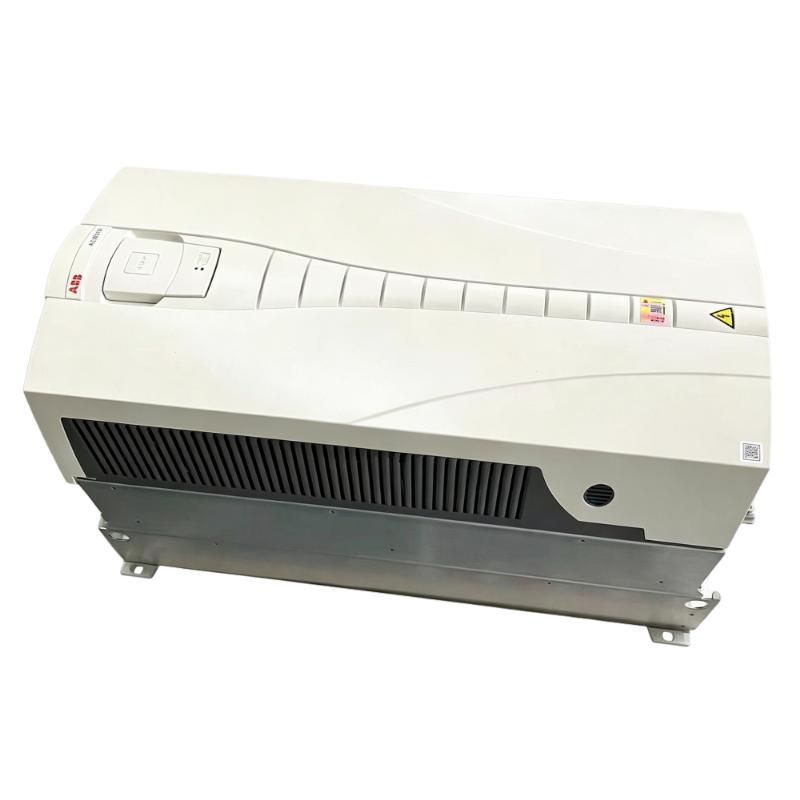

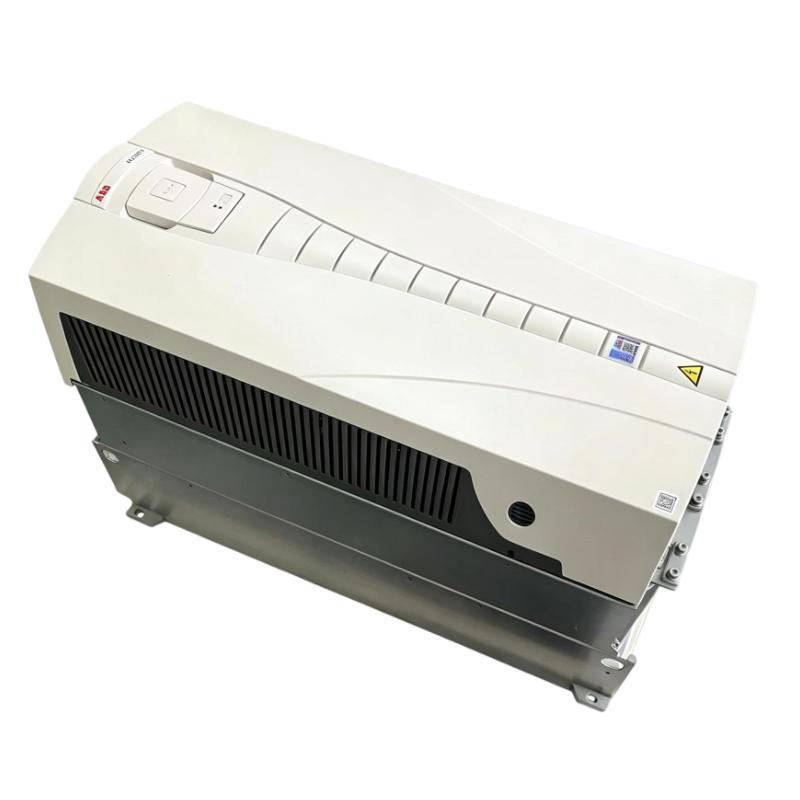

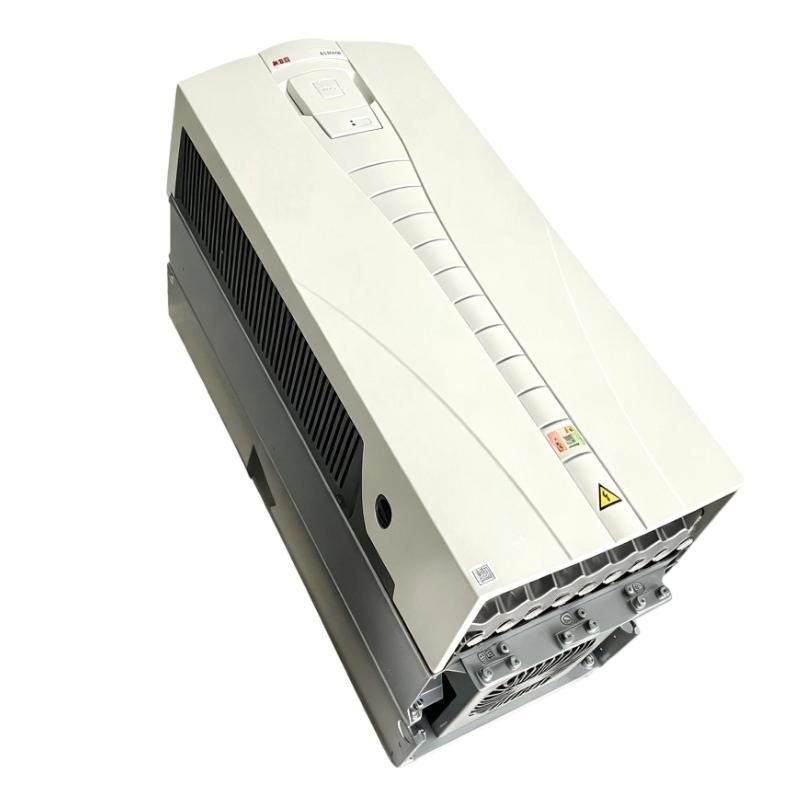

ABB ACS510-01-246A-4 3ABD00022031-S Frequency Converter

Overview

The ABB ACS510-01-246A-4 is a high-power frequency converter designed for industrial motor control applications. It provides efficient variable speed regulation for large pumps, fans, conveyors, and other heavy-duty motor-driven equipment, helping improve energy efficiency, process stability, and overall system performance.

This drive is suitable for industrial automation systems requiring powerful motor control, reliable operation, and flexible configuration in demanding environments.

General Information

Part Number: ACS510-01-246A-4

Order Code: 3ABD00022031-S

Brand: ABB

Country of Origin: Finland

Series: ACS510

Type: Frequency Converter / Variable Frequency Drive (VFD)

Function: Controls AC motor speed and torque through adjustable frequency and voltage output

Application: Pumps, fans, HVAC systems, conveyors, and heavy industrial machinery

Mounting Method: Wall mounting installation

Design: High-power industrial drive with integrated control, protection, and monitoring functions

Power Specifications

Input Voltage: 380 to 480 V AC

Input Phase: Three-phase power supply

Output Current: 246 A

Motor Control: Supports precise speed and torque regulation for high-power AC motors

Protection Features: Includes overload protection, overcurrent monitoring, short circuit protection, and fault diagnostics

Cooling Method: Air-cooled design for efficient thermal management

Communication & Interface

Control Interface: Digital and analog control terminals

Communication Options: Supports optional fieldbus communication modules for industrial network integration

Control Function: Provides motor operation control, parameter configuration, and performance monitoring

User Interface: Integrated keypad interface for setup and diagnostics

Diagnostics: Provides fault indication, operating status monitoring, and troubleshooting support

Environmental

Operating Temperature: -15 to +50 °C

Storage Temperature: -40 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP21

Installation Environment: Suitable for industrial control cabinets and automation systems

Application Conditions: Designed for industrial environments with proper cooling and ventilation

Dimensions & Weight

Dimensions (L × W × H): 955 × 350 × 420 mm

Weight: 76 kg

Reliable High-Power Control, Ready for Installation!
