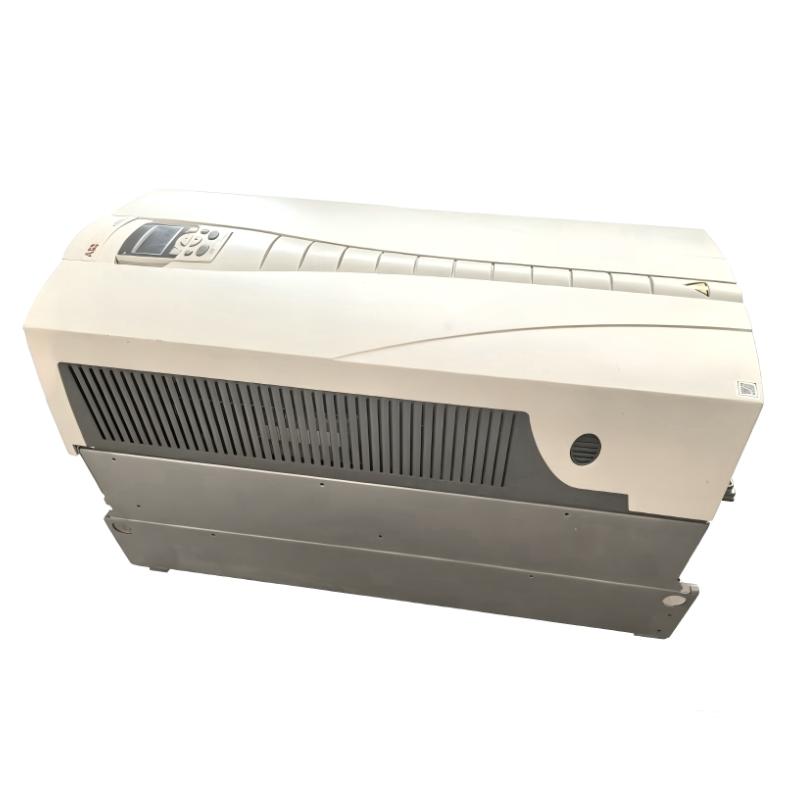

ABB ACS510-01-290A-4 3ABD00027039-D Frequency Converter

Overview

The ABB ACS510-01-290A-4 is a high-power frequency converter designed for demanding industrial motor control applications. It provides efficient variable speed regulation for large pumps, fans, conveyors, and other heavy-duty motor-driven equipment, helping improve energy efficiency, process stability, and equipment reliability.

This drive is suitable for industrial automation systems requiring powerful motor control, flexible configuration, and stable operation in continuous-duty environments.

General Information

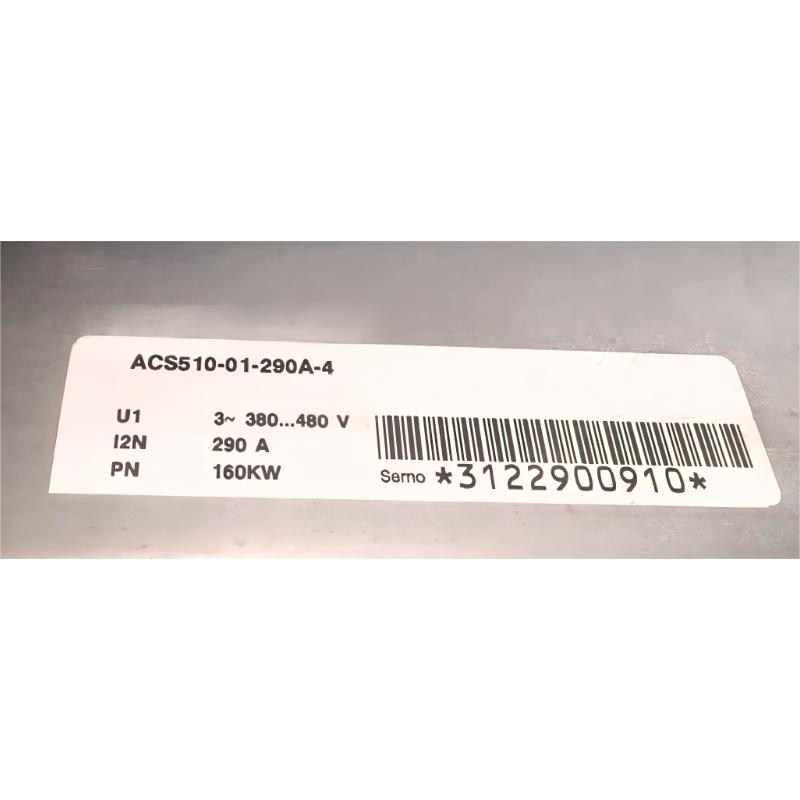

Part Number: ACS510-01-290A-4

Order Code: 3ABD00027039-D

Brand: ABB

Country of Origin: Finland

Series: ACS510

Type: Frequency Converter / Variable Frequency Drive (VFD)

Function: Controls AC motor speed and torque through adjustable frequency and voltage output

Application: Pumps, fans, HVAC systems, conveyors, and heavy industrial machinery

Mounting Method: Wall mounting installation

Design: High-power industrial drive with integrated control, protection, and monitoring functions

Power Specifications

Input Voltage: 380 to 480 V AC

Input Phase: Three-phase power supply

Output Current: 290 A

Motor Control: Supports precise speed and torque regulation for high-power AC motors

Protection Features: Includes overload protection, overcurrent monitoring, short circuit protection, and fault diagnostics

Cooling Method: Air-cooled design for efficient thermal management

Communication & Interface

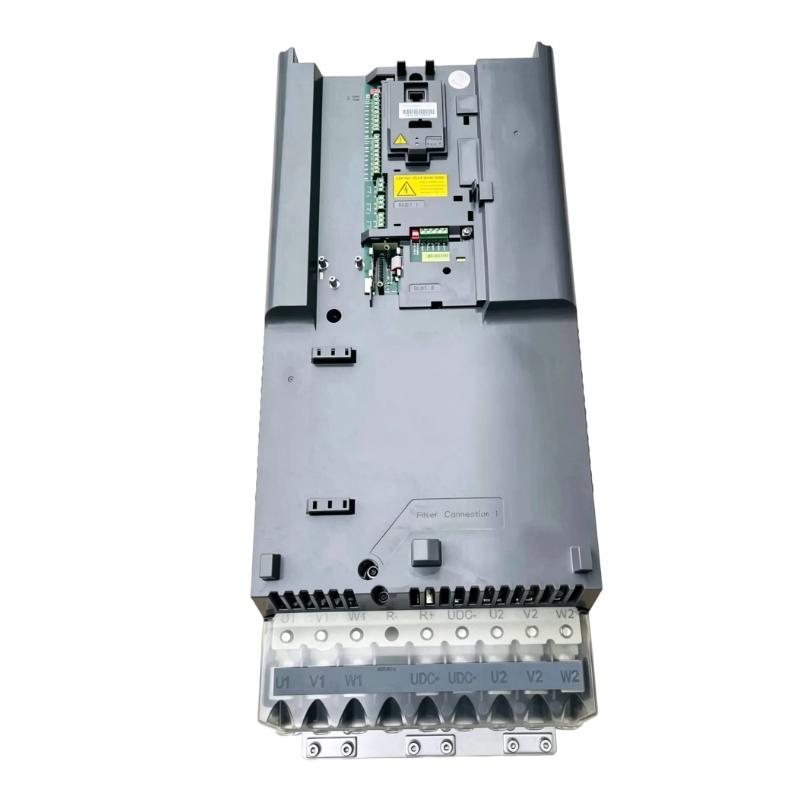

Control Interface: Digital and analog control terminals

Communication Options: Supports optional fieldbus communication modules for industrial network integration

Control Function: Provides motor operation control, parameter configuration, and performance monitoring

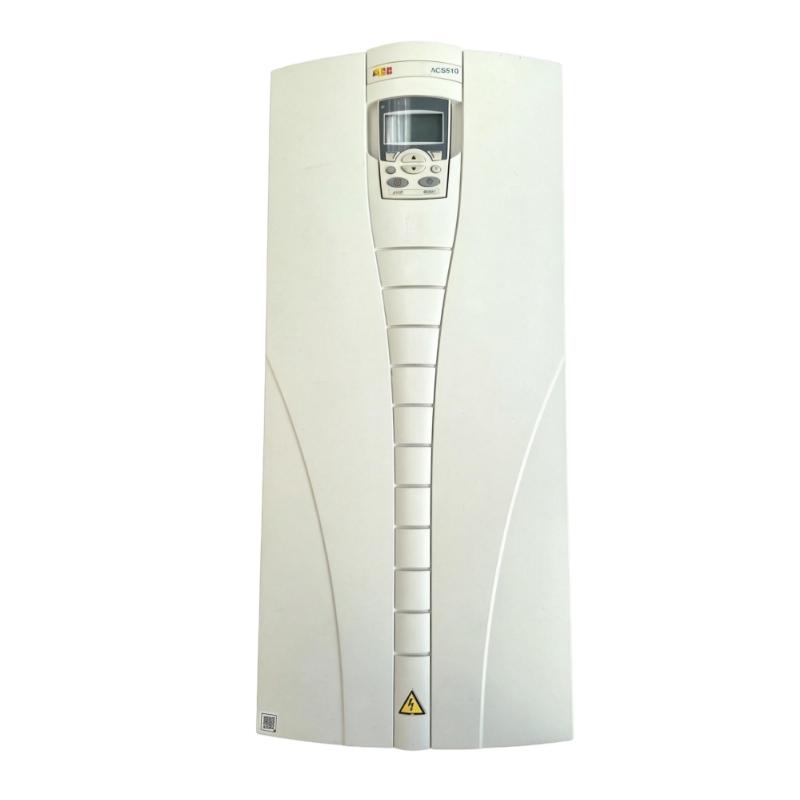

User Interface: Integrated keypad interface for setup and diagnostics

Diagnostics: Provides fault indication, operating status monitoring, and troubleshooting support

Environmental

Operating Temperature: -15 to +50 °C

Storage Temperature: -40 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP21

Installation Environment: Suitable for industrial control cabinets and automation systems

Application Conditions: Designed for industrial environments with proper cooling and ventilation

Dimensions & Weight

Dimensions (L × W × H): 955 × 350 × 420 mm

Weight: 76 kg

High-Efficiency Motor Control, Ready for Deployment!
