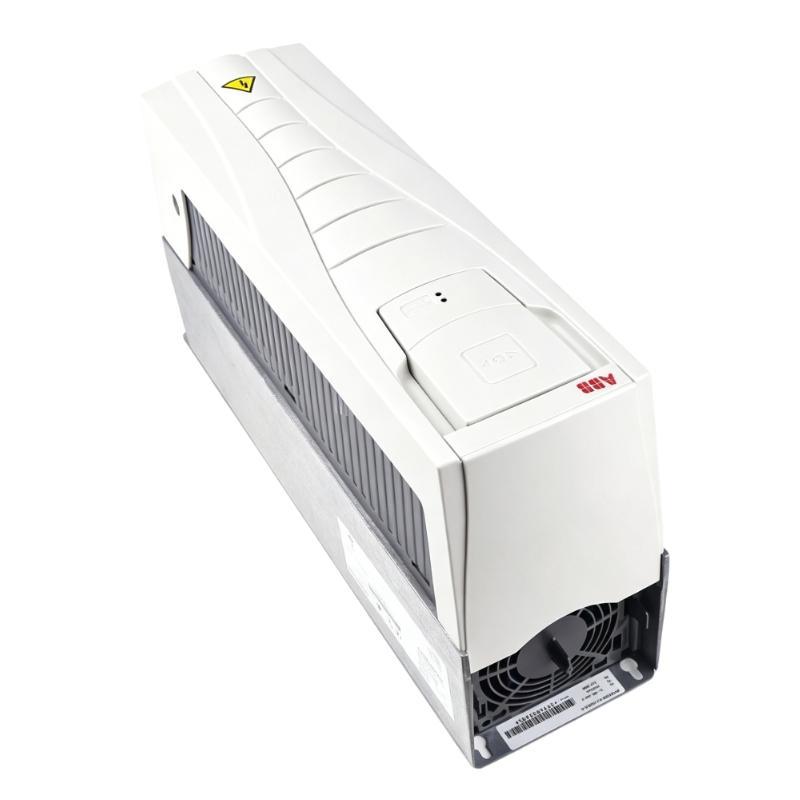

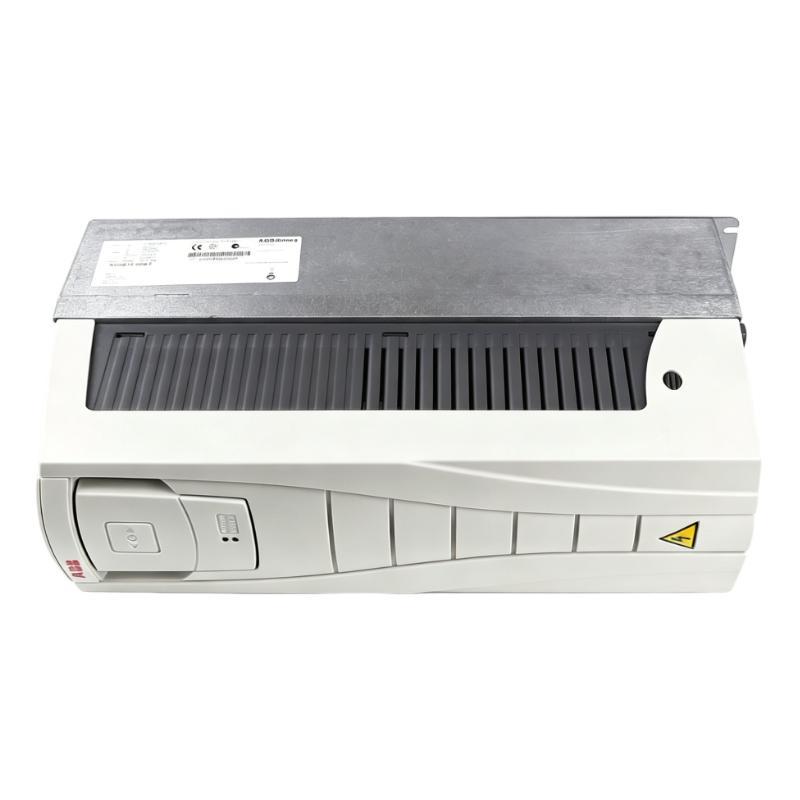

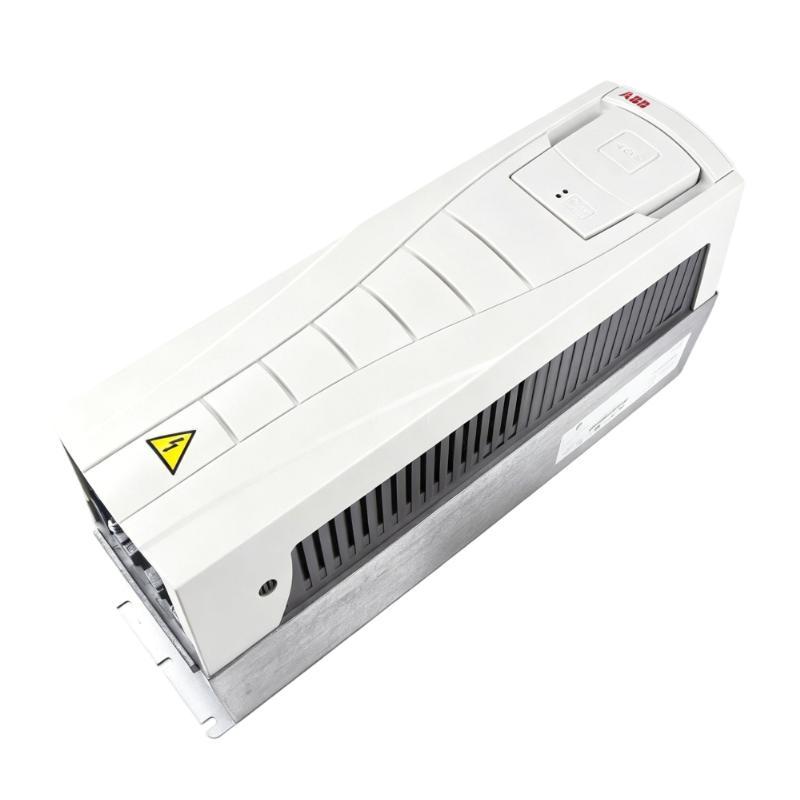

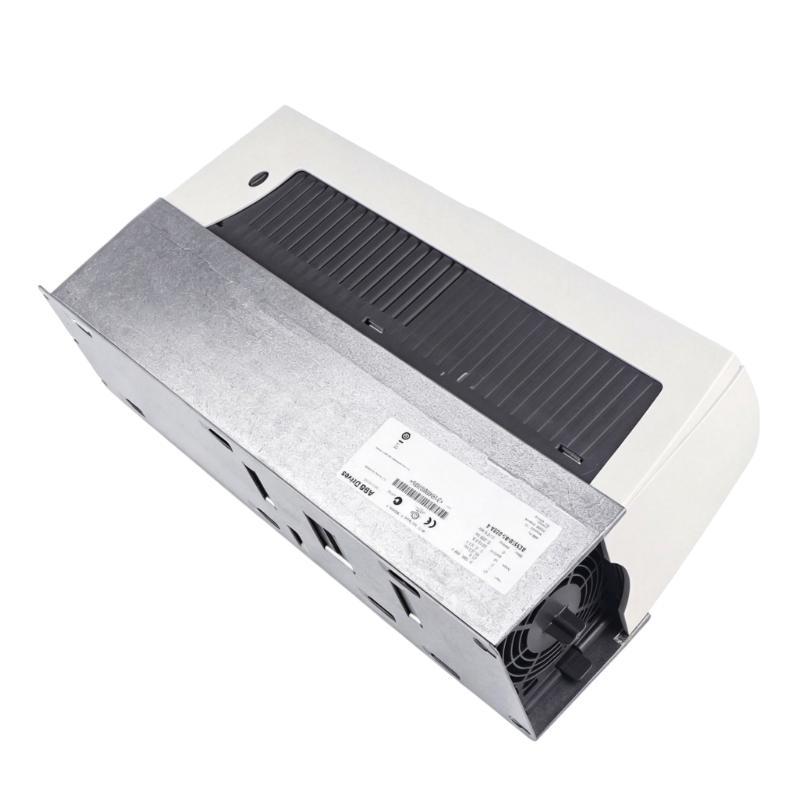

ABB ACS550-01-023A-4 3AUA0000002417-D Frequency Converter

Overview

The ABB ACS550-01-023A-4 is a frequency converter designed for efficient motor speed control in industrial automation applications. It provides reliable variable speed operation for pumps, fans, conveyors, and other motor-driven equipment, helping improve energy efficiency and maintain stable process performance.

This drive is suitable for industrial systems requiring dependable motor regulation, flexible configuration, and reliable operation in various automation environments.

General Information

Part Number: ACS550-01-023A-4

Order Code: 3AUA0000002417-D

Brand: ABB

Country of Origin: Finland

Series: ACS550

Type: Frequency Converter / Variable Frequency Drive (VFD)

Function: Controls AC motor speed and torque through adjustable frequency and voltage output

Application: Pumps, fans, HVAC systems, conveyors, and industrial machinery

Mounting Method: Wall mounting installation

Design: Compact industrial drive with integrated control, protection, and monitoring functions

Power Specifications

Input Voltage: 380 to 480 V AC

Input Phase: Three-phase power supply

Output Current: 23 A

Motor Control: Supports adjustable speed and torque regulation for AC motors

Protection Features: Includes overload protection, overcurrent monitoring, and fault diagnostics

Cooling Method: Air-cooled design for reliable thermal management

Communication & Interface

Control Interface: Digital and analog control terminals

Communication Options: Supports optional fieldbus communication modules for industrial network integration

Control Function: Provides motor operation control, parameter configuration, and status monitoring

User Interface: Integrated keypad interface for setup and diagnostics

Diagnostics: Provides fault indication, operating status monitoring, and troubleshooting support

Environmental

Operating Temperature: -15 to +50 °C

Storage Temperature: -40 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP21

Installation Environment: Suitable for industrial control cabinets and automation systems

Application Conditions: Designed for standard industrial environments with proper ventilation

Dimensions & Weight

Dimensions (L × W × H): 565 × 225 × 365 mm

Weight: 9 kg

Reliable Drive Performance, Ready for Operation!
