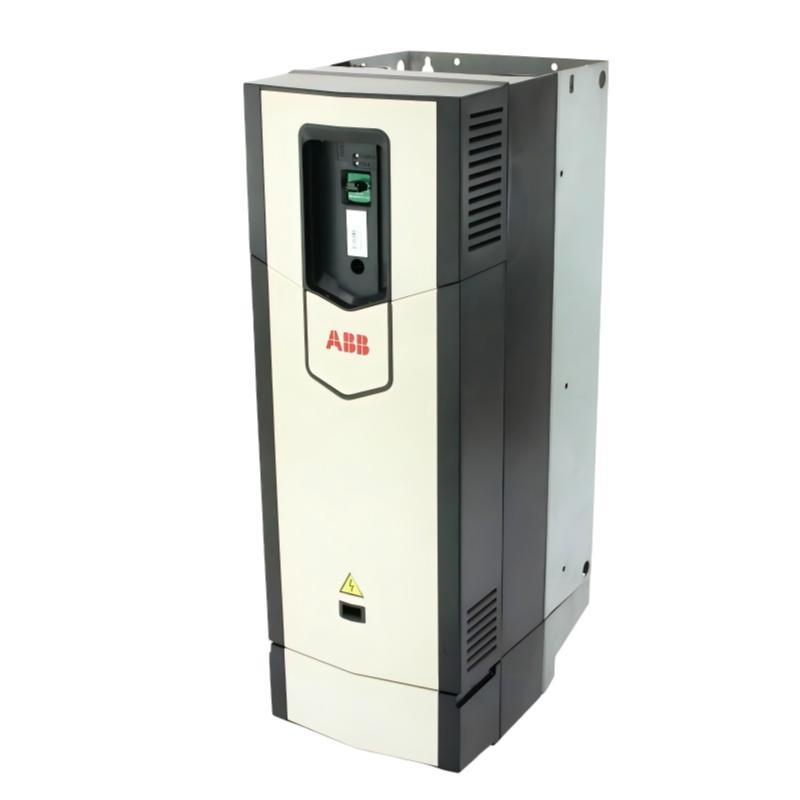

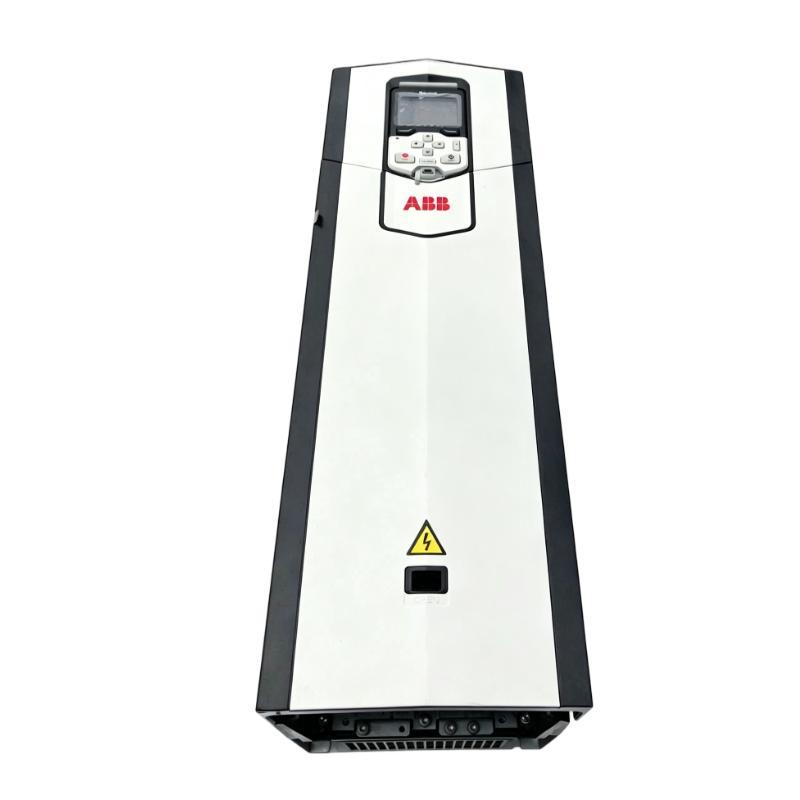

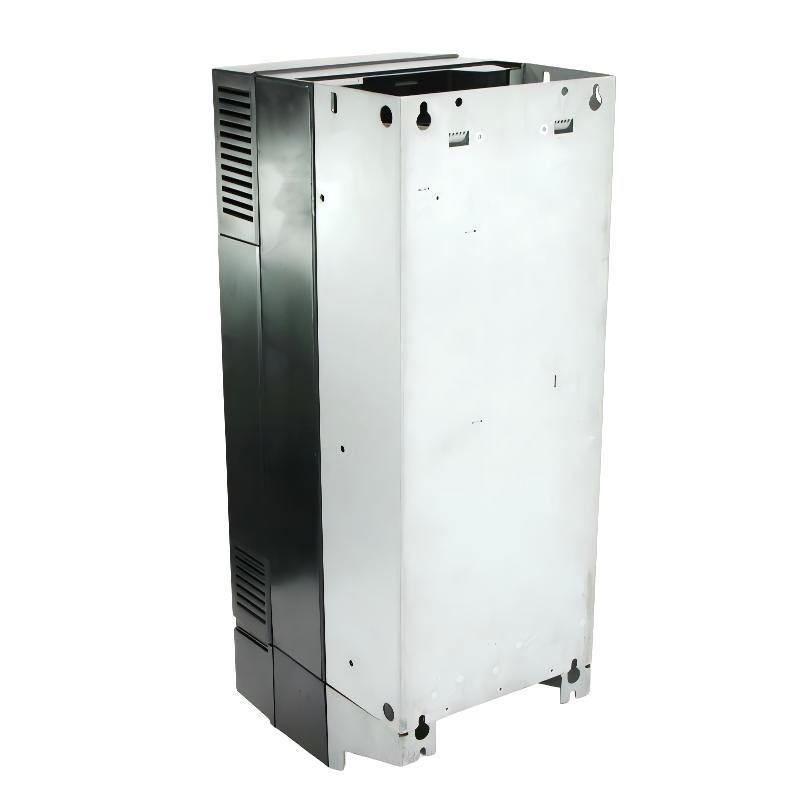

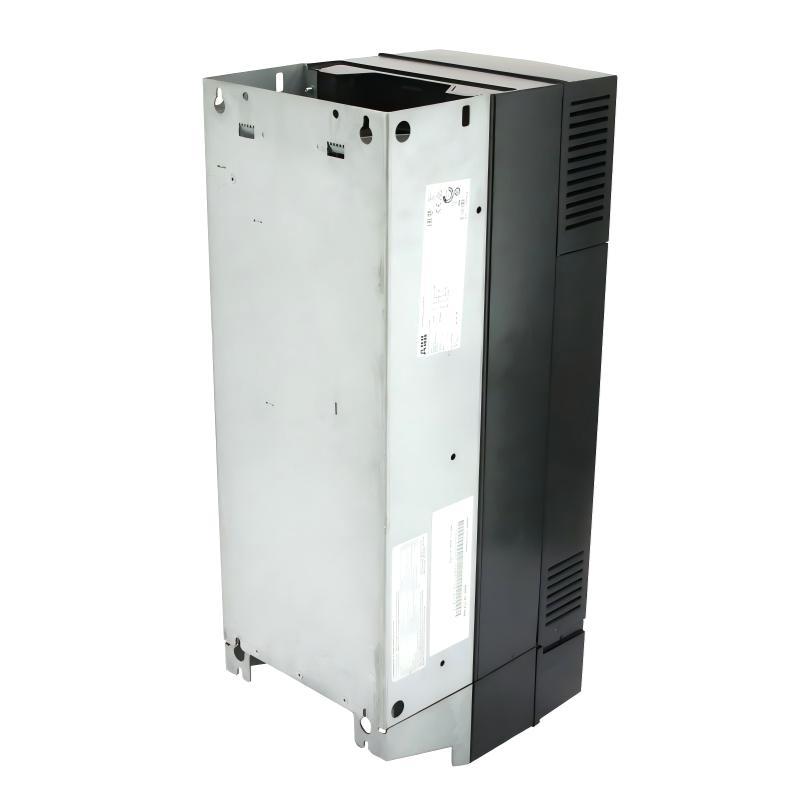

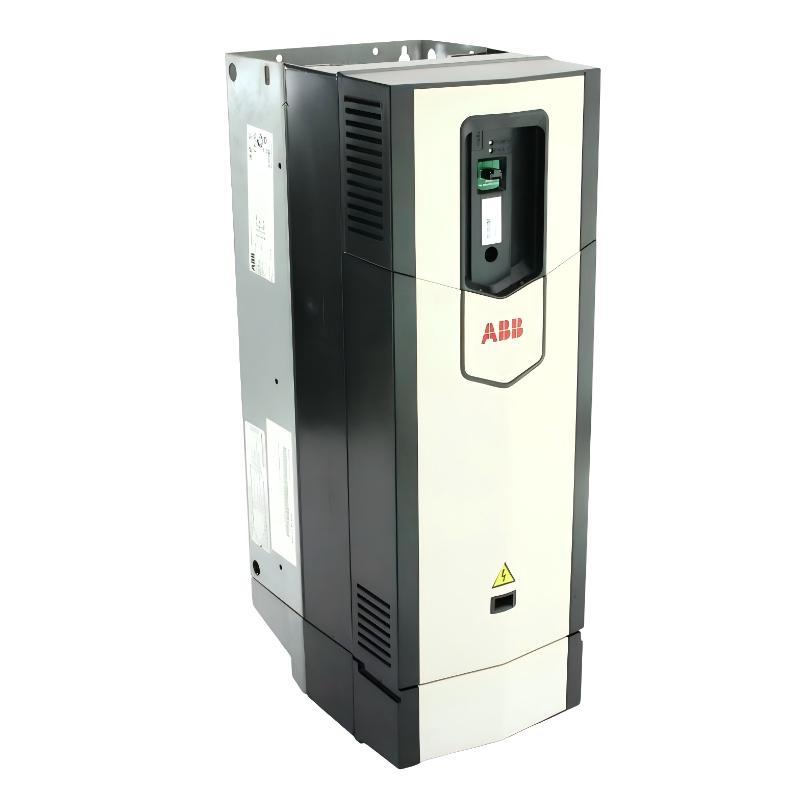

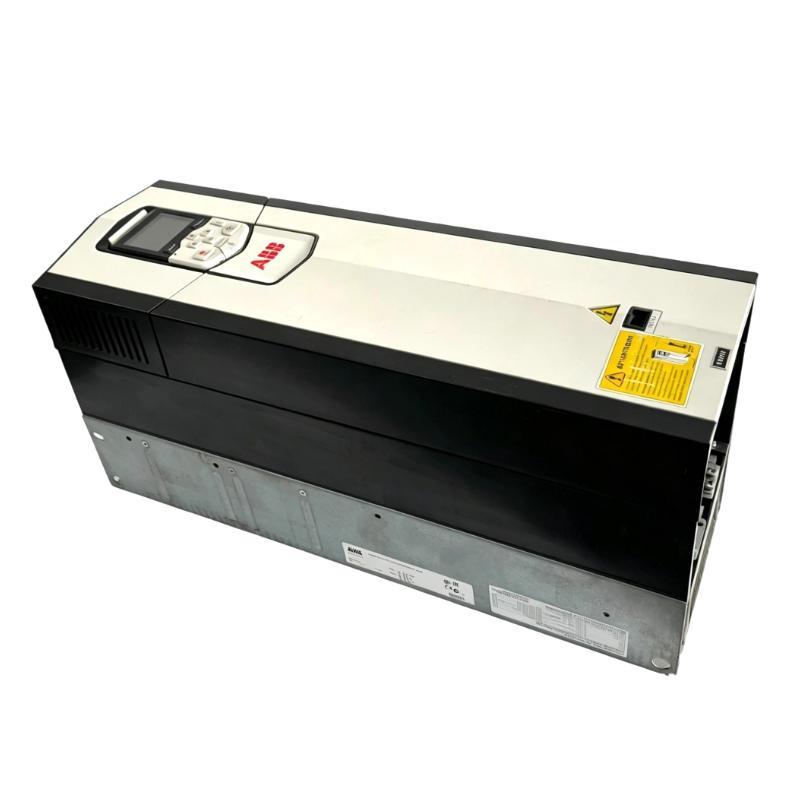

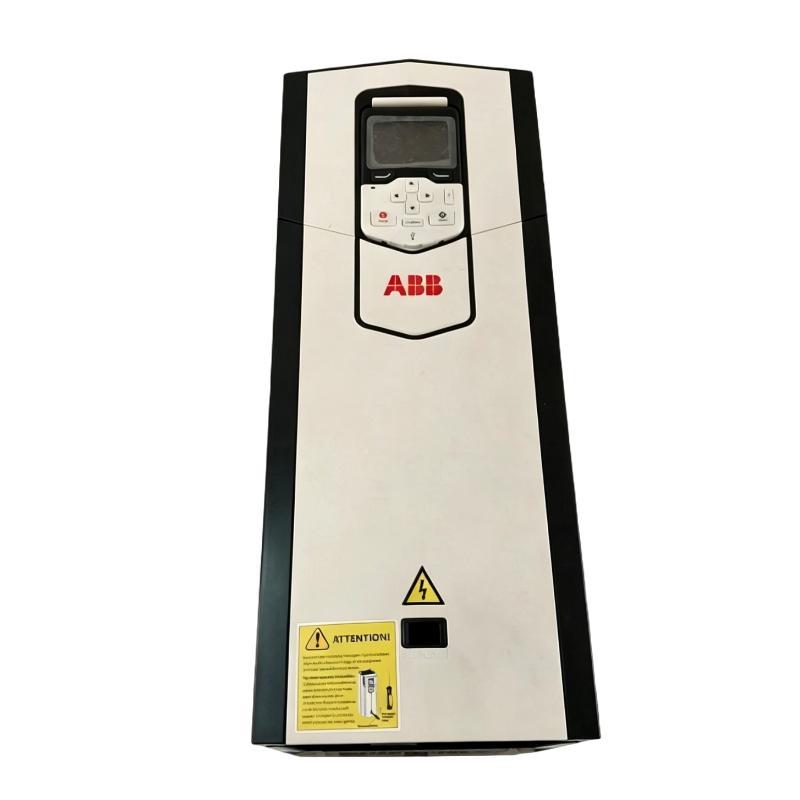

ABB ACS880-01-061A-3 3AUA0000108021 Frequency Converter

Overview

The ABB ACS880-01-061A-3 is a frequency converter from the ACS880 industrial drive family. It is designed for precise motor speed and torque control in demanding industrial automation applications, including pumps, fans, conveyors, and machinery.

General Information

Part Number: 3AUA0000108021

Model: ACS880-01-061A-3

Manufacturer: ABB

Series: ACS880

Product Type: Frequency Converter

Application: Industrial motor control and automation

Brand: ABB

Country of Origin: Finland

Mounting: Wall-mounted installation

Power Specifications

Input Voltage: 380–415 V AC

Voltage Class: 400 V

Rated Current: 61 A

Output Frequency: 0–500 Hz

Motor Control: Direct Torque Control (DTC)

Motor Type: Suitable for induction and permanent magnet motors

The frequency converter provides precise speed and torque regulation for reliable motor control in demanding industrial applications.

Communication & Interface

Control Interface: Digital and analog control inputs and outputs

Communication: Compatible with industrial fieldbus communication options

Motor Connection: Three-phase AC output

Control Function: Speed, torque, and motor control

Application: Integration with PLC, automation, and supervisory control systems

The drive supports flexible control and communication for integration into modern industrial automation systems.

Environmental

Operating Temperature: −15 to +50 °C

Storage Temperature: −40 to +70 °C

Relative Humidity: Up to 95%, non-condensing

Installation Environment: Industrial control cabinet or suitable protected environment

Protection Rating: IP21

Cooling: Forced-air cooling

Dimensions & Weight

Dimensions (L × W × H): 580 × 203 × 274 mm

Weight: 18.6 kg
