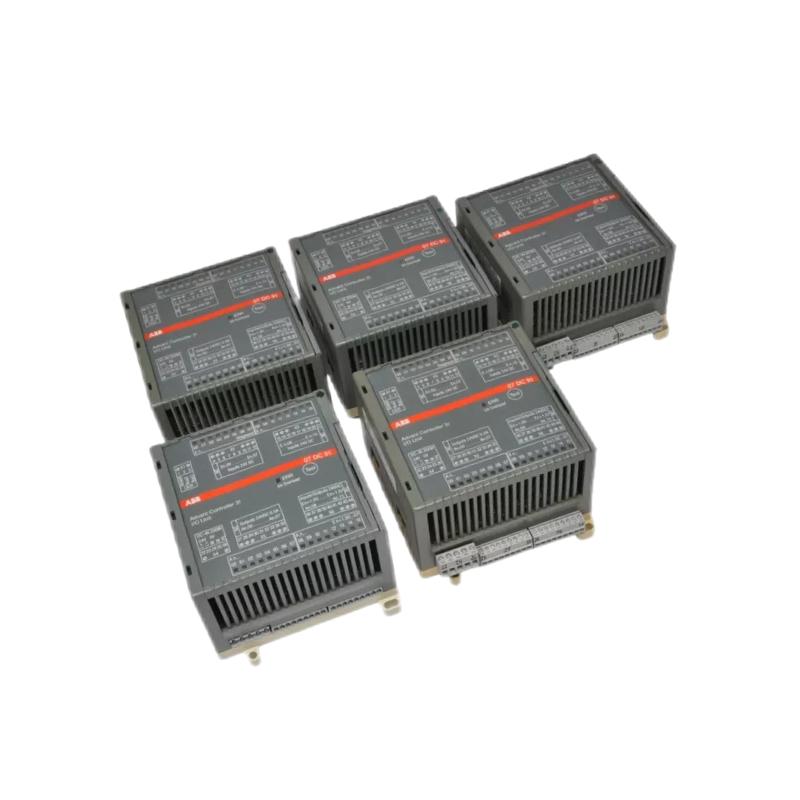

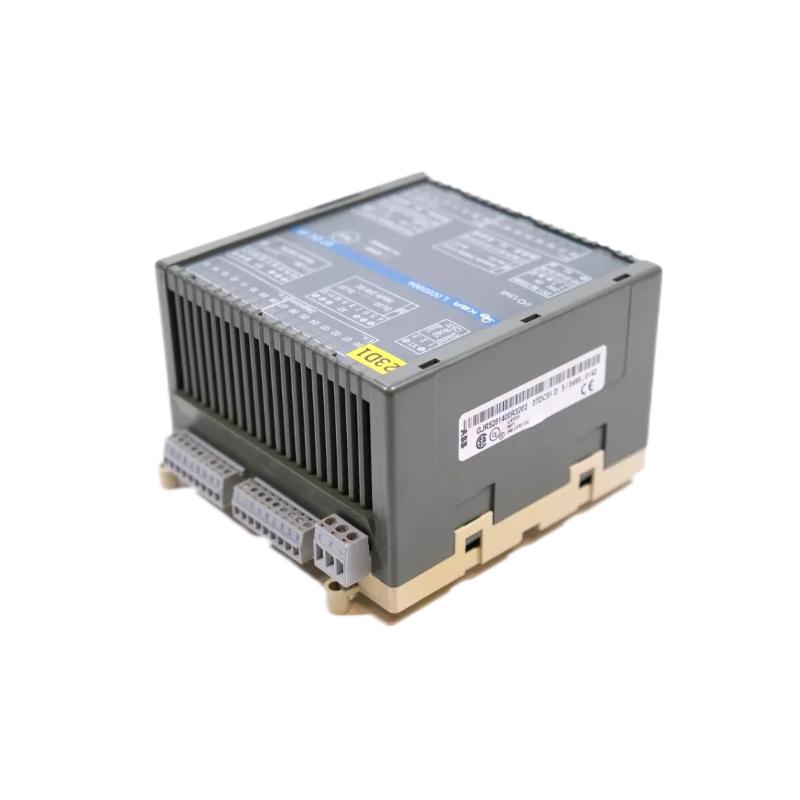

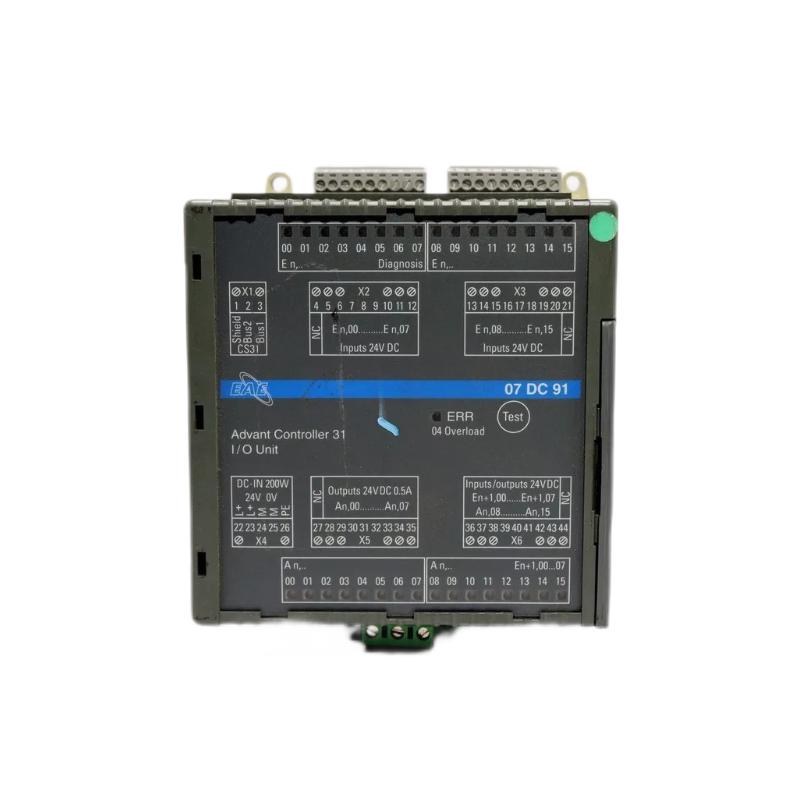

ABB 07DC91 GJR5251400R3202 Digital Input/Output Module Efficient delivery

Overview

The ABB 07DC91 GJR5251400R3202 is a digital input/output module used in ABB’s Advant Controller 31 (AC31) and Advant OCS systems. It provides 16 digital inputs, 8 digital outputs, and 8 configurable I/O channels, supporting 24 V DC signals, and operates on the CS31 system bus.

General Information

• Part Number: GJR5251400R3202

• Manufacturer: ABB (Asea Brown Boveri)

• Brand Origin: Switzerland

• Series: Advant Controller 31 (AC31)

• Type: Digital Input/Output Module

• Mounting: DIN rail (15 mm high) or screw-mounted

• Technology: 16 digital inputs, 8 digital outputs, 8 configurable I/O channels, 24 V DC signals, CS31 system bus interface

Power Specifications

• Operating Voltage: 24 V DC

• Input Voltage Range: 20 V DC to 28 V DC

• Power Consumption: ≤ 5 W

• Current Consumption: ≤ 0.2 A

• Protection: Electrically isolated CS31 system bus connection

• Indicators: 17 LEDs for channel selection and diagnostics; test button

Communication & Interface

• Bus Interface: CS31 system bus

• Data Exchange: Up to 8 input words and 8 output words

• Configuration: DIP switches for setting operating mode and module address

• Diagnostics: Onboard diagnostics via LEDs and test button

I/O & Channels

• Digital Inputs: 16 channels, 24 V DC

• Digital Outputs: 8 channels, 24 V DC, 0.5 A output current

• Configurable I/O Channels: 8 channels, configurable as inputs or outputs

• Operating Modes: Configurable input/output types per channel

Environmental

• Operating Temperature: 0 °C to +60 °C

• Humidity: Up to 95% RH, non-condensing

• Protection Rating: IP20 (for internal cabinet installation)

Dimensions & Weight

• Dimensions (L × W × H): 120 × 140 × 85 mm

• Weight: 1.07 kg
