Overview

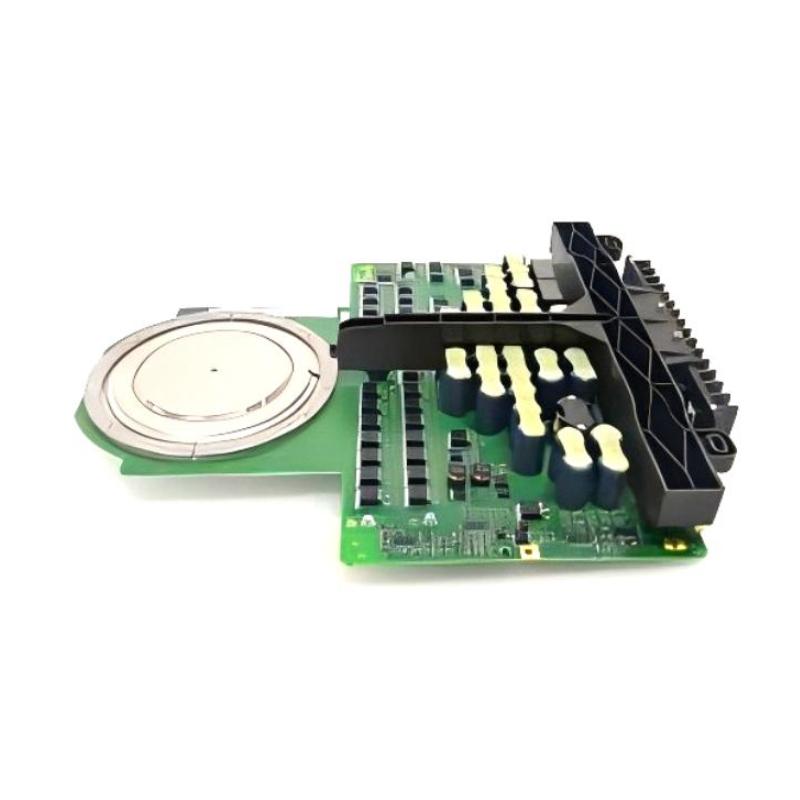

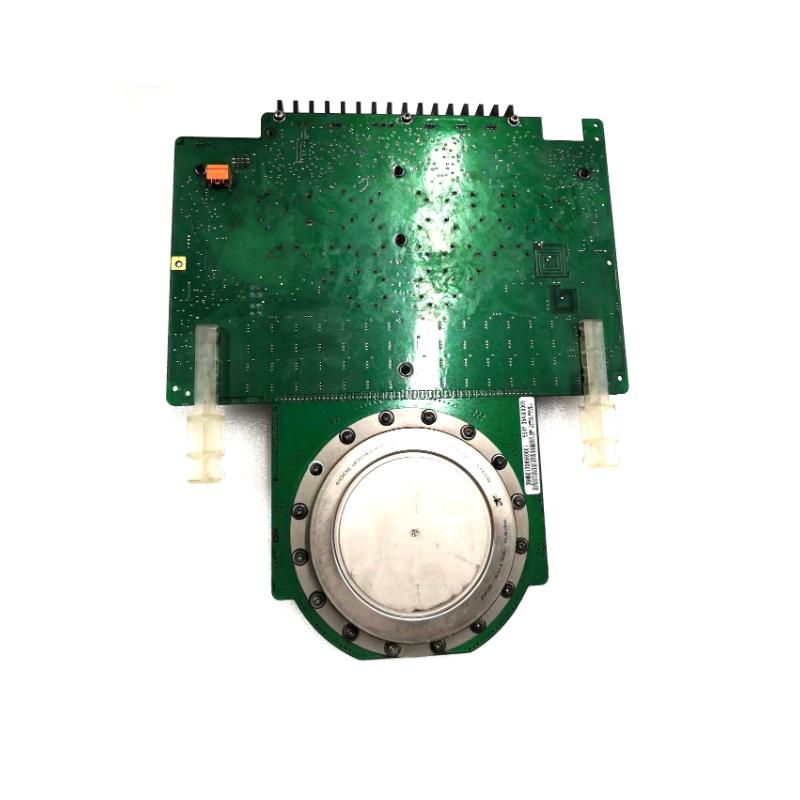

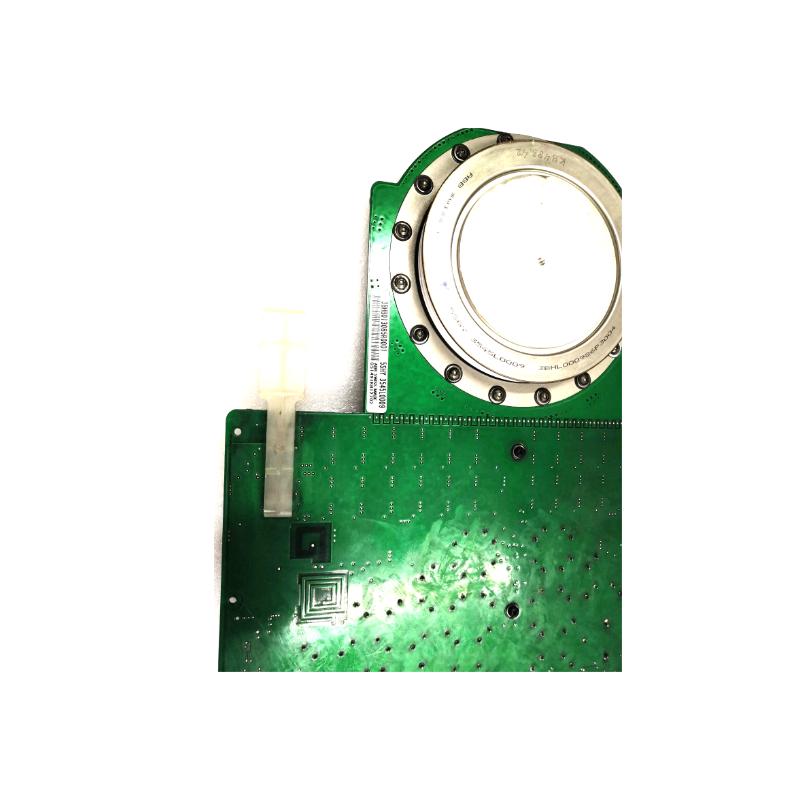

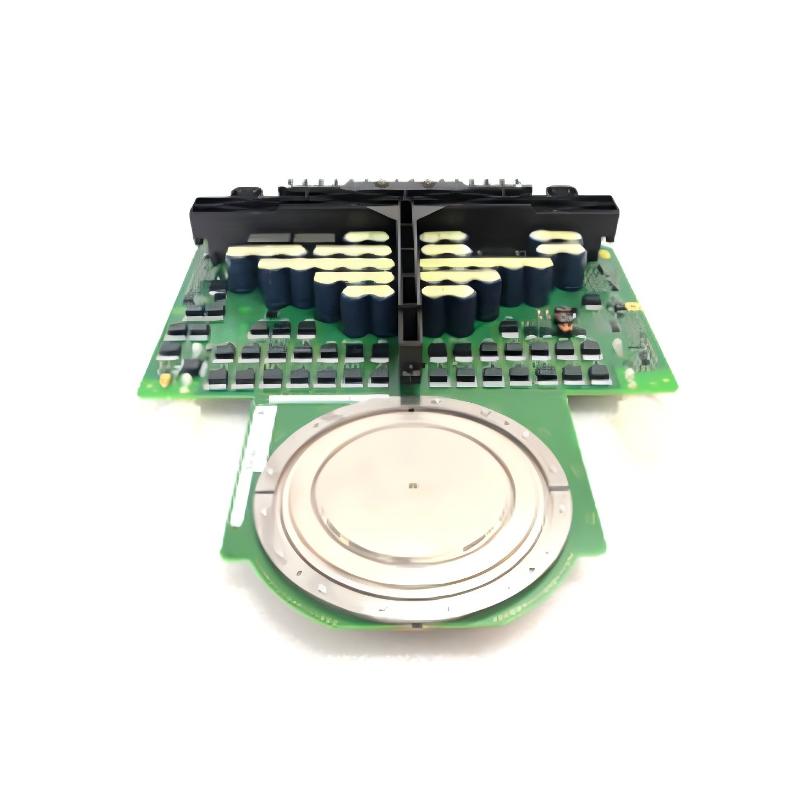

The ABB 5SHY3545L0009 3BHB013085R0001 is a high-performance IGCT (Integrated Gate-Commutated Thyristor) power module designed for demanding industrial power conversion systems. It provides reliable switching performance, high current capacity, and long-term stability for converter and high-voltage drive applications.
General Information
Part Number: 5SHY3545L0009 3BHB013085R0001
Manufacturer: ABB
Brand / Country of Origin: ABB / Switzerland
Type: IGCT Power Module
Application: Industrial converters, drives, and high-voltage DC systems
Technology: Gate-commutated thyristor with integrated driver interface for efficient power control
Power Specifications
Rated Voltage: 4500 V
Rated Current: 3500 A
Switching Type: Integrated gate-controlled thyristor
Protection: Built-in thermal and short-circuit protection
Power Class: High-power, suitable for medium and high-voltage systems
Communication & Interface
Interface: Compatible with standard IGCT driver units
Control Method: Gate signal triggering through optical or electrical interface
Integration: Designed for multi-module operation in large converter assemblies
Monitoring: Supports system-level diagnostics for module condition and fault detection
Environmental
Operating Temperature: –40 °C to +125 °C
Storage Temperature: –55 °C to +150 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial, power generation, and transmission systems
Dimensions & Weight
Dimensions: 160 × 160 × 120 mm
Weight: 3 kg
