ABB 5SHY3545L0014 3BHE023784R0001 | IGCT Power Module Quality Selection
| Release time | Nov 5, 2025 |
|---|---|
| Brand | ABB PLC |
| Product Numbe | ABB 5SHY3545L0014 3BHE023784R0001 |
| Country Of Origin | Sweden |
| Dimensions | 120 × 26 × 120 mm |
| Weight | 1.32 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview

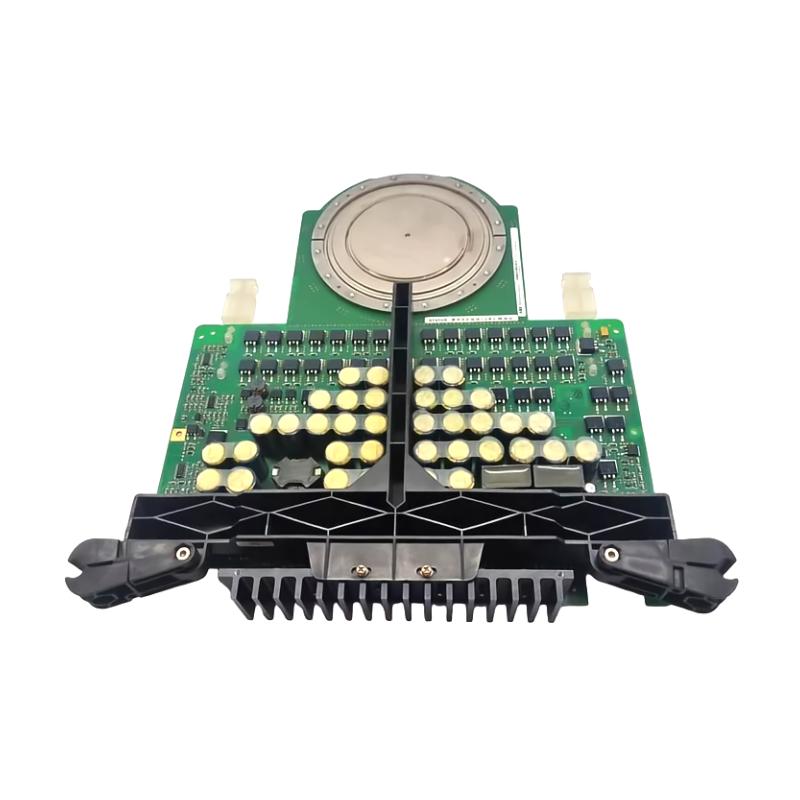

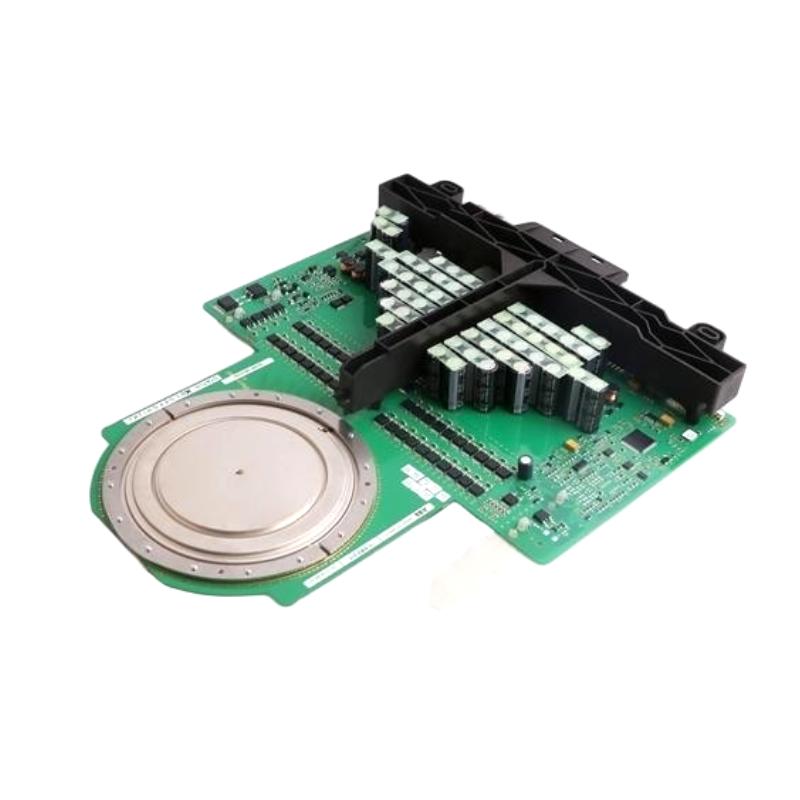

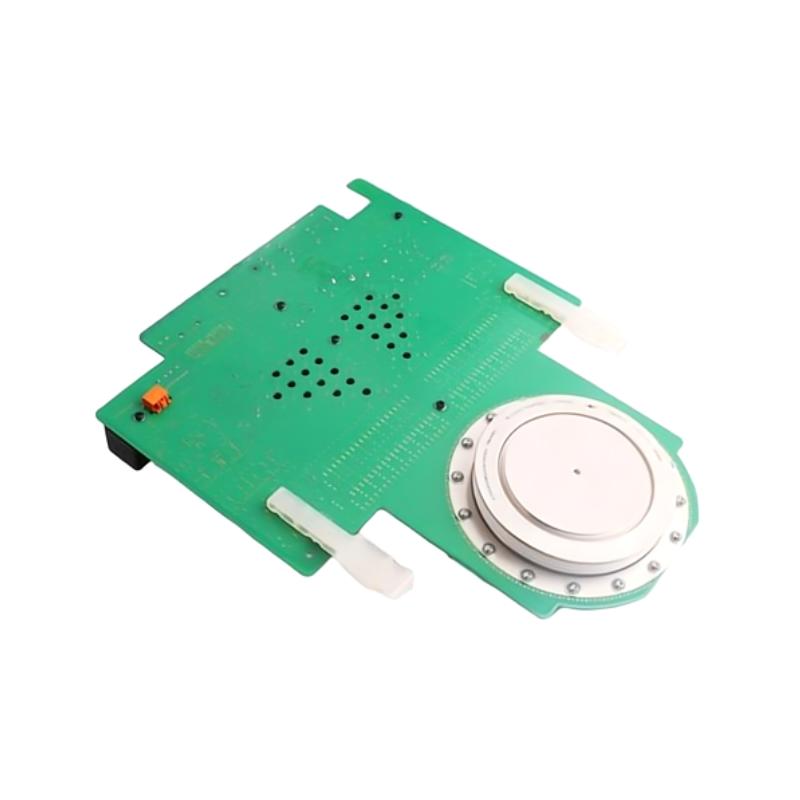

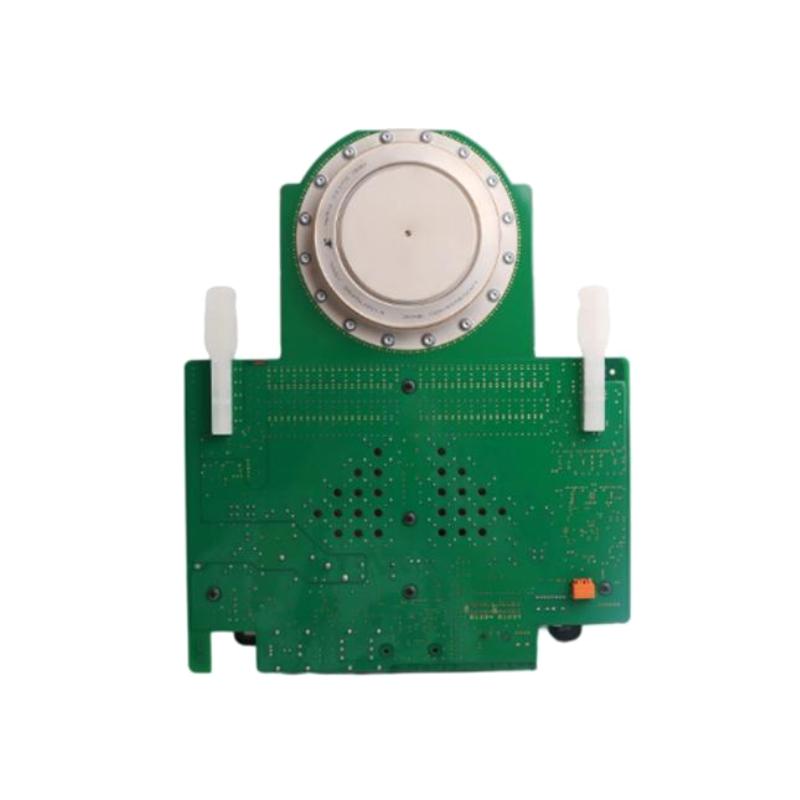

The ABB 5SHY3545L0014 3BHE023784R0001 is a high-power gate-commutated thyristor (IGCT) module designed for industrial converter and drive applications.
General Information
Part Number: 5SHY3545L0014 3BHE023784R0001
Manufacturer: ABB
Brand / Country of Origin: ABB / Switzerland
Type: IGCT Power Module
Application: High-current switching for industrial power systems
Power Specifications
Rated Voltage: 4,500 V
Rated Current: 3,500 A
Switching Technology: Integrated gate-commutated thyristor with low on-state drop
Protection Features: Short-circuit and thermal fault monitoring
Communication & Interface
Interface: Gate drive input compatible with IGCT driver system
Control Features: Fast turn-off capability for high-power switching
Diagnostics: Module monitors gate-drive and device health
Environmental
Operating Temperature: −40 °C to +125 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial converter or high-voltage drive racks
Dimensions & Weight
Dimensions: 120 × 26 × 120 mm
Weight: 1.32 kg
