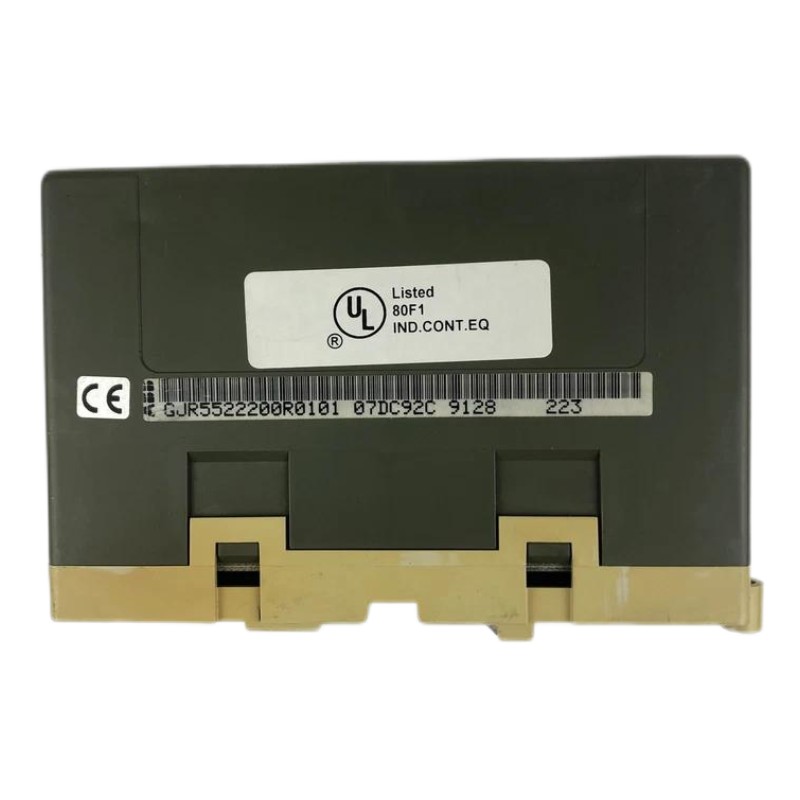

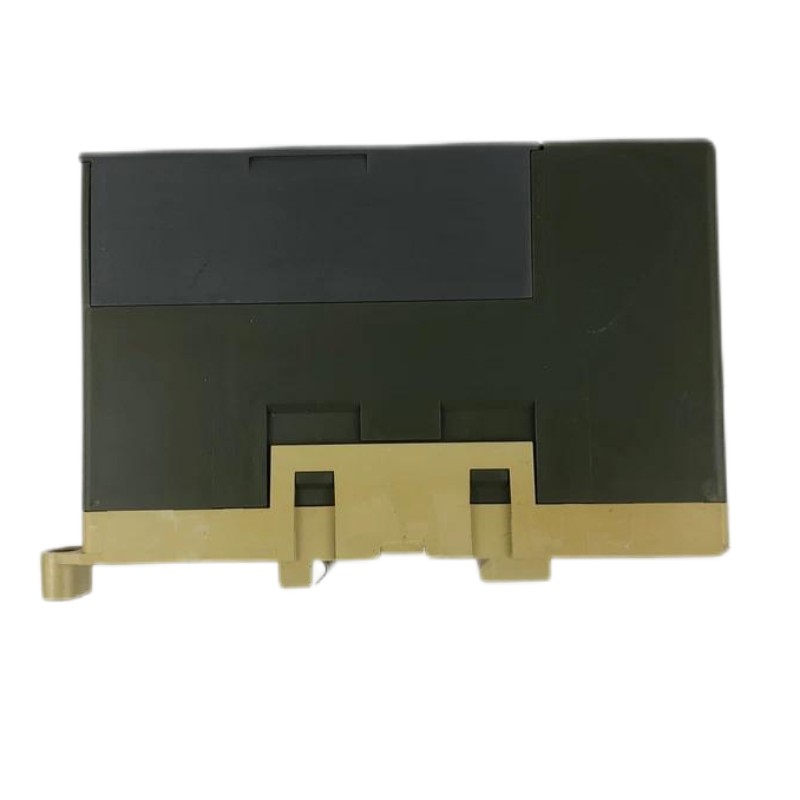

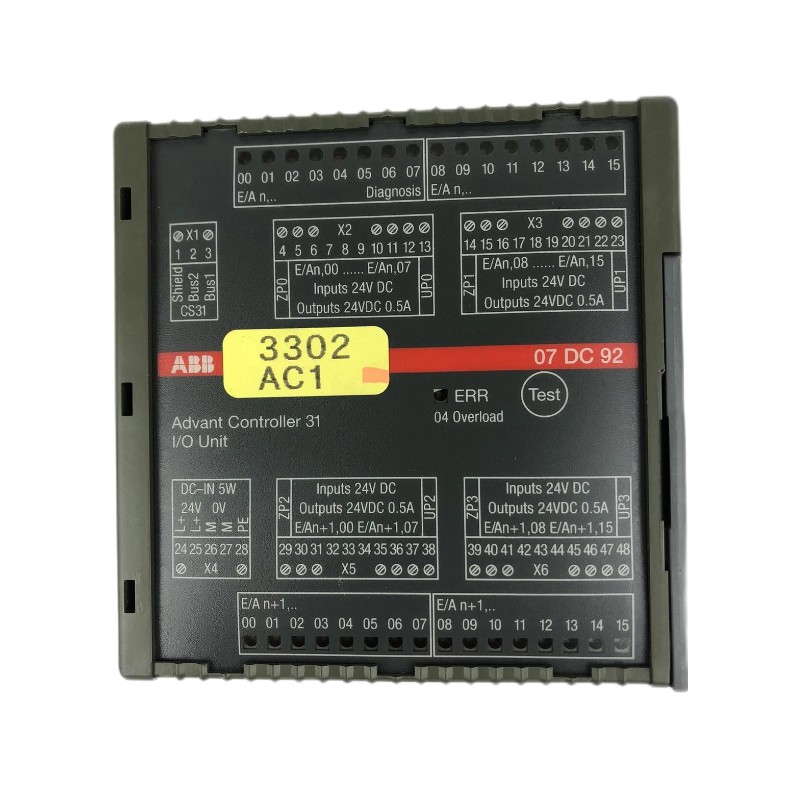

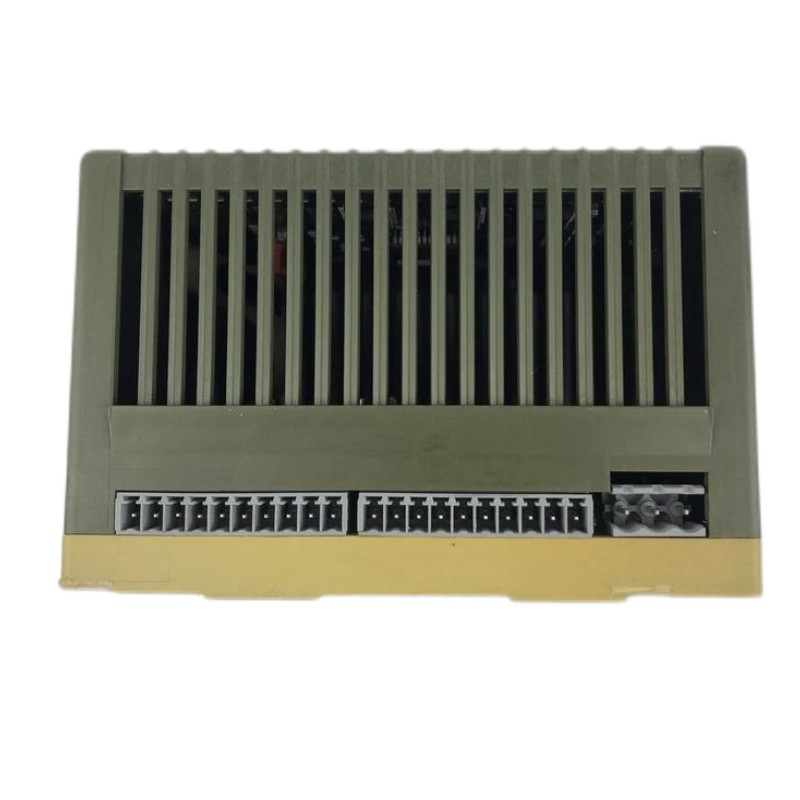

ABB 07DC92 GJR5522200R0101 Digital Input/Output Module Hot Items

Overview

The ABB 07DC92 GJR5522200R0101 is a digital input/output module designed for use in industrial automation systems. It provides 32 configurable channels that can be individually programmed as either inputs or outputs, offering flexibility in various applications.

General Information

• Part Number: GJR5522200R0101

• Manufacturer: ABB (Asea Brown Boveri)

• Series: Advant Controller 31 (AC31)

• Country of Origin: Sweden


• Type: Digital Input/Output Module

• Mounting: DIN rail (35 mm x 15 mm or 35 mm x 7.5 mm)

• Technology: 32 configurable digital I/O channels, 24 V DC, CS31 system bus interface

Power Specifications

• Operating Voltage: 24 V DC

• Input Voltage Range: 20 V DC to 28 V DC

• Power Consumption:

• Without Load (Outputs): Max. 5 W

• Under Load (Outputs): Max. 10 W

• Current Consumption:

• Without Load: Max. 0.15 A

• With Load: Max. 4.0 A (supply terminals)

• Protection: Electrically isolated CS31 system bus connection

• Indicators: 33 LEDs for status and error indication; test button

Communication & Interface

• Bus Interface: CS31 system bus

• Data Exchange: Up to 8 input words and 8 output words

• Configuration: DIP switches for mode and module address

• Diagnostics: Onboard diagnostics via LEDs and test button

I/O & Channels

• Digital Inputs/Outputs: 32 channels, 24 V DC

• Each channel can be configured individually as input, output, or re-readable output (combined input/output)

• Outputs are transistorized with a nominal load rating of 0.5 A and are protected against overload and short circuit

• The 32 channels are electrically isolated in 4 groups

• Operating Modes: Configurable input/output types per channel

Environmental

• Operating Temperature: 0 °C to +55 °C

• Storage Temperature: –25 °C to +75 °C

• Humidity: Up to 95% RH, non-condensing

• Protection Rating: IP20 (for internal cabinet installation)

• Maximum Operating Altitude: 2000 m

Dimensions & Weight

• Dimensions (L × W × H): 120 × 140 × 85 mm

• Weight: 0.45 kg
