Overview

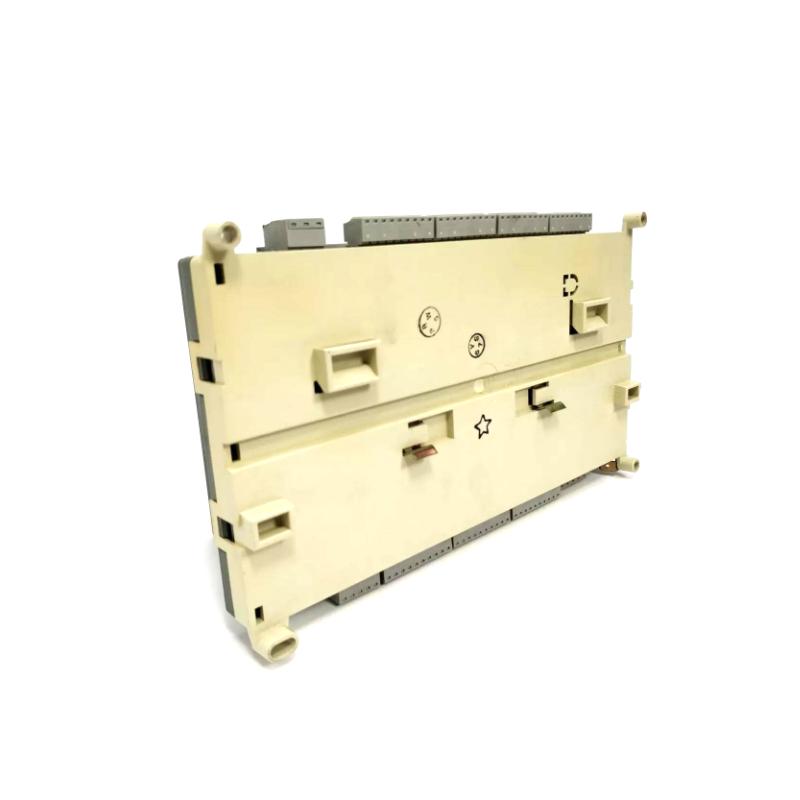

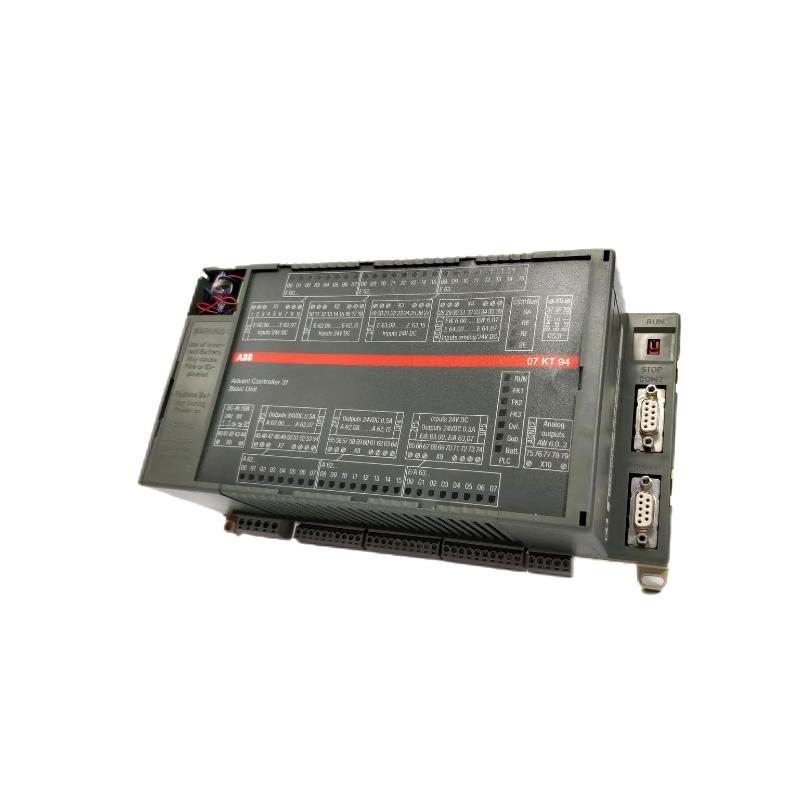

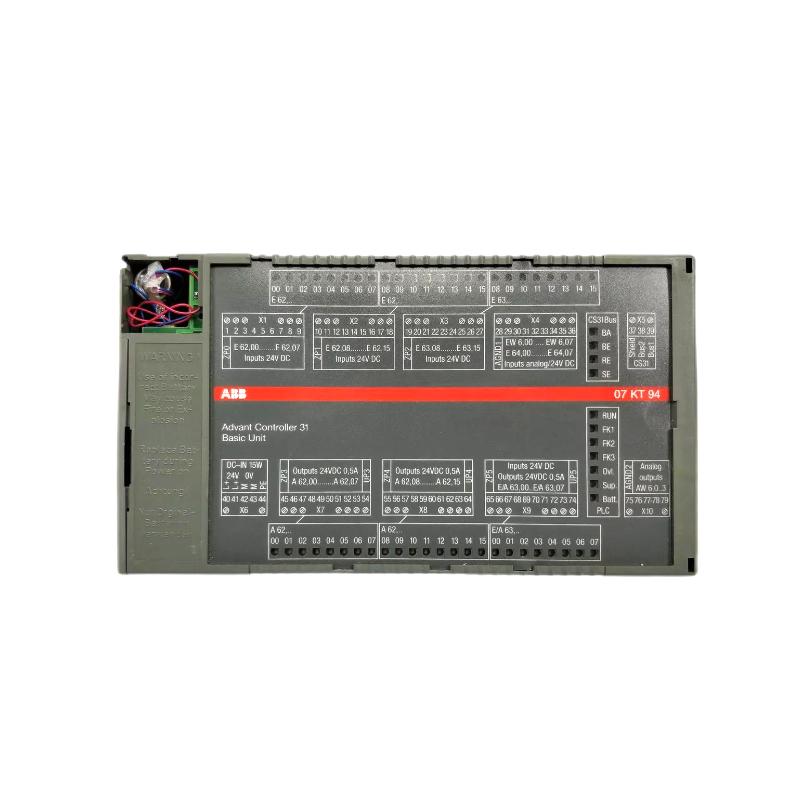

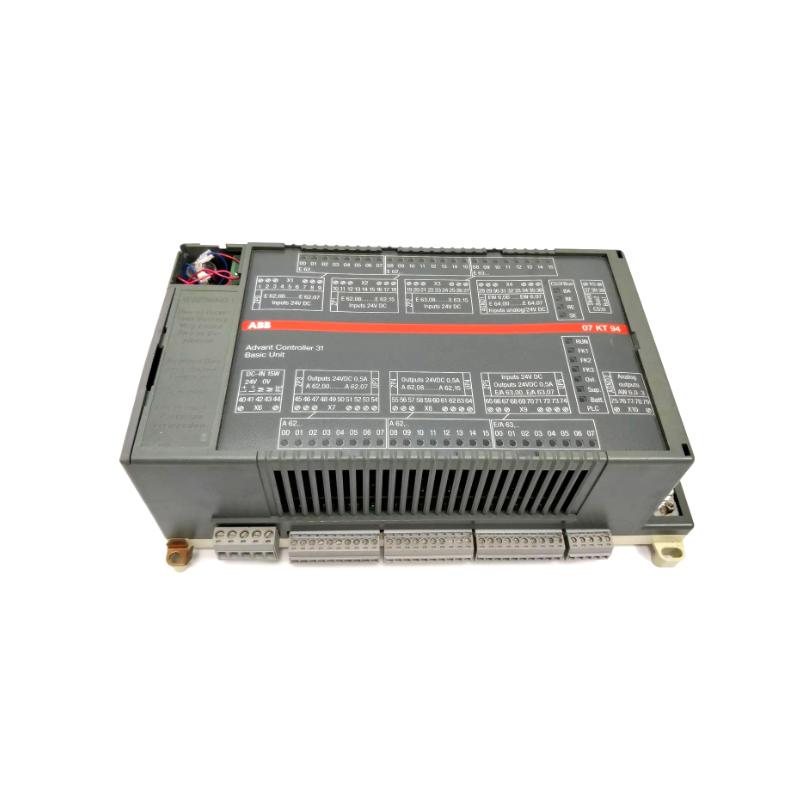

The ABB 07KT94C-S (GJR5252100R2261) is a reliable processor module designed for the ABB Advant Controller 400 system. It provides high-performance control, communication, and monitoring functions in industrial automation environments. The module ensures stable operation and efficient data processing in demanding process applications.
General Information
Brand: ABB
Country of Origin: Switzerland
Part Number: GJR5252100R2261
Series: Advant Controller 400
Product Type: Processor Module
Mounting Method: Rack-mounted within Advant system chassis
Function: Central processing and communication management
Technology: High-speed microprocessor with integrated diagnostics
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input Source: From the control system backplane
Protection Features: Overvoltage, short-circuit, and reverse-polarity protection
Status Indicators: LEDs for power, operation, and fault conditions
Communication & Interface
Communication Ports: System bus, serial interface, and I/O bus
Supported Protocols: Advant fieldbus and internal control communication
Configuration: Through engineering software or service terminal
Diagnostics: Built-in self-test and fault indication
Reset Options: Software or hardware reset support
Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: −40 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (suitable for cabinet installation)
Cooling Method: Natural convection
Dimensions & Weight
Dimensions (L × W × H): 195 × 40 × 130 mm
Weight: Approx. 0.5 kg
