Overview

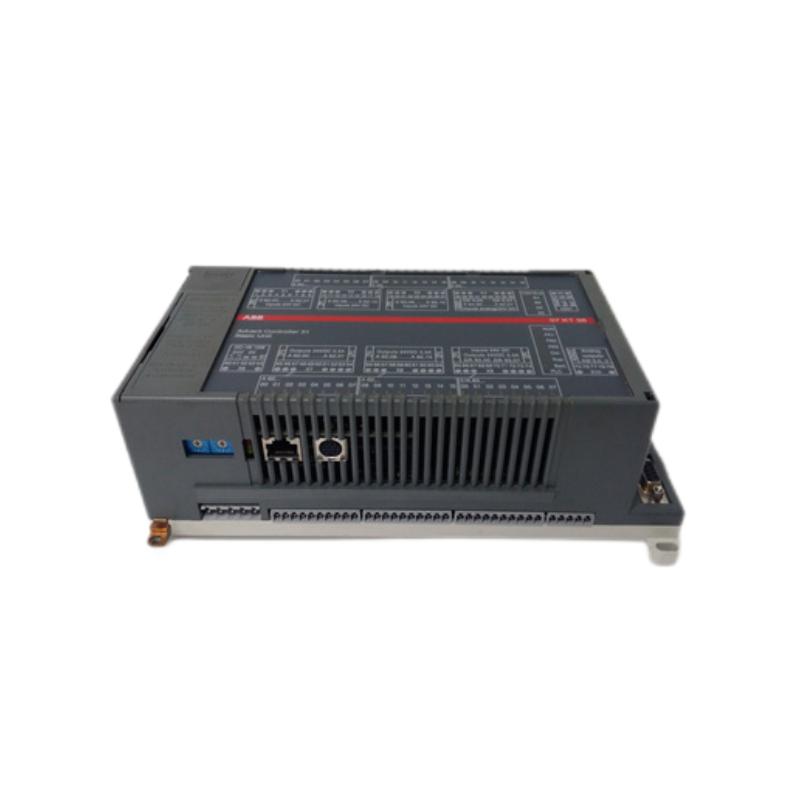

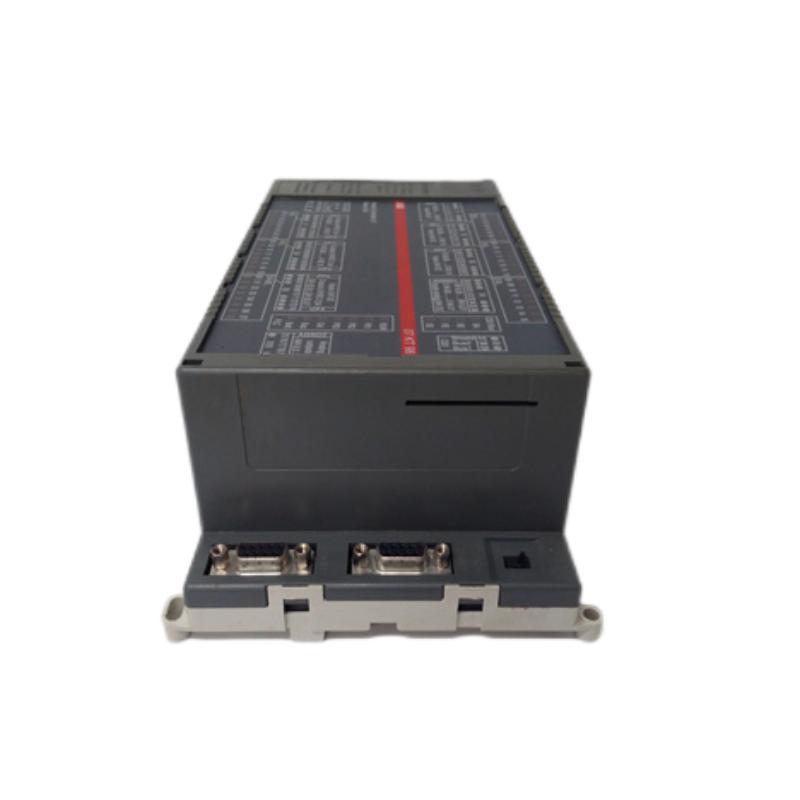

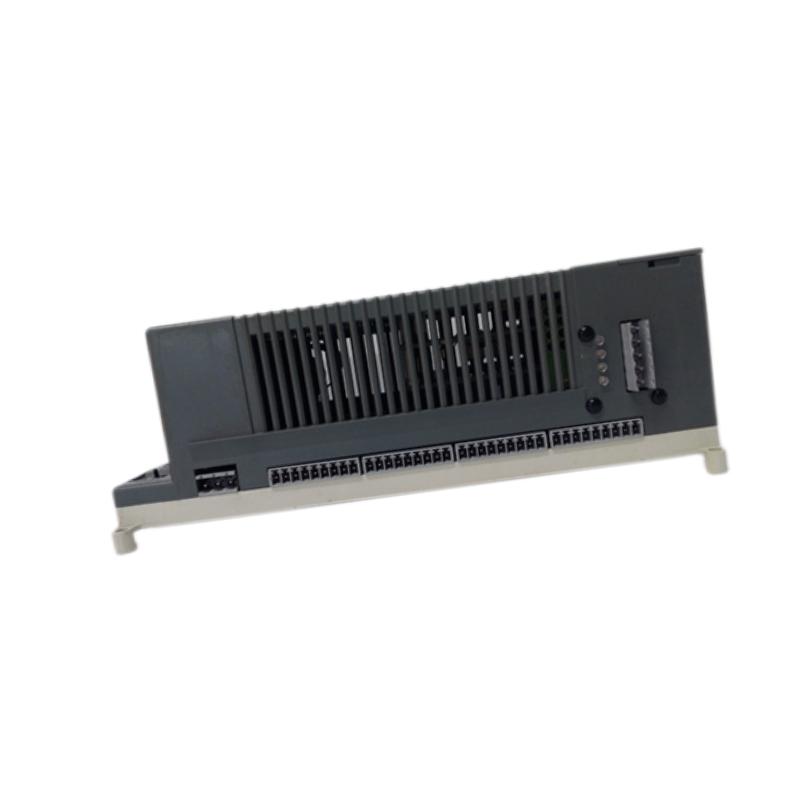

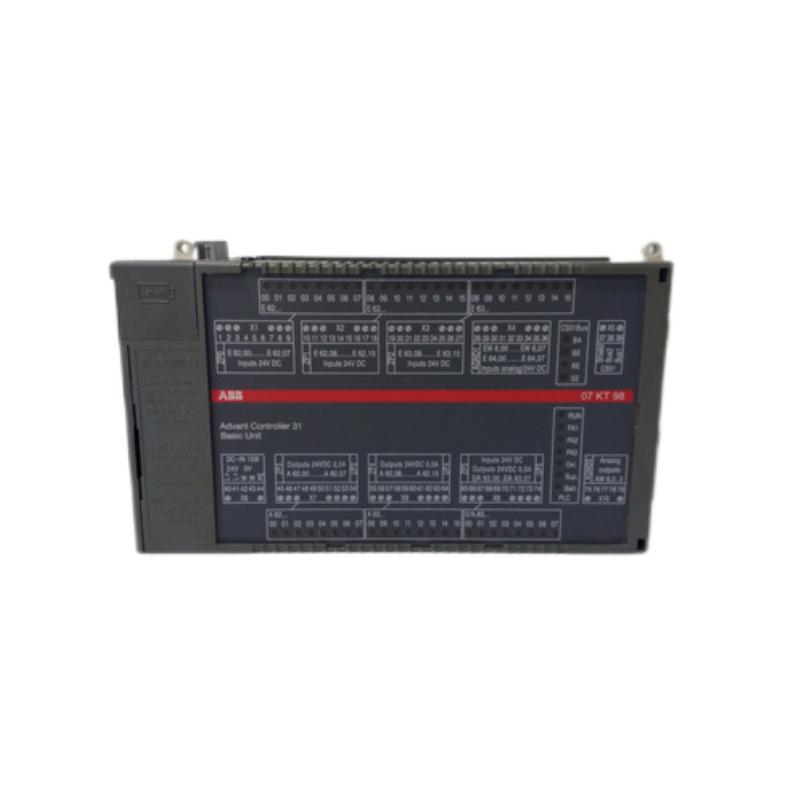

The ABB 07KT98 (GJR5253100R4278) is an advanced processor module engineered for the ABB Advant Controller 400 series. It serves as the system’s central processing unit, executing control logic, managing communications, and coordinating data flow within industrial automation systems. Designed for long-term reliability, it delivers consistent performance in demanding process control and factory automation environments.
General Information
Brand: ABB
Country of Origin: Sweden
Part Number: GJR5253100R4278
Series: Advant Controller 400
Product Type: Processor Module / CPU Unit
Mounting Method: Rack-mounted within the Advant control chassis
Function: Executes process control logic, handles system communication, and supervises data management
Technology: High-speed microprocessor with integrated diagnostic and communication functions
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input Source: Supplied through the system backplane
Protection Features: Overvoltage, reverse polarity, and surge protection
Indicators: LED indicators for power, operation, and fault conditions
Communication & Interface
Communication Ports: System bus, serial interface, and I/O bus
Supported Protocols: Advant fieldbus and system-level communication standards
Diagnostics: Built-in self-test and fault indication via LED status display
Configuration: Configured using ABB system engineering or maintenance tools
Reset Options: Supports both hardware and software reset modes
Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: −40 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (for cabinet installation)
Cooling Method: Natural convection
Dimensions & Weight
Dimensions (L × W × H): 240 × 140 × 85 mm
Weight: Approx. 1.6 kg
