Overview

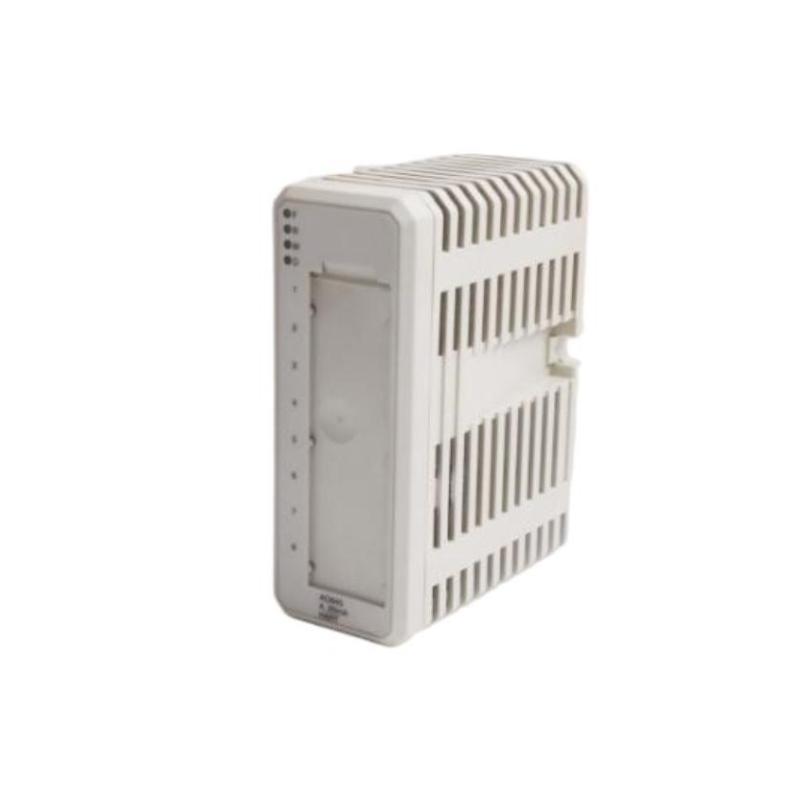

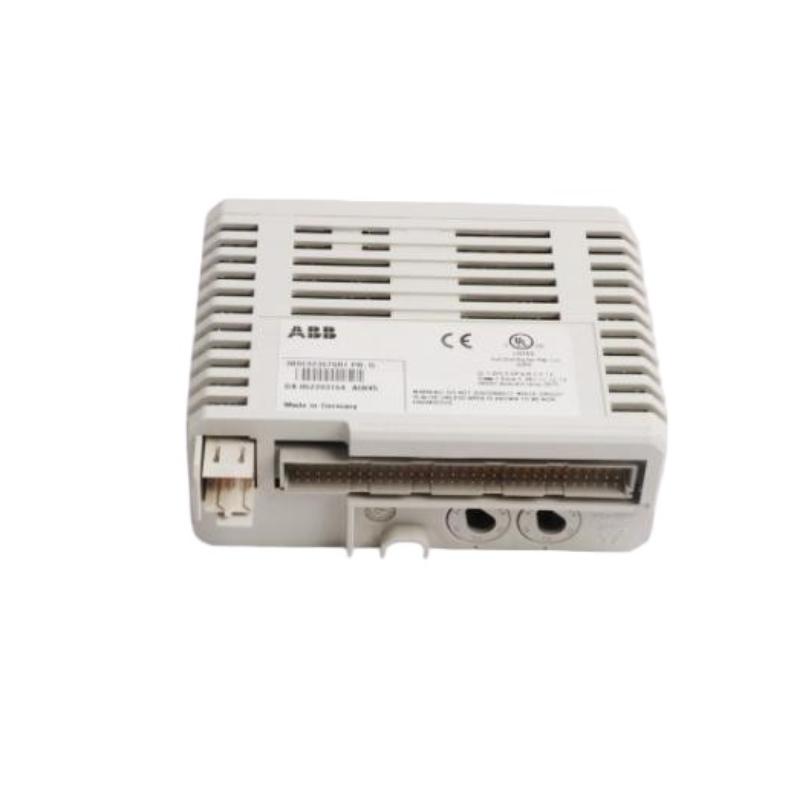

The ABB AO845 3BSE023676R1 is a high-performance analog output module designed for the ABB AC 800M and S800 I/O systems. It provides precise and reliable current outputs for process control applications such as actuator and valve positioning. Known for its robust design and stability, the AO845 enhances system accuracy and reliability in demanding industrial environments.

General Information

• Part Number: 3BSE023676R1

• Manufacturer: ABB

• Product Series: AO800 Series / S800 I/O

• Type: Analog Output Module

• Country of Origin: Sweden

• Mounting: DIN-rail or module carrier installation

• System Compatibility: Fully compatible with ABB AC 800M and S800 I/O subsystems

Power Specifications

• Supply Voltage: 24 V DC (nominal)

• Power Consumption: ≤ 2.5 W

• Input Source: Powered from the I/O backplane

• Protection: Short-circuit, overload, and reverse-polarity protection

• Indicators: LEDs for power, module status, and output channel activity

Communication & Interface

• Output Channels: 8 analog current outputs

• Output Signal Range: 4–20 mA

• Load Range: 0–750 Ω

• Resolution: 12 bits

• Accuracy: ±0.1% of full scale

• Diagnostics: Open loop detection, output fault monitoring, and module self-diagnostics

• Configuration: Supported by ABB Control Builder and Compact Control Builder software tools

Environmental

• Operating Temperature: –20 °C to +70 °C

• Storage Temperature: –40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20 (for cabinet or rack installation)

Dimensions & Weight

• Dimensions (L × W × H): 122 × 45 × 102 mm

• Weight: 0.21 kg
