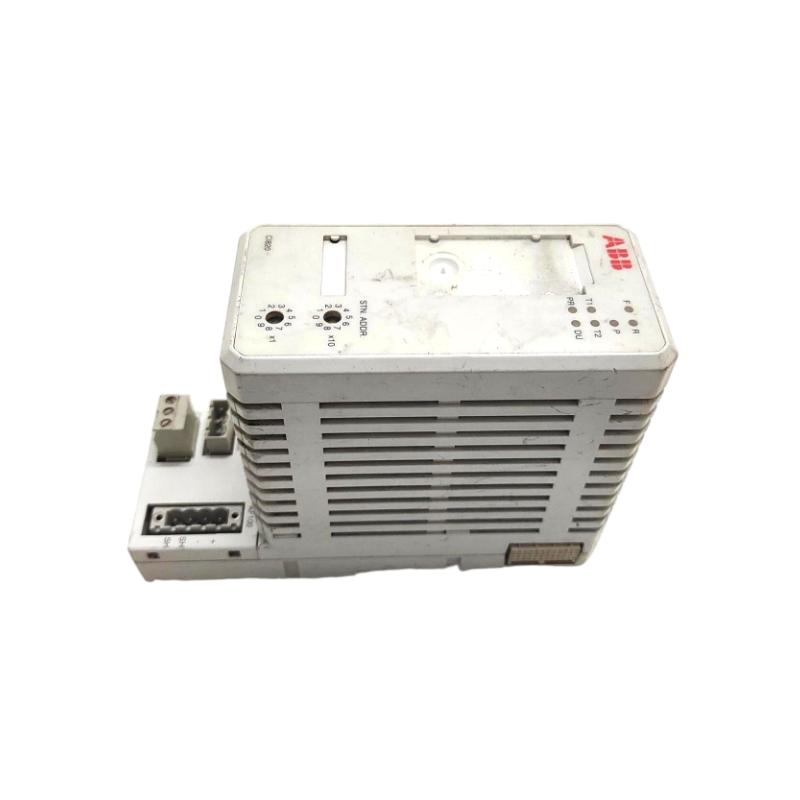

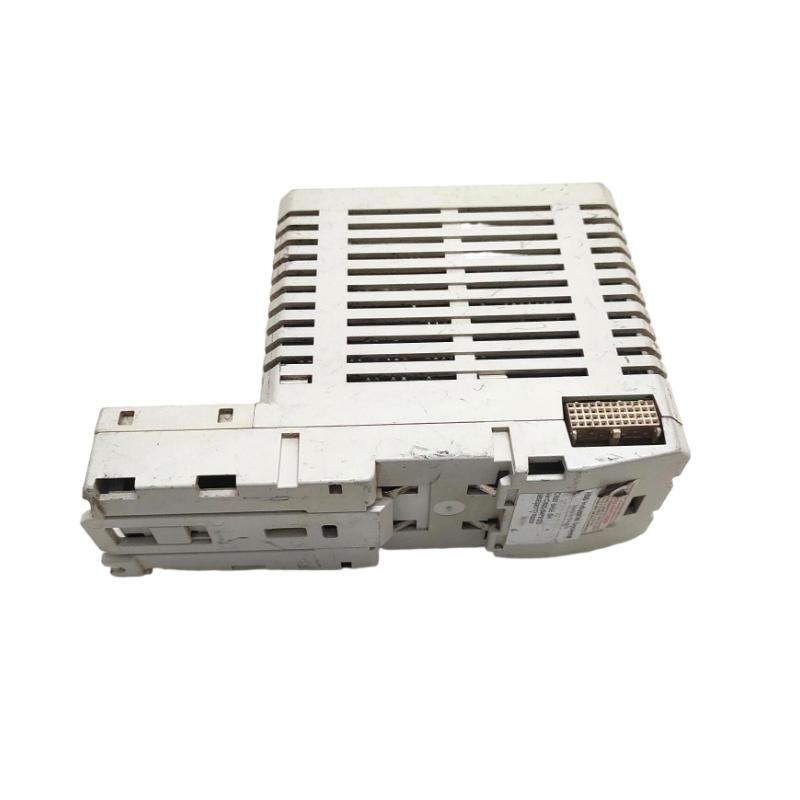

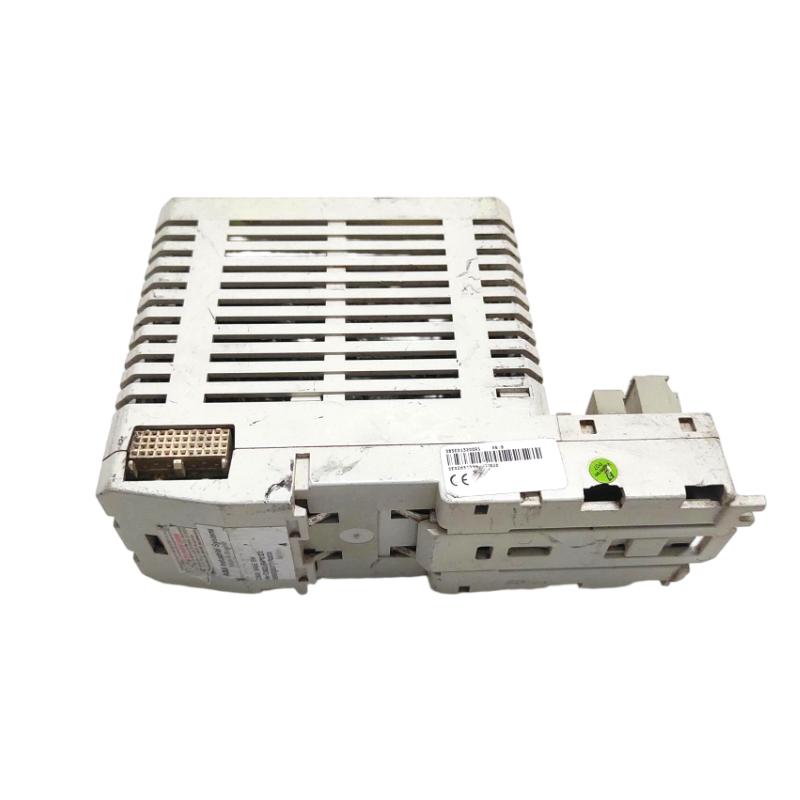

ABB CI820 3BSE013200R1 Communication Interface Module Rave reviews

Overview

The ABB CI820 3BSE013200R1 is a communication interface module used within ABB’s AC 800M and S800 I/O systems. It serves as a PROFIBUS-DP communication link, enabling high-speed data exchange between the control network and field devices. The CI820 ensures stable, redundant, and flexible connectivity, supporting complex automation systems in industrial environments.

General Information

• Part Number: 3BSE013200R1

• Manufacturer: ABB

• Product Series: CI800 Series / S800 I/O

• Type: Communication Interface Module (PROFIBUS-DP)

• Country of Origin: Sweden

• Mounting: DIN-rail or baseplate installation within S800 I/O system

• System Compatibility: AC 800M Controller and S800 I/O subsystems

Power Specifications

• Supply Voltage: 24 V DC (nominal)

• Power Consumption: ≤ 3 W

• Input Source: Powered from the I/O backplane

• Protection: Overvoltage, short-circuit, and reverse-polarity protection

• Indicators: LEDs for power, communication link, and fault status

Communication & Interface

• Interface Type: PROFIBUS-DP slave interface

• Bus Speed: Up to 12 Mbps

• Supported Devices: PROFIBUS-compatible field modules and controllers

• Diagnostics: Bus status monitoring, fault reporting, redundancy supervision

• Configuration: Managed via ABB Control Builder or Compact Control Builder tools

• Redundancy: Supports redundant communication when paired with dual CI820 modules

Environmental

• Operating Temperature: –20 °C to +70 °C

• Storage Temperature: –40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20 (intended for use within control cabinets)

Dimensions & Weight

• Dimensions (L × W × H): 122 × 45 × 102 mm

• Weight: ~0.25 kg
