Overview

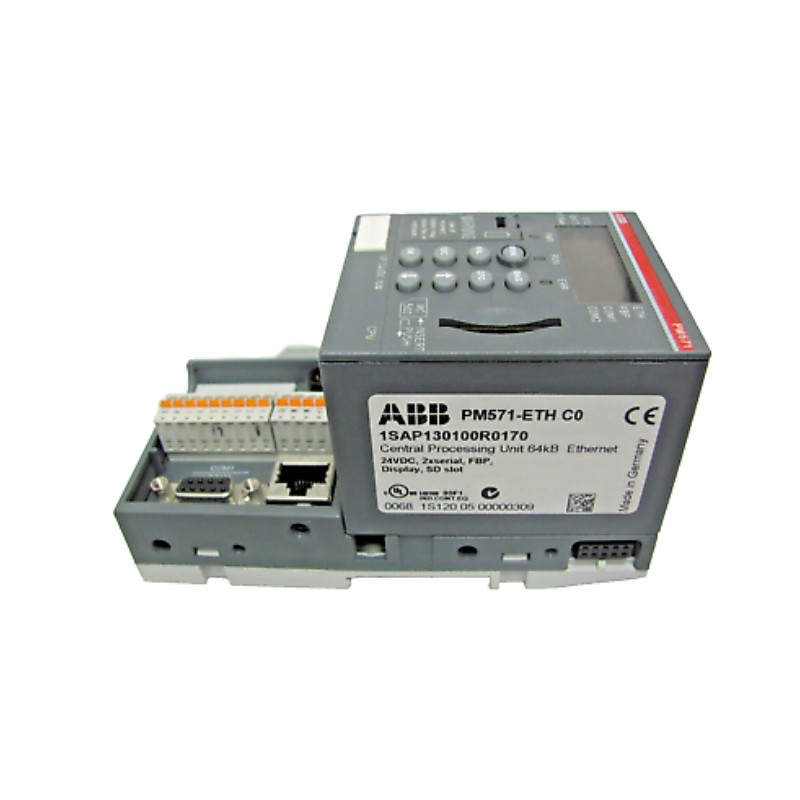

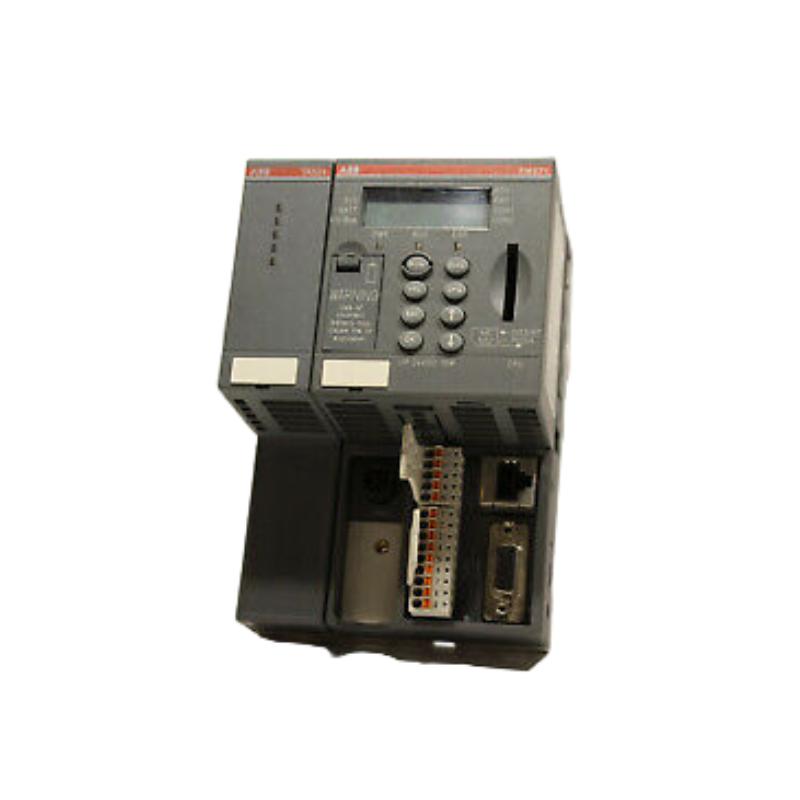

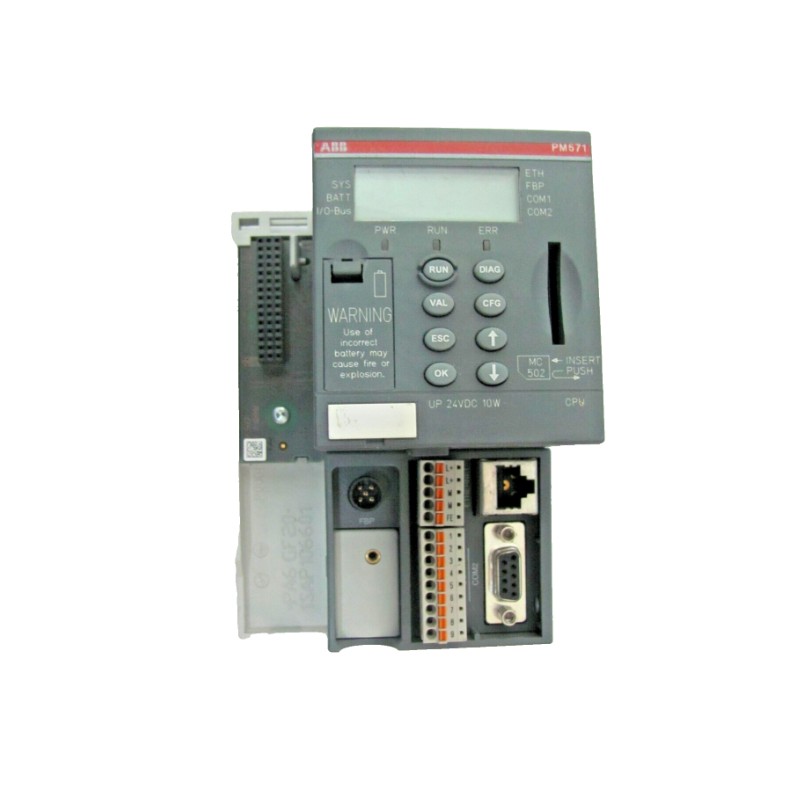

The ABB PM571-ETH is a compact PLC processor module from the AC500 series, designed for small- to medium-scale automation tasks. It provides reliable control performance with an integrated Ethernet interface, supporting flexible communication and stable operation in industrial environments.
General Information
Part Number: 1SAP130100R0170
Manufacturer: ABB
Brand Country of Origin: Sweden
Series: AC500
Type: Processor Module (CPU with Ethernet)
Mounting: DIN-rail installation
Technology: Integrated Ethernet, modular PLC architecture
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Low-power CPU design
Input Source: External 24 V DC supply
Protection: Overvoltage, short-circuit, and reverse-polarity protection
Indicators: LEDs for RUN, ERR, COM, and ETH
Communication & Interface
Ethernet Port: Integrated Ethernet for programming and networking
System Role: Central controller for AC500 automation systems
Diagnostics: Built-in diagnostics and fault reporting
Operator Interface: LED indicators and configuration via engineering tools
Reset Features: Supports hardware and software reset
I/O & Channels
Local I/O: Expandable with S500 I/O modules
Function: Executes user control logic and manages communication
External Load Support: Not applicable (logic and communication only)
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for enclosed industrial control cabinets
Dimensions & Weight
Dimensions (L × W × H): 74 × 135 × 82 mm
Weight: ~ 0.30 kg
