Overview

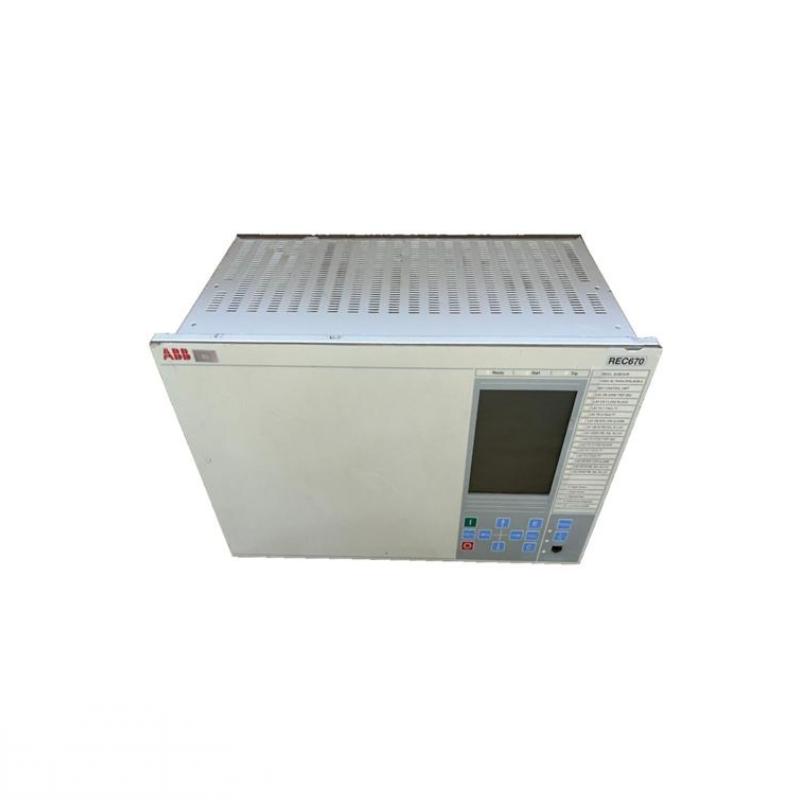

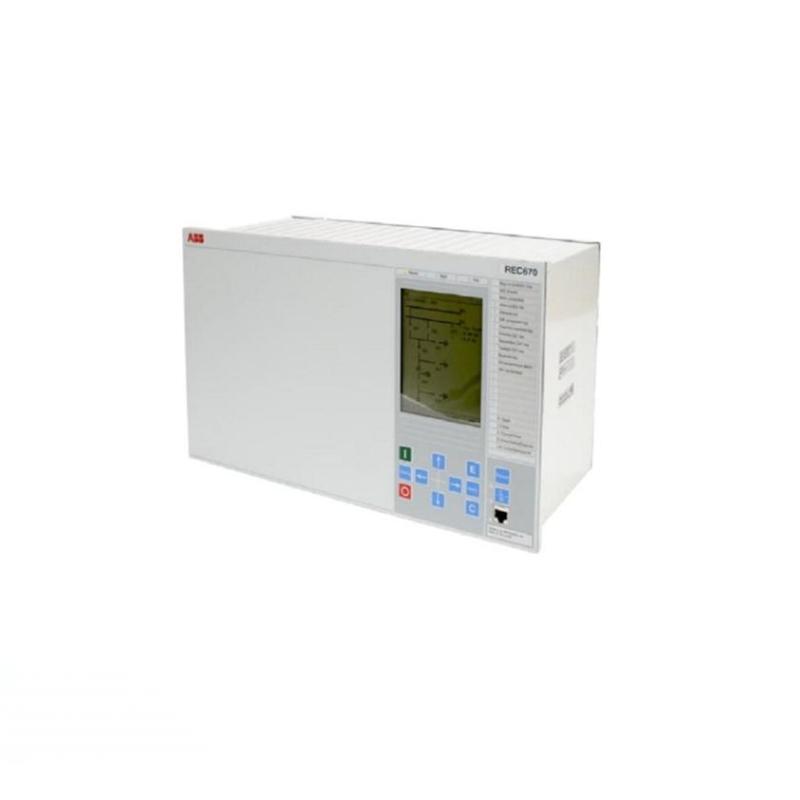

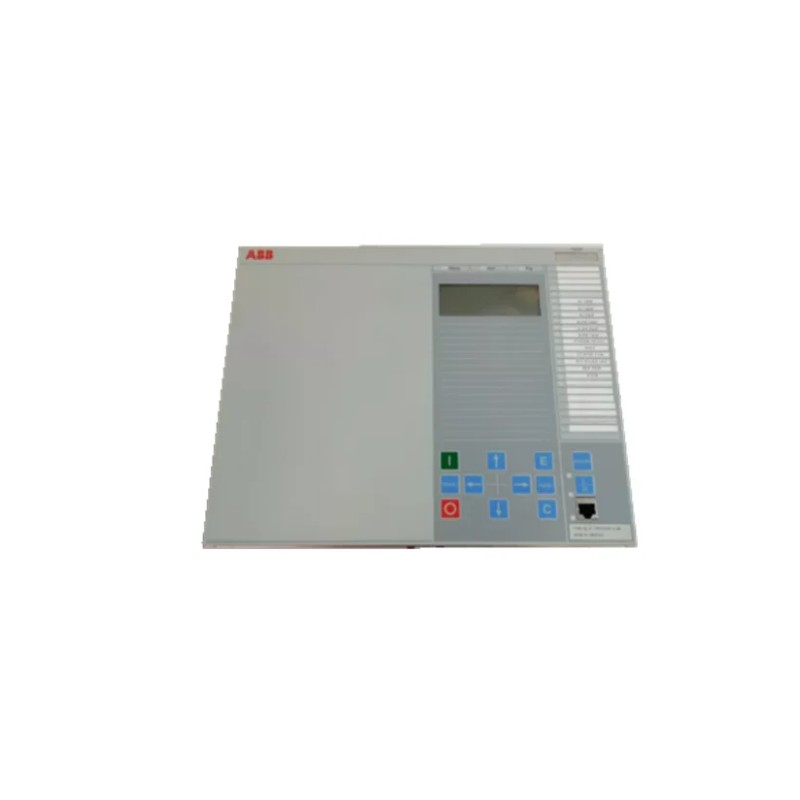

The ABB REC670 is a high-performance control system module designed for power generation and industrial process automation. It provides advanced protection, control, and monitoring functions, integrating seamlessly into ABB’s 670 series control platforms for reliable and efficient system operation.
General Information
Part Number: 1MRK000008-NB
Manufacturer: ABB
Brand Country of Origin: Sweden
Series: REC670
Type: Control System Module
Mounting: Panel or rack installation in control cabinets
Technology: Modular architecture with integrated protection, control, and communication capabilities
Power Specifications
Supply Voltage: 24 V DC or 48 V DC (system-dependent)
Power Consumption: Optimized for high-performance processing
Input Source: External DC supply or system backplane
Protection: Overvoltage, short-circuit, and reverse-polarity protection
Indicators: LEDs for status, fault, and communication
Communication & Interface
Communication Ports: Ethernet, serial, and fieldbus interfaces
System Role: Central controller for protection, monitoring, and automation
Diagnostics: Continuous system diagnostics and fault reporting
Operator Interface: LED indicators and engineering configuration tools
Reset Features: Supports hardware and software reset
I/O & Channels
Local I/O: Expandable via compatible I/O modules
Function: Executes control logic, protection schemes, and monitoring
External Load Support: Not applicable (control module only)
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for industrial control cabinets
Dimensions & Weight
Dimensions (L × W × H): 280 × 220 × 100 mm
Weight: ~ 2.5 kg
