Overview

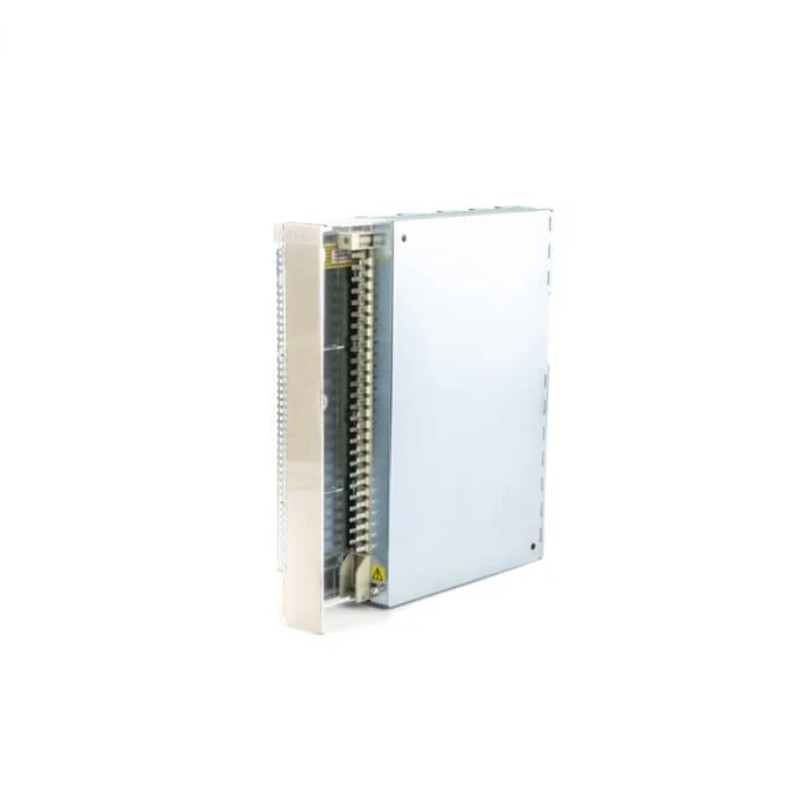

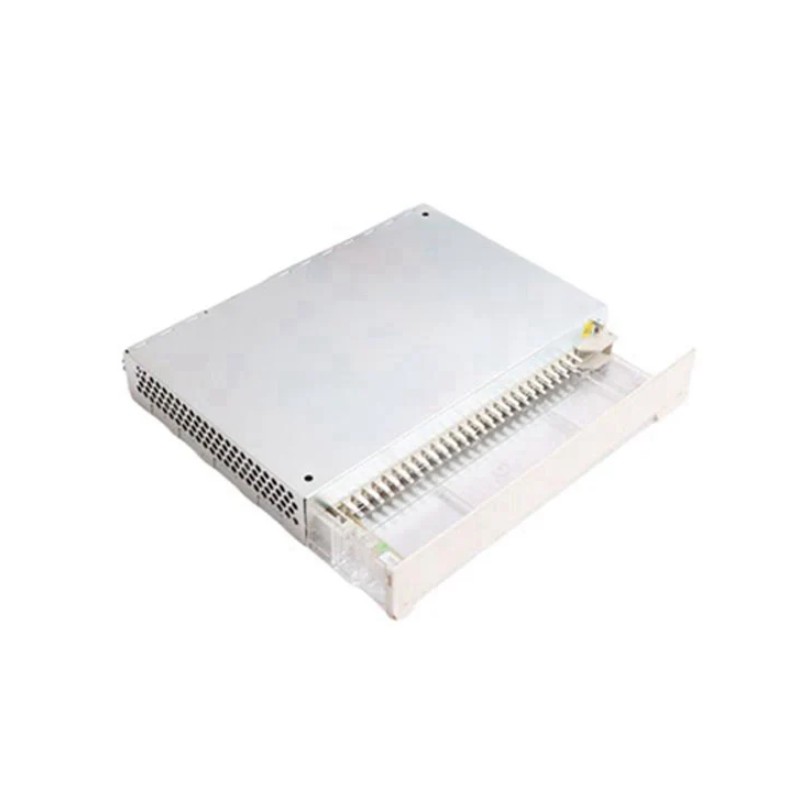

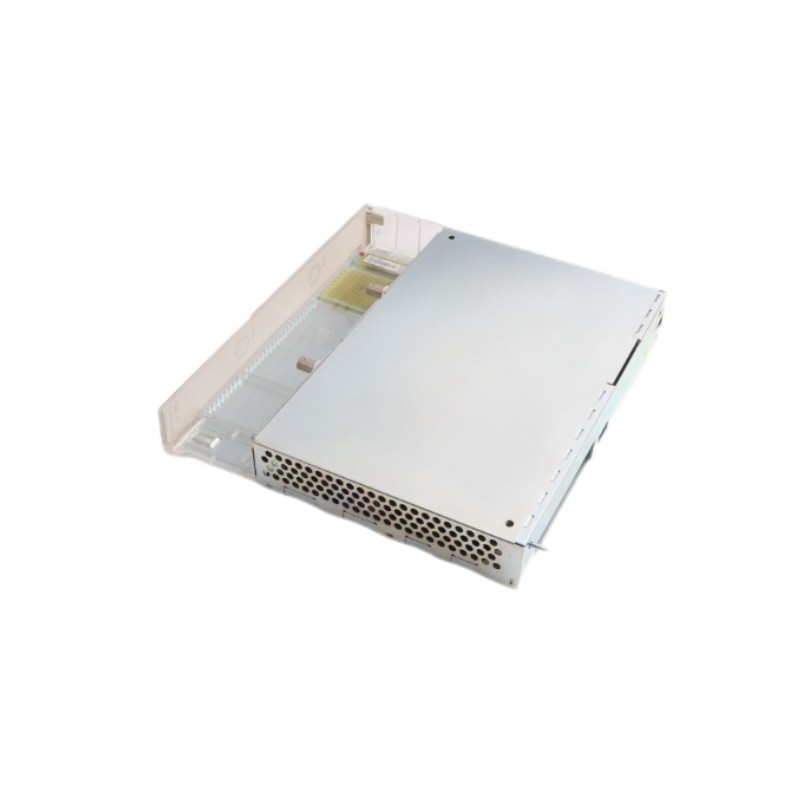

The ABB CI615 is a communication interface module designed for ABB’s control platforms. It bridges the main controller backplane and distributed I/O or field devices, enabling flexible and reliable data exchange for industrial automation systems.
General Information
Part Number: 3BHT300024R1
Manufacturer: ABB
Series: CI (Communication Interface)
Type: Interface / Bus Module
Mounting: Rack or slot installation
Technology: Embedded bus logic with diagnostic capabilities
Country of Origin: Sweden
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Moderate, designed for continuous bus communication
Protection: Surge suppression and reverse-polarity protection
Indicators: LED for power, communication, and error
Communication & Interface
Bus Type: Control bus and field communication
Function: Coordinates messaging between controller and remote I/O
Diagnostics: Communication fault detection and status reporting
Operator Interface: LEDs on panel for status
Reset Features: Hardware and software reset supported
I/O & Channels
Relay Channels: None (interface only)
External Load Support: Not applicable
Environmental
Operating Temperature: −40 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (mount in protected cabinet)
Dimensions & Weight
Dimensions (L × W × H): 252 × 273 × 40 mm
Weight: ~ 1.2 kg
