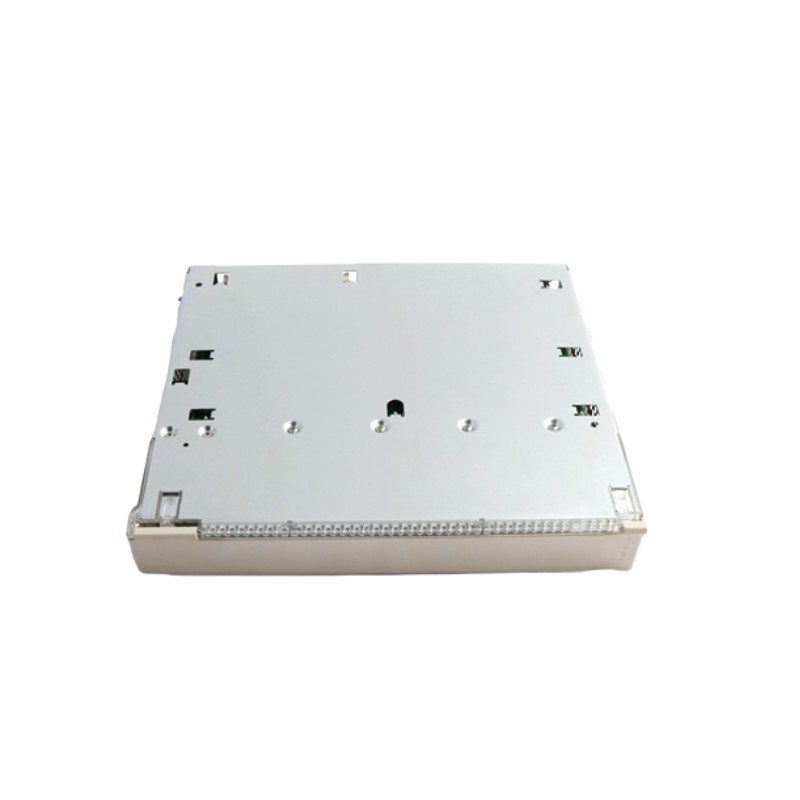

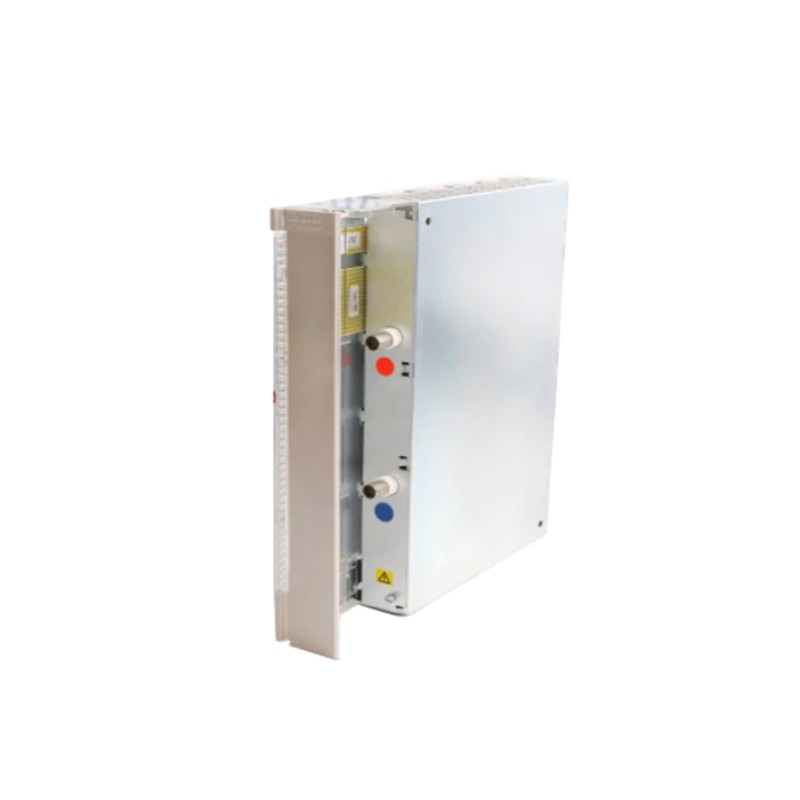

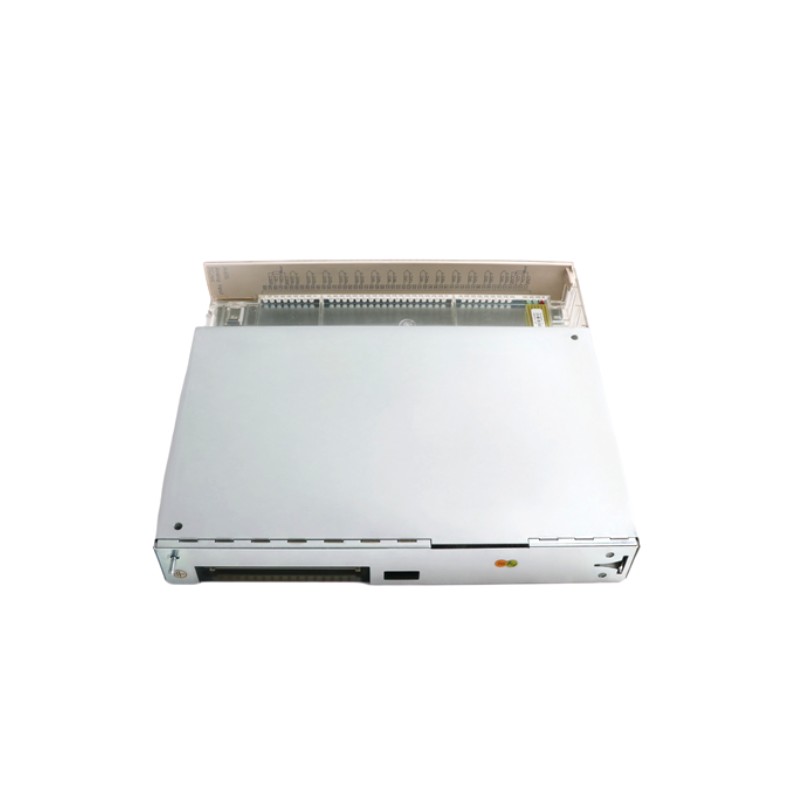

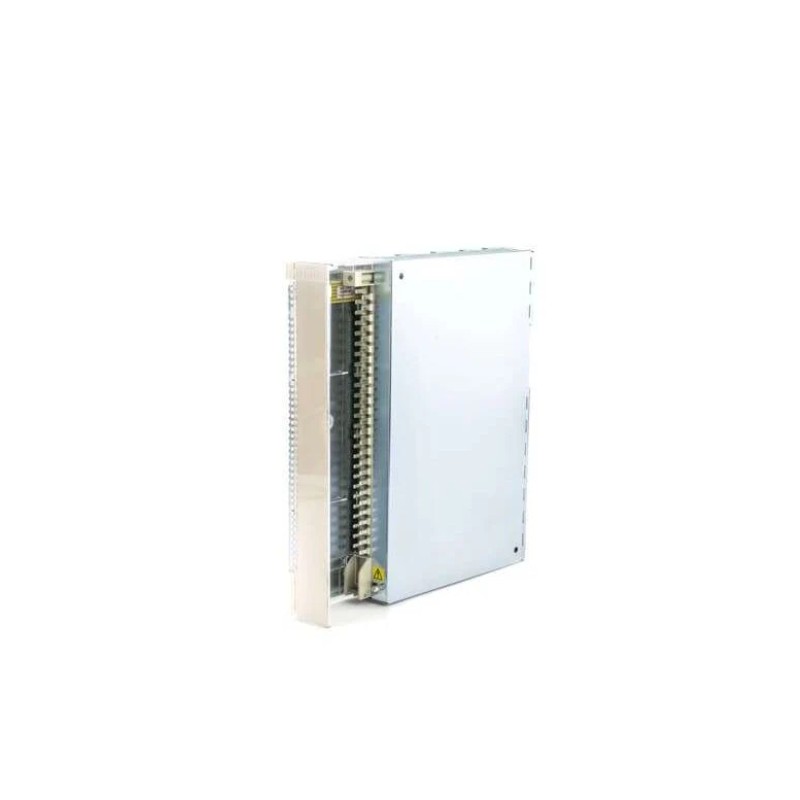

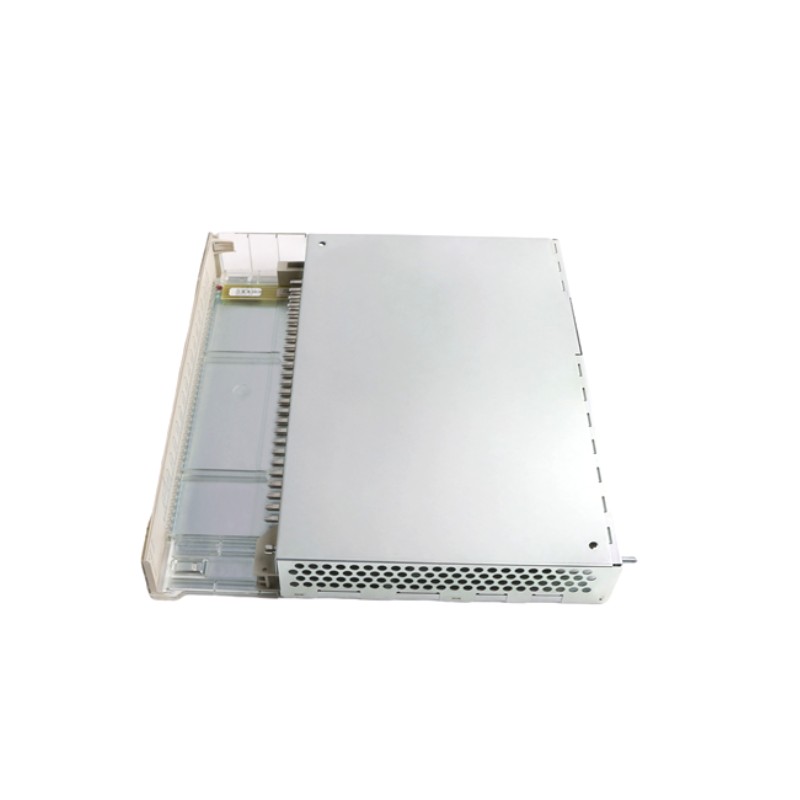

ABB AI630 3BHT300011R1 | Analog Input Module 30-Day Returns

Overview

The ABB AI630 3BHT300011R1 is a high-performance analog input module designed for integration into ABB’s automation and control systems. This module is specifically engineered to handle a wide range of analog signals from field devices, ensuring precise signal processing and monitoring. It supports various analog input types, including voltage, current, and temperature measurements, making it ideal for industrial environments that require accurate data acquisition and analysis.

General Information

Part Number: 3BHT300011R1

Manufacturer: ABB

Series: AI (Analog Input)

Type: Analog Input Module

Mounting: DIN rail or rack-mounted installation

Technology: Analog signal processing, fieldbus communication interface

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 20 W

Input: Powered via system backplane

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for power, fault, and communication status

Communication & Interface

Communication Ports: Fieldbus interface for seamless communication with control systems

Diagnostic Features: Signal integrity monitoring, fault detection, real-time diagnostics

Operator Interface: LED indicators for operational status, fault reporting, and troubleshooting

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 160 × 120 × 70 mm

Weight: ~ 0.35 kg
