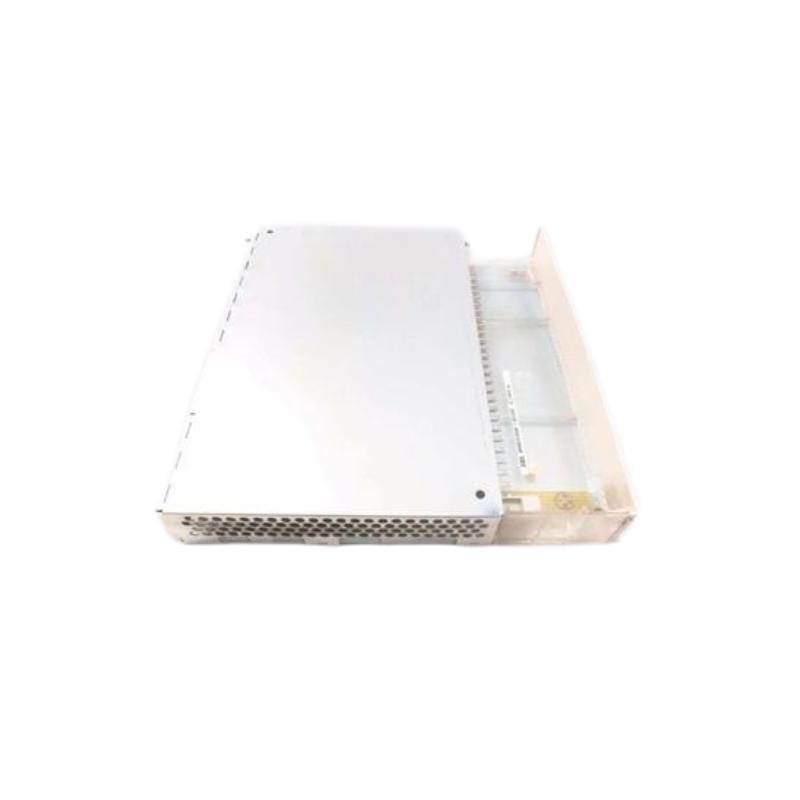

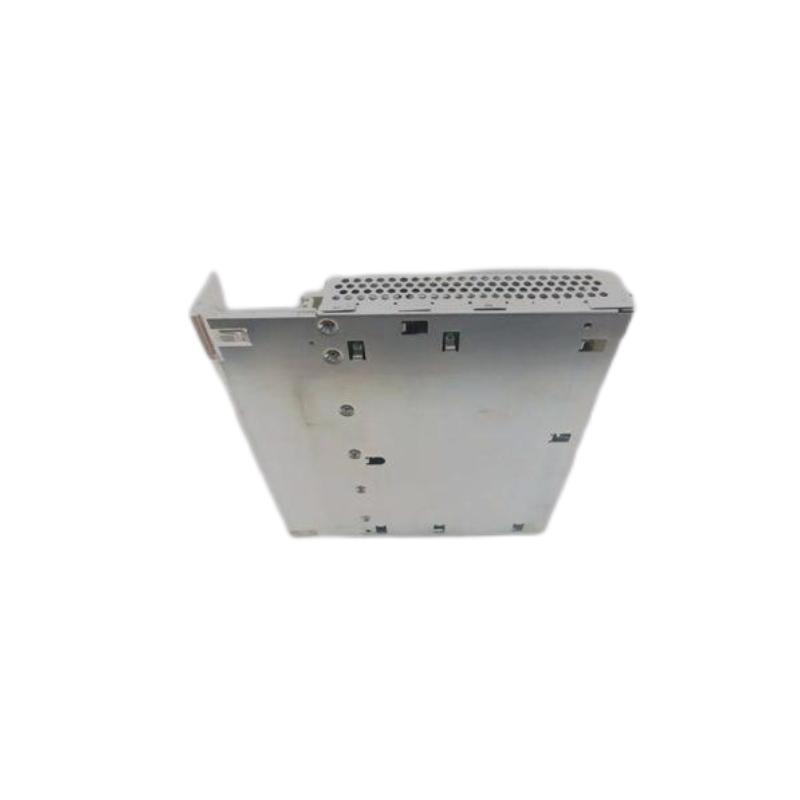

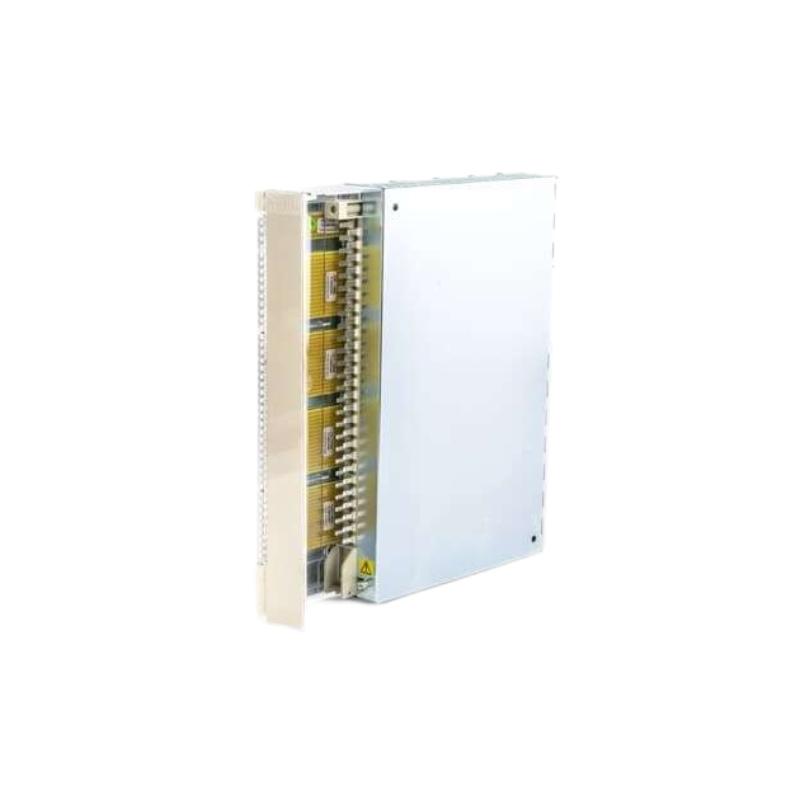

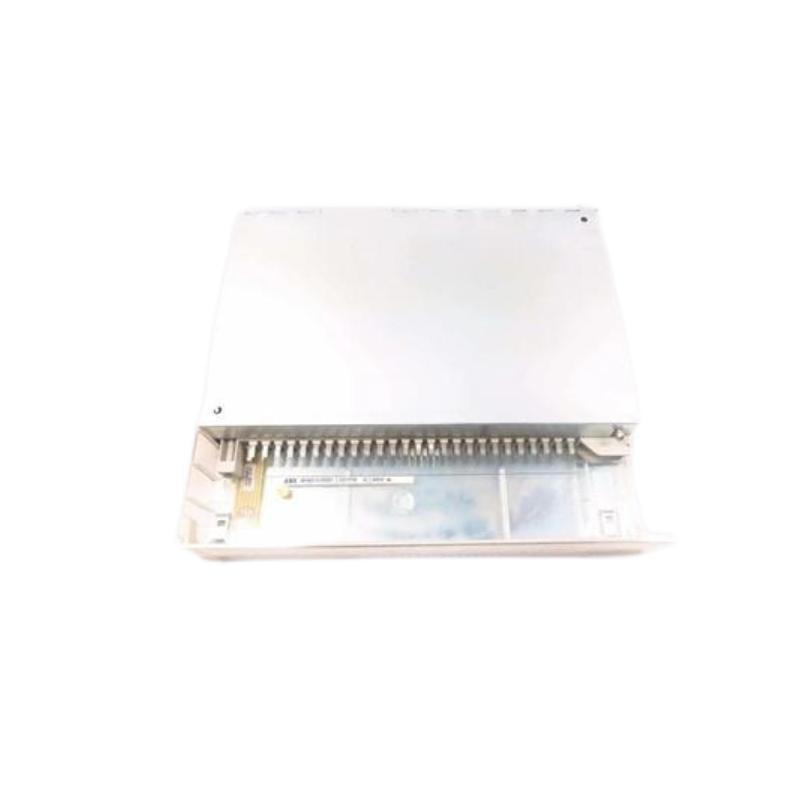

ABB AX645 3BHB001914R1 | Analog Output Module 30-Day Returns

Overview

The ABB AX645 3BHB001914R1 is an advanced analog output module designed for integration into ABB’s industrial automation systems. It is used for outputting precise analog signals, including voltage and current, from the control system to field devices. This module is highly suitable for applications requiring high precision, reliability, and real-time analog signal transmission in demanding industrial environments.

General Information

Part Number: 3BHB001914R1

Manufacturer: ABB

Series: AX (Analog Output)

Type: Analog Output Module

Mounting: DIN rail or rack-mounted installation

Technology: Analog signal processing, fieldbus communication interface

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 30 W

Input: Powered from the system backplane

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for power, fault, and communication status

Communication & Interface

Communication Ports: Fieldbus interface for data exchange with control systems

Diagnostic Features: Signal integrity monitoring, fault detection, real-time diagnostics

Operator Interface: LED indicators for operational status, fault reporting, troubleshooting

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 160 × 120 × 70 mm

Weight: ~ 0.35 kg
