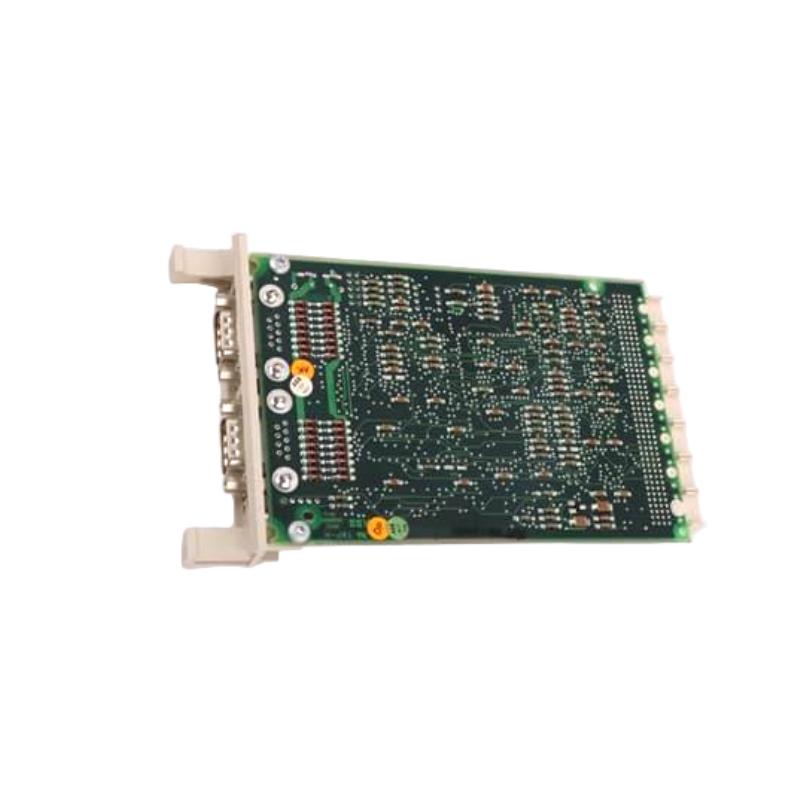

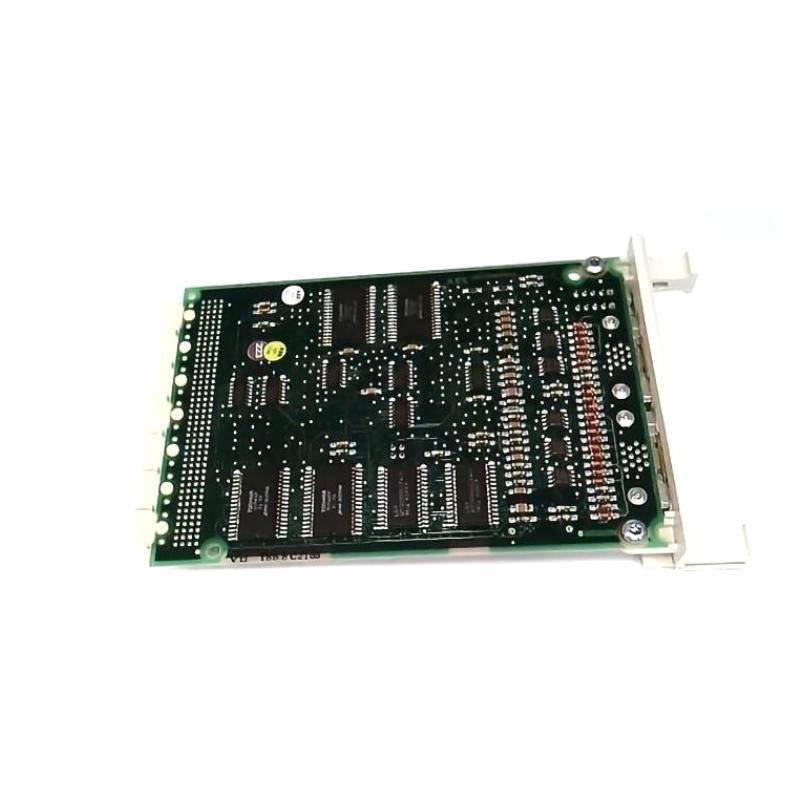

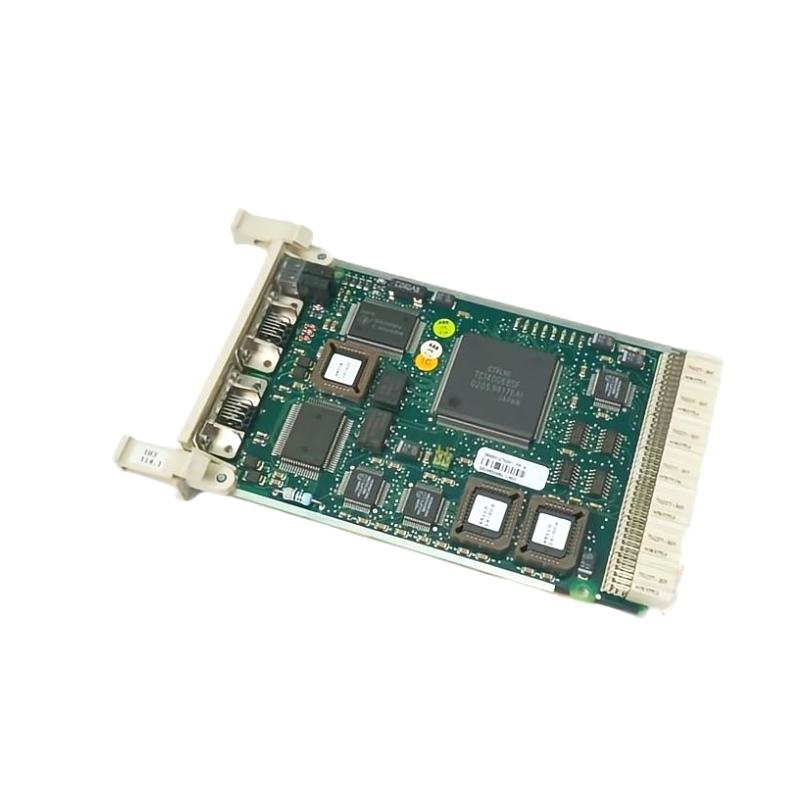

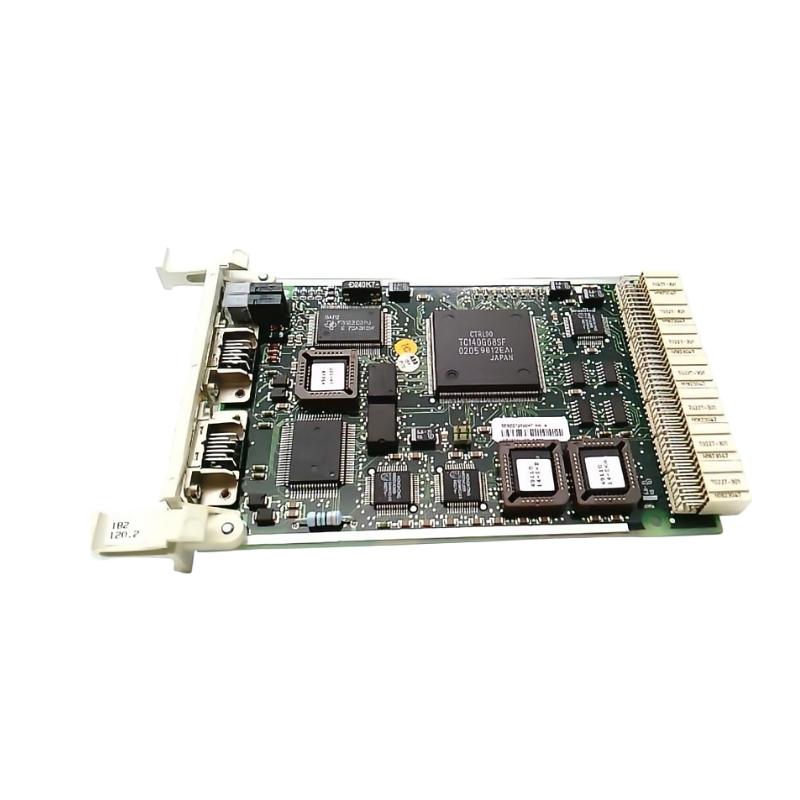

ABB CI522 3BSE012790R1 | Communication Interface Module Price Advantage

Overview

The ABB CI522 3BSE012790R1 is a high-performance communication interface module designed for use in ABB’s industrial automation systems. This module serves as a bus coupler, providing a fast and reliable communication link between the control system and field devices. It enables seamless data exchange between devices over various communication protocols, ensuring efficient operation and integration in industrial control networks.

General Information

Part Number: 3BSE012790R1

Manufacturer: ABB

Series: CI (Communication Interface)

Type: Communication Interface Module

Mounting: DIN rail or rack-mounted installation

Technology: Communication interface, protocol translation, and fieldbus integration

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input: Powered from the system backplane

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for power, communication status, and system health

Communication & Interface

Communication Ports: Supports communication protocols such as PROFIBUS, Modbus, and Ethernet/IP

Diagnostic Features: Signal integrity monitoring, fault detection, communication link supervision

Operator Interface: LED indicators for operational status, fault reporting, and troubleshooting

Protocol Support: Multi-protocol support for seamless communication with different fieldbus networks

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 62 × 76 × 67.5 mm

Weight: ~ 0.158 kg
