Overview

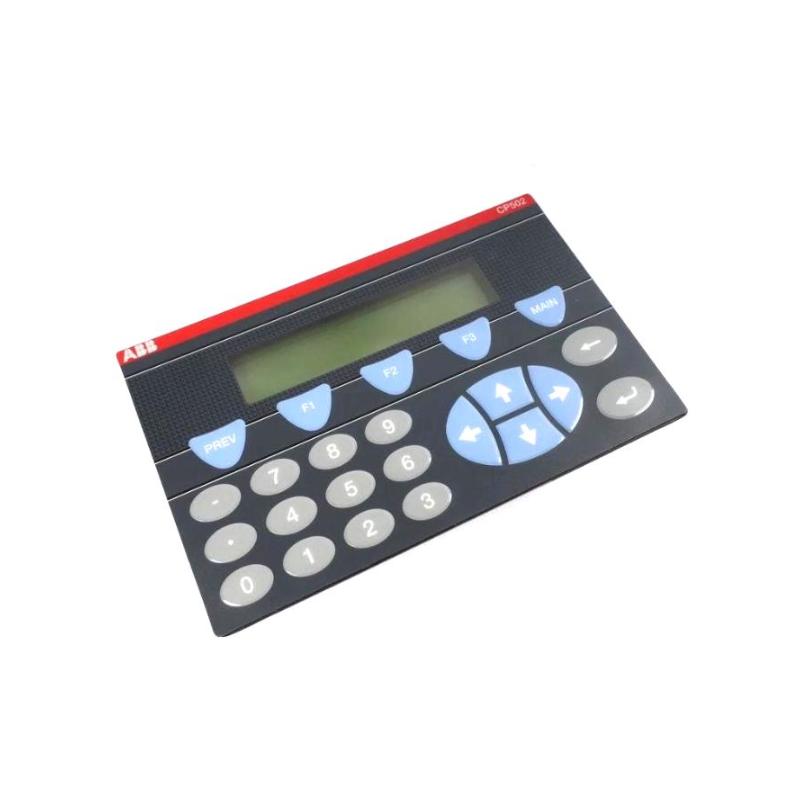

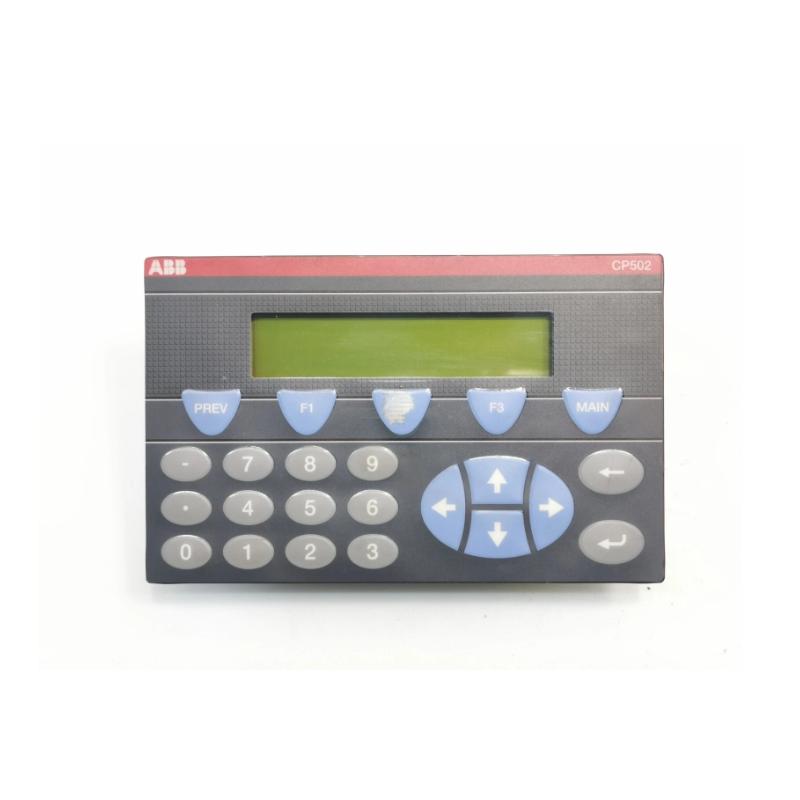

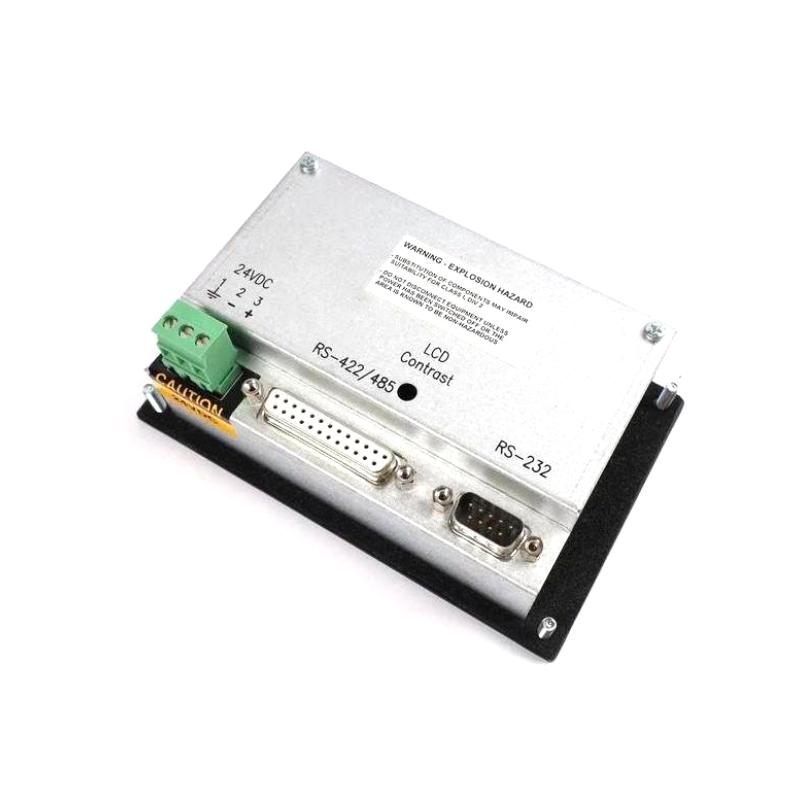

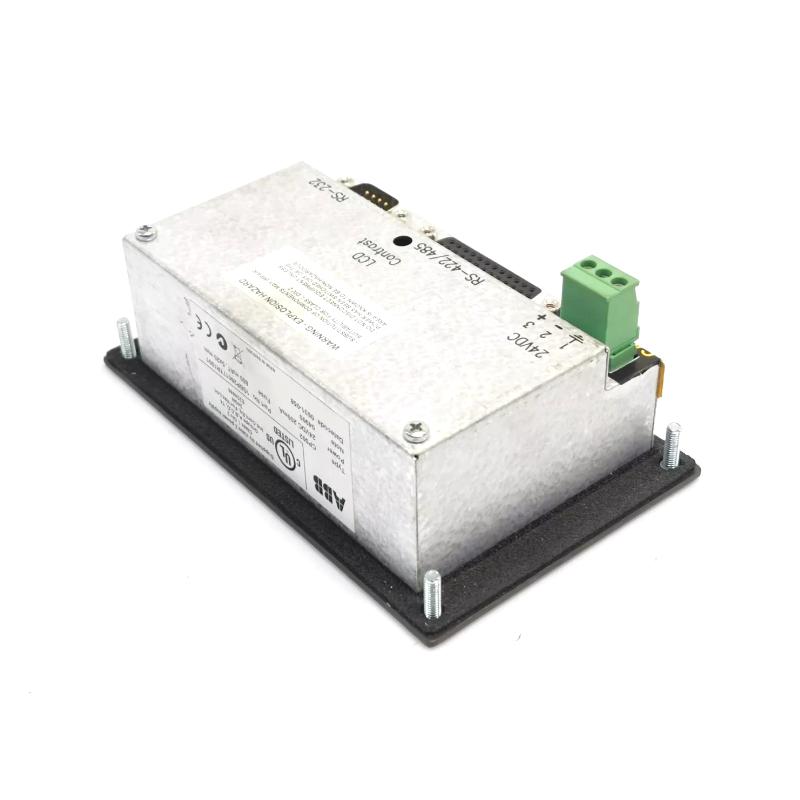

The ABB CP502 1SBP260171R1001 is a versatile and reliable control panel designed for integration into ABB’s industrial automation systems. It provides operators with an intuitive interface for controlling and monitoring complex industrial processes. The CP502 panel is specifically designed for use in applications that require real-time process control, system monitoring, and diagnostics. It ensures smooth operation and reliable performance in industrial environments.

General Information

Part Number: 1SBP260171R1001

Manufacturer: ABB

Series: CP (Control Panel)

Type: Control Panel

Mounting: Typically wall-mounted or rack-mounted installation

Technology: Operator interface, process control, system diagnostics

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 50 W

Input: Powered from the system backplane

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for power, communication status, and system health

Communication & Interface

Communication Ports: Supports multiple communication protocols for seamless integration with field devices and control systems

Diagnostic Features: Real-time diagnostics, fault detection, system status monitoring

Operator Interface: Touchscreen or physical interface for ease of use and interaction

Protocol Support: Compatible with various industrial communication protocols including PROFIBUS, Modbus, and Ethernet/IP

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 400 × 300 × 100 mm

Weight: ~ 2.5 kg (approx.)
