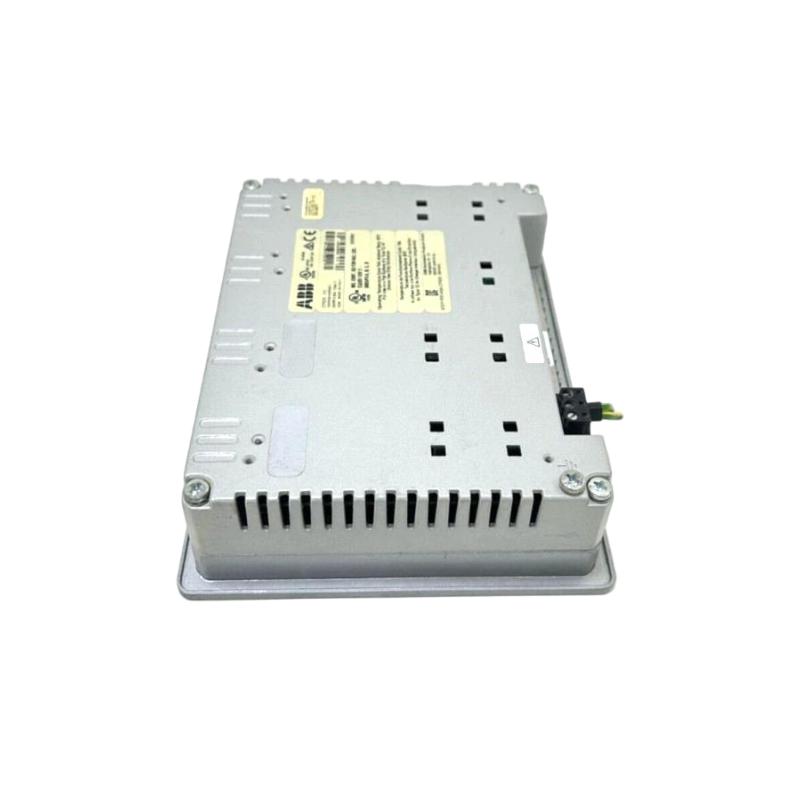

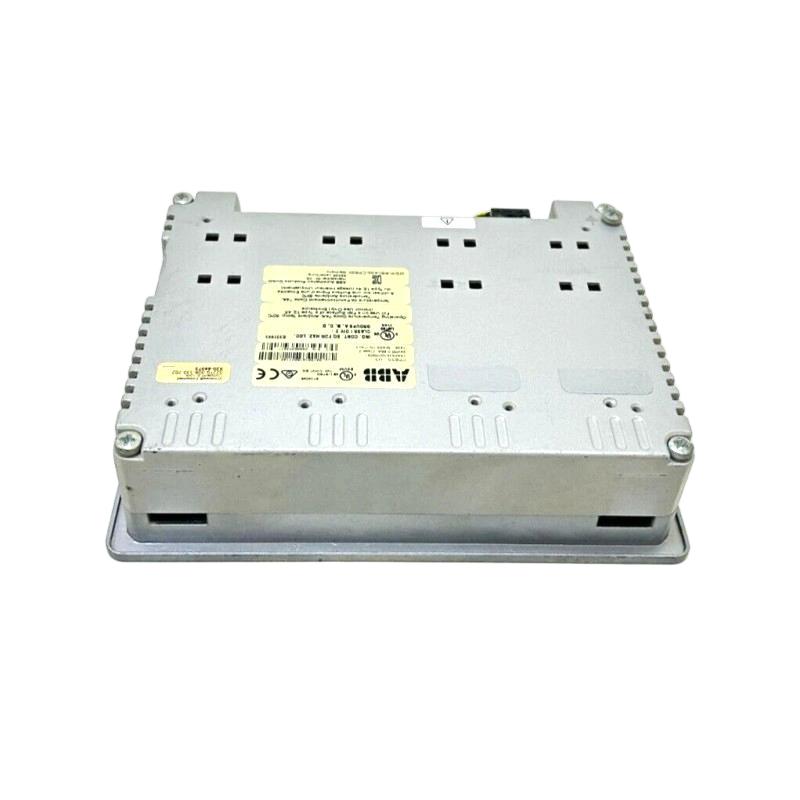

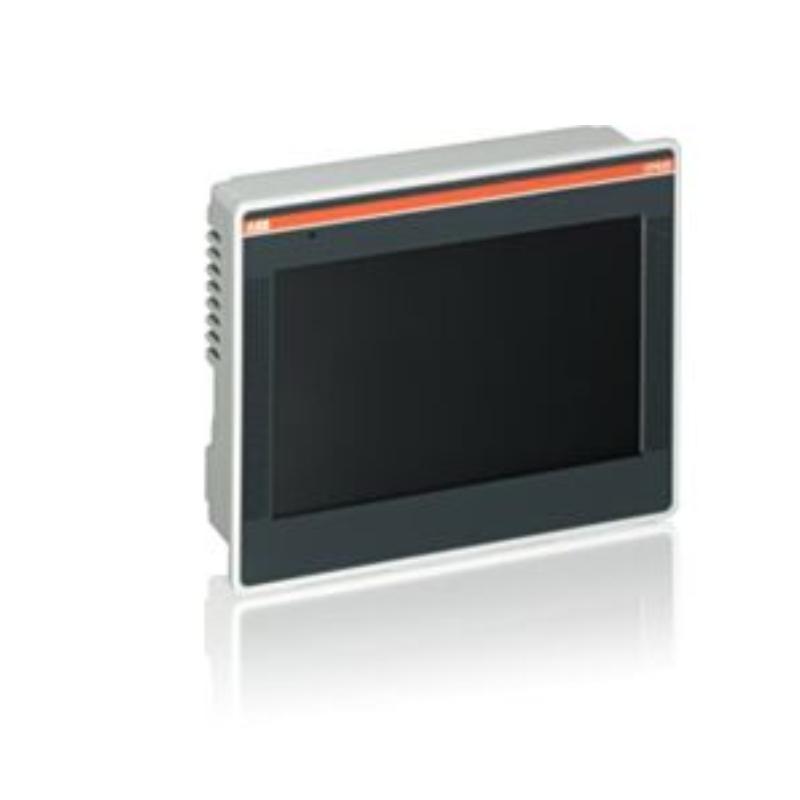

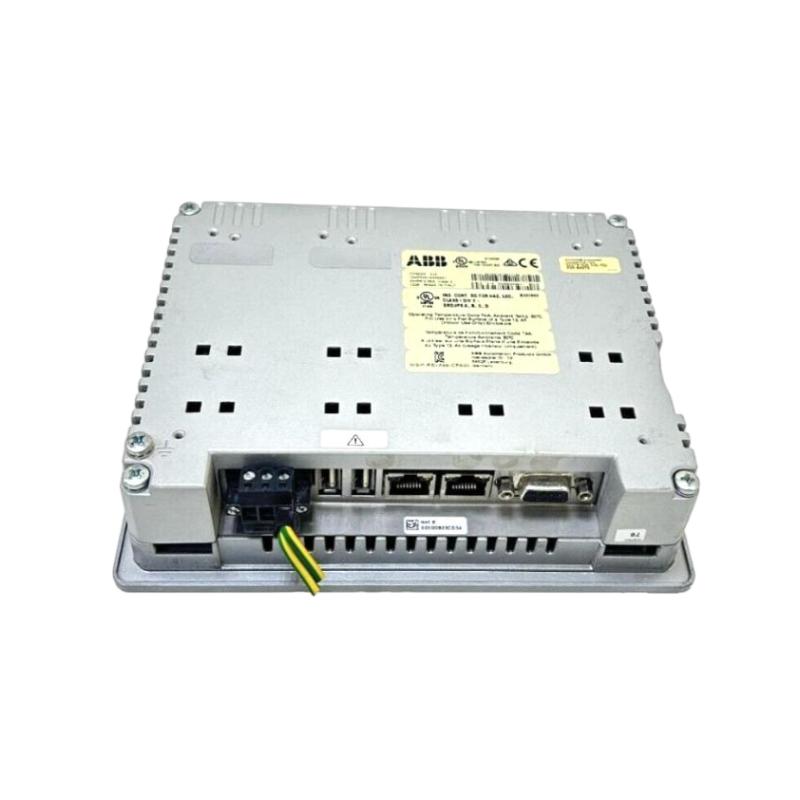

ABB CP630 1SAP530100R0001 | Control Panel Trusted supplier

Overview

The ABB CP630 1SAP530100R0001 is a versatile control panel designed for integration into ABB's industrial automation systems. This control panel provides a centralized interface for controlling and monitoring automation processes in real-time. It allows operators to efficiently interact with complex industrial systems, manage control functions, and perform diagnostics. The CP630 is optimized for applications that require robust and reliable process control, system monitoring, and real-time communication.

General Information

Part Number: 1SAP530100R0001

Manufacturer: ABB

Series: CP (Control Panel)

Type: Control Panel

Mounting: Typically wall-mounted or rack-mounted installation

Technology: Operator interface, real-time system monitoring, diagnostics

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 50 W

Input: Powered from the system backplane

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for power, system status, communication status

Communication & Interface

Communication Ports: Supports various communication protocols for seamless integration with control systems and field devices

Diagnostic Features: Real-time diagnostics, fault detection, and system health monitoring

Operator Interface: Integrated touchscreen or push-button interface for easy control and configuration

Protocol Support: Supports multiple industrial protocols, including PROFIBUS, Modbus, and Ethernet/IP

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 400 × 300 × 100 mm

Weight: ~ 2.5 kg
