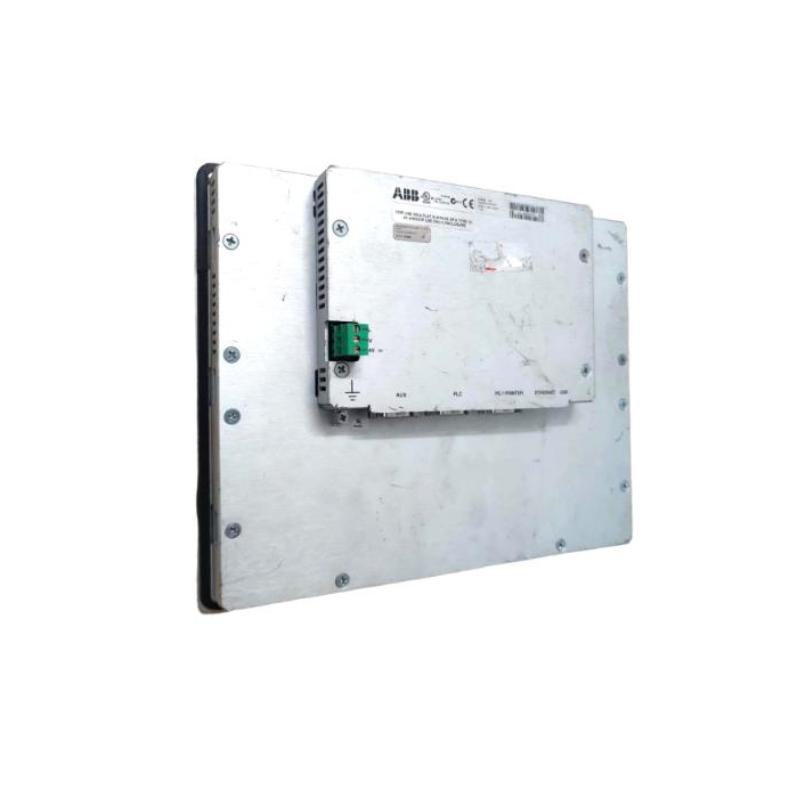

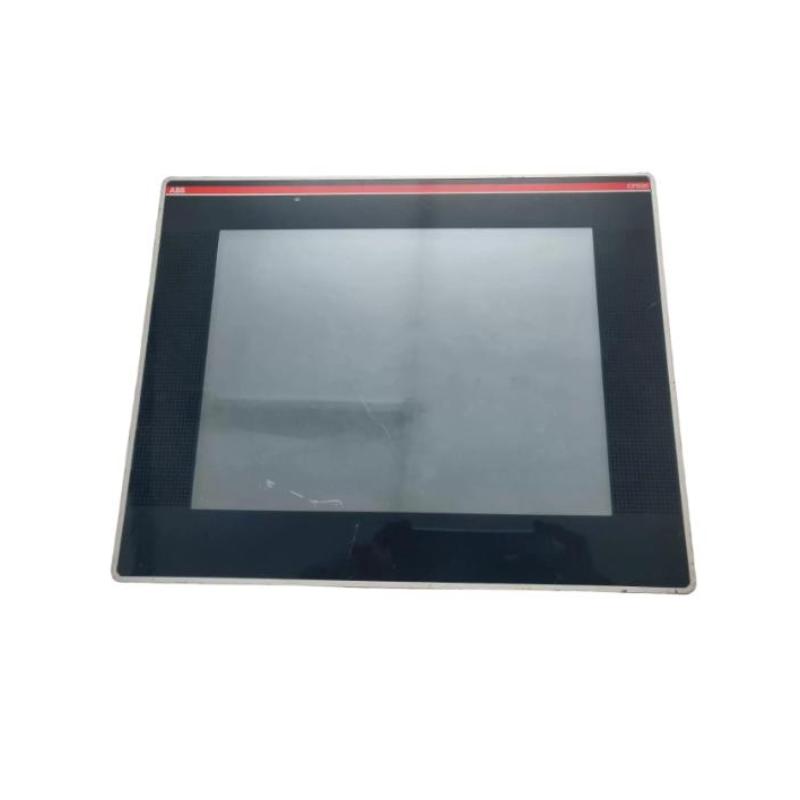

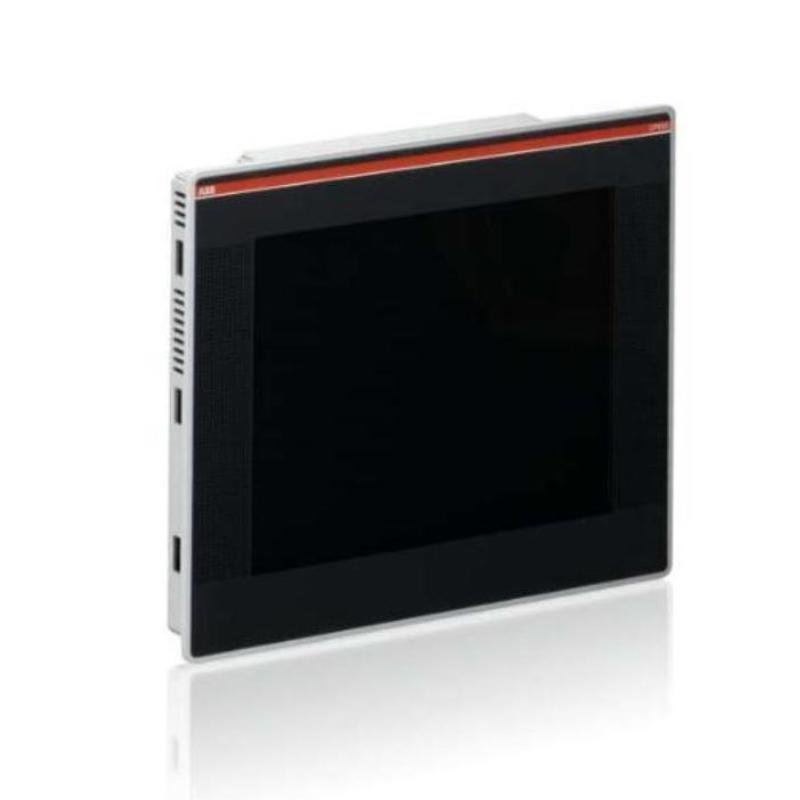

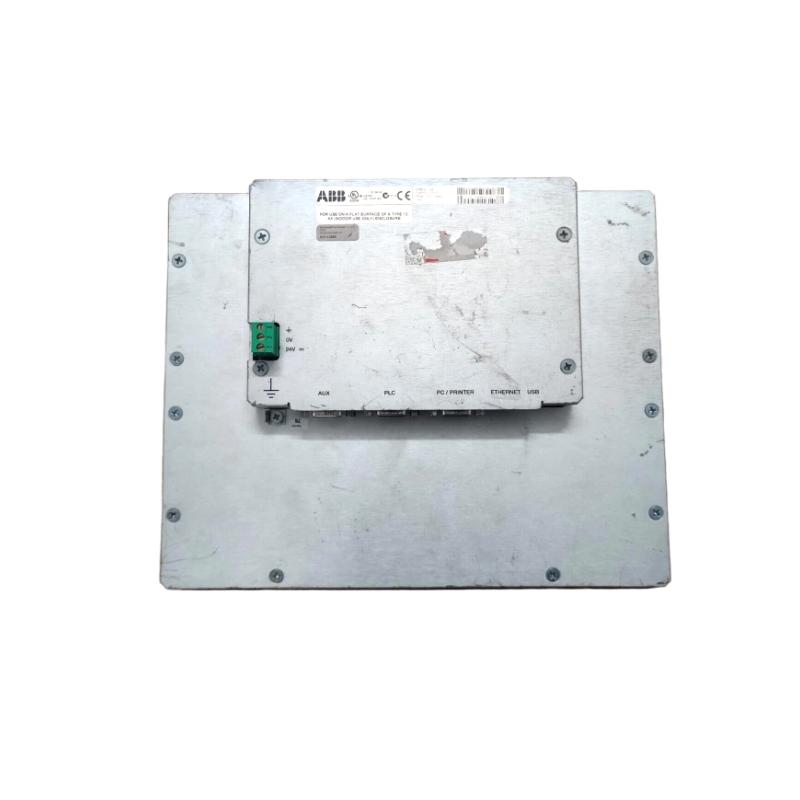

ABB CP650 1SAP550100R0001 | Control Panel 12-Month Warranty

Overview

The ABB CP650 1SAP550100R0001 is a high-performance control panel designed for integration into ABB’s industrial automation systems. It serves as a central user interface for operators to monitor and control industrial processes. The CP650 panel provides real-time data visualization, process control, and diagnostic capabilities, enabling efficient management of complex industrial operations. With a robust design and multi-protocol support, it is well-suited for demanding applications in various industrial environments.

General Information

Part Number: 1SAP550100R0001

Manufacturer: ABB

Series: CP (Control Panel)

Type: Control Panel

Mounting: Wall-mounted or rack-mounted installation

Technology: Operator interface, process control, real-time diagnostics, system monitoring

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 50 W

Input: Powered from the system backplane

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for power, system status, and communication link

Communication & Interface

Communication Ports: Supports a variety of industrial communication protocols for seamless integration with control systems and field devices

Diagnostic Features: Real-time diagnostics, system health monitoring, fault detection, status reporting

Operator Interface: Integrated touchscreen or physical interface for easy configuration and operation

Protocol Support: Compatible with multiple industrial communication protocols such as Modbus, PROFIBUS, and Ethernet/IP

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 370 × 120 × 270 mm

Weight: ~ 1.65 kg
