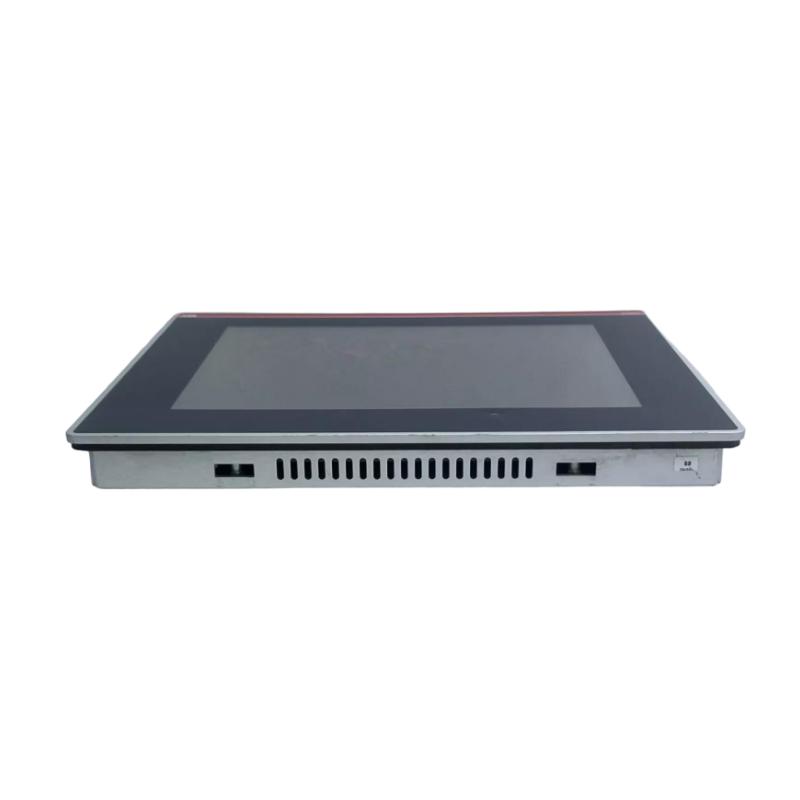

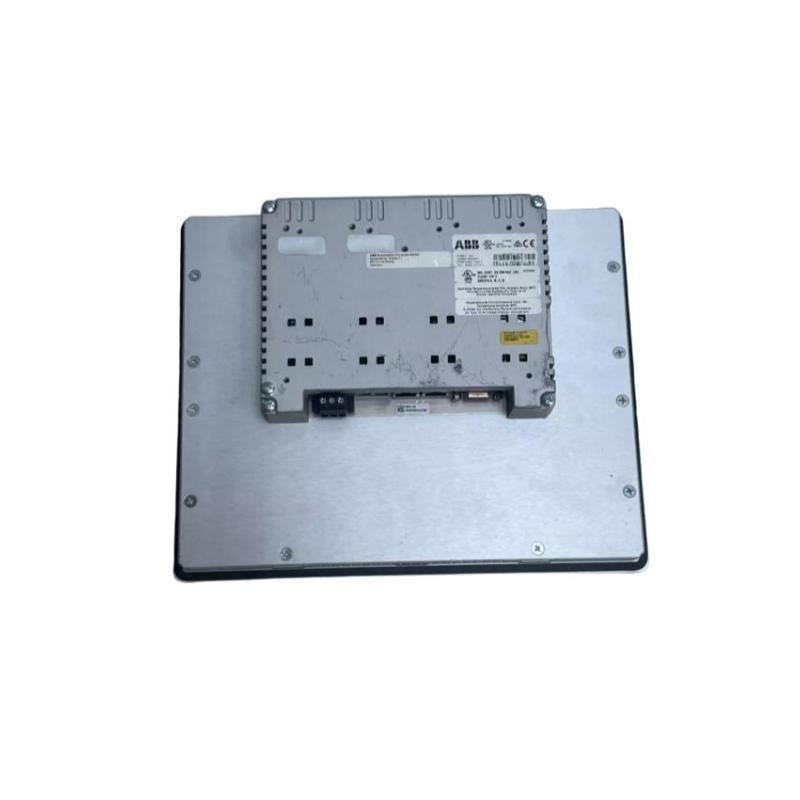

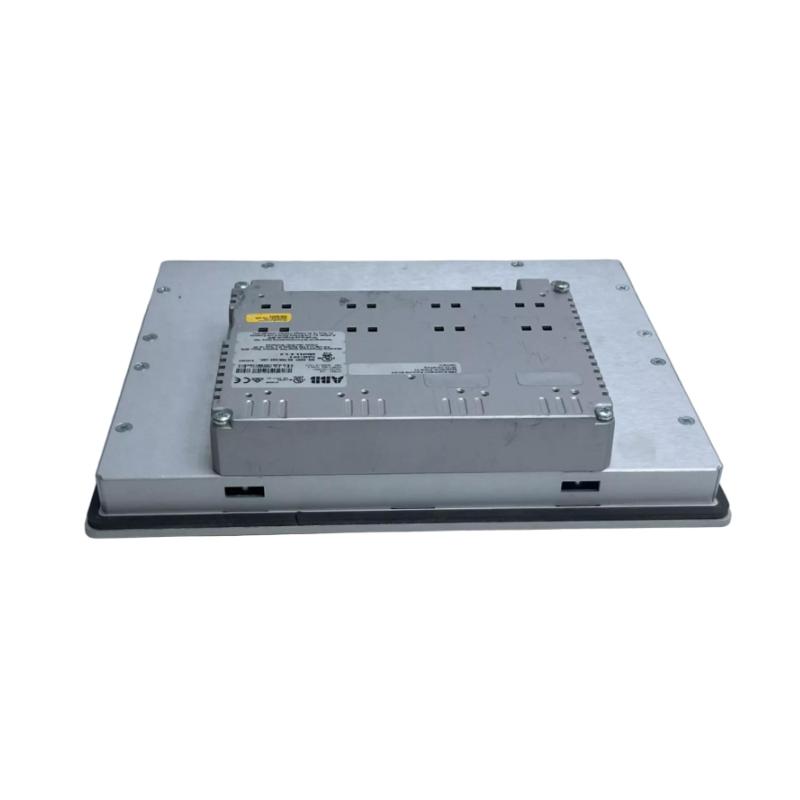

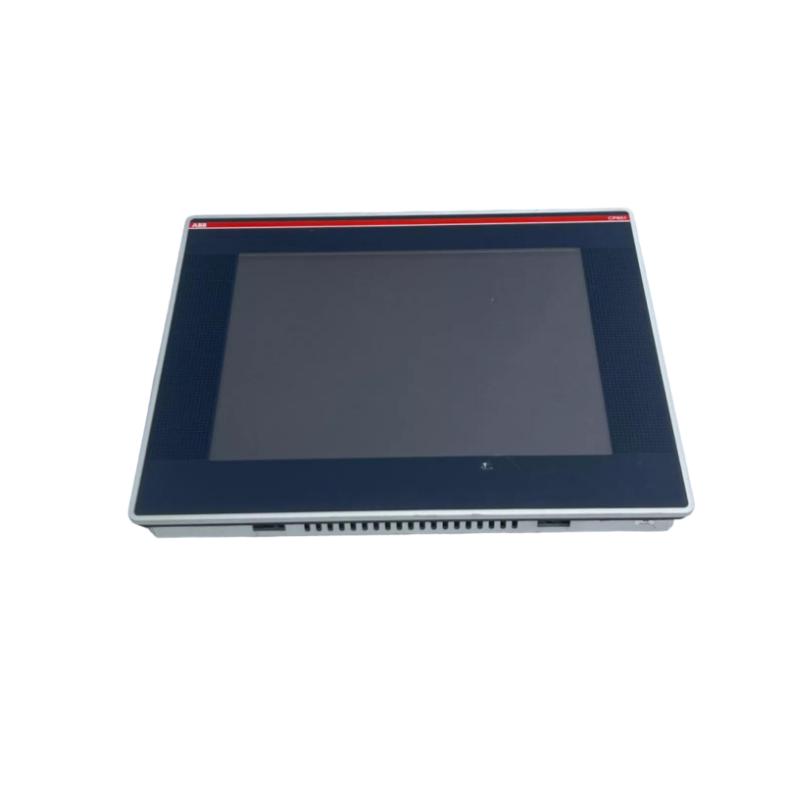

ABB CP651 1SAP551100R0001 | Control Panel Quality Assurance

Overview

The ABB CP651 1SAP551100R0001 is a high-performance control panel designed to integrate seamlessly into ABB's industrial automation systems. This panel serves as a centralized interface for monitoring and controlling industrial processes in real-time. The CP651 provides advanced diagnostic features, process control capabilities, and an intuitive user interface, making it suitable for complex industrial applications. It supports multiple communication protocols, allowing for flexible integration with various devices and control systems.

General Information

Part Number: 1SAP551100R0001

Manufacturer: ABB

Series: CP (Control Panel)

Type: Control Panel

Mounting: Wall-mounted or rack-mounted installation

Technology: Real-time process control, system diagnostics, operator interface

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 50 W

Input: Powered from the system backplane

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for power, communication status, and system health

Communication & Interface

Communication Ports: Supports various industrial communication protocols, ensuring compatibility with different control systems and devices

Diagnostic Features: Real-time diagnostics, system health monitoring, fault detection, and status reporting

Operator Interface: Touchscreen or physical interface for easy configuration and operation

Protocol Support: Multi-protocol support for integration with industrial networks such as Modbus, PROFIBUS, and Ethernet/IP

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 370 × 120 × 270 mm

Weight: ~ 2.9 kg
