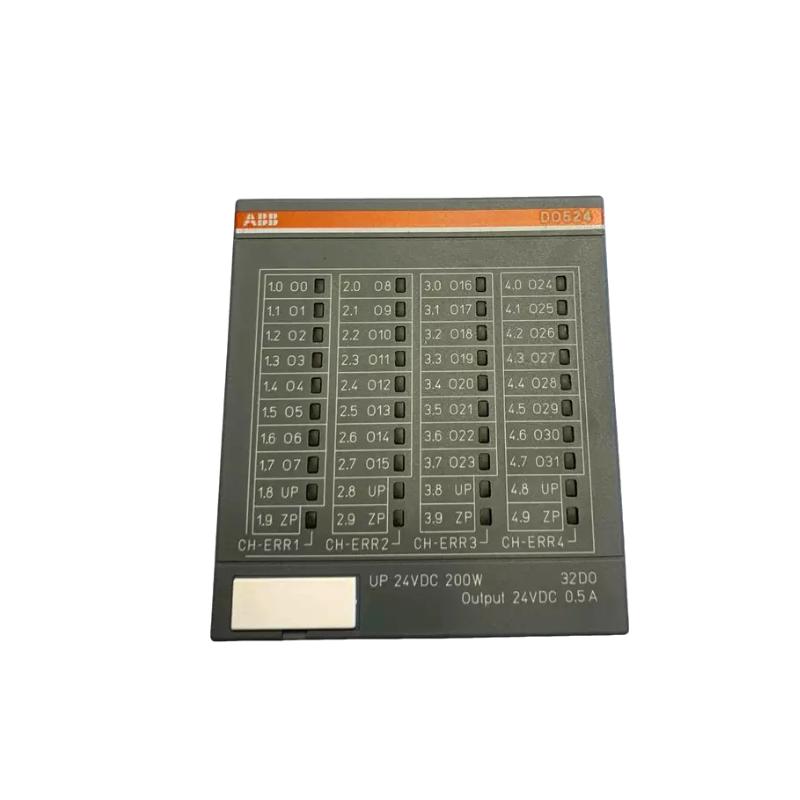

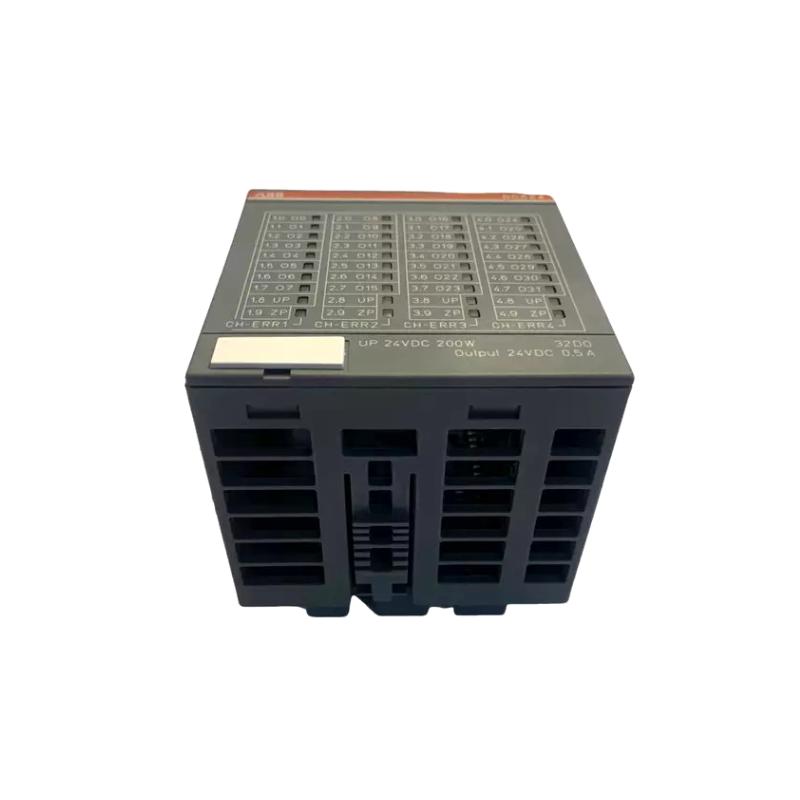

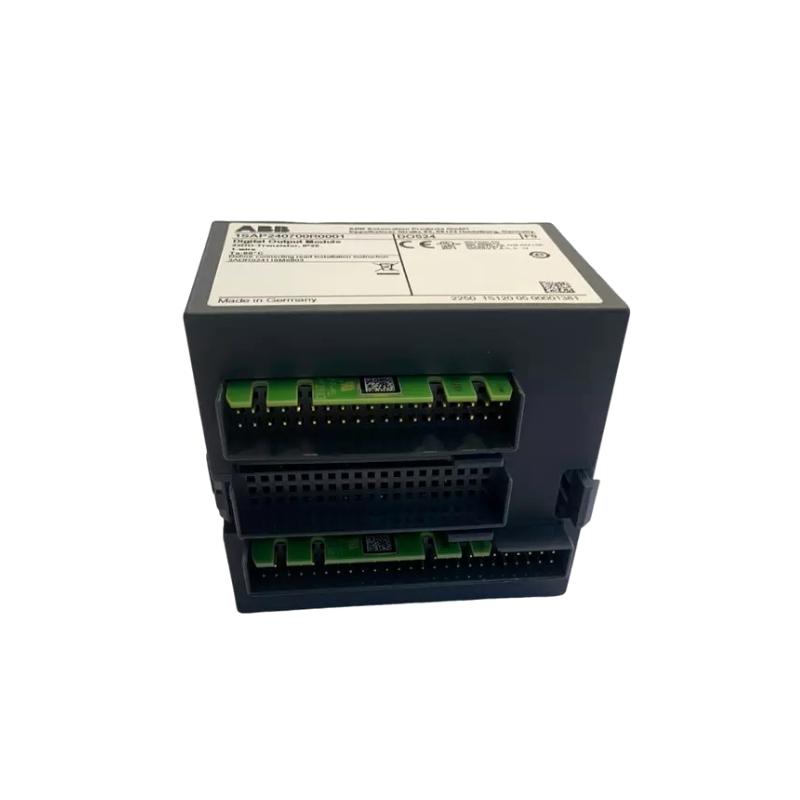

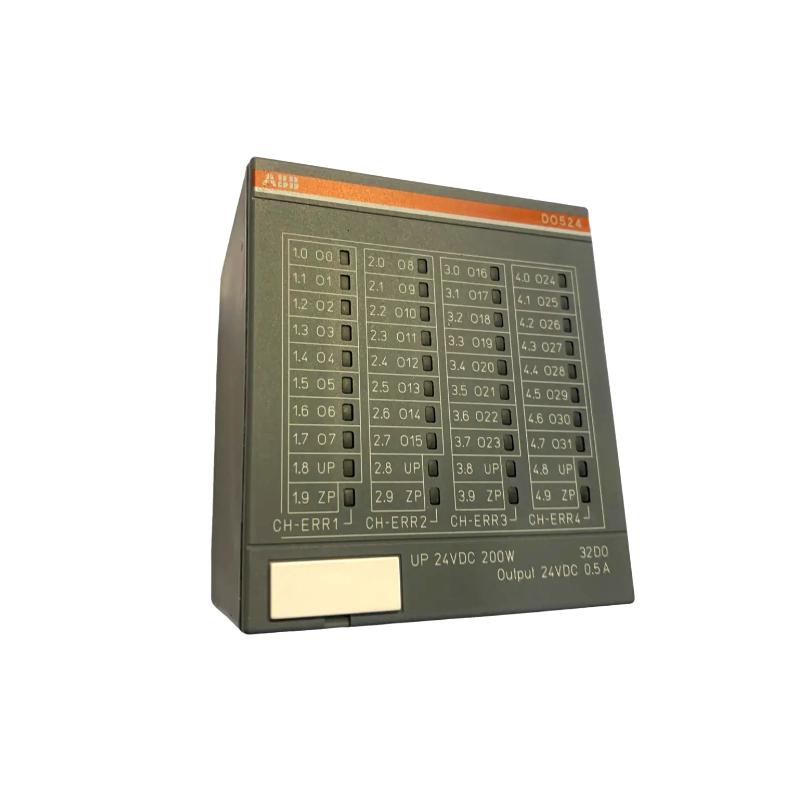

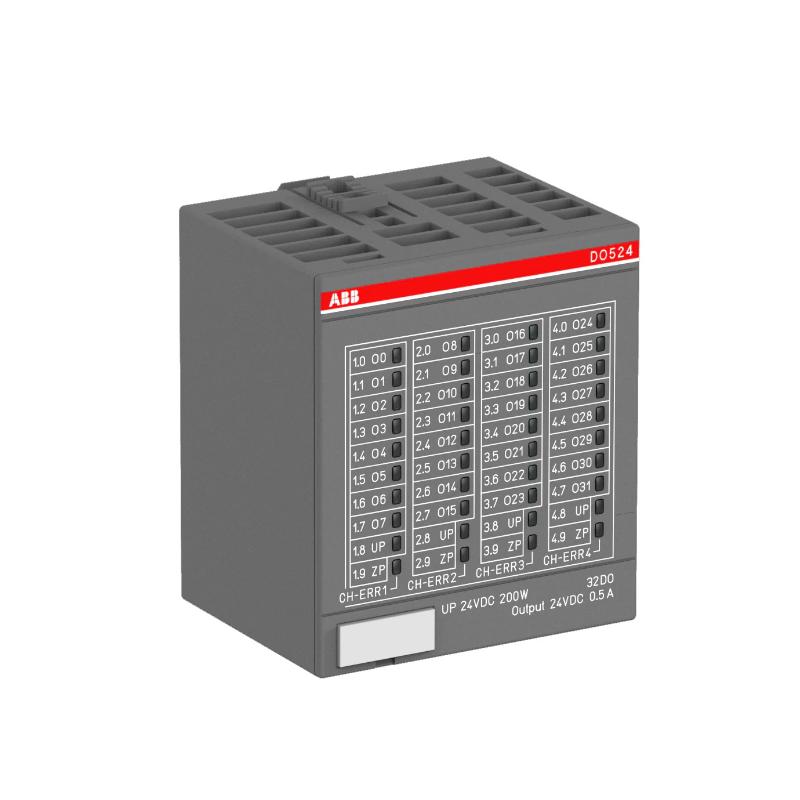

ABB DO524 1SAP240700R0001 | Digital Output Module Price Advantage

Overview

The ABB DO524 1SAP240700R0001 is a high-performance digital output module designed for integration into ABB’s industrial automation systems. This module is responsible for providing digital output signals to control field devices such as relays, solenoids, and other on/off actuators. The DO524 module ensures reliable and high-speed switching, making it ideal for applications requiring precise control and real-time data output. It is a key component for applications where efficient and accurate digital output is critical.

General Information

Part Number: 1SAP240700R0001

Manufacturer: ABB

Series: DO (Digital Output)

Type: Digital Output Module

Mounting: DIN rail or rack-mounted installation

Technology: Digital signal output, real-time control, system integration

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input: Powered from the system backplane

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for power, output status, and system health

Communication & Interface

Communication Ports: Integrated with the system backplane for communication with the central processing unit

Diagnostic Features: Real-time diagnostics, fault detection, and system health monitoring

Output Features: Multiple digital outputs for controlling field devices such as relays, solenoids, and other on/off devices

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 62 × 76 × 67.5 mm

Weight: 0.106 kg
