ABB DO561 1TNE968902R2201 | Digital Output Module Trusted supplier

Overview

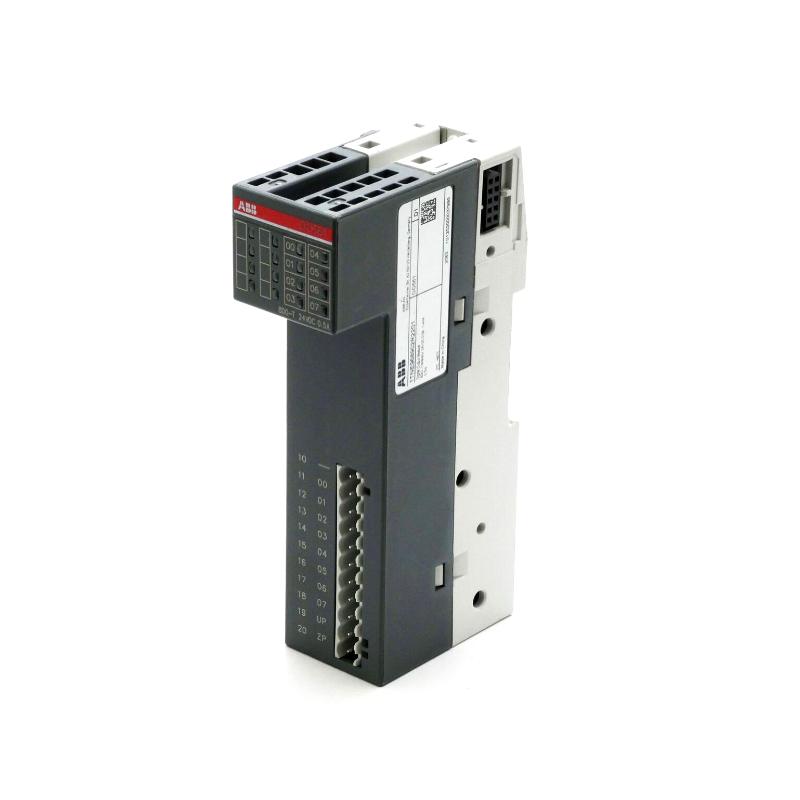

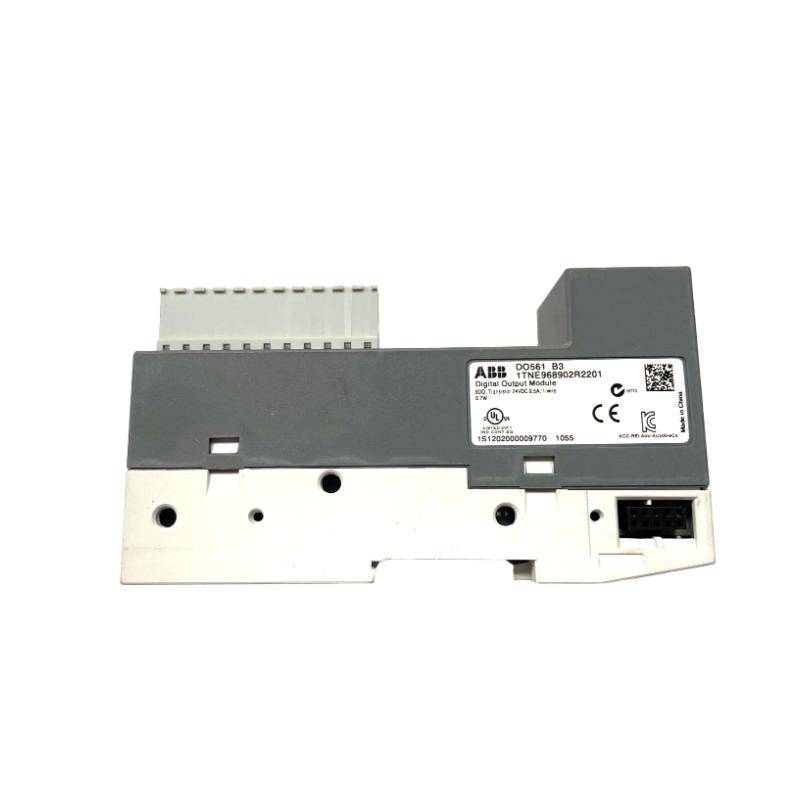

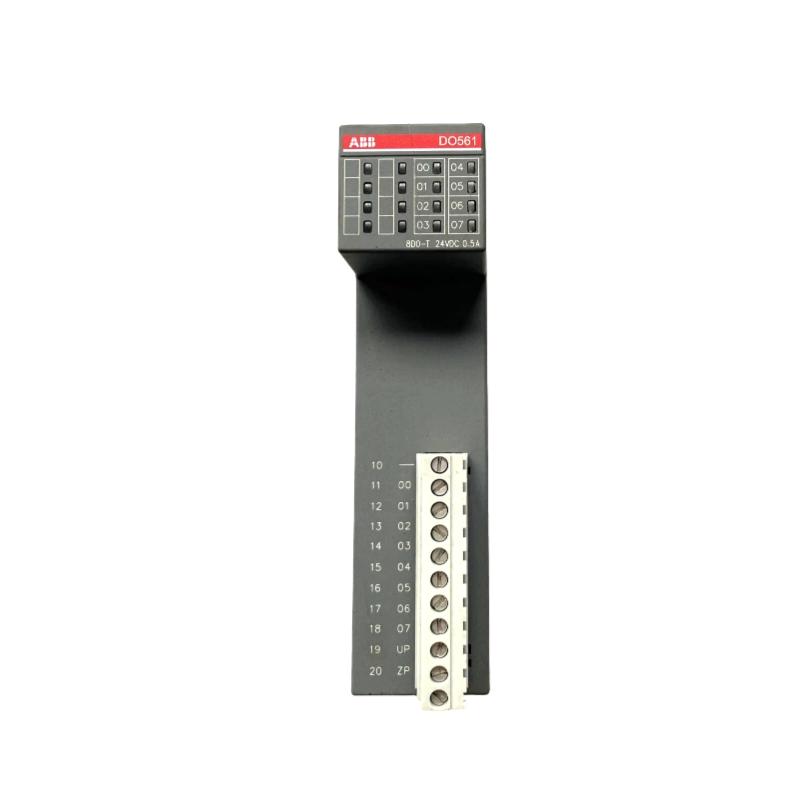

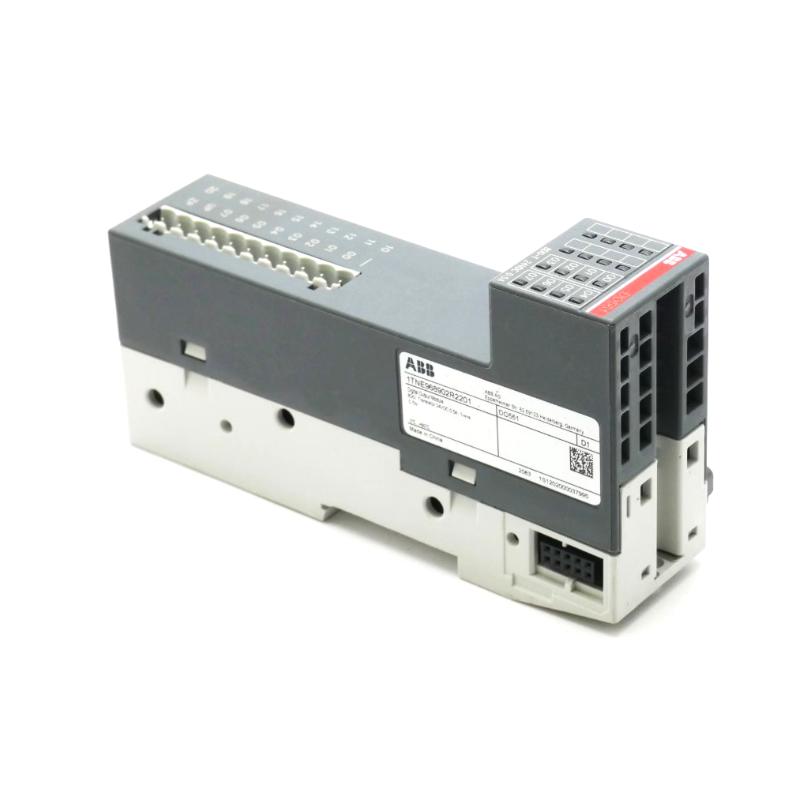

The ABB DO561 1TNE968902R2201 is a high-performance digital output module designed for use in ABB’s industrial automation systems. This module is responsible for driving digital output signals to control various field devices such as relays, solenoids, and on/off actuators. With its reliable and rapid switching capabilities, the DO561 is ideal for applications that require precise, real-time control of output devices. It is a crucial component in applications demanding accurate digital output for efficient automation processes.

General Information

• Part Number: 1TNE968902R2201

• Manufacturer: ABB

• Series: DO (Digital Output)

• Type: Digital Output Module

• Mounting: DIN rail or rack-mounted installation

• Technology: Digital signal output, real-time control, system integration

• Brand / Country of Origin: ABB / Sweden

Power Specifications

• Supply Voltage: 24 V DC

• Power Consumption: ≤ 10 W

• Input: Powered from the system backplane

• Protection: Surge protection, reverse-polarity protection

• Indicators: LED indicators for power, output status, and system health

Communication & Interface

• Communication Ports: Integrated with the system backplane for communication with the central processing unit

• Diagnostic Features: Real-time diagnostics, fault detection, and system health monitoring

• Output Features: Multiple digital outputs for controlling field devices such as relays, solenoids, and other on/off devices

Environmental

• Operating Temperature: −20 to +60 °C

• Humidity: Up to 95% RH, non-condensing

• Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

• Dimensions (L × W × H): 93 × 63 × 170 mm

• Weight: 0.22 kg
